2012 FORD FOCUS ELECTRIC USB port

Introduction5
Instrument Cluster 16
Warning lamps and indicators .............................16
Gauges .............................................20
Message center .......................................22
Information messages ...................................29
Entertainment Systems 39
AM/FM stereo with single CD .............................39
Auxiliary input jack (Line in) .............................40
USB port ............................................42
Satellite radio information ................................45
MyFord Touch 48
Infotainment display ....................................54
Voice recognition ......................................56
Listening to music .....................................61
Phone features ........................................83
Information Menu ......................................90
Menu features .......................................101
Settings ........................................... .103
Climate features ......................................109
Navigation system .....................................112
Climate Control 123
Rear window defroster .................................127
Lighting 128
Headlamps ......................................... .128
Autolamps ......................................... .128
Daytime running lamps .................................129
Panel dimmer control ..................................130
Turn signal control ....................................132
Interior lamps ........................................132
Bulb replacement .....................................134
Table of Contents 1
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

USB Port
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device or feature that may
take their focus off the road. Your primary responsibility is the safe
operation of the vehicle. We recommend against the use of any
handheld device while driving, encourage the use of voice-operated
systems when possible and that you become aware of applicable state
and local laws that may affect use of electronic devices while driving.
Your vehicle is equipped with two
USB ports in the center console.
This allows you to plug in media
playing devices, memory sticks, and
also to charge devices if they
support this feature. Refer to your
MyFord Touchchapter for
information.
Media Hub Your vehicle is equipped with the
MyFord Touchtouchscreen
system. The media hub is located in
your center console and contains
the following:
1. USB ports
2. SD card slot
3. AV inputs
For more information on these components, refer to the MyFord Touch
chapter.
1
32
42 Entertainment Systems
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

Speed-Restricted Features
Some features of this system may be too difficult to use while the vehicle
is in motion so they’re restricted from being modified unless the vehicle
is not moving. Some examples of these are listed below:
•Screens that are too crowded with information, such as Point of
Interest (POI) reviews and ratings, SIRIUS Travel Link™ sports
scores, movie times, ski conditions, etc.
• Any action that requires using a keyboard, such as entering a
navigation destination or editing information
• All lists are limited so the user can view fewer entries (e.g. phone
contacts, recent phone call entries)
Listed below are more specific features that can only be modified while
the vehicle is not moving:
Restricted features
Cellular Phone Pairing a Bluetooth phone Adding phonebook contacts or uploading
phonebook contacts (from a USB)
Lists entries are limited for phone contacts
and recent phone call entries
System Functionality Editing the keypad code Enabling Valet Mode
Editing settings while the rear view camera or
Active Park Assist are active
Wi-Fi/Wireless Editing wireless settings Editing the list of wireless networks
Videos/Photos/Graphics Playing video Editing photos
Editing the screen’s wallpaper or adding new
wallpaper
Text Messages Composing text messages Viewing received text messages
Editing preset text messages
Navigation Using the keyboard to enter a destination
Demo navigation route
Adding/Editing Address Book entries or Avoid
Areas
52MyFord Touch
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

SD Card Slot and USB Port
SD Card Slot
Note:Your SD card slot is spring-loaded. To remove the SD card, press
the card in and the system ejects it. Do not attempt to pull the card to
remove it as this could cause damage.
The card slot can be used for your navigation card (if equipped). Refer
to Navigation system later in this chapter for more information.
The slot is located either in the center console
or behind a small access door in the
instrument panel. To access and play music
from your SD card slot, press the lower left
corner of the touchscreen.
SD logo is a trademark of SD-3C,
LLC.
USB Port The ports are located either in the center
console or behind a small access door in the
instrument panel. To access and play music
from your device, press the lower left corner
of the touchscreen.
This feature allows you to plug in media playing devices, memory sticks,
flash/thumb drives and also charge devices if they support this feature.
In order to playback video from your iPod/iPhone (if compatible), you
MUST have a special combination USB/RCA composite video cable
(available for purchase from Apple). When the cable is connected to
your iPod/iPhone, plug the other end into both the RCA jacks and the
USB port.
MyFord Touch 75
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

5. Press the lower left corner on the touchscreen. Select the A/V in tab.(You should hear audio from your portable music player although it
may be low.)
6. Adjust the sound on your portable music player until it reaches the level of the FM station or CD by switching back and forth between
the controls.
In order to playback video from your iPod or iPhone(if compatible),
you must have a special combination USB/RCA composite video cable
(available for purchase from Apple). When the cable is connected to
your iPod or iPhone, plug the other end into both the RCA jacks and
the USB port.
Note: For safety reasons, connecting or adjusting the settings on your
portable music player should not be attempted while the vehicle is
moving. Also, the portable music player should be stored in a secure
location, such as the center console or the glove box, when the vehicle is
in motion. The audio extension cable must be long enough to allow the
portable music player to be safely stored while the vehicle is in motion.
Troubleshooting
• Do not connect the audio input jack to a line level output. The AIJ
only works correctly with devices that have a headphone output with
a volume control.
• Do not set the portable music player’s volume level higher than is
necessary to match the volume of the CD or FM radio as this causes
distortion and reduces sound quality.
• If the music sounds distorted at lower listening levels, turn the
portable music player volume down. If the problems persists, replace
or recharge the batteries in the portable music player.
• The portable music player must be controlled in the same manner
when it is used with headphones as the AIJ does not provide control
(play, pause, etc.) over the attached portable music player.
82 MyFord Touch
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

Voice settings
Media Candidate
Lists Candidate lists are possible results from your
voice commands. If these are turned off, the
system will simply make a best guess at your
request.
Phone Candidate
Lists
Voice Control Volume
Allows you to adjust the voice volume level.
Media Player Settings
Allows you to customize how the system will interact with your phone,
USB drive and portable media player.
1. Press the Menu icon > Settings > Media player.
2. Select from the following:
• Autoplay on/off: With this feature on, the system will automatically
switch to the media source upon initial connection and you can listen
to music which has already been randomly indexed during the
indexing process. With this feature off, the system will not
automatically switch to the inserted media source.
•
Bluetooth Devices: Select to connect, disconnect, add or delete a
device. You can also set a device as your favorite so that the system will
automatically attempt to connect to that device at every ignition cycle.
• Gracenote Database Info: Allows you to view the version level of
the Gracenote Database.
• Gracenote Media Management on/off: When turned on, this
feature will pull in metadata information from the Gracenote Database
for your music files. This will override information from your device.
This feature defaults to off.
• Gracenote Cover Art on/off: When turned on, this feature will pull
in cover art from the Gracenote Database for your music files. This
will override any art from your device. This feature defaults to off.
Navigation Settings
To access navigation system settings, press the Menu icon > Settings >
Navigation. Choose from:
• Map Preferences
• Route Preferences
• Navigation Preferences
• Traffic Preferences
• Avoid Areas
104 MyFord Touch
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

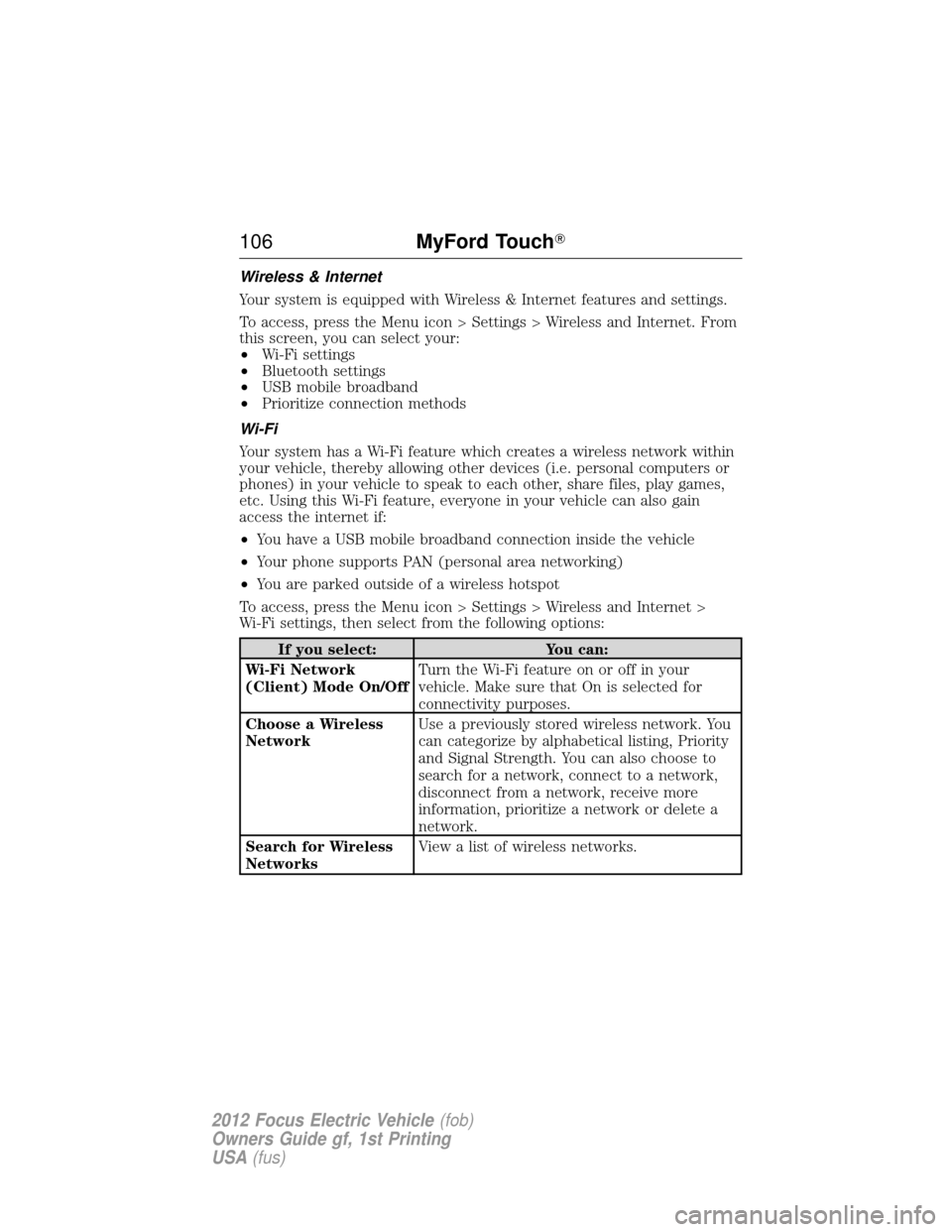

Wireless & Internet
Your system is equipped with Wireless & Internet features and settings.
To access, press the Menu icon > Settings > Wireless and Internet. From
this screen, you can select your:
•Wi-Fi settings
• Bluetooth settings
• USB mobile broadband
• Prioritize connection methods
Wi-Fi
Your system has a Wi-Fi feature which creates a wireless network within
your vehicle, thereby allowing other devices (i.e. personal computers or
phones) in your vehicle to speak to each other, share files, play games,
etc. Using this Wi-Fi feature, everyone in your vehicle can also gain
access the internet if:
• You have a USB mobile broadband connection inside the vehicle
• Your phone supports PAN (personal area networking)
• You are parked outside of a wireless hotspot
To access, press the Menu icon > Settings > Wireless and Internet >
Wi-Fi settings, then select from the following options:
If you select: You can:
Wi-Fi Network
(Client) Mode On/Off Turn the Wi-Fi feature on or off in your
vehicle. Make sure that On is selected for
connectivity purposes.
Choose a Wireless
Network Use a previously stored wireless network. You
can categorize by alphabetical listing, Priority
and Signal Strength. You can also choose to
search for a network, connect to a network,
disconnect from a network, receive more
information, prioritize a network or delete a
network.
Search for Wireless
Networks View a list of wireless networks.
106
MyFord Touch
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

TILT/TELESCOPE STEERING WHEEL
WARNING:Never adjust the steering wheel when the vehicle is
moving.
To adjust the steering wheel:
1. Pull the lever down to unlock the
steering column.
2. While the lever is in the down
position, move the steering wheel
up or down and in or out until you
find the desired position.
3. While holding the steering wheel
in place, pull the lever up to its
original position to lock the steering
column.
SUN VISORS
Illuminated Visor Vanity Mirror Lift the cover to switch on the
lamp.
CENTER CONSOLE
WARNING: Use only soft cups in the cupholder. Hard objects
can injure you in a collision.
Your vehicle has a variety of console features. These may include:
• Cupholders
• Utility compartment
• Auxiliary AV connections, USB port, SD slot
140 Driver Controls
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)
