2012 FORD FOCUS ELECTRIC automatic transmission

Tires, Wheels and Loading225
Tire information ......................................225
Tire Pressure Monitoring System (TPMS) ...................240
Vehicle loading .......................................245
Trailer towing ........................................250
Recreational towing ...................................251
Driving 252
Starting ........................................... .252
Brakes ............................................ .255
AdvanceTrac .......................................258
Automatic transmission .................................264
Hill start assist .......................................265
Reverse sensing system .................................266
Rear-view camera system ...............................268
Roadside Emergencies 275
Getting roadside assistance ..............................275
Hazard warning flashers ................................276
High-voltage shut-off ...................................277
Fuses and relays ......................................278
Changing tires .......................................287
Temporary mobility kit .................................289
Wheel lug nut torque ..................................298
Jump starting ........................................299
Wrecker towing ......................................302
Customer Assistance 304
Reporting safety defects (U.S. only) .......................311
Reporting safety defects (Canada only) .....................311
Table of Contents3
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

Stopping:The vehicle is equipped with a regenerative braking system.
Slowing the vehicle adds charge to the high voltage battery which
improves vehicle range.
Transmission Operation: This electric vehicle is equipped with a single
speed transmission. Torque is delivered to the wheels seamlessly without
shifting associated with a normal automatic transmission.
Neutral: N (Neutral gear)
Low: L (Low gear) is designed to mimic the enhanced engine braking
available in conventional vehicles. L (Low gear) will produce a higher
level of regenerative braking when your foot is off the accelerator pedal.
This is normal and will not damage your vehicle.
Reverse: R (Reverse gear)
Unique electric operating characteristics
Your electric vehicle, with its new technology, behaves differently
compared to a conventional vehicle or hybrid. Here is a description of
the major differences:
Battery: The best battery performance and life comes when the high
voltage battery is at a moderate temperature. The high voltage battery is
heated and cooled by a liquid cooling loop. The high voltage battery
consists of two packs one located under the rear seat and the second
located behind the rear seat in the trunk of the vehicle.
Plugging In: The electric vehicle must be plugged in to recharge the high
voltage battery. The vehicle is equipped with a high voltage charge port on
the front left hand fender for charging. The vehicle comes standard with a
120V convenience cord set which is located in the trunk. This can be
plugged into any standard electric outlet and will fully charge the high
voltage battery in about 18-20 hours. Ford has partnered with Best Buy to
offer a 240V Leviton charger that is capable of fully charging the battery in
3 to 4 hours. The charge port door is designed for convenient “push-push”
opening and closing. Press on the door in the location of the indentation to
open the door. To close the door, press in the same location until the door
has rotated back into position and clicked into place. To charge the vehicle,
open the charge port door and plug the charging coupler into the charge
port receptacle. You will know the connection has been made when the
charge port light ring illuminates the quadrants individually. The light ring
will then display battery state of charge in 25% increments.
Braking: Your electric vehicle is equipped with standard hydraulic
braking and regenerative braking. Regenerative braking is performed by
your transmission and it captures brake energy and stores it in your high
voltage battery. This system greatly improves driving range especially in
stop and go city traffic.
Introduction 7
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

SINGLE SPEED AUTOMATIC TRANSMISSION
WARNING:Always set the parking brake fully and make sure
the gearshift lever is latched in P (Park).
The single-speed transmission is built specifically to handle the high RPM
range that comes with an all-electric motor. P (Park)
Note:The vehicle can only be
started in P (Park).
This position locks the transmission
and prevents the front wheels from
turning.
To put your vehicle in gear:
• Press the brake pedal.
• Move the gearshift lever into the
desired gear.
To put your vehicle in P (Park):
• Come to a complete stop.
• Move the gearshift lever and securely latch it in P (Park).
R (Reverse)
With the gearshift lever in R (Reverse), the vehicle will move backward.
Always come to a complete stop before shifting into and out of R (Reverse).
N (Neutral)
With the gearshift lever in N (Neutral), the vehicle can be started and is
free to roll. Hold the brake pedal down while in this position.
D (Drive)
The normal driving position for your vehicle. The transmission operates
in a single gear built specifically to handle the high RPM range that
comes with an all-electric motor.
L (Low)
• Provides maximum motor braking.
• Is not intended for use under extended or normal driving conditions
and results in less miles per charge.
• The transmission may be shifted into L (Low) at any vehicle speed.
PRNDL
264 Driving
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

HILL START ASSIST
WARNING:The hill start assist feature does not replace the
parking brake. When you leave the vehicle, always apply the
parking brake and shift the transmission into P (Park).
WARNING: You must remain in the vehicle once you have
activated the hill start assist feature.
WARNING: During all times, you are responsible for controlling
the vehicle, supervising the hill start assist system and
intervening, if required.
WARNING: If the motor is revved excessively, or if a malfunction
is detected when the hill start assist feature is active, the hill
start assist feature will be deactivated.
The hill start assist feature makes it easier to pull away when the vehicle is
on a slope without the need to use the parking brake. When the hill start
assist feature is active, the vehicle will remain stationary on the slope for
up to two seconds after you release the brake pedal. During this time, you
have time to move your foot from the brake to the accelerator pedal and
pull away. The brakes are released automatically once the motor has
developed sufficient drive to prevent the vehicle from rolling down the
slope. This is an advantage when pulling away on a slope; for example from
a car park ramp, traffic lights or when reversing uphill into a parking space.
The hill start assist feature is activated automatically when the vehicle is
stopped on a slope greater than five degrees. The hill start assist feature
operates with the vehicle facing downhill if reverse gear is selected. The
hill start assist feature will not operate if the parking brake is activated.
To activate hill start assist, do the following:
1. Press the brake pedal to bring the vehicle to a complete standstill.
Keep the brake pedal pressed.
2. If the sensors detect that the vehicle is on a slope, the hill start assist
feature will be activated automatically.
3. When you remove your foot from the brake pedal, the vehicle will
remain on the slope without rolling away for approximately up to two
seconds. This hold time will automatically be extended if you are in the
process of driving off.
4. Drive off in the normal manner. The brakes will be released automatically.
Driving 265
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

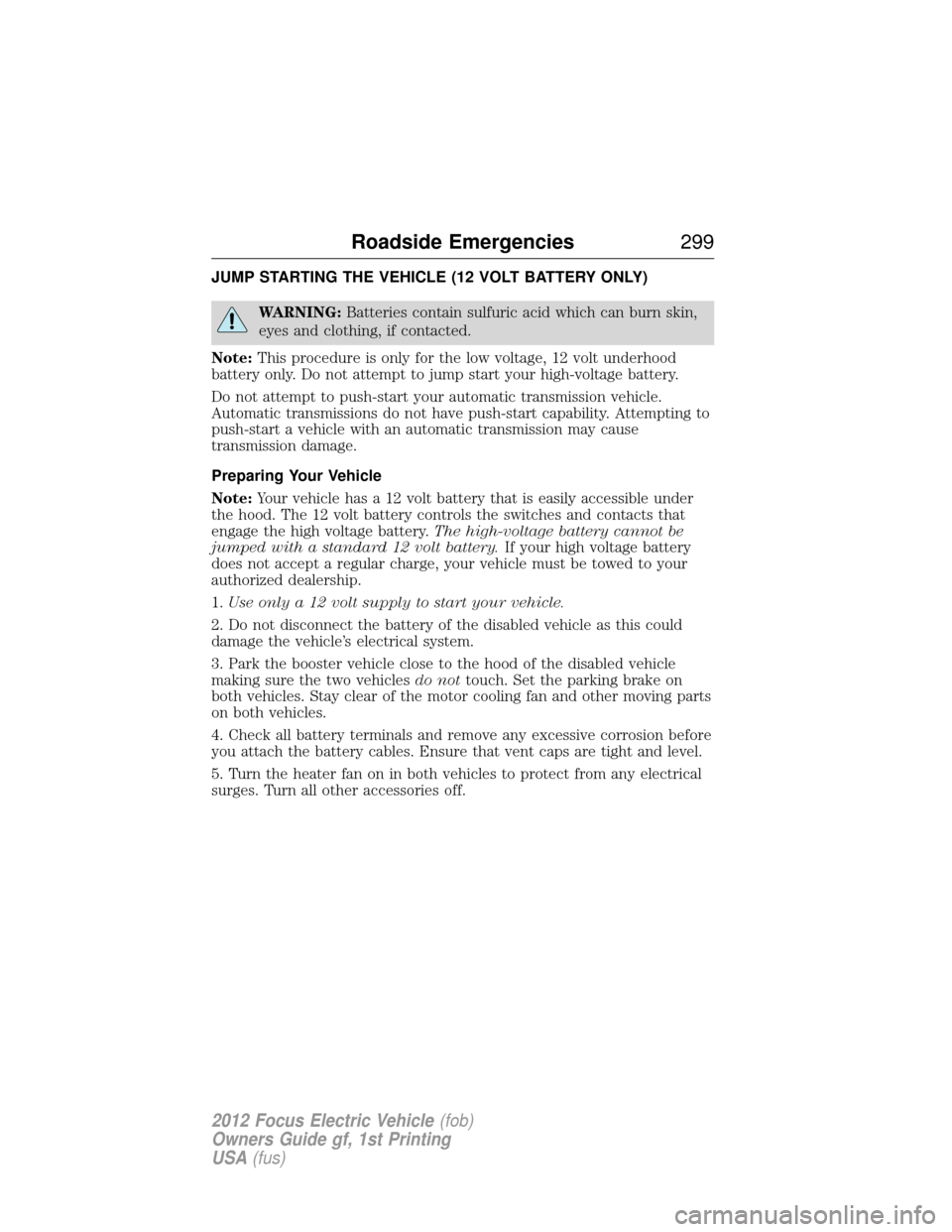

JUMP STARTING THE VEHICLE (12 VOLT BATTERY ONLY)
WARNING:Batteries contain sulfuric acid which can burn skin,
eyes and clothing, if contacted.
Note: This procedure is only for the low voltage, 12 volt underhood
battery only. Do not attempt to jump start your high-voltage battery.
Do not attempt to push-start your automatic transmission vehicle.
Automatic transmissions do not have push-start capability. Attempting to
push-start a vehicle with an automatic transmission may cause
transmission damage.
Preparing Your Vehicle
Note: Your vehicle has a 12 volt battery that is easily accessible under
the hood. The 12 volt battery controls the switches and contacts that
engage the high voltage battery. The high-voltage battery cannot be
jumped with a standard 12 volt battery. If your high voltage battery
does not accept a regular charge, your vehicle must be towed to your
authorized dealership.
1. Use only a 12 volt supply to start your vehicle.
2. Do not disconnect the battery of the disabled vehicle as this could
damage the vehicle’s electrical system.
3. Park the booster vehicle close to the hood of the disabled vehicle
making sure the two vehicles do nottouch. Set the parking brake on
both vehicles. Stay clear of the motor cooling fan and other moving parts
on both vehicles.
4. Check all battery terminals and remove any excessive corrosion before
you attach the battery cables. Ensure that vent caps are tight and level.
5. Turn the heater fan on in both vehicles to protect from any electrical
surges. Turn all other accessories off.
Roadside Emergencies 299
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

911 Assist™ ................................97
A
Accessing and using your
USB port ......................................75
Accessing your calendar ............96
Accessory delay ........................143
Adding (pairing) a phone ..........84
AdvanceTrac ..............................258
Airbag supplemental restraint
system ........................194, 202, 204and child safety seats ............196
description ..............194, 202, 204
disposal ....................................207
driver airbag ............196, 203, 205
indicator light .................201, 207
operation .................196, 203, 205
passenger airbag .....196, 203, 205
side airbag ...............................202
Air conditioning ........................123
Air filter, cabin ..........................336
Ambient mood/lighting .............133
AM/FM .........................................62
Anti-lock brake system
(see Brakes) ..............................256
Anti-theft system ..............170, 172 arming the system ..........171–172
disarming a triggered
system .....................................172
triggering .................................172
Audio system Single CD ..................................39
Audio system (see Radio) .........39
Automatic transaxle fluid, adding ............................334 fluid, checking ........................334
Automatic transmission ............264 fluid, refill capacities ..............337
fluid, specification ..................337
Auxiliary Input Jack ...................72
Auxiliary input jack
(Line in) ......................................40
Auxiliary powerpoint ................141
A/V inputs ....................................81
B
Battery .......................................322 acid, treating emergencies .....322
jumping a disabled battery ....299
maintenance-free ....................322
replacement, specifications ...336
servicing ..................................322
traction battery pack
assembly ..................................324
Belt-Minder .............................190
Blind spot mirror ......................273
Booster seats .............................221
Brakes ................................255–256 anti-lock ...................................256
anti-lock brake system (ABS)
warning light ...........................256
fluid, checking and adding ....334
fluid, refill capacities ..............337
fluid, specifications .................337
lubricant specifications ..........337
parking ....................................257
shift interlock ..........................262
Break-in period .............................6
Bulbs ..........................................134
374 Index
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

C
Capacities for refilling fluids ....337
Cargo management system ......154
CD ................................................39
CD player ....................................74
CD voice commands ...................74
Cell phone use ............................13
Changing a tire .........................287
Child safety seats ......................212attaching with tether
straps .......................................219
in front seat ............................213
in rear seat ..............................213
LATCH .....................................216
recommendations ...................210
Child safety seats -
booster seats .............................221
Cleaning the touchscreen ..........51
Cleaning your vehicle engine compartment ..............313
instrument panel ....................315
interior .....................................316
plastic parts ............................314
washing ....................................312
waxing .....................................312
wheels ......................................313
wiper blades ............................314
Climate control (see Air
conditioning or Heating) ..........123
Climate voice commands .........111
Clock ..........................................101
Console ......................................140
Controls steering column ......................148
Coolant ......................................331 checking and adding ..............331 refill capacities ........................337
specifications ..........................337
Cruise control
(see Speed control) ..................146
Customer Assistance ................275 Ford Extended Service
Plan ..................................342, 345
Getting assistance outside
the U.S. and Canada ..............308
Getting roadside assistance ...275
Getting the service you
need .........................................304
Ordering additional owner’s
literature .................................310
Utilizing the
Mediation/Arbitration
Program ...................................308
D
Daytime running lamps
(see Lamps) ..............................129
Dipstick automatic transmission
fluid ..........................................334
Display settings .........................101
Doors central unlocking ....................161
Driving under special
conditions ..................................266 through water .........................274
E
Emergencies, roadside jump-starting ..........................299
End user license agreement ....356
Engine cleaning ...................................313
service points ..........................320
Index 375
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

Setting your wallpaper .............101
Side air curtain .........................204
SIRIUSsatellite radio ...............69
SIRIUS satellite radio voice
commands ...................................71
SIRIUS Travel Link .....................93
SIRIUS Travel Link voice
commands ...................................95
SOS Post Crash Alert ...............207
Specification chart,
lubricants ...................................337
Speed control ............................146
Starting your vehicle ................252 jump starting ..........................299
push button start system .......253
Steering wheel controls ....................................148
tilting .......................................140
Supported media file types ........80
Supported player, media
formats and metadata
information ..................................80
SYNC Services ...........................90
System settings .........................103
T
Temperature control
(see Climate control) ...............109
Temporary mobility kit .............289
Text messaging ...........................86
Tilt steering wheel ....................140
Tire Pressure Monitoring
System (TPMS) Tires, Wheels and Loading ....240 Tires ...........................225–227, 287
alignment ................................234
care ..........................................230
changing ..................................287
checking the pressure ............230
inflating ...................................228
label .........................................239
replacing ..................................232
rotating ....................................234
safety practices .......................233
sidewall information ...............235
snow tires and chains ............244
spare tire .................................287
Temporary mobility kit ..........289
terminology .............................227
tire grades ...............................226
treadwear ........................226, 230
Touchscreen features
(climate) ....................................109
Towing .......................................250 recreational towing .................251
trailer towing ..........................250
wrecker ....................................302
Traffic preferences ...................116
Transmission brake-shift interlock (BSI) ....262
fluid, checking and adding
(automatic) .............................334
fluid, refill capacities ..............337
lubricant specifications ..........337
Trunk .........................................154 remote release ........................166
Turn signal ................................132
U
Universal garage door opener ..148
USB port ................................42, 75
Index 379
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)
