2012 FORD FOCUS ELECTRIC display

Power Steering MessageAction / Description
Service Power Steering The power steering system has
detected a condition that requires
service. See your authorized
dealer.
Service Power Steering Now The power steering system has detected a condition within the
power steering system that
requires service immediately. See
your authorized dealer.
Power Steering Assist Fault The power steering system has disabled power steering assist due
to a system error. See your
authorized dealer.
Remote Start Message Action / Description
Remote Start Active Displayed when the remote start
system is active.
Transmission Message Action / Description
Transmission not in Park Select P Displays as a reminder to shift into park.
Press brake pedal Displays to request the operator to
apply the brake as needed by the
transmission.
To start press brake Displays when starting the vehicle
as a reminder to apply the brake.
Shift to Park Displayed as a reminder to shift to
park.
Instrument Cluster37
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

Tire Pressure Monitoring System(TPMS) Message Action / Description
Low Tire Pressure Displays when one or more tires on your vehicle have low tire
pressure. Refer toInflating Your
Tires in the Tires, Wheels and
Loading chapter.
Tire Pressure Monitor Fault Displays when the tire pressure monitoring system is
malfunctioning. If the warning
stays on or continues to come on,
contact your authorized dealer.
Tire Pressure Sensor Fault Displays when a tire pressure sensor is malfunctioning, or your
spare tire is in use. For more
information on how the system
operates under these conditions,
refer toUnderstanding Your Tire
Pressure Monitoring System
(TPMS) in theTires, Wheels and
Loading chapter. If the warning
stays on or continues to come on,
contact your authorized dealer.
38 Instrument Cluster
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

Required Equipment
1. Any portable music player designed to be used with headphones
2. An audio extension cable with stereo male 1/8 in. (3.5 mm)
connectors at each end
Using the Auxiliary Input Jack
WARNING:For safety reasons, do not connect or adjust the
settings on your portable music player while the vehicle is
moving.
WARNING: Store the portable music player in a secure location,
such as the center console or the glove box, when the vehicle is
in motion. Hard objects may become projectiles in a collision or sudden
stop, which may increase the risk of serious injury. The audio extension
cable must be long enough to allow the portable music player to be
safely stored while the vehicle is in motion.
1. Begin with the vehicle parked and the radio turned off.
2. Ensure that the battery in your portable music player is new or fully charged and that the device is turned off.
3. Attach one end of the audio extension cable to the headphone output of your player and the other end of the audio extension cable to the
AIJ in your vehicle.
4. Turn the radio on, using either a tuned FM station or a CD loaded into the system. Adjust the volume to a comfortable listening level.
5. Turn the portable music player on and adjust the volume to 1/2 the volume.
6. Press AUX on the vehicle radio repeatedly until LINE, LINE IN or SYNC LINE IN appears in the display. You should hear audio from
your portable music player although it may be low.
7. Adjust the sound on your portable music player until it reaches the level of the FM station or CD by switching back and forth between
the AUX and FM or CD controls.
Entertainment Systems 41
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

GENERAL AUDIO INFORMATION
Radio Frequencies
AM and FM frequencies are established by the Federal Communications
Commission (FCC) and the Canadian Radio and Telecommunications
Commission (CRTC). Those frequencies are:
AM: 530, 540–1700, 1710 kHz
FM: 87.9–107.7, 107.9 MHz
Radio Reception Factors
There are four factors that can affect radio reception:
•Distance/strength: The further you travel from an FM station, the
weaker the signal and the weaker the reception.
• Terrain: Hills, mountains, tall buildings, power lines, electric fences,
traffic lights and thunderstorms can interfere with your reception.
• Station overload: When you pass a broadcast tower, a stronger signal
may overtake a weaker one and play while the weak station frequency
is displayed.
• Electric motor noise: AM reception is affected by static and tones
created by the electric motor in your plug-in/hybrid vehicle. These
noises are inherent to the technology used on this vehicle and cannot
be mitigated by your Ford dealer. The noise becomes more or less
significant depending upon the other factors listed here for reception.
CD/CD Player Information
Do: •Handle discs by their edges only.
(Never touch the playing
surface).
• Inspect discs before playing.
• Clean only with an approved CD
cleaner.
Entertainment Systems 43
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

Satellite Radio Information (If Equipped)
Satellite Radio Channels
SIRIUSbroadcasts a variety of music, news, sports, weather, traffic and
entertainment satellite radio channels. For more information and a
complete list of SIRIUS satellite radio channels, visit www.sirius.com in
the United States, www.siriuscanada.ca in Canada, or call SIRIUS at
1–888–539–7474.
Satellite Radio Reception Factors
To receive the satellite signal, your vehicle has been equipped with a
satellite radio antenna located on the roof of your vehicle. The vehicle
roof provides the best location for an unobstructed, open view of the sky,
a requirement of a satellite radio system. Like AM/FM, there are several
factors that can affect satellite radio reception performance:
• Antenna obstructions: For optimal reception performance, keep the
antenna clear of snow and ice build-up and keep luggage and other
material as far away from the antenna as possible.
• Terrain: Hills, mountains, tall buildings, bridges, tunnels, freeway
overpasses, parking garages, dense tree foliage and thunderstorms can
interfere with your reception.
• Station overload: When you pass a ground based broadcast repeating
tower, a stronger signal may overtake a weaker one and result in an
audio mute.
Unlike AM/FM audible static, you will hear an audio mute when there is
satellite radio signal interference. Your radio display may display NO
SIGNAL to indicate the interference.
SIRIUS Satellite Radio Service
Note:SIRIUS reserves the unrestricted right to change, rearrange, add or
delete programming including canceling, moving or adding particular
channels, and its prices, at any time, with or without notice to you. Ford
Motor Company shall not be responsible for any such programming changes.
SIRIUS satellite radio is a subscription based satellite radio service that
broadcasts music, sports, news and entertainment programming. A
service fee is required in order to receive SIRIUS service. Vehicles that
are equipped with a factory installed SIRIUS satellite radio system
include hardware and a limited subscription term, which begins on the
date of sale or lease of the vehicle.
For information on extended subscription terms, the online media player
and other SIRIUS features, please contact SIRIUS at 1–888–539–7474.
Entertainment Systems 45
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

Satellite Radio Electronic Serial Number (ESN)
This 12–digit Satellite Serial Number is needed to activate, modify or
track your satellite radio account. You will need this number when
communicating with SIRIUS. While in satellite radio mode, you can view
this number on the radio display by pressing the Menu icon > SIRIUS >
Show ESN.
Troubleshooting
Radio Display Condition Action Required
ACQUIRING Radio requires more than two seconds to
produce audio for the selected channel. No action required.
This message should disappear shortly.
SAT FAULT Internal module or
system failure present. If this message does
not clear within a short period of time, or with an ignition key cycle,
your receiver may have a fault. See your
authorized dealer for service.
INVALID CHNL Channel no longer available.This previously
available channel is no longer available. Tuneto another channel. If
the channel was one of your presets, you may
choose another channel for that preset button.
UNSUBSCRIBED Subscription not available for thischannel. Contact SIRIUS
at
1–888–539–7474 to subscribe to the
channel or tune to another channel.
46 Entertainment Systems
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

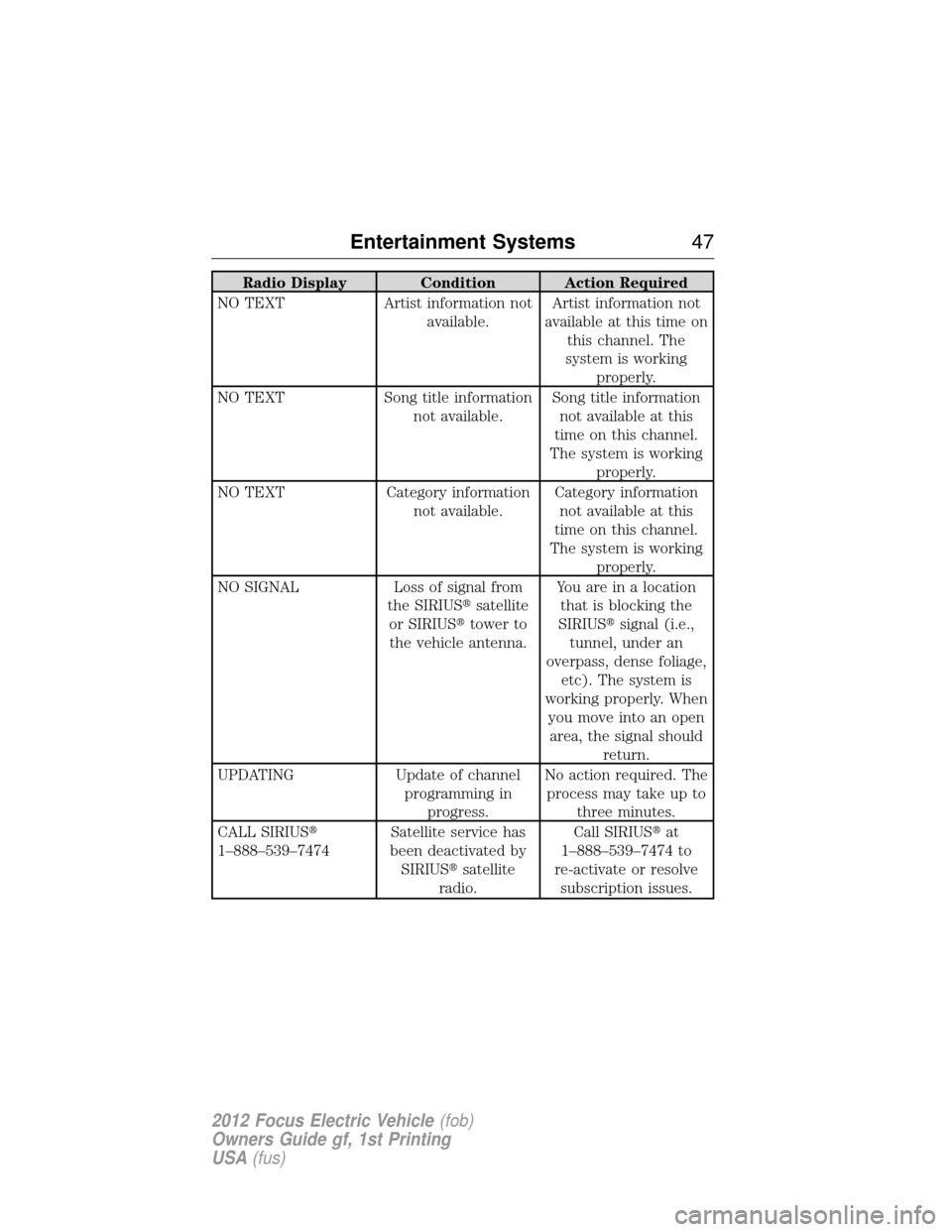

Radio Display Condition Action Required
NO TEXT Artist information not available.Artist information not
available at this time on this channel. The
system is working properly.
NO TEXT Song title information not available.Song title information
not available at this
time on this channel.
The system is working properly.
NO TEXT Category information not available.Category information
not available at this
time on this channel.
The system is working properly.
NO SIGNAL Loss of signal from
the SIRIUS satellite
or SIRIUS tower to
the vehicle antenna. You are in a location
that is blocking the
SIRIUS signal (i.e.,
tunnel, under an
overpass, dense foliage, etc). The system is
working properly. When you move into an openarea, the signal should return.
UPDATING Update of channel
programming in progress. No action required. The
process may take up to three minutes.
CALL SIRIUS
1–888–539–7474 Satellite service has
been deactivated by SIRIUS satellite
radio. Call SIRIUS
at
1–888–539–7474 to
re-activate or resolve subscription issues.
Entertainment Systems 47
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

INTRODUCTION
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device or feature that may
take their focus off the road. Your primary responsibility is the safe
operation of the vehicle. We recommend against the use of any
handheld device while driving, encourage the use of voice-operated
systems when possible and that you become aware of applicable state
and local laws that may affect use of electronic devices while driving.
Note: Some features are not available while the vehicle is moving.
This system uses a four-corner strategy to provide quick access to
vehicle features and settings. The comprehensive touchscreen provides
easy interaction with your cellular phone, multimedia, climate control
and navigation system. The corners display any active modes within
those menus, such as your phone being connected or the climate
temperature. MENU
Press to select any of the following:
• Clock
• Display
• Sound
• Vehicle
• Settings
• Help
INFORMATION
Press to select any of the following:
• SYNC Services
• SIRIUS Travel Link
• Notifications
• Calendar
• SYNC Apps
If the icon is yellow, refer to Notificationsin theInformation section of
this chapter.
48 MyFord Touch
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)
