2012 FORD FOCUS ELECTRIC driver seat adjustment

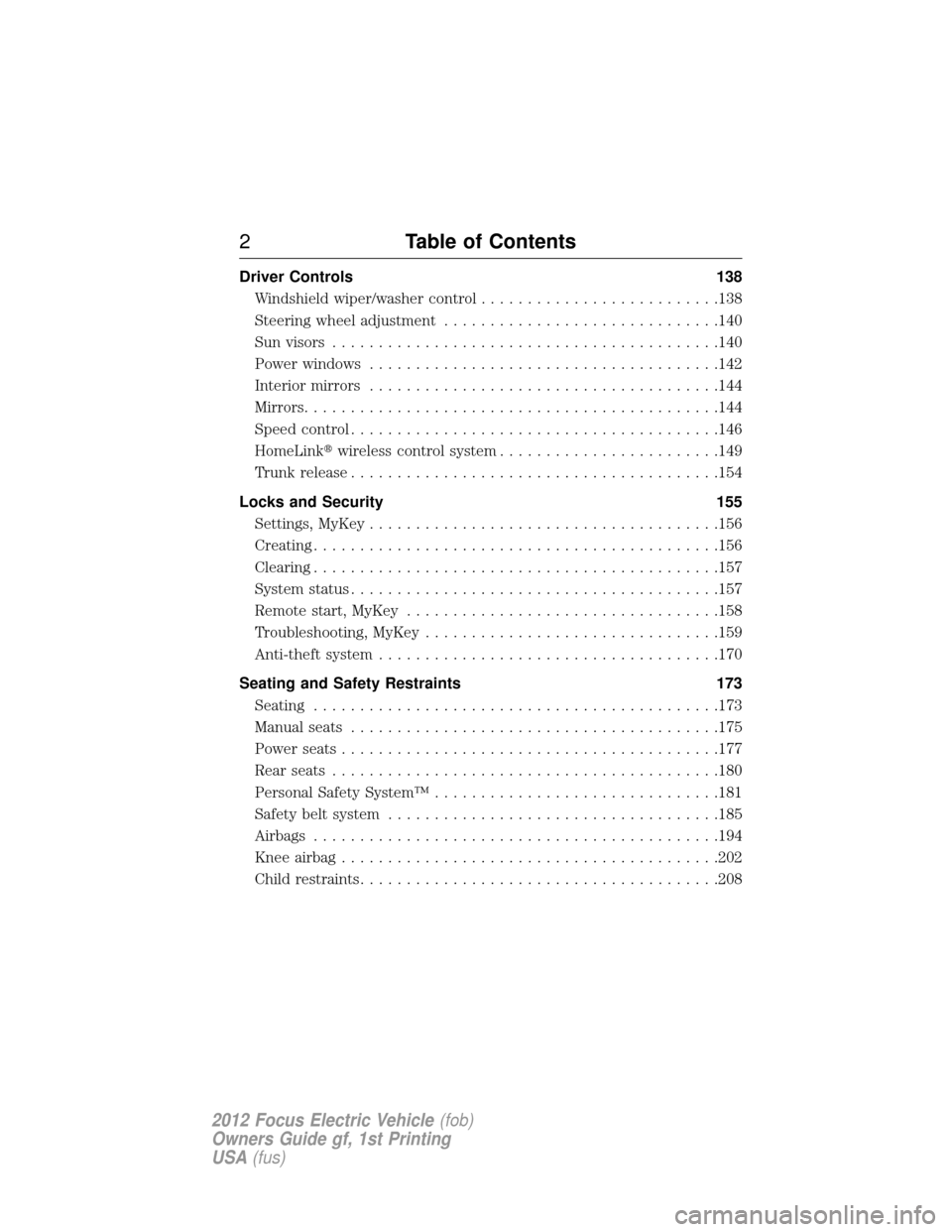

Driver Controls138
Windshield wiper/washer control ..........................138
Steering wheel adjustment ..............................140
Sun visors ......................................... .140
Power windows ......................................142
Interior mirrors ......................................144
Mirrors ............................................ .144
Speed control ........................................146
HomeLink wireless control system ........................149
Trunk release ........................................154
Locks and Security 155
Settings, MyKey ......................................156
Creating ........................................... .156
Clearing ........................................... .157
System status ........................................157
Remote start, MyKey ..................................158
Troubleshooting, MyKey ................................159
Anti-theft system .....................................170
Seating and Safety Restraints 173
Seating ........................................... .173
Manual seats ........................................175
Power seats ........................................ .177
Rear seats ......................................... .180
Personal Safety System™ ...............................181
Safety belt system ....................................185
Airbags ........................................... .194
Knee airbag ........................................ .202
Child restraints .......................................208
2 Table of Contents
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

Adjust the Height of the Driver’s
Seat
Recline Adjustment
WARNING:Reclining the seatback can cause an occupant to
slide under the seat’s safety belt, resulting in severe personal
injuries in the event of a collision.
176 Seating and Safety Restraints
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

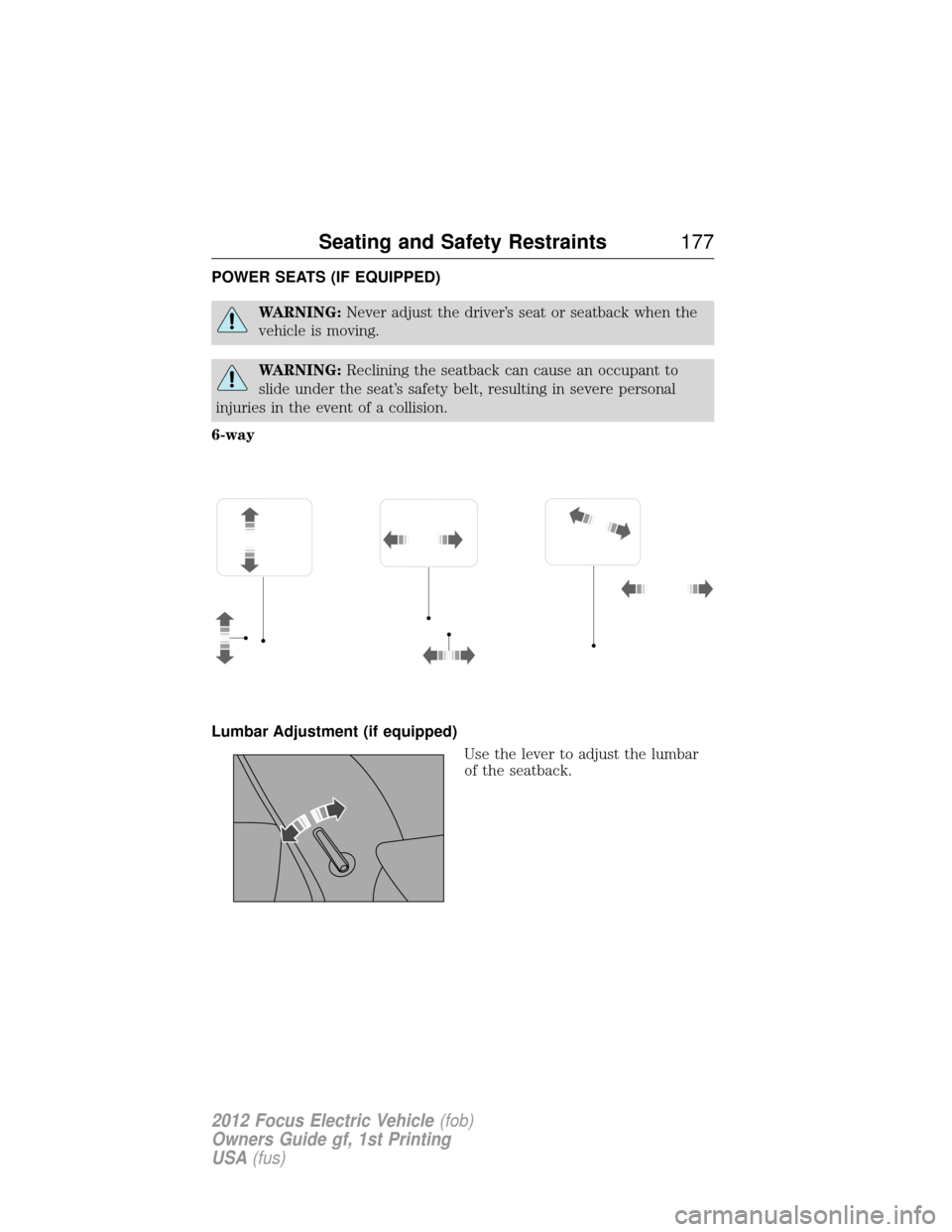

POWER SEATS (IF EQUIPPED)
WARNING:Never adjust the driver’s seat or seatback when the
vehicle is moving.
WARNING: Reclining the seatback can cause an occupant to
slide under the seat’s safety belt, resulting in severe personal
injuries in the event of a collision.
6-way
Lumbar Adjustment (if equipped) Use the lever to adjust the lumbar
of the seatback.
Seating and Safety Restraints 177
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

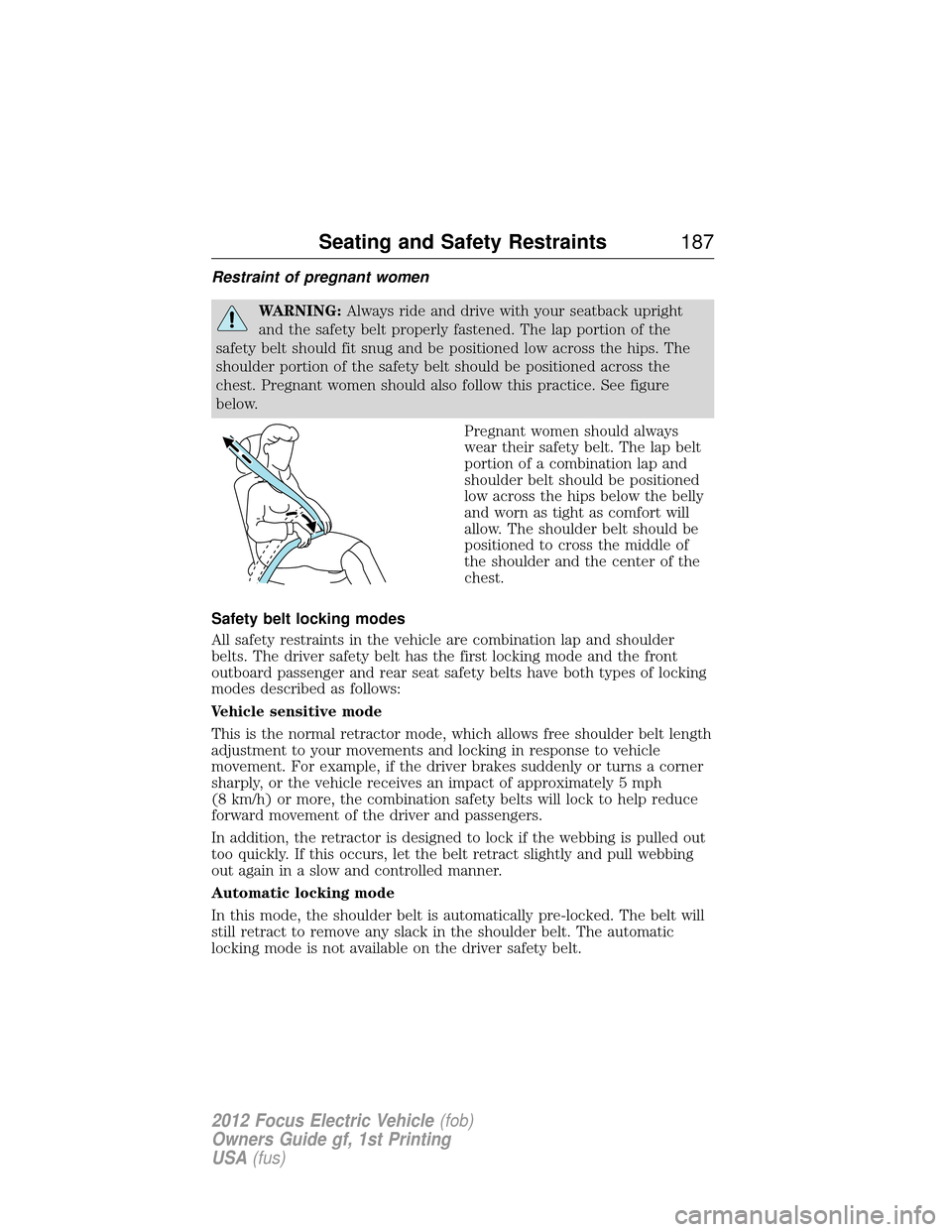

Restraint of pregnant women
WARNING:Always ride and drive with your seatback upright
and the safety belt properly fastened. The lap portion of the
safety belt should fit snug and be positioned low across the hips. The
shoulder portion of the safety belt should be positioned across the
chest. Pregnant women should also follow this practice. See figure
below.
Pregnant women should always
wear their safety belt. The lap belt
portion of a combination lap and
shoulder belt should be positioned
low across the hips below the belly
and worn as tight as comfort will
allow. The shoulder belt should be
positioned to cross the middle of
the shoulder and the center of the
chest.
Safety belt locking modes
All safety restraints in the vehicle are combination lap and shoulder
belts. The driver safety belt has the first locking mode and the front
outboard passenger and rear seat safety belts have both types of locking
modes described as follows:
Vehicle sensitive mode
This is the normal retractor mode, which allows free shoulder belt length
adjustment to your movements and locking in response to vehicle
movement. For example, if the driver brakes suddenly or turns a corner
sharply, or the vehicle receives an impact of approximately 5 mph
(8 km/h) or more, the combination safety belts will lock to help reduce
forward movement of the driver and passengers.
In addition, the retractor is designed to lock if the webbing is pulled out
too quickly. If this occurs, let the belt retract slightly and pull webbing
out again in a slow and controlled manner.
Automatic locking mode
In this mode, the shoulder belt is automatically pre-locked. The belt will
still retract to remove any slack in the shoulder belt. The automatic
locking mode is not available on the driver safety belt.
Seating and Safety Restraints 187
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)
