2012 FORD FOCUS ELECTRIC remove seats

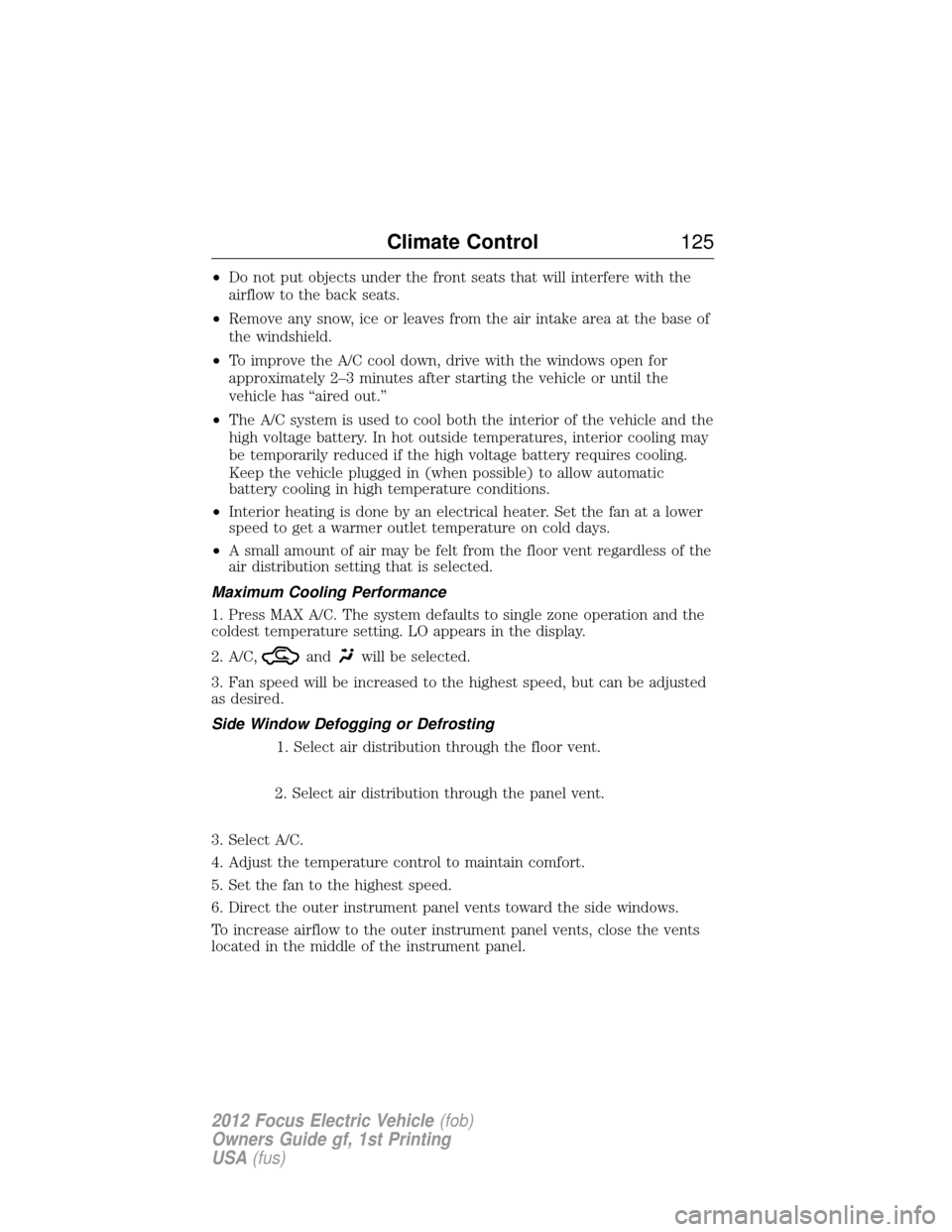

•Do not put objects under the front seats that will interfere with the
airflow to the back seats.
• Remove any snow, ice or leaves from the air intake area at the base of
the windshield.
• To improve the A/C cool down, drive with the windows open for
approximately 2–3 minutes after starting the vehicle or until the
vehicle has “aired out.”
• The A/C system is used to cool both the interior of the vehicle and the
high voltage battery. In hot outside temperatures, interior cooling may
be temporarily reduced if the high voltage battery requires cooling.
Keep the vehicle plugged in (when possible) to allow automatic
battery cooling in high temperature conditions.
• Interior heating is done by an electrical heater. Set the fan at a lower
speed to get a warmer outlet temperature on cold days.
• A small amount of air may be felt from the floor vent regardless of the
air distribution setting that is selected.
Maximum Cooling Performance
1. Press MAX A/C. The system defaults to single zone operation and the
coldest temperature setting. LO appears in the display.
2. A/C,
andwill be selected.
3. Fan speed will be increased to the highest speed, but can be adjusted
as desired.
Side Window Defogging or Defrosting 1. Select air distribution through the floor vent.
2. Select air distribution through the panel vent.
3. Select A/C.
4. Adjust the temperature control to maintain comfort.
5. Set the fan to the highest speed.
6. Direct the outer instrument panel vents toward the side windows.
To increase airflow to the outer instrument panel vents, close the vents
located in the middle of the instrument panel.
Climate Control 125
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

Folding the Rear Seats
Note:Before lowering the seatback(s), remove the outboard head
restraints.
To lower the seatback(s) from inside the vehicle, do the following:
1. Press the unlock buttons (1)
down.
2. Push the seatback forward.Note: Your vehicle may have split
seatbacks that must be folded
individually.
3. Stow the safety belt in the belt
stowage clip. This will prevent the
safety belt from getting caught in
the seat latch.
11
180 Seating and Safety Restraints
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

WARNING:Safety belts and seats can become hot in a vehicle
that has been closed up in sunny weather; they could burn a
small child. Check seat covers and buckles before you place a child
anywhere near them.
WARNING: Front and rear seat occupants, including pregnant
women, should wear safety belts for optimum protection in an
accident.
Combination lap and shoulder belts
The front outboard and rear safety restraints in the vehicle are
combination lap and shoulder belts. 1. Insert the belt tongue into the proper buckle (the buckle
closest to the direction the tongue is coming from) until
you hear a snap and feel it latch. Make sure the tongue is
securely fastened in the buckle.
2. To unfasten, press the release button and remove the
tongue from the buckle.
186Seating and Safety Restraints
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

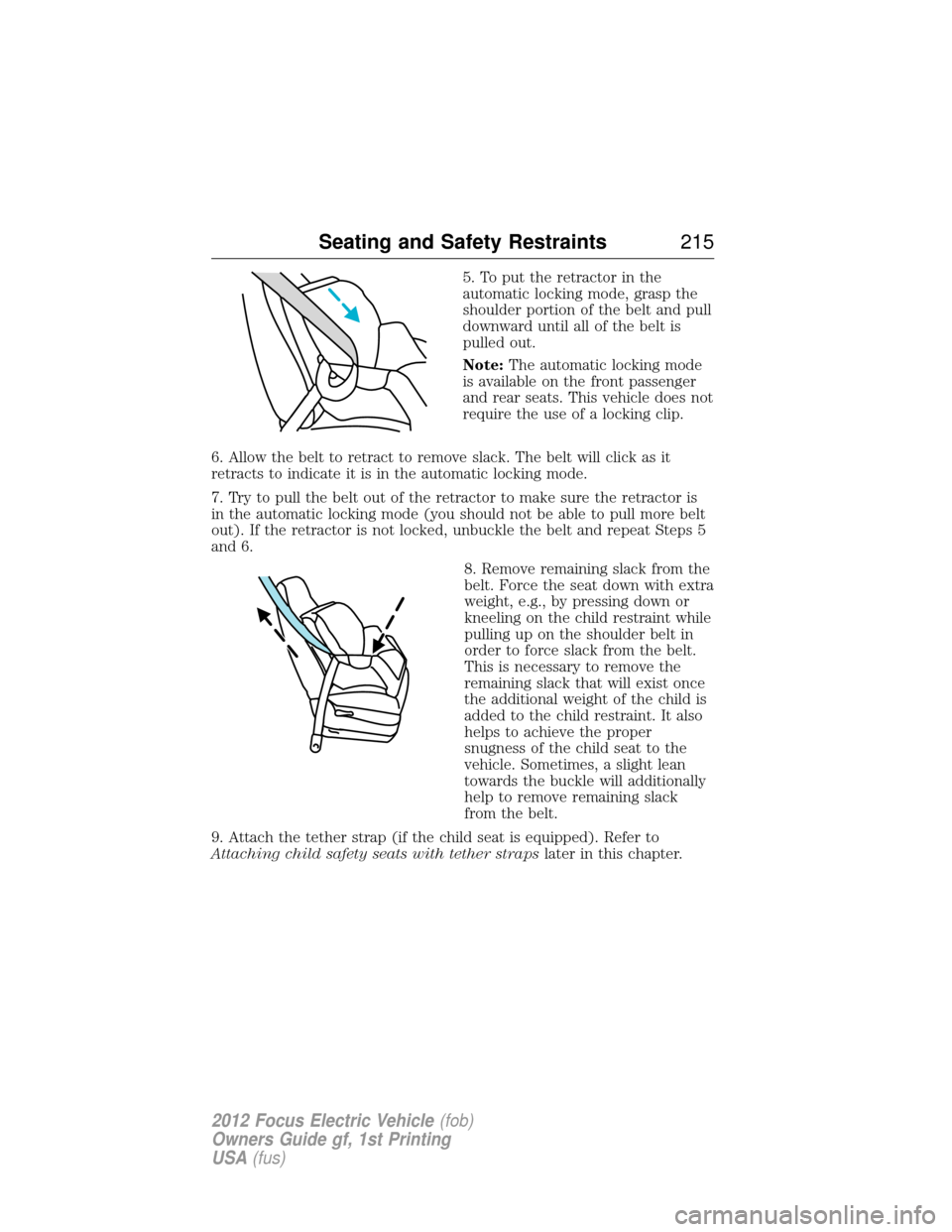

5. To put the retractor in the
automatic locking mode, grasp the
shoulder portion of the belt and pull
downward until all of the belt is
pulled out.
Note:The automatic locking mode
is available on the front passenger
and rear seats. This vehicle does not
require the use of a locking clip.
6. Allow the belt to retract to remove slack. The belt will click as it
retracts to indicate it is in the automatic locking mode.
7. Try to pull the belt out of the retractor to make sure the retractor is
in the automatic locking mode (you should not be able to pull more belt
out). If the retractor is not locked, unbuckle the belt and repeat Steps 5
and 6. 8. Remove remaining slack from the
belt. Force the seat down with extra
weight, e.g., by pressing down or
kneeling on the child restraint while
pulling up on the shoulder belt in
order to force slack from the belt.
This is necessary to remove the
remaining slack that will exist once
the additional weight of the child is
added to the child restraint. It also
helps to achieve the proper
snugness of the child seat to the
vehicle. Sometimes, a slight lean
towards the buckle will additionally
help to remove remaining slack
from the belt.
9. Attach the tether strap (if the child seat is equipped). Refer to
Attaching child safety seats with tether straps later in this chapter.
Seating and Safety Restraints215
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

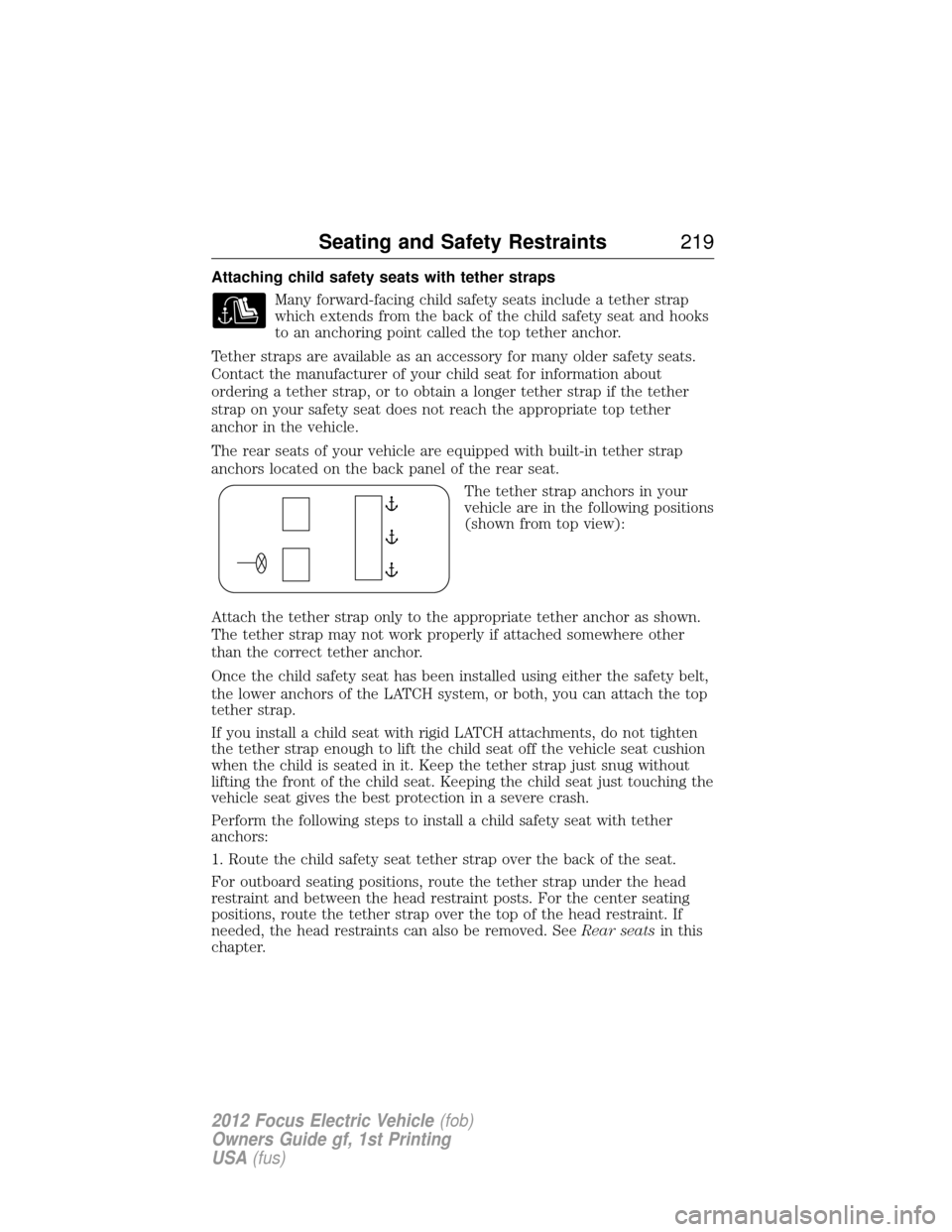

Attaching child safety seats with tether strapsMany forward-facing child safety seats include a tether strap
which extends from the back of the child safety seat and hooks
to an anchoring point called the top tether anchor.
Tether straps are available as an accessory for many older safety seats.
Contact the manufacturer of your child seat for information about
ordering a tether strap, or to obtain a longer tether strap if the tether
strap on your safety seat does not reach the appropriate top tether
anchor in the vehicle.
The rear seats of your vehicle are equipped with built-in tether strap
anchors located on the back panel of the rear seat. The tether strap anchors in your
vehicle are in the following positions
(shown from top view):
Attach the tether strap only to the appropriate tether anchor as shown.
The tether strap may not work properly if attached somewhere other
than the correct tether anchor.
Once the child safety seat has been installed using either the safety belt,
the lower anchors of the LATCH system, or both, you can attach the top
tether strap.
If you install a child seat with rigid LATCH attachments, do not tighten
the tether strap enough to lift the child seat off the vehicle seat cushion
when the child is seated in it. Keep the tether strap just snug without
lifting the front of the child seat. Keeping the child seat just touching the
vehicle seat gives the best protection in a severe crash.
Perform the following steps to install a child safety seat with tether
anchors:
1. Route the child safety seat tether strap over the back of the seat.
For outboard seating positions, route the tether strap under the head
restraint and between the head restraint posts. For the center seating
positions, route the tether strap over the top of the head restraint. If
needed, the head restraints can also be removed. See Rear seatsin this
chapter.
Seating and Safety Restraints 219
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

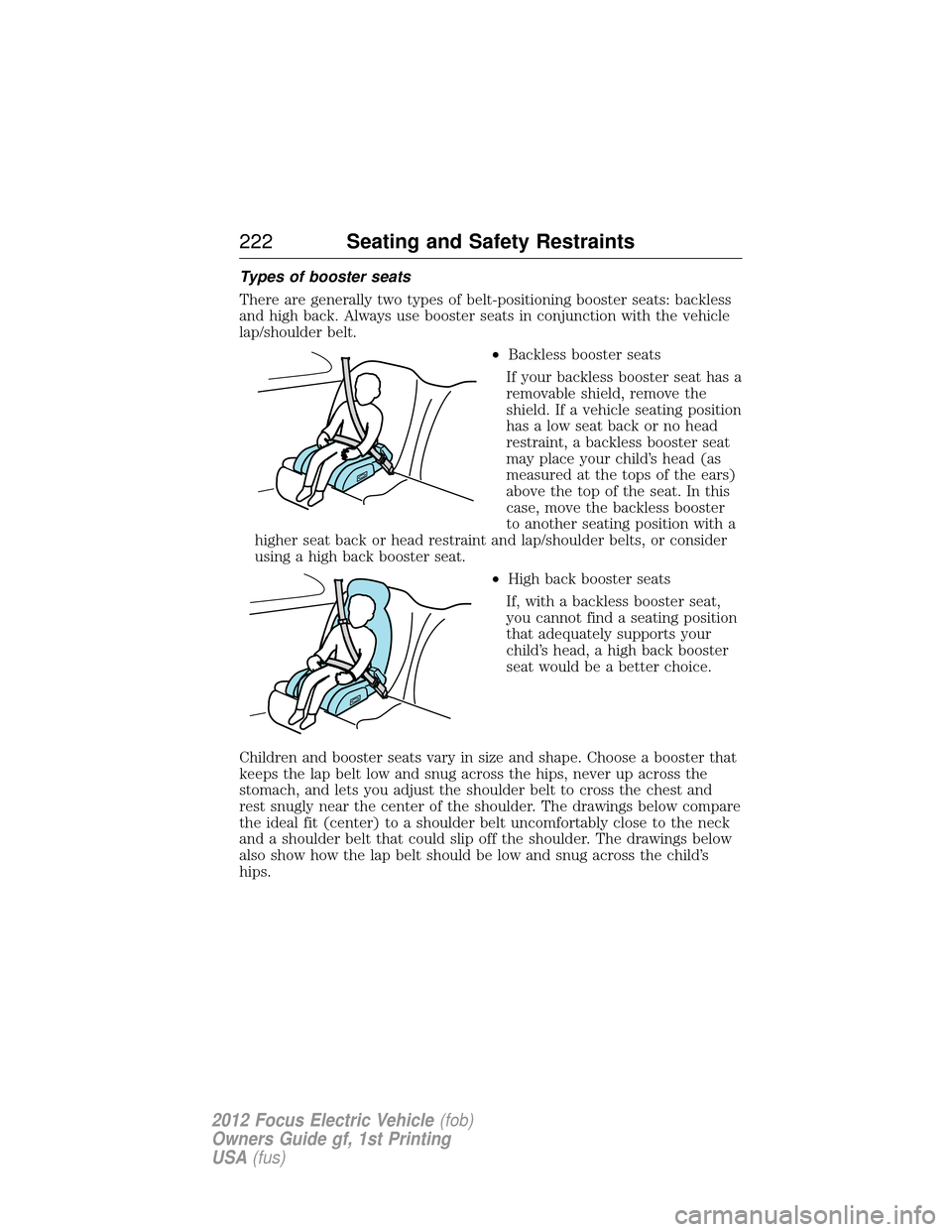

Types of booster seats
There are generally two types of belt-positioning booster seats: backless
and high back. Always use booster seats in conjunction with the vehicle
lap/shoulder belt.•Backless booster seats
If your backless booster seat has a
removable shield, remove the
shield. If a vehicle seating position
has a low seat back or no head
restraint, a backless booster seat
may place your child’s head (as
measured at the tops of the ears)
above the top of the seat. In this
case, move the backless booster
to another seating position with a
higher seat back or head restraint and lap/shoulder belts, or consider
using a high back booster seat.
•High back booster seats
If, with a backless booster seat,
you cannot find a seating position
that adequately supports your
child’s head, a high back booster
seat would be a better choice.
Children and booster seats vary in size and shape. Choose a booster that
keeps the lap belt low and snug across the hips, never up across the
stomach, and lets you adjust the shoulder belt to cross the chest and
rest snugly near the center of the shoulder. The drawings below compare
the ideal fit (center) to a shoulder belt uncomfortably close to the neck
and a shoulder belt that could slip off the shoulder. The drawings below
also show how the lap belt should be low and snug across the child’s
hips.
222 Seating and Safety Restraints
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

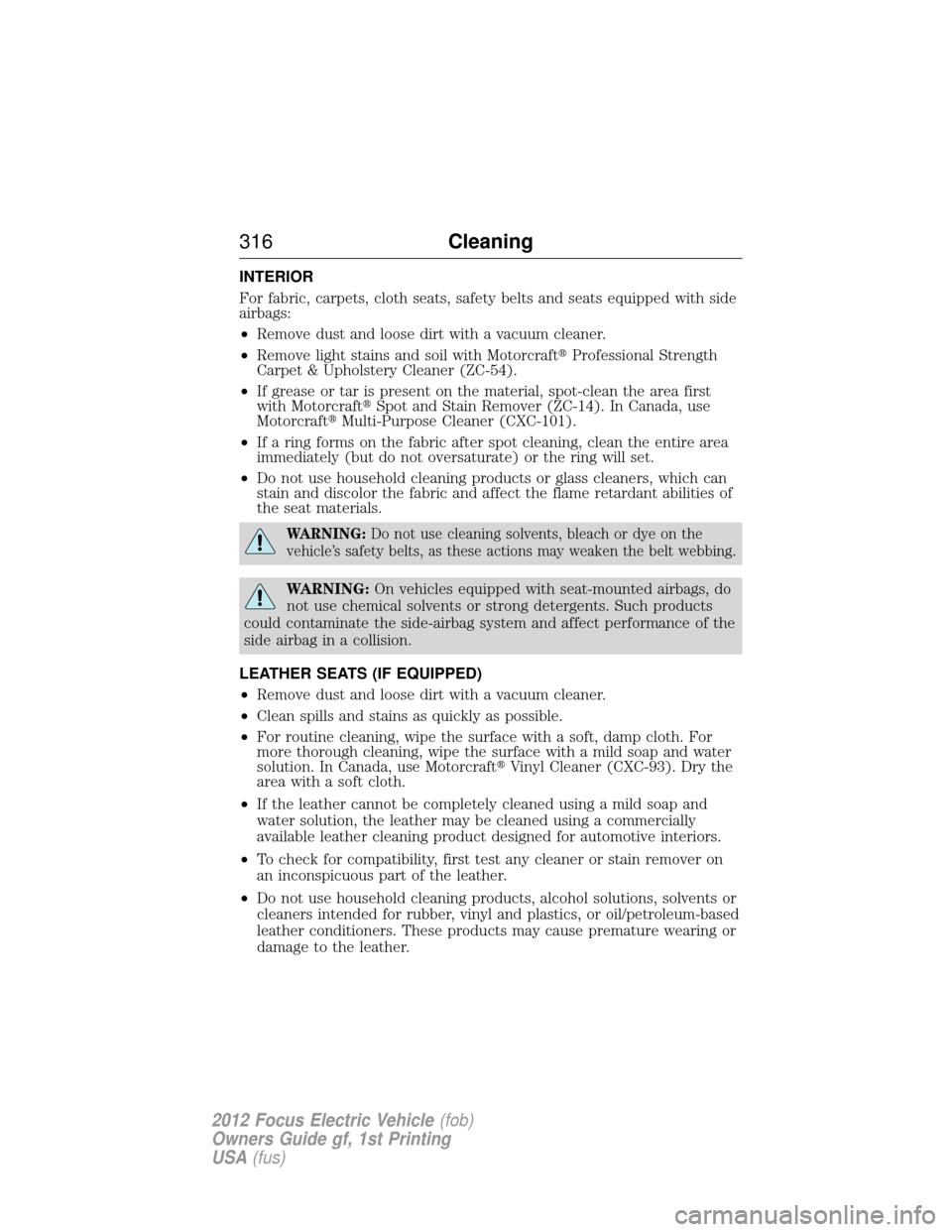

INTERIOR
For fabric, carpets, cloth seats, safety belts and seats equipped with side
airbags:
•Remove dust and loose dirt with a vacuum cleaner.
• Remove light stains and soil with Motorcraft Professional Strength
Carpet & Upholstery Cleaner (ZC-54).
• If grease or tar is present on the material, spot-clean the area first
with Motorcraft Spot and Stain Remover (ZC-14). In Canada, use
Motorcraft Multi-Purpose Cleaner (CXC-101).
• If a ring forms on the fabric after spot cleaning, clean the entire area
immediately (but do not oversaturate) or the ring will set.
• Do not use household cleaning products or glass cleaners, which can
stain and discolor the fabric and affect the flame retardant abilities of
the seat materials.
WARNING: Do not use cleaning solvents, bleach or dye on the
vehicle’s safety belts, as these actions may weaken the belt webbing.
WARNING: On vehicles equipped with seat-mounted airbags, do
not use chemical solvents or strong detergents. Such products
could contaminate the side-airbag system and affect performance of the
side airbag in a collision.
LEATHER SEATS (IF EQUIPPED)
• Remove dust and loose dirt with a vacuum cleaner.
• Clean spills and stains as quickly as possible.
• For routine cleaning, wipe the surface with a soft, damp cloth. For
more thorough cleaning, wipe the surface with a mild soap and water
solution. In Canada, use Motorcraft Vinyl Cleaner (CXC-93). Dry the
area with a soft cloth.
• If the leather cannot be completely cleaned using a mild soap and
water solution, the leather may be cleaned using a commercially
available leather cleaning product designed for automotive interiors.
• To check for compatibility, first test any cleaner or stain remover on
an inconspicuous part of the leather.
• Do not use household cleaning products, alcohol solutions, solvents or
cleaners intended for rubber, vinyl and plastics, or oil/petroleum-based
leather conditioners. These products may cause premature wearing or
damage to the leather.
316 Cleaning
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

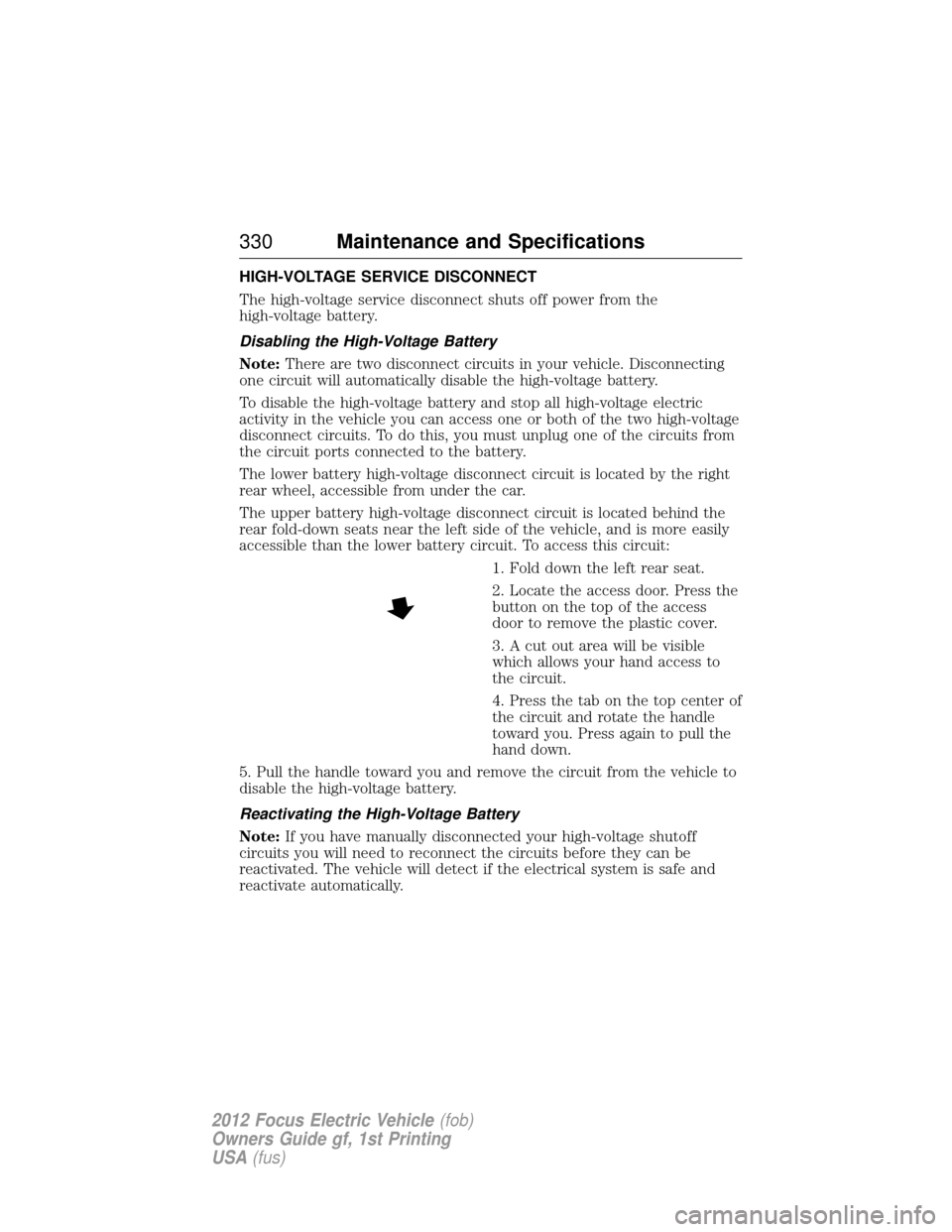

HIGH-VOLTAGE SERVICE DISCONNECT
The high-voltage service disconnect shuts off power from the
high-voltage battery.
Disabling the High-Voltage Battery
Note:There are two disconnect circuits in your vehicle. Disconnecting
one circuit will automatically disable the high-voltage battery.
To disable the high-voltage battery and stop all high-voltage electric
activity in the vehicle you can access one or both of the two high-voltage
disconnect circuits. To do this, you must unplug one of the circuits from
the circuit ports connected to the battery.
The lower battery high-voltage disconnect circuit is located by the right
rear wheel, accessible from under the car.
The upper battery high-voltage disconnect circuit is located behind the
rear fold-down seats near the left side of the vehicle, and is more easily
accessible than the lower battery circuit. To access this circuit:
1. Fold down the left rear seat.
2. Locate the access door. Press the
button on the top of the access
door to remove the plastic cover.
3. A cut out area will be visible
which allows your hand access to
the circuit.
4. Press the tab on the top center of
the circuit and rotate the handle
toward you. Press again to pull the
hand down.
5. Pull the handle toward you and remove the circuit from the vehicle to
disable the high-voltage battery.
Reactivating the High-Voltage Battery
Note: If you have manually disconnected your high-voltage shutoff
circuits you will need to reconnect the circuits before they can be
reactivated. The vehicle will detect if the electrical system is safe and
reactivate automatically.
330 Maintenance and Specifications
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)
