2011 MITSUBISHI LANCER SPORTBACK Owners Manual

9-4 Specifications
9

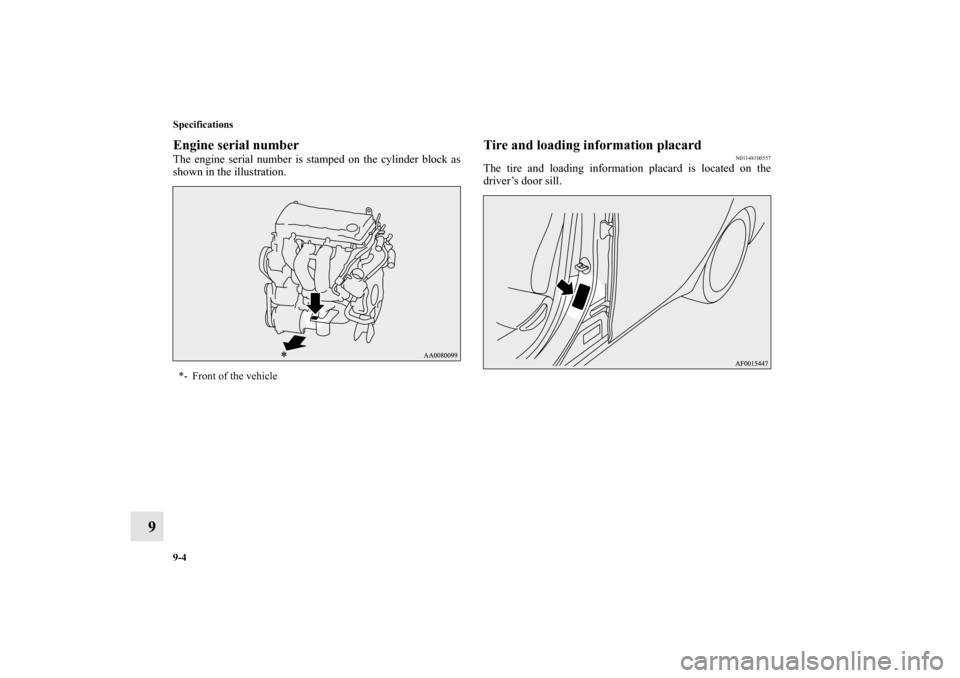

Engine serial numberThe engine serial number is stamped on the cylinder block as
shown in the illustration.
Tire and loading information placard
N01148100557
The tire and loading information placard is located on the
driver’s door sill.
*- Front of the vehicleBK0125300US.book 4 ページ ２０１０年５月１８日　火曜日　午後１時５３分

Specifications
9-5
9

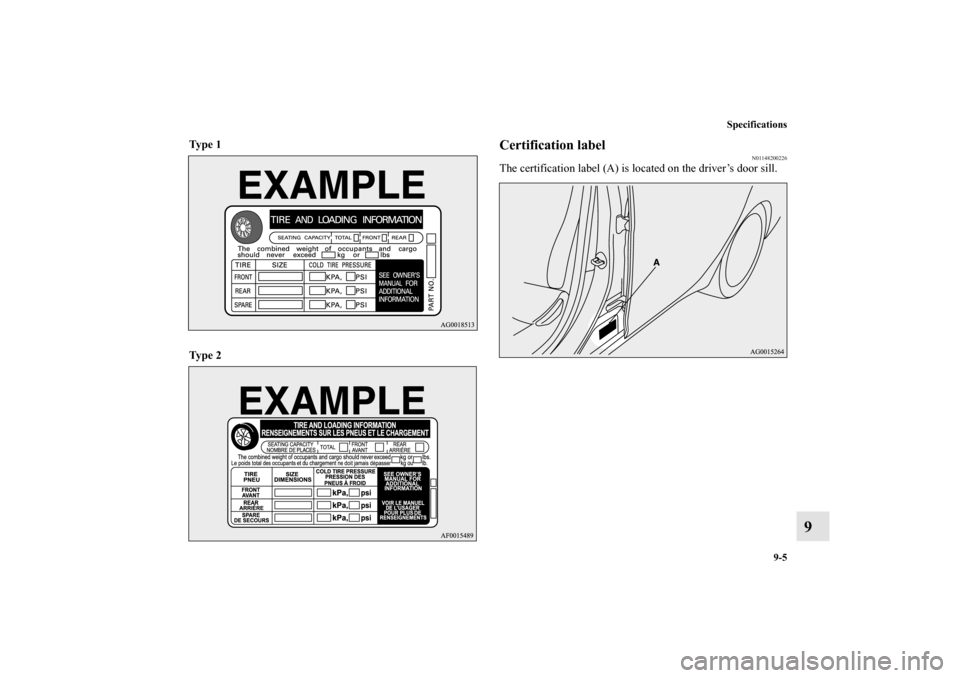

Ty p e 1

Ty p e 2

Certification label
N01148200226
The certification label (A) is located on the driver’s door sill.
BK0125300US.book 5 ページ ２０１０年５月１８日　火曜日　午後１時５３分

9-6 Specifications

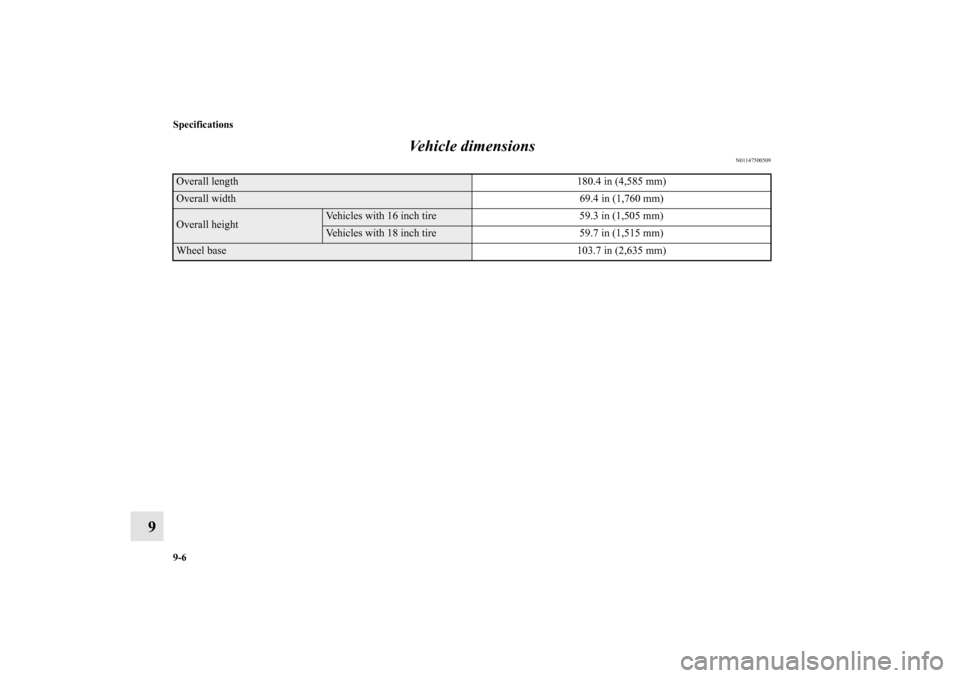

9Vehicle dimensions
N01147500509
Overall length 180.4 in (4,585 mm) Overall width 69.4 in (1,760 mm) Overall height
Vehicles with 16 inch tire 59.3 in (1,505 mm)Vehicles with 18 inch tire 59.7 in (1,515 mm)
Wheel base103.7 in (2,635 mm) BK0125300US.book 6 ページ ２０１０年５月１８日　火曜日　午後１時５３分

Specifications
9-7

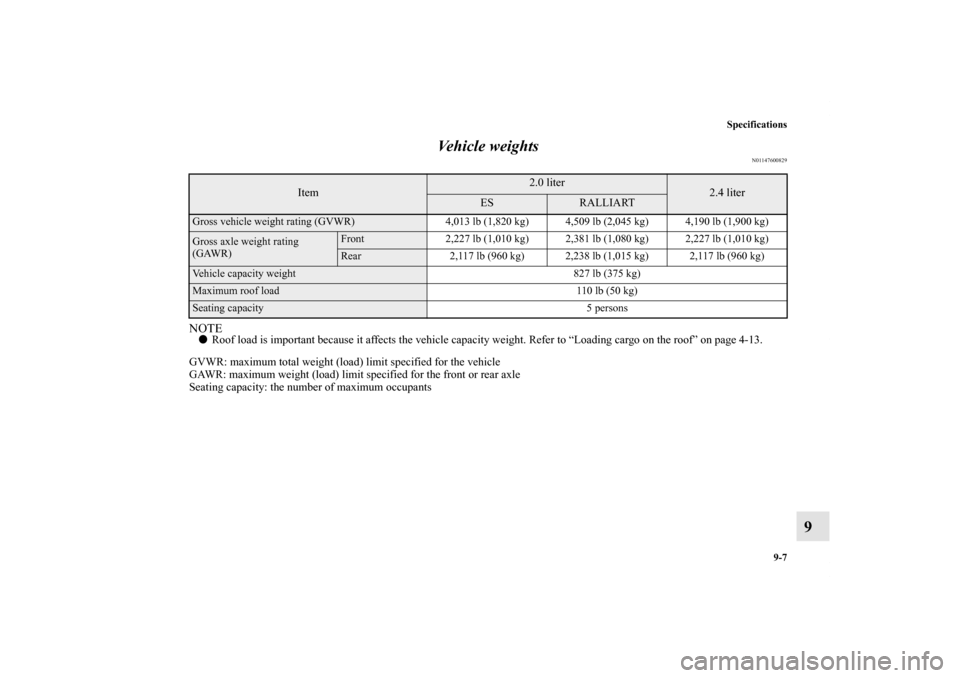

9 Vehicle weights
N01147600829
NOTE
Roof load is important because it affects the vehicle capacity weight. Refer to “Loading cargo on the roof” on page 4-13.
GVWR: maximum total weight (load) limit specified for the vehicle
GAWR: maximum weight (load) limit specified for the front or rear axle
Seating capacity: the number of maximum occupants
Item
2.0 liter
2.4 liter
ES
RALLIART
Gross vehicle weight rating (GVWR) 4,013 lb (1,820 kg) 4,509 lb (2,045 kg) 4,190 lb (1,900 kg)Gross axle weight rating
(GAWR)
Front 2,227 lb (1,010 kg) 2,381 lb (1,080 kg) 2,227 lb (1,010 kg)Rear 2,117 lb (960 kg) 2,238 lb (1,015 kg) 2,117 lb (960 kg)
Vehicle capacity weight 827 lb (375 kg)Maximum roof load 110 lb (50 kg)Seating capacity 5 persons
BK0125300US.book 7 ページ ２０１０年５月１８日　火曜日　午後１時５３分

9-8 Specifications

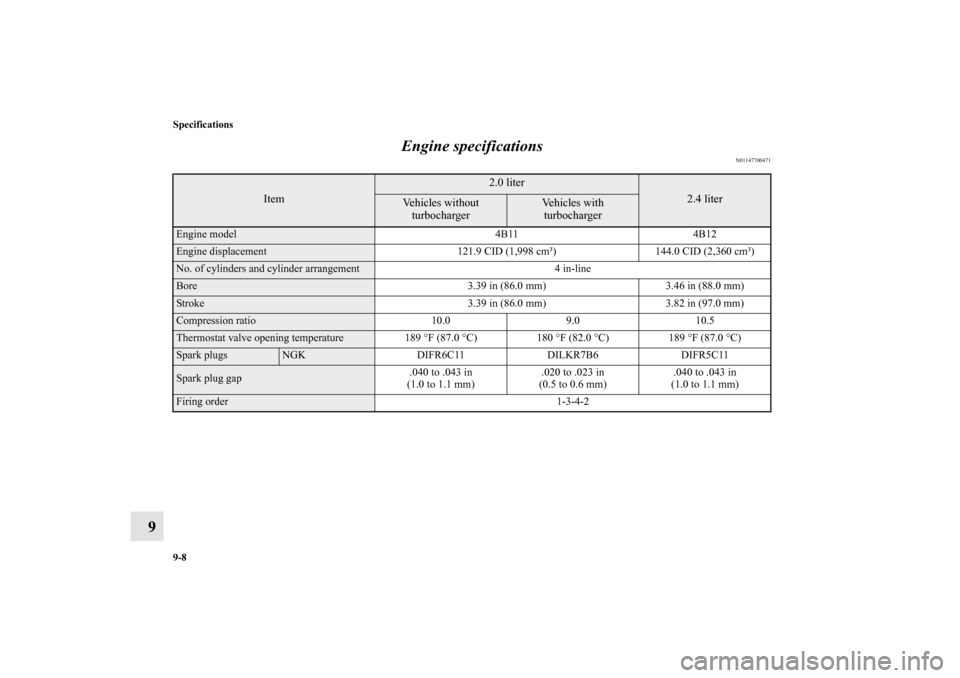

9Engine specifications
N01147700471
Item
2.0 liter
2.4 liter
Vehicles without
turbocharger
Vehicles with
turbocharger
Engine model 4B11 4B12Engine displacement 121.9 CID (1,998 cm³) 144.0 CID (2,360 cm³)No. of cylinders and cylinder arrangement 4 in-lineBore 3.39 in (86.0 mm) 3.46 in (88.0 mm)Stroke 3.39 in (86.0 mm) 3.82 in (97.0 mm)Compression ratio 10.0 9.0 10.5Thermostat valve opening temperature 189 °F (87.0 °C) 180 °F (82.0 °C) 189 °F (87.0 °C)Spark plugs
NGK DIFR6C11 DILKR7B6 DIFR5C11
Spark plug gap.040 to .043 in
(1.0 to 1.1 mm).020 to .023 in
(0.5 to 0.6 mm).040 to .043 in
(1.0 to 1.1 mm)Firing order 1-3-4-2BK0125300US.book 8 ページ ２０１０年５月１８日　火曜日　午後１時５３分

Specifications
9-9

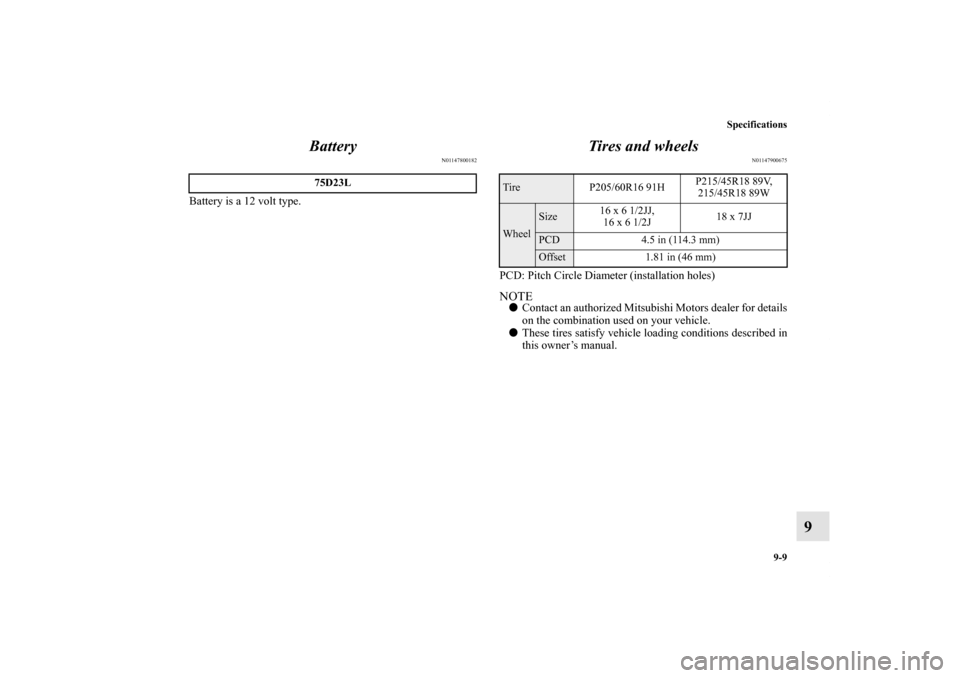

9 Battery
N01147800182
Battery is a 12 volt type.
Tires and wheels
N01147900675
PCD: Pitch Circle Diameter (installation holes)NOTE
Contact an authorized Mitsubishi Motors dealer for details
on the combination used on your vehicle.

These tires satisfy vehicle loading conditions described in
this owner’s manual.
75D23L
Tire P205/60R16 91HP215/45R18 89V,
215/45R18 89WWheel
Size16 x 6 1/2JJ,
16 x 6 1/2J18 x 7JJPCD 4.5 in (114.3 mm)Offset 1.81 in (46 mm)
BK0125300US.book 9 ページ ２０１０年５月１８日　火曜日　午後１時５３分

9-10 Specifications

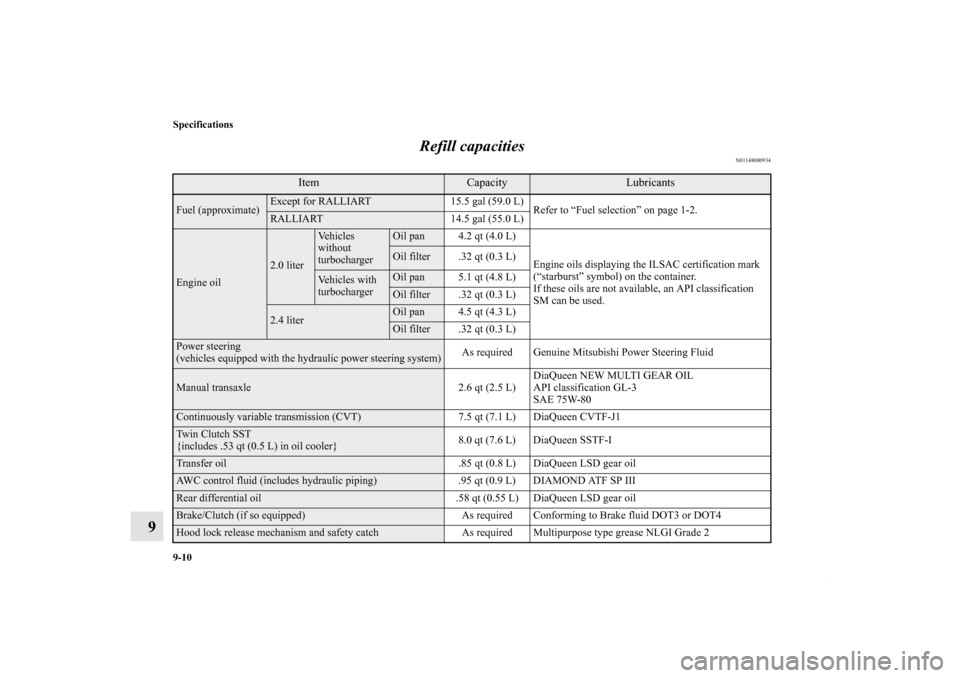

9Refill capacities
N01148000934
Item
Capacity
Lubricants
Fuel (approximate)
Except for RALLIART 15.5 gal (59.0 L)
Refer to “Fuel selection” on page 1-2.RALLIART 14.5 gal (55.0 L)
Engine oil
2.0 liter
Vehicles
without
turbocharger
Oil pan 4.2 qt (4.0 L)
Engine oils displaying the ILSAC certification mark
(“starburst” symbol) on the container.
If these oils are not available, an API classification
SM can be used.Oil filter .32 qt (0.3 L)
Vehicles with
turbocharger
Oil pan 5.1 qt (4.8 L)Oil filter .32 qt (0.3 L)
2.4 liter
Oil pan 4.5 qt (4.3 L)Oil filter .32 qt (0.3 L)
Power steering
(vehicles equipped with the hydraulic power steering system)As required Genuine Mitsubishi Power Steering Fluid Manual transaxle 2.6 qt (2.5 L)DiaQueen NEW MULTI GEAR OIL
API classification GL-3
SAE 75W-80Continuously variable transmission (CVT) 7.5 qt (7.1 L) DiaQueen CVTF-J1 Tw i n C l u t c h S S T
{includes .53 qt (0.5 L) in oil cooler}8.0 qt (7.6 L) DiaQueen SSTF-ITransfer oil .85 qt (0.8 L) DiaQueen LSD gear oilAWC control fluid (includes hydraulic piping) .95 qt (0.9 L) DIAMOND ATF SP IIIRear differential oil .58 qt (0.55 L) DiaQueen LSD gear oilBrake/Clutch (if so equipped) As required Conforming to Brake fluid DOT3 or DOT4 Hood lock release mechanism and safety catch As required Multipurpose type grease NLGI Grade 2 BK0125300US.book 10 ページ ２０１０年５月１８日　火曜日　午後１時５３分

Specifications
9-11
9

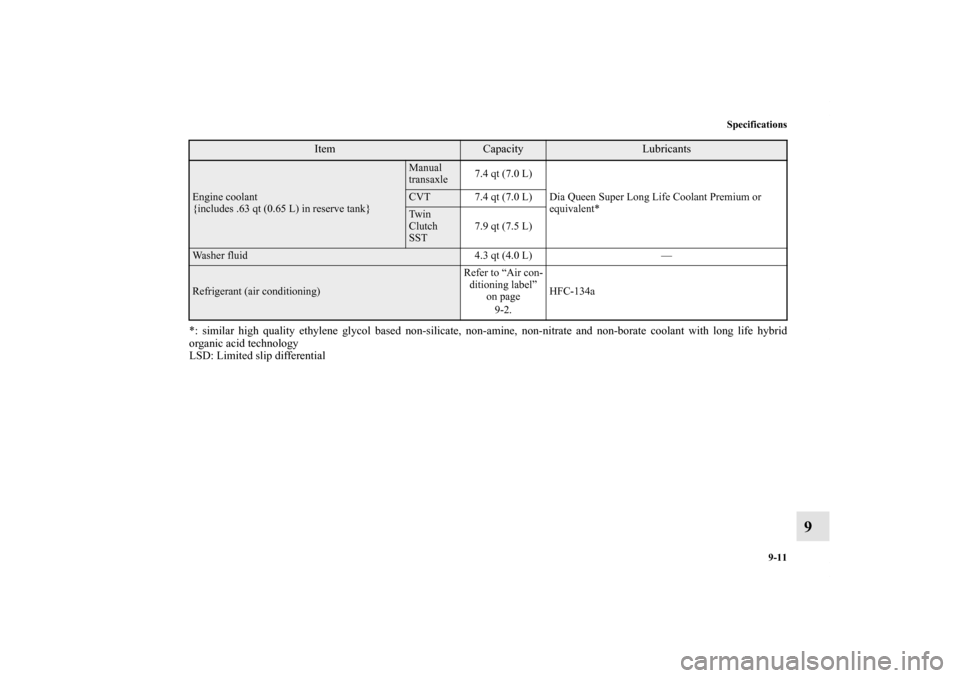

*: similar high quality ethylene glycol based non-silicate, non-amine, non-nitrate and non-borate coolant with long life hybrid
organic acid technology
LSD: Limited slip differentialEngine coolant
{includes .63 qt (0.65 L) in reserve tank}
Manual
transaxle7.4 qt (7.0 L)
Dia Queen Super Long Life Coolant Premium or
equivalent*CVT 7.4 qt (7.0 L)Tw i n
Clutch
SST7.9 qt (7.5 L)
Washer fluid 4.3 qt (4.0 L) — Refrigerant (air conditioning)Refer to “Air con-
ditioning label”
on page
9-2.HFC-134a
Item
Capacity
Lubricants
