2011 MITSUBISHI LANCER SPORTBACK Owners Manual

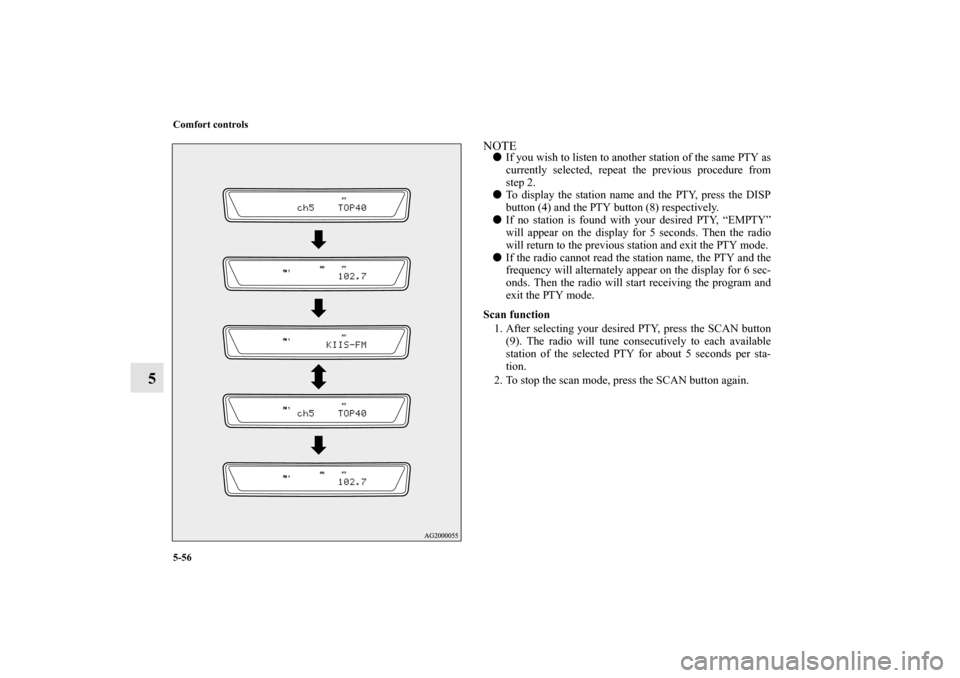

5-56 Comfort controls
5
NOTE
If you wish to listen to another station of the same PTY as
currently selected, repeat the previous procedure from
step 2.

To display the station name and the PTY, press the DISP
button (4) and the PTY button (8) respectively.

If no station is found with your desired PTY, “EMPTY”
will appear on the display for 5 seconds. Then the radio
will return to the previous station and exit the PTY mode.

If the radio cannot read the station name, the PTY and the
frequency will alternately appear on the display for 6 sec-
onds. Then the radio will start receiving the program and
exit the PTY mode.
Scan function
1. After selecting your desired PTY, press the SCAN button
(9). The radio will tune consecutively to each available
station of the selected PTY for about 5 seconds per sta-
tion.
2. To stop the scan mode, press the SCAN button again.
BK0125300US.book 56 ページ ２０１０年５月１８日　火曜日　午後１時５３分

Comfort controls
5-57
5

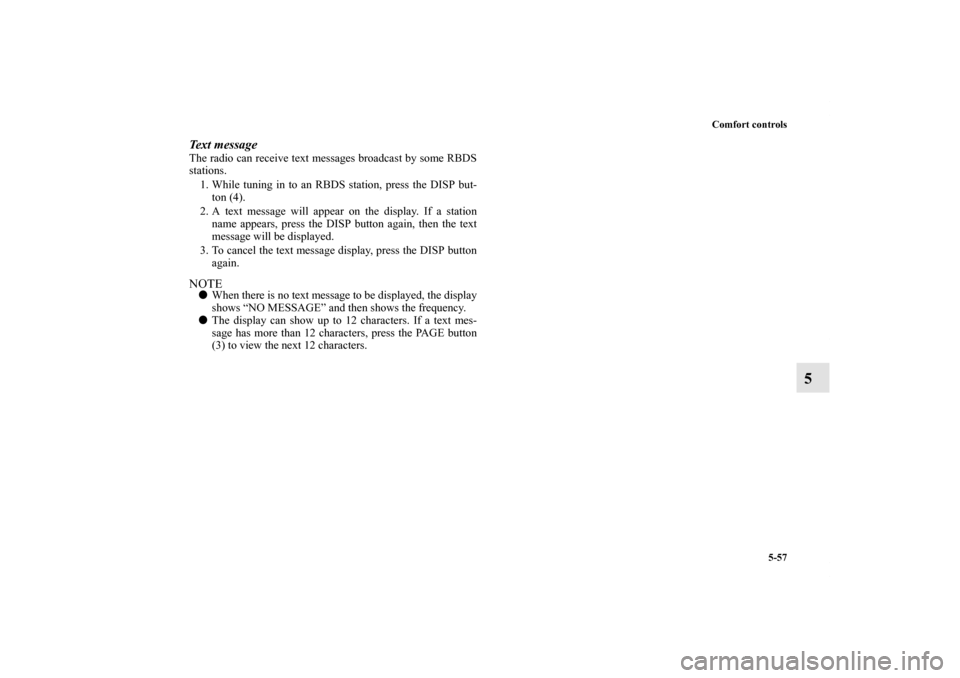

Text messageThe radio can receive text messages broadcast by some RBDS
stations.
1. While tuning in to an RBDS station, press the DISP but-
ton (4).
2. A text message will appear on the display. If a station
name appears, press the DISP button again, then the text
message will be displayed.
3. To cancel the text message display, press the DISP button
again.NOTE
When there is no text message to be displayed, the display
shows “NO MESSAGE” and then shows the frequency.

The display can show up to 12 characters. If a text mes-
sage has more than 12 characters, press the PAGE button
(3) to view the next 12 characters.
BK0125300US.book 57 ページ ２０１０年５月１８日　火曜日　午後１時５３分

5-58 Comfort controls
5
SIRIUS satellite radio control panel and display
N00700200197
1- RADIO (AM/FM/Satellite radio selection) button
2- PWR (On-Off) switch
3- PAGE button
4- DISP (Display) button
5- Channel selection down button
6- Channel selection up button
7- TUNE/SOUND (Category selection) switch
8- PTY button
9- SCAN button
10- Memory select buttons
1 1 - S AT ( S AT 1 / S AT 2 / S AT 3 / S AT 4 ) d i s p l a y
12- PTY indicator
BK0125300US.book 58 ページ ２０１０年５月１８日　火曜日　午後１時５３分

Comfort controls
5-59
5

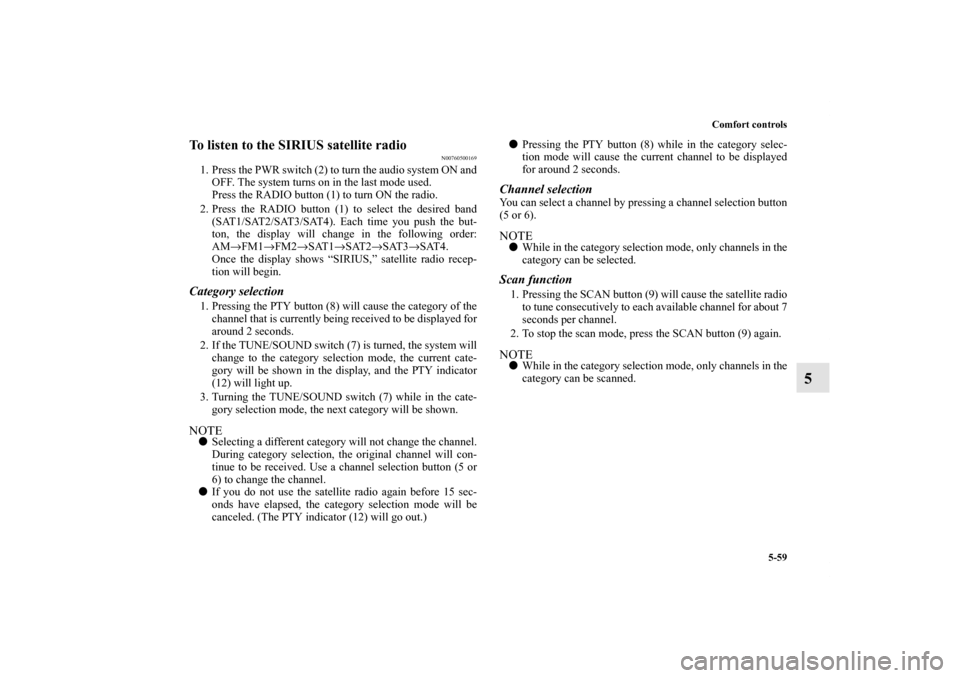

To listen to the SIRIUS satellite radio
N00760500169
1. Press the PWR switch (2) to turn the audio system ON and
OFF. The system turns on in the last mode used.
Press the RADIO button (1) to turn ON the radio.
2. Press the RADIO button (1) to select the desired band
(SAT1/SAT2/SAT3/SAT4). Each time you push the but-
ton, the display will change in the following order:
AM→FM1→FM2→SAT1→SAT2→SAT3→SAT4.
Once the display shows “SIRIUS,” satellite radio recep-
tion will begin.Category selection1. Pressing the PTY button (8) will cause the category of the
channel that is currently being received to be displayed for
around 2 seconds.
2. If the TUNE/SOUND switch (7) is turned, the system will
change to the category selection mode, the current cate-
gory will be shown in the display, and the PTY indicator
(12) will light up.
3. Turning the TUNE/SOUND switch (7) while in the cate-
gory selection mode, the next category will be shown.NOTE
Selecting a different category will not change the channel.
During category selection, the original channel will con-
tinue to be received. Use a channel selection button (5 or
6) to change the channel.

If you do not use the satellite radio again before 15 sec-
onds have elapsed, the category selection mode will be
canceled. (The PTY indicator (12) will go out.)
Pressing the PTY button (8) while in the category selec-
tion mode will cause the current channel to be displayed
for around 2 seconds.
Channel selectionYou can select a channel by pressing a channel selection button
(5 or 6). NOTE
While in the category selection mode, only channels in the
category can be selected.Scan function1. Pressing the SCAN button (9) will cause the satellite radio
to tune consecutively to each available channel for about 7
seconds per channel.
2. To stop the scan mode, press the SCAN button (9) again.NOTE
While in the category selection mode, only channels in the
category can be scanned.
BK0125300US.book 59 ページ ２０１０年５月１８日　火曜日　午後１時５３分

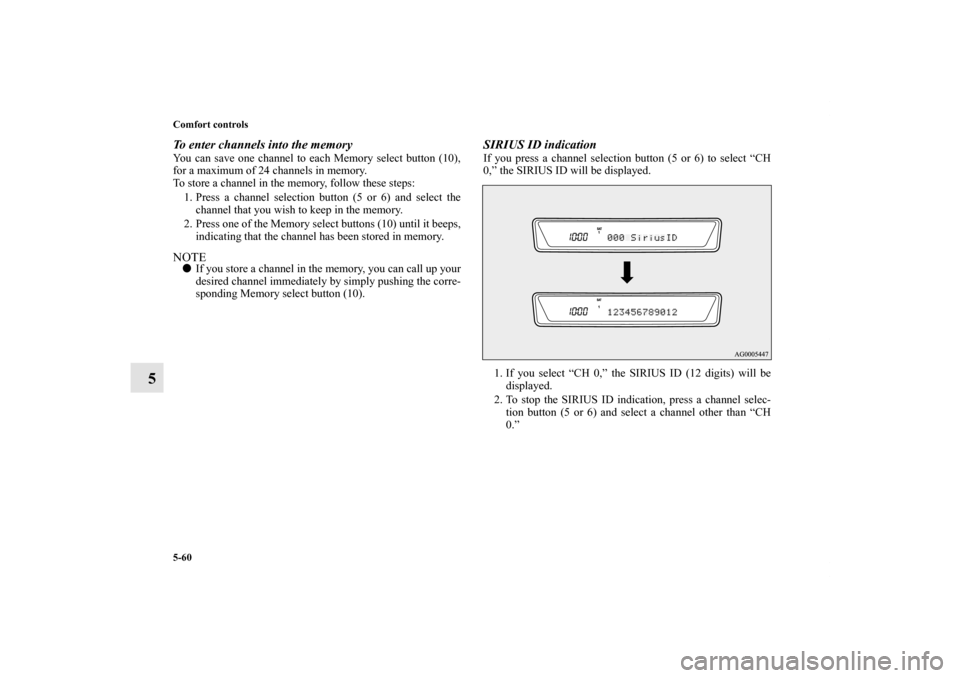

5-60 Comfort controls
5
To enter channels into the memoryYou can save one channel to each Memory select button (10),
for a maximum of 24 channels in memory.
To store a channel in the memory, follow these steps:
1. Press a channel selection button (5 or 6) and select the
channel that you wish to keep in the memory.
2. Press one of the Memory select buttons (10) until it beeps,
indicating that the channel has been stored in memory.NOTE
If you store a channel in the memory, you can call up your
desired channel immediately by simply pushing the corre-
sponding Memory select button (10).
SIRIUS ID indication If you press a channel selection button (5 or 6) to select “CH
0,” the SIRIUS ID will be displayed.
1. If you select “CH 0,” the SIRIUS ID (12 digits) will be
displayed.
2. To stop the SIRIUS ID indication, press a channel selec-
tion button (5 or 6) and select a channel other than “CH
0.”
BK0125300US.book 60 ページ ２０１０年５月１８日　火曜日　午後１時５３分

Comfort controls
5-61
5
To skip or lock a desired channel - MENU modeYou can set the satellite radio so that it locks a desired channel
or skips the channel during channel selection.
1. While the satellite radio is tuned in to the channel, press
the TUNE/SOUND switch (7) for about 2 seconds or
longer to enter the MENU mode.
2. In the MENU mode, the satellite radio channel SKIP set-
ting and LOCK setting are possible.
Each time you press the TUNE/SOUND switch (7), the
status will change in the following sequence.
“SKIP SETTING” (SKIP setting mode) → “LOCK SET-
TING” (LOCK setting mode) → “SCV ON” → “PHONE
OFF” → MENU mode off.NOTE
The MENU mode will automatically shut off when either
the radio or CD is selected, when the TUNE/SOUND
switch (7) is pressed for about 2 seconds or longer, or
when the radio is left alone for 10 seconds.

The SKIP settings, LOCK settings and lock cancellation
code are stored in memory.
Disconnecting the battery cable will erase these settings.
(The lock cancellation code will reset to the factory set-
ting: “1111.”)

For more information on the SCV function, refer to
“Speed Compensated Volume function” on page 5-52.

“PHONE OFF” is displayed but the function is not
enabled.

If the vehicle is equipped with a Mitsubishi Motors autho-
rized hands-free phone system, “PHONE OFF” will not
be displayed.
“SKIP SETTING” (SKIP Setting Mode)You can set any channel to be skipped during channel selec-
tion. You can also cancel a skip setting.
You can turn the TUNE/SOUND switch (7) and select “SKIP
CH” or “UNSKIP ALL.”
These functions are described below.“LOCK SETTING” (LOCK Setting Mode)You can lock any channel of your choice or unlock a locked
channel.
You can turn the TUNE/SOUND switch (7) and select “LOCK
CH” (or “UNLOCK CH”), “UNLOCK ALL” or “CODE
EDIT.”
These functions are described below.NOTE
If the channel that is currently being received is not
locked, you can select “LOCK CH”; if it is locked, you
can select “UNLOCK CH.”
SKIP CH: Sets the satellite radio so that it skips
the channel that is currently being
received.
UNSKIP ALL: Cancels skip setting on all channels.
LOCK CH: Locks the channel that is currently
being received.
UNLOCK CH: Unlocks the channel that is currently
being received.
UNLOCK ALL: Cancels lock setting on all channels.
CODE EDIT: Changes the lock cancellation code.
BK0125300US.book 61 ページ ２０１０年５月１８日　火曜日　午後１時５３分

5-62 Comfort controls
5

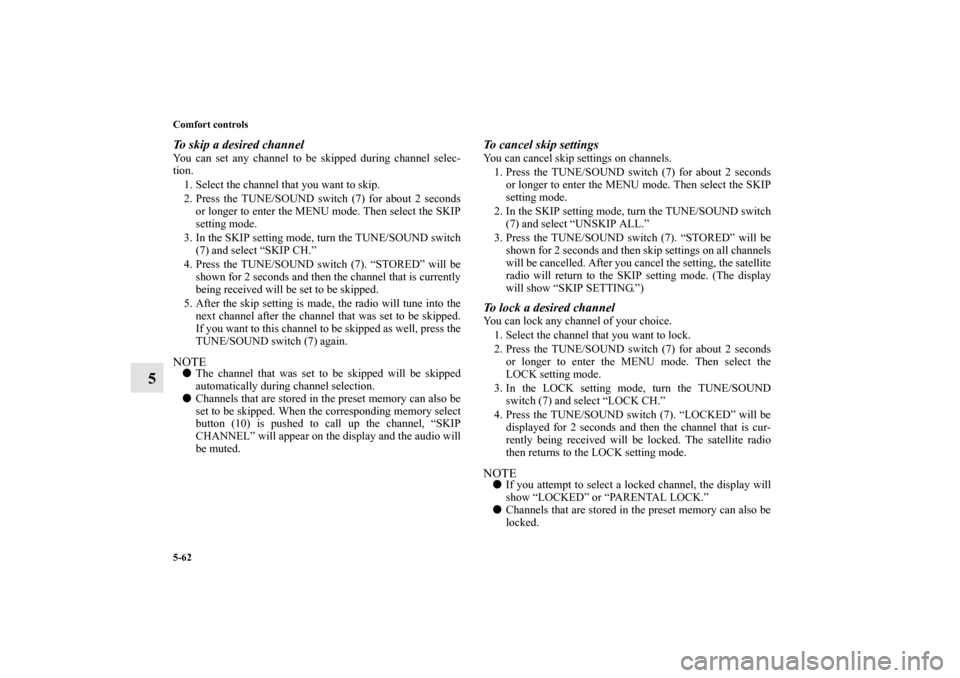

To skip a desired channelYou can set any channel to be skipped during channel selec-
tion.
1. Select the channel that you want to skip.
2. Press the TUNE/SOUND switch (7) for about 2 seconds
or longer to enter the MENU mode. Then select the SKIP
setting mode.
3. In the SKIP setting mode, turn the TUNE/SOUND switch
(7) and select “SKIP CH.”
4. Press the TUNE/SOUND switch (7). “STORED” will be
shown for 2 seconds and then the channel that is currently
being received will be set to be skipped.
5. After the skip setting is made, the radio will tune into the
next channel after the channel that was set to be skipped.
If you want to this channel to be skipped as well, press the
TUNE/SOUND switch (7) again.NOTE
The channel that was set to be skipped will be skipped
automatically during channel selection.

Channels that are stored in the preset memory can also be
set to be skipped. When the corresponding memory select
button (10) is pushed to call up the channel, “SKIP
CHANNEL” will appear on the display and the audio will
be muted.
To cancel skip settingsYou can cancel skip settings on channels.
1. Press the TUNE/SOUND switch (7) for about 2 seconds
or longer to enter the MENU mode. Then select the SKIP
setting mode.
2. In the SKIP setting mode, turn the TUNE/SOUND switch
(7) and select “UNSKIP ALL.”
3. Press the TUNE/SOUND switch (7). “STORED” will be
shown for 2 seconds and then skip settings on all channels
will be cancelled. After you cancel the setting, the satellite
radio will return to the SKIP setting mode. (The display
will show “SKIP SETTING.”)To lock a desired channelYou can lock any channel of your choice.
1. Select the channel that you want to lock.
2. Press the TUNE/SOUND switch (7) for about 2 seconds
or longer to enter the MENU mode. Then select the
LOCK setting mode.
3. In the LOCK setting mode, turn the TUNE/SOUND
switch (7) and select “LOCK CH.”
4. Press the TUNE/SOUND switch (7). “LOCKED” will be
displayed for 2 seconds and then the channel that is cur-
rently being received will be locked. The satellite radio
then returns to the LOCK setting mode.NOTE
If you attempt to select a locked channel, the display will
show “LOCKED” or “PARENTAL LOCK.”

Channels that are stored in the preset memory can also be
locked.
BK0125300US.book 62 ページ ２０１０年５月１８日　火曜日　午後１時５３分

Comfort controls
5-63
5

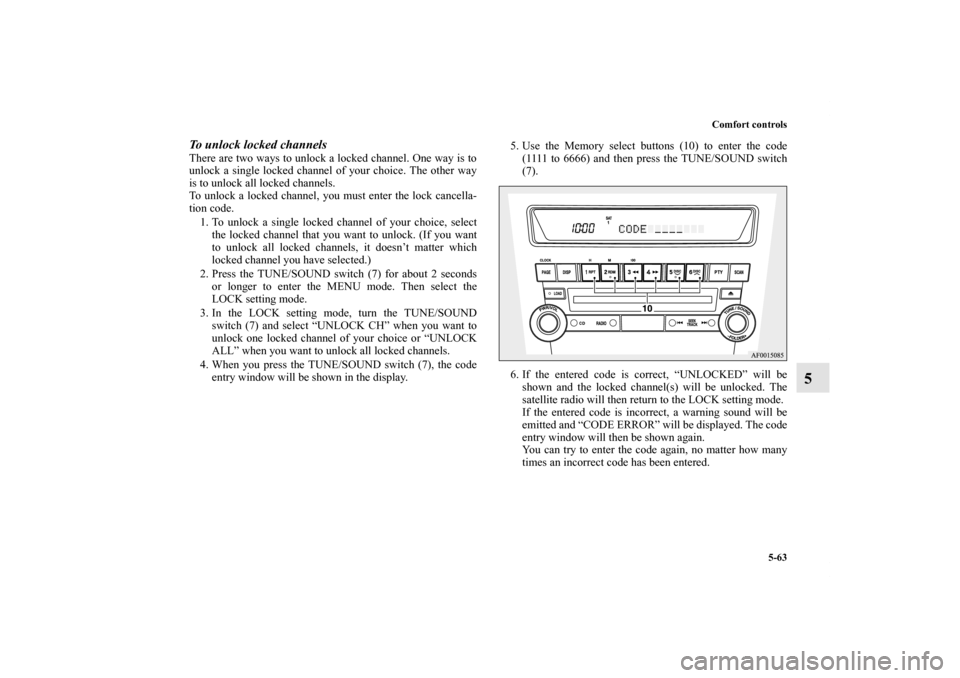

To unlock locked channelsThere are two ways to unlock a locked channel. One way is to
unlock a single locked channel of your choice. The other way
is to unlock all locked channels.
To unlock a locked channel, you must enter the lock cancella-
tion code.
1. To unlock a single locked channel of your choice, select
the locked channel that you want to unlock. (If you want
to unlock all locked channels, it doesn’t matter which
locked channel you have selected.)
2. Press the TUNE/SOUND switch (7) for about 2 seconds
or longer to enter the MENU mode. Then select the
LOCK setting mode.
3. In the LOCK setting mode, turn the TUNE/SOUND
switch (7) and select “UNLOCK CH” when you want to
unlock one locked channel of your choice or “UNLOCK
ALL” when you want to unlock all locked channels.
4. When you press the TUNE/SOUND switch (7), the code
entry window will be shown in the display.5. Use the Memory select buttons (10) to enter the code
(1111 to 6666) and then press the TUNE/SOUND switch
(7).
6. If the entered code is correct, “UNLOCKED” will be
shown and the locked channel(s) will be unlocked. The
satellite radio will then return to the LOCK setting mode.
If the entered code is incorrect, a warning sound will be
emitted and “CODE ERROR” will be displayed. The code
entry window will then be shown again.
You can try to enter the code again, no matter how many
times an incorrect code has been entered.
BK0125300US.book 63 ページ ２０１０年５月１８日　火曜日　午後１時５３分
