2011 MITSUBISHI LANCER SPORTBACK Owners Manual

3-154 Features and controls
3
To slow down your speed in small amounts, press the “COAST
SET” switch for less than about 1 second and release it.
Each time you press the “COAST SET” switch, your vehicle
will slow down by about 1 mph (1.6 km/h).Brake pedalWhile driving at the set speed, use the brake pedal, which dis-
engages the cruise control, then press the “COAST SET”
switch (B) and release the switch momentarily to set a new
desired cruising speed.
To temporarily increase or decrease the speed
N00541700027
To temporarily increase the speedDepress the accelerator pedal as you would normally. When
you release the pedal, you will return to your set speed.
Ty p e 1
Ty p e 2
BK0125300US.book 154 ページ ２０１０年５月１８日　火曜日　午後１時５３分

Features and controls
3-155
3
To temporarily decrease the speedDepress the brake pedal to decrease the speed. To return to the
previously set speed, press the “ACC RES” switch (C).
Refer to “To resume the set speed” on page 3-157.
To deactivate
N00518800477
The set speed driving can be deactivated as follows:

Press the “ON OFF” switch (A). (Cruise control will be
turned off.)

Press the “CANCEL” switch (D).

Depress the brake pedal.
Type 1
Type 2
Ty p e 1
Ty p e 2
BK0125300US.book 155 ページ ２０１０年５月１８日　火曜日　午後１時５３分

3-156 Features and controls
3
The set speed driving is deactivated automatically in any of the
following ways.

When you depress the clutch pedal (on vehicles equipped
with manual transaxle).

When your speed slows to about 10 mph (15 km/h) or
more below the set speed because of a hill, etc.

When your speed slows to about 25 mph (40 km/h) or
less.

When the Twin Clutch SST control mode is set to “Sport”
mode (on vehicles equipped with Twin Clutch SST).
Refer to “Twin Clutch SST control mode” on page 3-116.

When the active stability control (ASC) starts operating.
Refer to “Active stability control (ASC)” on page 3-144.Also, the set speed driving may be deactivated as follow:

When the engine speed rises and approaches the tachome-
ter’s red zone (the red-colored part of the tachometer dial).
WA R N I N G
!
On vehicles equipped with continuously variable
transmission (CVT) or Twin Clutch SST, although
the set speed driving will be deactivated when shift-
ing to the “N” (NEUTRAL) position, never move the
selector lever (CVT) or the gearshift lever (Twin
Clutch SST) to the “N” (NEUTRAL) position while
driving.
You would have no engine braking and could cause
a serious accident.
CAUTION
!
When the set speed driving is deactivated automati-
cally in any situation other than those listed above,
there may be a system malfunction.
Press the “ON OFF” switch to turn off the cruise
control and have your vehicle inspected by an autho-
rized Mitsubishi Motors dealer or a repair facility of
your choice.
BK0125300US.book 156 ページ ２０１０年５月１８日　火曜日　午後１時５３分

Features and controls
3-157
3
To resume the set speed
N00518900250
If the set speed driving is deactivated by the condition
described in “To deactivate” on page 3-155, you can resume
the previously set speed by pressing the “ACC RES” switch
(C) while driving at a speed of about 25 mph (40 km/h) or
higher.Under either of the following conditions, however, using the
switch does not allow you to resume the previously set speed.
In these situations, repeat the speed setting procedure:

The “ON OFF” switch is pressed.

The ignition switch is turned OFF.

“CRUISE” indicator light is turned OFF.Ty p e 1
Ty p e 2
BK0125300US.book 157 ページ ２０１０年５月１８日　火曜日　午後１時５３分

3-158 Features and controls
3Tire pressure monitoring system
N00530200370
The tire pressure monitoring system uses tire inflation pressure
sensors (A) on the wheels to monitor the tire inflation pres-
sures. The system only indicates when a tire is significantly
under-inflated.
NOTE
The tire pressure monitoring system is not a substitute for
regularly checking tire inflation pressures.
Be sure to check the tire inflation pressures as described in
“Tires” on page 7-29.

Each of the grommets and washers where the tire inflation
pressure sensors are mounted should be replaced with new
ones when the tire is replaced.
For details, contact your authorized Mitsubishi Motors
dealer.
WA R N I N G
!
The spare wheel does not have a tire inflation pres-
sure sensor.
When the spare tire is used, the tire pressure moni-
toring system will not work properly.
See an authorized Mitsubishi Motors dealer as soon
as possible to replace or repair the original tire.
Grommet
Wa s h e r
Tire inflation
pressure sensor
BK0125300US.book 158 ページ ２０１０年５月１８日　火曜日　午後１時５３分

Features and controls
3-159
3
The tire pressure monitoring system warning
light/display
N00532700308
When the ignition switch is turned to the “ON” position, the
tire pressure monitoring system warning light normally illumi-
nates and goes off a few seconds later.
If one or more of the vehicle tires (except for the spare tire) is
significantly under-inflated, the warning light will remain illu-
minated while the ignition switch is in the “ON” position.
Refer to “If the warning light/display illuminates while driv-
ing” on page 3-161 and take the necessary measures.NOTE
In addition, the warning display is displayed on the infor-
mation screen in the multi-information display.
Ty p e 1
Ty p e 2
CAUTION
!
If the tire pressure monitoring system warning light
does not illuminate when the ignition switch is
turned to the “ON” position, it means that the tire
pressure monitoring system is not working properly.
Have the system inspected by an authorized Mitsub-
ishi Motors dealer.
In such situations, a malfunctioning of the system
may be preventing the monitoring of the tire pres-
sure. Avoid sudden braking, sharp turning and
high-speed driving.
If a malfunction is detected in the tire pressure mon-
itoring system, the tire pressure monitoring system
warning light will blink for approximately 1 minute
and then remain continuously illuminated. The
warning light will issue further warnings each time
the engine is restarted as long as the malfunction
exists.
Check to see whether the warning light goes off after
few minutes driving.
If it then goes off during driving, there is no prob-
lem.
However, if the warning light does not go off, or if it
blinks again when the engine is restarted, have the
vehicle inspected by an authorized Mitsubishi
Motors dealer.
In such situations, a malfunctioning of the system
may be preventing the monitoring of the tire pres-
sure. For safety reasons, when the warning light
appears while driving, avoid sudden braking, sharp
turning and high-speed driving.
BK0125300US.book 159 ページ ２０１０年５月１８日　火曜日　午後１時５３分

3-160 Features and controls
3
NOTE
In addition, the warning display is displayed on the infor-
mation screen in the multi-information display.
Ty p e 1
Ty p e 2Each tire, including the spare (if provided), should be checked
monthly when cold and inflated to the inflation pressure rec-
ommended by the vehicle manufacturer on the vehicle placard
or tire inflation pressure label. (If your vehicle has tires of a
different size than the size indicated on the vehicle placard or
tire inflation pressure label, you should determine the proper
tire inflation pressure for those tires.)
As an added safety feature, your vehicle has been equipped
with a tire pressure monitoring system (TPMS) that illuminates
a low tire pressure telltale when one or more of your tires is
significantly under-inflated.
Accordingly, when the low tire pressure telltale illuminates,
you should stop and check your tires as soon as possible, and
inflate them to the proper pressure. Driving on a significantly
under-inflated tire causes the tire to overheat and can lead to
tire failure.
Under-inflation also reduces fuel efficiency and tire tread life,
and may affect the vehicle’s handling and stopping ability.
Please note that the TPMS is not a substitute for proper tire
maintenance, and it is the driver’s responsibility to maintain
correct tire pressure, even if under-inflation has not reached the
level to trigger illumination of the TPMS low tire pressure tell-
tale.
Your vehicle has also been equipped with a TPMS malfunction
indicator to indicate when the system is not operating properly.
The TPMS malfunction indicator is combined with the low tire
pressure telltale.
When the system detects a malfunction, the telltale will flash
for approximately one minute and then remain continuously
illuminated. This sequence will continue upon subsequent
vehicle start-ups as long as the malfunction exists.
BK0125300US.book 160 ページ ２０１０年５月１８日　火曜日　午後１時５３分

Features and controls
3-161
3

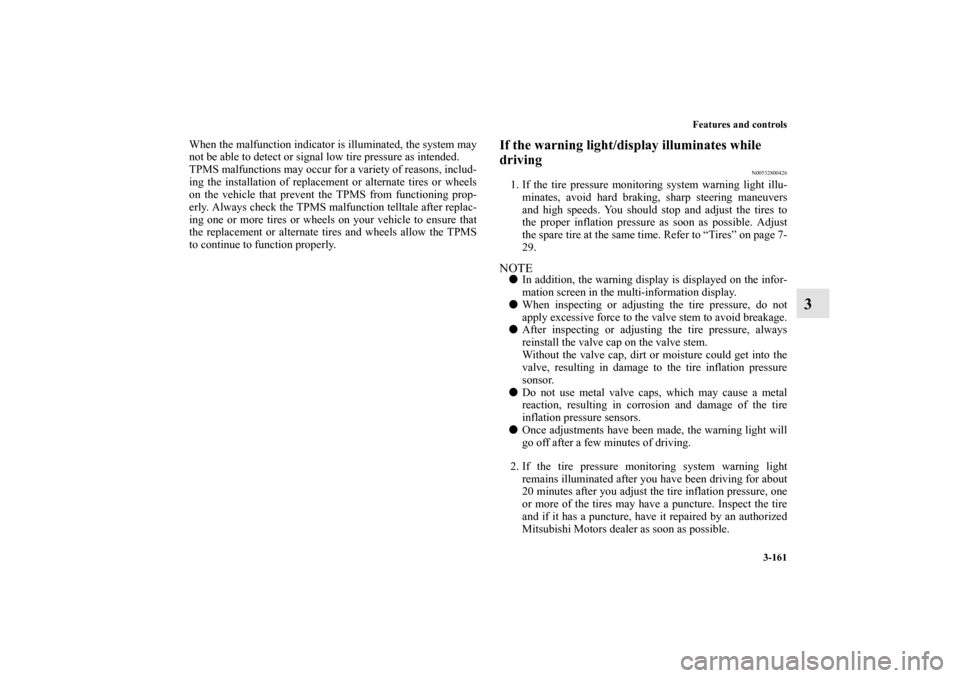

When the malfunction indicator is illuminated, the system may
not be able to detect or signal low tire pressure as intended.
TPMS malfunctions may occur for a variety of reasons, includ-
ing the installation of replacement or alternate tires or wheels
on the vehicle that prevent the TPMS from functioning prop-
erly. Always check the TPMS malfunction telltale after replac-
ing one or more tires or wheels on your vehicle to ensure that
the replacement or alternate tires and wheels allow the TPMS
to continue to function properly.
If the warning light/display illuminates while
driving
N00532800426
1. If the tire pressure monitoring system warning light illu-
minates, avoid hard braking, sharp steering maneuvers
and high speeds. You should stop and adjust the tires to
the proper inflation pressure as soon as possible. Adjust
the spare tire at the same time. Refer to “Tires” on page 7-
29.NOTE
In addition, the warning display is displayed on the infor-
mation screen in the multi-information display.

When inspecting or adjusting the tire pressure, do not
apply excessive force to the valve stem to avoid breakage.

After inspecting or adjusting the tire pressure, always
reinstall the valve cap on the valve stem.
Without the valve cap, dirt or moisture could get into the
valve, resulting in damage to the tire inflation pressure
sonsor.

Do not use metal valve caps, which may cause a metal
reaction, resulting in corrosion and damage of the tire
inflation pressure sensors.

Once adjustments have been made, the warning light will
go off after a few minutes of driving.
2. If the tire pressure monitoring system warning light
remains illuminated after you have been driving for about
20 minutes after you adjust the tire inflation pressure, one
or more of the tires may have a puncture. Inspect the tire
and if it has a puncture, have it repaired by an authorized
Mitsubishi Motors dealer as soon as possible.
