2011 MITSUBISHI LANCER SPORTBACK Owners Manual

3-82 Features and controls
3
Heated mirror
(if so equipped)
N00549300175
When the rear window defogger switch is pressed with the
engine running, the outside rearview mirrors are defogged or
defrosted. Current will flow through the heater element inside
the mirrors, thus clearing away frost or condensation.
The indicator light (A) will illuminate while the defogger is on.
The heater will be turned off automatically in about 20 min-
utes.
Ignition switch
N00512400628
[For vehicles equipped with the F.A.S.T.-key]
For information on operations for vehicles equipped with the
F.A.S.T.-key, refer to “F.A.S.T.-key: Ignition switch” on page
3-23.
[Except for vehicles equipped with the F.A.S.T.-key]LOCKThe engine is off and the steering wheel is locked. The key can
be inserted and removed only when the switch is in this posi-
tion. ACCAllows operation of electrical accessories with the engine off. Manual transaxle CVT or Twin Clutch SST
BK0125300US.book 82 ページ ２０１０年５月１８日　火曜日　午後１時５３分

Features and controls
3-83
3
ON The engine runs and all accessories can be used. START Engages the starter. After the engine starts, release the key and
it will return automatically to the “ON” position.NOTE
Your vehicle is equipped with an electronic immobilizer.
To start the engine, the ID code which the transponder
inside the key sends must match the one registered to the
immobilizer computer.
(Refer to “Electronic immobilizer” on page 3-4.)
ACC power auto-cutout function
N00539600061
After about 30 minutes has elapsed with the ignition switch in
the “ACC” position, the function automatically cuts out the
power for the audio system and other electric devices that can
be operated with that position.
When the ignition switch is turned from the “ACC” position,
the power is supplied again to those devices.NOTE
It is possible to modify functions as follows:
• The time until the power cuts out can be changed to
about 60 minutes.
• The ACC power auto-cutout function can be deacti-
vated.
For details, consult a Mitsubishi Motors dealer.
On vehicles equipped with Mitsubishi Multi-Communica-
tion System, screen operations can be used to make the
adjustment.
Refer to the separate owner’s manual for details.
BK0125300US.book 83 ページ ２０１０年５月１８日　火曜日　午後１時５３分

3-84 Features and controls
3

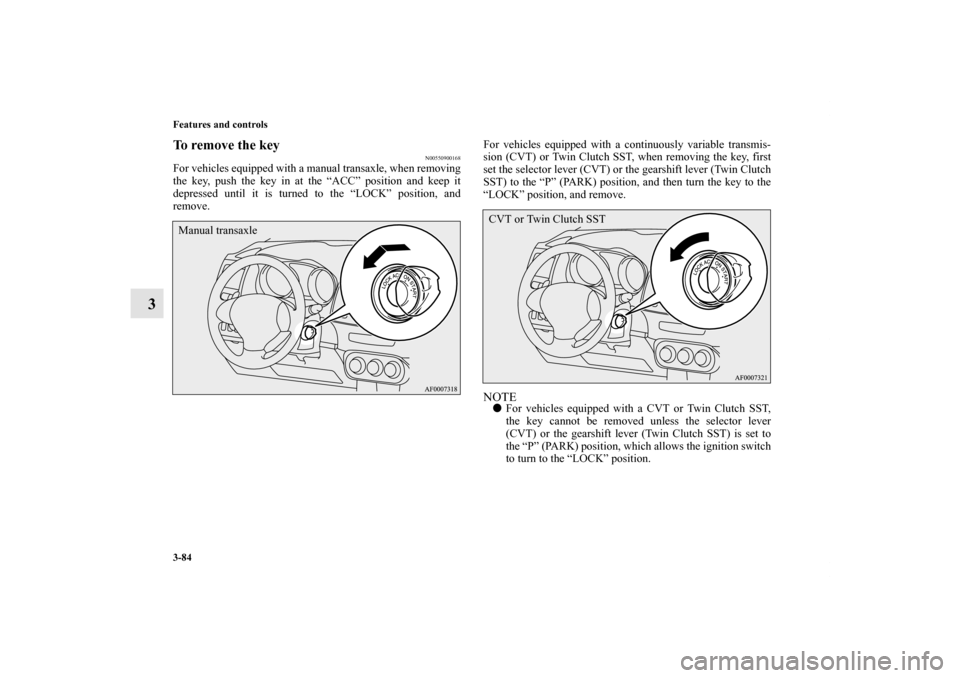

To remove the key
N00550900168
For vehicles equipped with a manual transaxle, when removing
the key, push the key in at the “ACC” position and keep it
depressed until it is turned to the “LOCK” position, and
remove.For vehicles equipped with a continuously variable transmis-
sion (CVT) or Twin Clutch SST, when removing the key, first
set the selector lever (CVT) or the gearshift lever (Twin Clutch
SST) to the “P” (PARK) position, and then turn the key to the
“LOCK” position, and remove.
NOTE
For vehicles equipped with a CVT or Twin Clutch SST,
the key cannot be removed unless the selector lever
(CVT) or the gearshift lever (Twin Clutch SST) is set to
the “P” (PARK) position, which allows the ignition switch
to turn to the “LOCK” position.
Manual transaxle
CVT or Twin Clutch SST
BK0125300US.book 84 ページ ２０１０年５月１８日　火曜日　午後１時５３分

Features and controls
3-85
3 Steering wheel lock
N00512500179
[For vehicles equipped with the F.A.S.T.-key]
For information on operations for vehicles equipped with the
F.A.S.T.-key, refer to “F.A.S.T.-key: Steering wheel lock” on
page 3-30.
[Except for vehicles equipped with the F.A.S.T.-key]To l o c kRemove the key at the “LOCK” position.
Turn the steering wheel until it is locked.To u n l o c kTurn the key to the “ACC” position while moving the steering
wheel slightly.
CAUTION
!
Do not remove the ignition key from the ignition
switch while driving. The steering wheel will lock,
causing loss of control.
If the engine is turned off while driving, the power
brake booster will stop functioning and braking effi-
ciency will be reduced. Also, the power steering sys-
tem will not function and it will require greater
effort to manually steer the vehicle.
Do not leave the key in the “ON” position for a long
time when the engine is not running. This will cause
the battery to run down.
Do not turn the key to the “START” position when
the engine is running. It will damage the starter
motor.
BK0125300US.book 85 ページ ２０１０年５月１８日　火曜日　午後１時５３分

3-86 Features and controls
3
NOTE
If the front wheels are turned, the anti-theft lock may
sometimes make it difficult to turn the key from “LOCK”
position to “ACC” position. Firmly turn the steering
wheel to the left or to the right as you turn the key.
Starting and stopping the engine
N00542100057
Tips for starting
Do not operate the starter motor continuously for longer
than 15 seconds as this could run the battery down or
damage the starter motor. If the engine does not start, turn
the ignition switch back to the “LOCK” position, wait a
few seconds, and then try again. Trying repeatedly with
the engine or starter motor still turning will damage the
starter mechanism.

If the engine will not start because the battery is weak or
discharged, refer to “Jump-starting the engine” (on page
6-2) for instructions.

[Except for vehicles equipped with the turbocharger]
The engine is warmed up enough for driving when the bar
graph of engine coolant temperature display starts to
move. A longer warm up period will only consume extra
fuel.

[For vehicles equipped with the turbocharger]
The engine is warmed up enough for driving when the bar
graph of engine coolant temperature display starts to
move. Driving before the bar graph moves may cause
deterioration of turbocharger performance and driveabil-
ity. A longer warm up period will only consume extra
fuel.
CAUTION
!
Remove the key when leaving the vehicle.
BK0125300US.book 86 ページ ２０１０年５月１８日　火曜日　午後１時５３分

Features and controls
3-87
3

On vehicles equipped with the Twin Clutch SST, the fol-
lowing may occur after the engine is started, but they do
not indicate an abnormality.
• You may hear operational sounds of the Twin Clutch
SST and you may feel vibration in the vehicle body.
• If you shift the gearshift lever into the “N” (NEUTRAL)
position and depress the accelerator pedal, increases in
the engine speed will be limited.
Starting the engine
N00542200090
[For vehicles equipped with the F.A.S.T.-key]
For information on operations for vehicles equipped with the
F.A.S.T.-key, refer to “F.A.S.T.-key: Starting the engine” on
page 3-30.
[Except for vehicles equipped with the F.A.S.T.-key]
Your vehicle is equipped with an electronically controlled fuel
injection system, which automatically controls the release of
fuel. There is usually no need to depress the accelerator pedal
when starting the engine.
The starter should not be run for more than 15 seconds at a
time.
To prevent battery drain, wait a few seconds between attempts
to restart the engine.
1. Make sure all occupants are properly seated with seat
belts fastened.
2. Insert the ignition key.
3. Make sure the parking brake is applied.
4. Press and hold the brake pedal down with your right foot.
5. Press and hold the clutch pedal all the way down (manual
transaxle).NOTE
For models equipped with a manual transaxle, the starter
will not operate unless the clutch pedal is fully depressed
(Clutch interlock). This is a safety feature.
WA R N I N G
!
Never run the engine in a closed or poorly ventilated
area any longer than is needed to move your vehicle
out of the area. Carbon monoxide gas, which is
odorless and extremely poisonous, could build up
and cause serious injury or death.
CAUTION
!
Do not push-start the vehicle.
Do not run the engine at high rpms or drive at high
speeds until the engine has had a chance to warm
up.
Release the ignition switch as soon as the engine
starts. Otherwise, the starter motor will be dam-
aged.
BK0125300US.book 87 ページ ２０１０年５月１８日　火曜日　午後１時５３分

3-88 Features and controls
3
6. On vehicles equipped with manual transaxle, place the
gearshift lever in the “N” (Neutral) position.
On vehicles equipped with continuously variable trans-
mission (CVT) or Twin Clutch SST, make sure the selec-
tor lever (CVT) or the gearshift lever (Twin Clutch SST)
is in the “P” (PARK) position.NOTE
On vehicles equipped with CVT, the starter will not oper-
ate unless the selector lever is in the “P” (PARK) or “N”
(NEUTRAL) position.
On vehicles equipped with Twin Clutch SST, the starter
will not operate unless the gearshift lever is in the “P”
(PARK) position or the gearshift lever is in the “N”
(NEUTRAL) position with the brake pedal depressed.
For safety reasons, start the engine in the “P” (PARK)
position so that the wheels are locked.
7. Turn the ignition switch to the “ON” position and make
certain that all warning lights are functioning properly
before starting the engine.
8. Turn the ignition switch to the “START” position without
pressing the accelerator pedal. Release the key when the
engine starts. NOTE
Minor noises may be heard on engine start-up. These will
disappear as the engine warms up.
Startability of continuously variable transmission
(CVT) vehicles or Twin Clutch SST vehicles at
extremely cold ambient temperatureWhen the ambient temperature is -4 °F (-20 °C) or lower on
vehicles equipped with CVT, -22 °F (-30 °C) or lower on vehi-
cles equipped with Twin Clutch SST, it may not be possible to
start from a stand-still even with the selector lever (CVT) or
the gearshift lever (Twin Clutch SST) in the “D” (DRIVE)
position.
This phenomenon occurs because the transaxle has not warmed
up sufficiently; it does not indicate a problem. If it occurs,
place the selector lever (CVT) or the gearshift lever (Twin
Clutch SST) in the “P” (PARK) position and let the engine idle
for at least 10 minutes.
The transaxle will warm up, and you will be able to start nor-
mally.
Do not leave the vehicle during warm-up operation.
BK0125300US.book 88 ページ ２０１０年５月１８日　火曜日　午後１時５３分

Features and controls
3-89
3

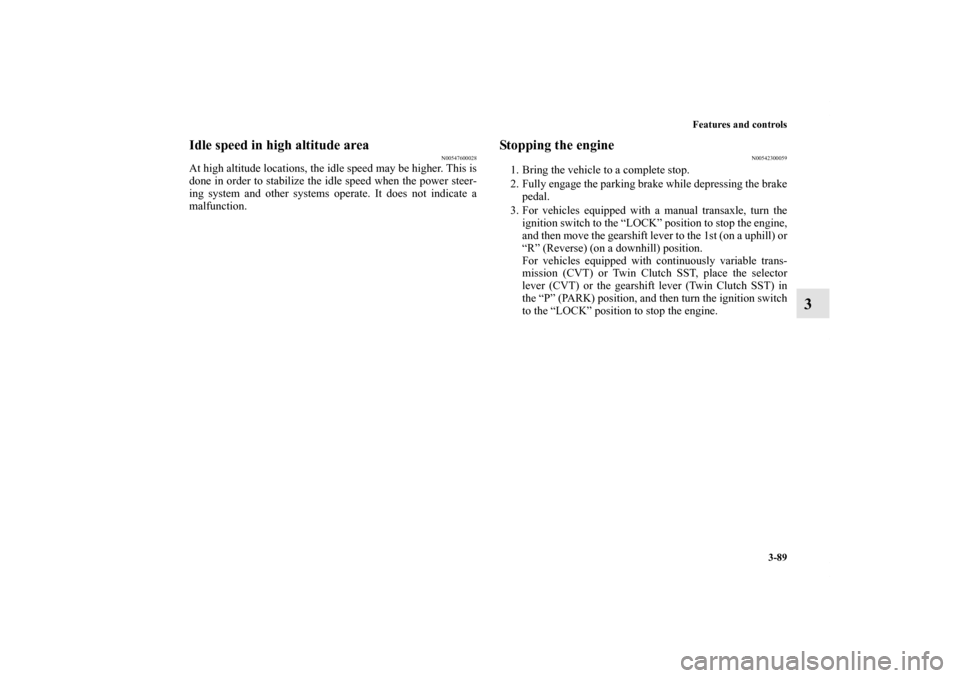

Idle speed in high altitude area
N00547600028
At high altitude locations, the idle speed may be higher. This is
done in order to stabilize the idle speed when the power steer-
ing system and other systems operate. It does not indicate a
malfunction.
Stopping the engine
N00542300059
1. Bring the vehicle to a complete stop.
2. Fully engage the parking brake while depressing the brake
pedal.
3. For vehicles equipped with a manual transaxle, turn the
ignition switch to the “LOCK” position to stop the engine,
and then move the gearshift lever to the 1st (on a uphill) or
“R” (Reverse) (on a downhill) position.
For vehicles equipped with continuously variable trans-
mission (CVT) or Twin Clutch SST, place the selector
lever (CVT) or the gearshift lever (Twin Clutch SST) in
the “P” (PARK) position, and then turn the ignition switch
to the “LOCK” position to stop the engine.
