3-162 Features and controls
3
NOTE

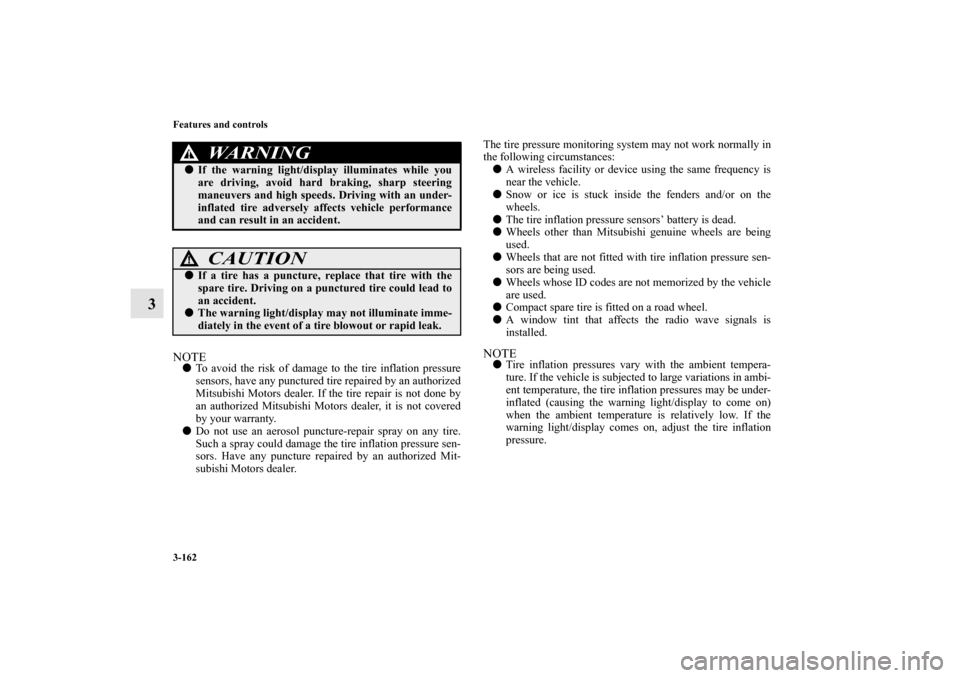

To avoid the risk of damage to the tire inflation pressure
sensors, have any punctured tire repaired by an authorized
Mitsubishi Motors dealer. If the tire repair is not done by
an authorized Mitsubishi Motors dealer, it is not covered
by your warranty.

Do not use an aerosol puncture-repair spray on any tire.
Such a spray could damage the tire inflation pressure sen-
sors. Have any puncture repaired by an authorized Mit-
subishi Motors dealer.The tire pressure monitoring system may not work normally in
the following circumstances:

A wireless facility or device using the same frequency is
near the vehicle.

Snow or ice is stuck inside the fenders and/or on the
wheels.

The tire inflation pressure sensors’ battery is dead.

Wheels other than Mitsubishi genuine wheels are being
used.

Wheels that are not fitted with tire inflation pressure sen-
sors are being used.

Wheels whose ID codes are not memorized by the vehicle
are used.

Compact spare tire is fitted on a road wheel.

A window tint that affects the radio wave signals is
installed.
NOTE
Tire inflation pressures vary with the ambient tempera-
ture. If the vehicle is subjected to large variations in ambi-
ent temperature, the tire inflation pressures may be under-
inflated (causing the warning light/display to come on)
when the ambient temperature is relatively low. If the
warning light/display comes on, adjust the tire inflation
pressure.
WA R N I N G
!
If the warning light/display illuminates while you
are driving, avoid hard braking, sharp steering
maneuvers and high speeds. Driving with an under-
inflated tire adversely affects vehicle performance
and can result in an accident.
CAUTION
!
If a tire has a puncture, replace that tire with the
spare tire. Driving on a punctured tire could lead to
an accident.
The warning light/display may not illuminate imme-
diately in the event of a tire blowout or rapid leak.
BK0125300US.book 162 ページ ２０１０年５月１８日　火曜日　午後１時５３分

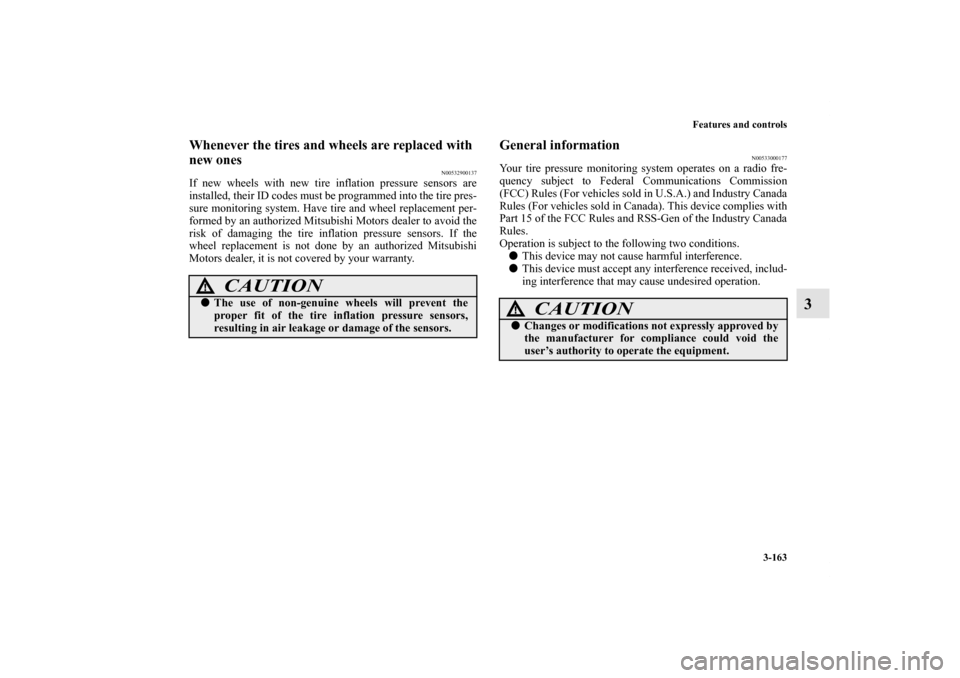

Features and controls
3-163
3
Whenever the tires and wheels are replaced with
new ones
N00532900137
If new wheels with new tire inflation pressure sensors are
installed, their ID codes must be programmed into the tire pres-
sure monitoring system. Have tire and wheel replacement per-
formed by an authorized Mitsubishi Motors dealer to avoid the
risk of damaging the tire inflation pressure sensors. If the
wheel replacement is not done by an authorized Mitsubishi
Motors dealer, it is not covered by your warranty.
General information
N00533000177
Your tire pressure monitoring system operates on a radio fre-
quency subject to Federal Communications Commission
(FCC) Rules (For vehicles sold in U.S.A.) and Industry Canada
Rules (For vehicles sold in Canada). This device complies with
Part 15 of the FCC Rules and RSS-Gen of the Industry Canada
Rules.
Operation is subject to the following two conditions.

This device may not cause harmful interference.

This device must accept any interference received, includ-
ing interference that may cause undesired operation.
CAUTION
!
The use of non-genuine wheels will prevent the
proper fit of the tire inflation pressure sensors,
resulting in air leakage or damage of the sensors.
CAUTION
!
Changes or modifications not expressly approved by
the manufacturer for compliance could void the
user’s authority to operate the equipment.
BK0125300US.book 163 ページ ２０１０年５月１８日　火曜日　午後１時５３分

3-164 Features and controls

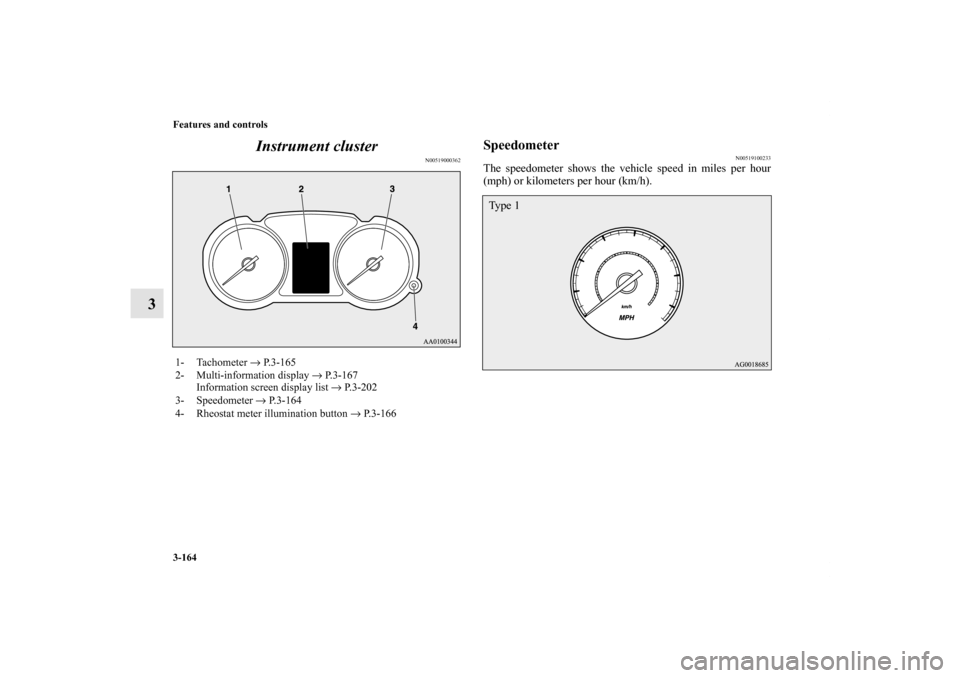

3Instrument cluster
N00519000362
Speedometer
N00519100233
The speedometer shows the vehicle speed in miles per hour
(mph) or kilometers per hour (km/h).
1- Tachometer → P. 3 - 1 6 5
2- Multi-information display → P.3-167
Information screen display list → P.3-202
3- Speedometer → P.3-164
4- Rheostat meter illumination button → P. 3 - 1 6 6
Ty p e 1
BK0125300US.book 164 ページ ２０１０年５月１８日　火曜日　午後１時５３分

Features and controls
3-165
3

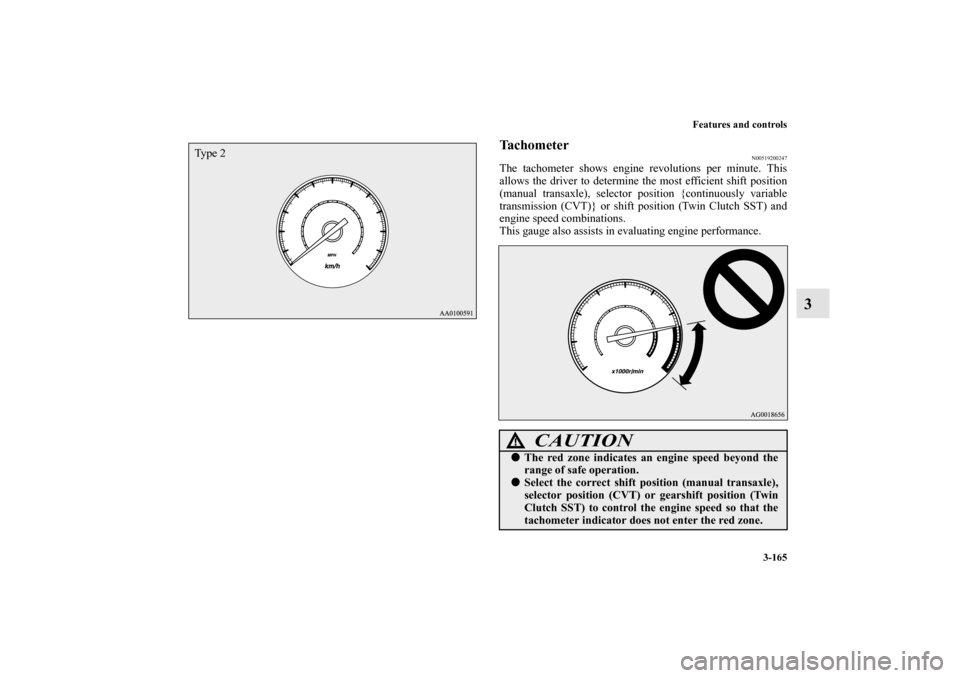

Ta c h o m e t e r
N00519200247
The tachometer shows engine revolutions per minute. This
allows the driver to determine the most efficient shift position
(manual transaxle), selector position {continuously variable
transmission (CVT)} or shift position (Twin Clutch SST) and
engine speed combinations.
This gauge also assists in evaluating engine performance.
Ty p e 2
CAUTION
!
The red zone indicates an engine speed beyond the
range of safe operation.
Select the correct shift position (manual transaxle),
selector position (CVT) or gearshift position (Twin
Clutch SST) to control the engine speed so that the
tachometer indicator does not enter the red zone.
BK0125300US.book 165 ページ ２０１０年５月１８日　火曜日　午後１時５３分

3-166 Features and controls
3

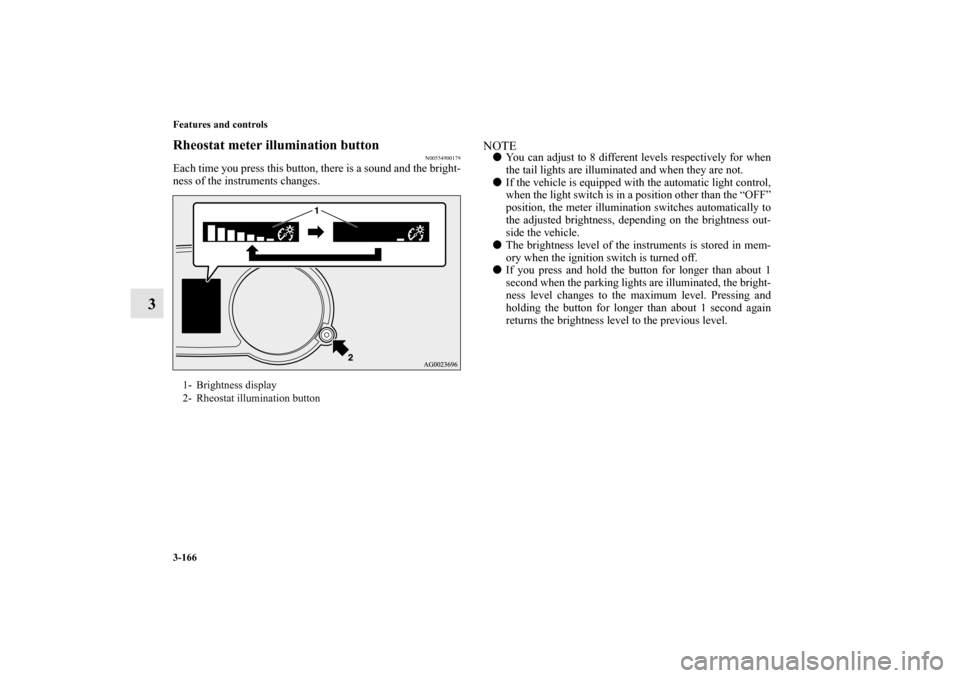

Rheostat meter illumination button
N00554900179
Each time you press this button, there is a sound and the bright-
ness of the instruments changes.
NOTE
You can adjust to 8 different levels respectively for when
the tail lights are illuminated and when they are not.

If the vehicle is equipped with the automatic light control,
when the light switch is in a position other than the “OFF”
position, the meter illumination switches automatically to
the adjusted brightness, depending on the brightness out-
side the vehicle.

The brightness level of the instruments is stored in mem-
ory when the ignition switch is turned off.

If you press and hold the button for longer than about 1
second when the parking lights are illuminated, the bright-
ness level changes to the maximum level. Pressing and
holding the button for longer than about 1 second again
returns the brightness level to the previous level.
1- Brightness display
2- Rheostat illumination button
BK0125300US.book 166 ページ ２０１０年５月１８日　火曜日　午後１時５３分

Features and controls
3-167
3 Multi-information display
N00555000210
The multi-information display displays warnings, the odometer, trip odometer, service reminder, engine coolant temperature, fuel
remaining, outside temperature, Twin Clutch SST control mode, ACD control mode, gearshift lever position, selector lever posi-
tion, average and momentary fuel consumption, driving range, average speed, instrument brightness, etc.
It is also possible to change elements such as the language and units used on the multi-information display.
With ignition switch is
“OFF” position
W
it
h

i
gn
i
t
i
on

s
wi
t
c
h
i
s

“O
N
”
p
o
si
t
i
o
n

{
Co
n
-
t
i
nu
o
us
l
y

va
r
i
ab
l
e

tr
a
n
sm
i
s
si
o
n
(
C
VT
)
,

Tw
i
n
Cl
u
t
ch

SS
T
}
With ignition switch is “ON”
position (Manual transaxle)
Type 1 Type 2 Type 1 Type 2 Type 1 Type 2
1-
Warning display screen (With ignition switch in the
“OFF” position) → P. 3 - 1 6 9
2- Information screen (With ignition switch in the “OFF” posi-
tion) → P. 3-169
Interrupt display screen (With ignition switch in the “OFF”
position) → P. 3 - 1 7 1
3- Door ajar warning display screen (With ignition switch in the
“OFF” position) → P. 3 - 1 7 3
4-
Warning display screen (With ignition switch in the “ON”
position) → P. 3 - 1 7 5
5- Active stability control (ASC) OFF display screen (if so
equipped) → P. 3-175
6- Information screen (With ignition switch in the “ON” posi-
tion) → P. 3-176
Interrupt display screen (With ignition switch in the “ON”
position) → P. 3-180
7- Outside temperature display screen → P. 3-182
8- Fuel remaining display screen → P. 3-182
9- Engine coolant temperature display (if so equipped) → P. 3 -
176
BK0125300US.book 167 ページ ２０１０年５月１８日　火曜日　午後１時５３分

3-168 Features and controls
3
NOTE
The fuel units, temperature units, display language, and
other settings can be changed.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-187.

The display screen is different depending on whether the
ignition switch in the “OFF” or “ON” position.
Refer to “Information screen (With ignition switch in the
“OFF” position)” on page 3-169.
Refer to “Warning display list (With ignition switch in the
“OFF” position)” on page 3-203.
Refer to “Information screen (With ignition switch turned
from “OFF” to “ON” position)” on page 3-173.
Refer to “Information screen (With ignition switch in the
“ON” position)” on page 3-176.
Refer to “Warning display list (With ignition switch in the
“ON” position)” on page 3-206.

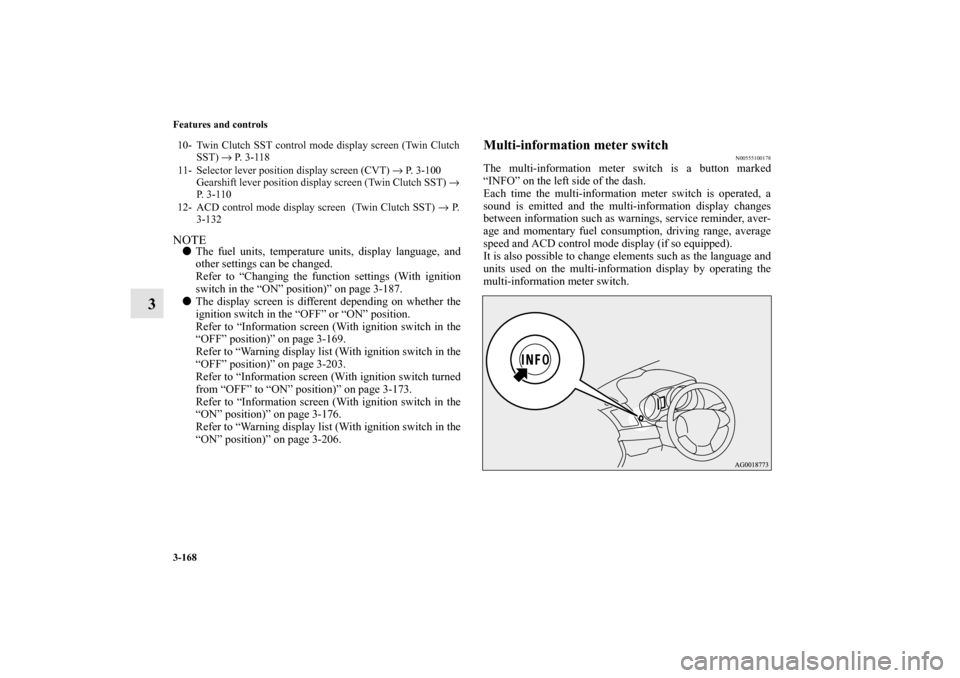

Multi-information meter switch
N00555100178
The multi-information meter switch is a button marked
“INFO” on the left side of the dash.
Each time the multi-information meter switch is operated, a
sound is emitted and the multi-information display changes
between information such as warnings, service reminder, aver-
age and momentary fuel consumption, driving range, average
speed and ACD control mode display (if so equipped).
It is also possible to change elements such as the language and
units used on the multi-information display by operating the
multi-information meter switch.
10- Twin Clutch SST control mode display screen (Twin Clutch
SST) → P. 3 - 1 1 8
11- Selector lever position display screen (CVT) → P. 3-100
Gearshift lever position display screen (Twin Clutch SST) →
P. 3 - 1 1 0
12- ACD control mode display screen (Twin Clutch SST) → P.
3-132BK0125300US.book 168 ページ ２０１０年５月１８日　火曜日　午後１時５３分

Features and controls
3-169
3

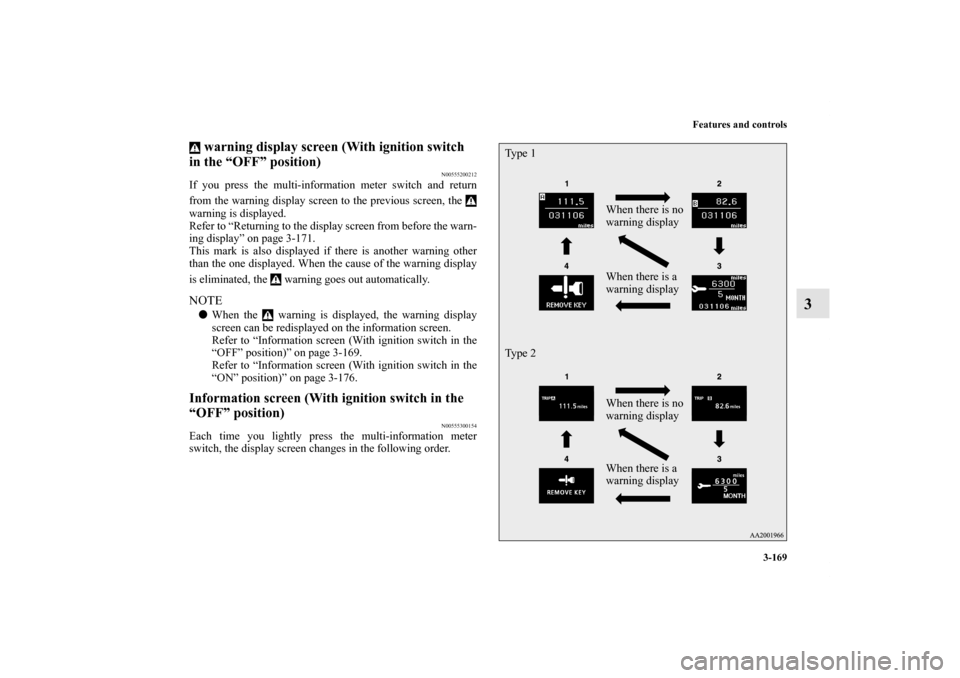

warning display screen (With ignition switch
in the “OFF” position)
N00555200212
If you press the multi-information meter switch and return
from the warning display screen to the previous screen, the
warning is displayed.
Refer to “Returning to the display screen from before the warn-
ing display” on page 3-171.
This mark is also displayed if there is another warning other
than the one displayed. When the cause of the warning display
is eliminated, the warning goes out automatically.NOTE
When the warning is displayed, the warning display
screen can be redisplayed on the information screen.
Refer to “Information screen (With ignition switch in the
“OFF” position)” on page 3-169.
Refer to “Information screen (With ignition switch in the
“ON” position)” on page 3-176.Information screen (With ignition switch in the
“OFF” position)
N00555300154
Each time you lightly press the multi-information meter
switch, the display screen changes in the following order.
When there is no
warning display
When there is a
warning display Ty p e 1
When there is no
warning display
When there is a
warning display Ty p e 2
BK0125300US.book 169 ページ ２０１０年５月１８日　火曜日　午後１時５３分
