7-14 Vehicle care and maintenance
7Air cleaner filter
N00937900354
The air cleaner filter will get dirty and dusty from use and not
filter properly. Replace it with a new filter using the schedule

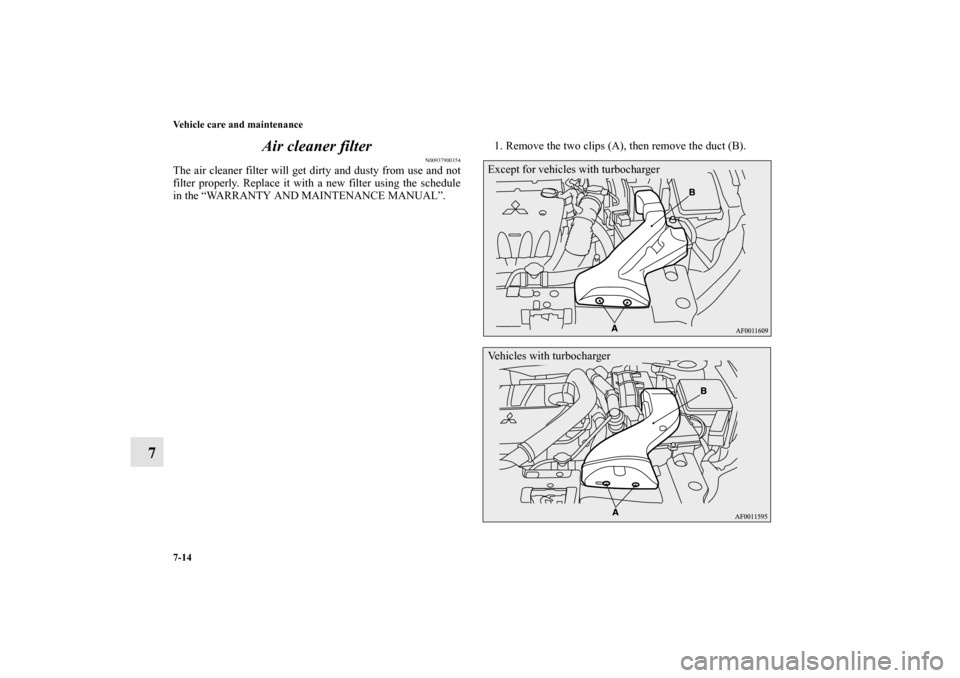

in the “WARRANTY AND MAINTENANCE MANUAL”. 1. Remove the two clips (A), then remove the duct (B).
Except for vehicles with turbochargerVehicles with turbocharger
BK0125300US.book 14 ページ ２０１０年５月１８日　火曜日　午後１時５３分

Vehicle care and maintenance
7-15
7

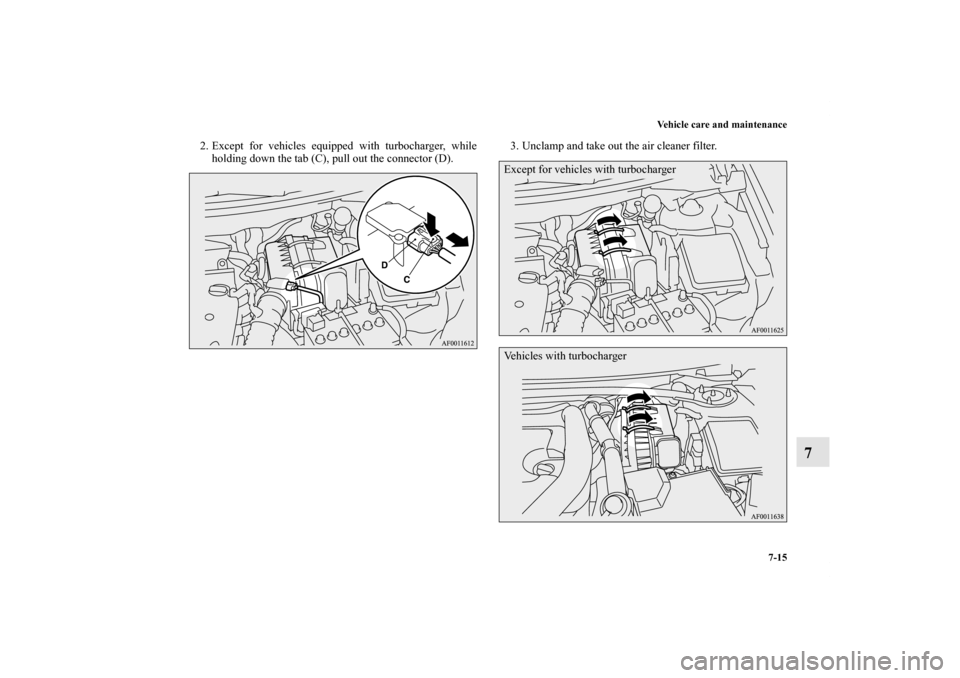

2. Except for vehicles equipped with turbocharger, while
holding down the tab (C), pull out the connector (D).3. Unclamp and take out the air cleaner filter.
Except for vehicles with turbochargerVehicles with turbocharger
BK0125300US.book 15 ページ ２０１０年５月１８日　火曜日　午後１時５３分

7-16 Vehicle care and maintenance
7
4. Install the air cleaner filter and put the cover back on in its
original position.NOTE
Genuine Mitsubishi Motors Parts are recommended when
replacing the air cleaner filter.

After replacing the air cleaner filter, make sure that the
hinges at the bottom of cover are firmly set.

Except for vehicles equipped with turbocharger, make
sure that the connector is properly reconnected.5. Put the duct back on in its original position.Except for vehicles with turbocharger
Vehicles with turbocharger
BK0125300US.book 16 ページ ２０１０年５月１８日　火曜日　午後１時５３分

Vehicle care and maintenance
7-17
7 Manual transaxle oil
(if so equipped)
N00938200136
Whenever the manual transaxle oil level is checked, add oil to
maintain the proper level, if necessary.
Refill or change the oil according to the table.Oil type
Continuously variable transmission (CVT)
fluid
(if so equipped)
N00938000411
The continuously variable transmission (CVT) should be main-
tained and serviced by an authorized Mitsubishi Motors dealer
or a repair facility of your choice to obtain the best perfor-
mance and longest life. It is important that the transmission
fluid is kept at the correct level. Fluid typeUse only “DiaQueen CVTF-J1” transmission fluid to ensure
optimum transmission performance. Special additives Mitsubishi Motors Corporation does not recommend the addi-
tion of any fluid additives to the transmission.
LubricantDiaQueen NEW MULTI GEAR OIL
API Classification GL-3
Viscosity range SAE 75W-80
BK0125300US.book 17 ページ ２０１０年５月１８日　火曜日　午後１時５３分

7-18 Vehicle care and maintenance
7Twin Clutch Sportronic shift transmission
(Twin Clutch SST) fluid
(if so equipped)
N00938300023
The Twin Clutch Sportronic shift transmission (Twin Clutch
SST) should be maintained and serviced by an authorized Mit-
subishi Motors dealer or a repair facility of your choice to
obtain the best performance and longest life. It is important that
the transmission fluid is kept at the correct level.Fluid typeUse only Mitsubishi DiaQueen SSTF-I to ensure optimum
transmission performance.Special additivesMitsubishi Motors Corporation does not recommend the addi-
tion of any fluid additives to the transmission.
Transfer oil (All-wheel drive models)
N00938400200
Whenever the transfer oil level is checked, add oil as necessary
to maintain the proper level.
Fill or change the oil according the table.Oil type
CAUTION
!
Using the improper transmission fluid may damage
the transaxle.
Lubricant DiaQueen LSD gear oil or equivalent
BK0125300US.book 18 ページ ２０１０年５月１８日　火曜日　午後１時５３分

Vehicle care and maintenance
7-19

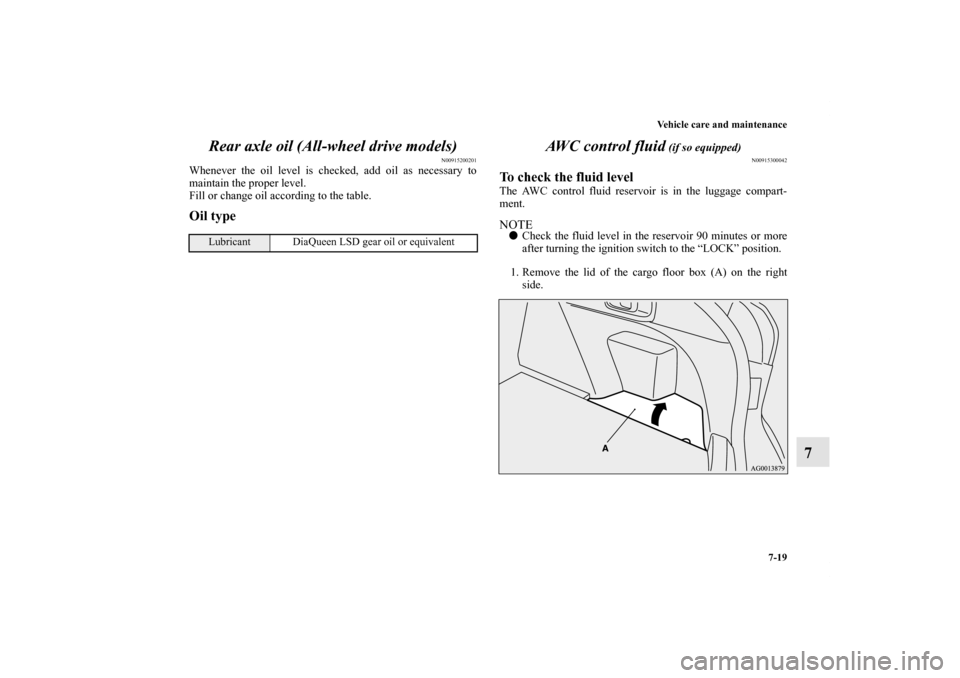

7 Rear axle oil (All-wheel drive models)
N00915200201
Whenever the oil level is checked, add oil as necessary to
maintain the proper level.
Fill or change oil according to the table.Oil type
AW C c o n t r o l f l u i d
(if so equipped)
N00915300042
To check the fluid levelThe AWC control fluid reservoir is in the luggage compart-
ment.NOTE
Check the fluid level in the reservoir 90 minutes or more
after turning the ignition switch to the “LOCK” position.
1. Remove the lid of the cargo floor box (A) on the right
side.
Lubricant DiaQueen LSD gear oil or equivalent
BK0125300US.book 19 ページ ２０１０年５月１８日　火曜日　午後１時５３分

7-20 Vehicle care and maintenance
7

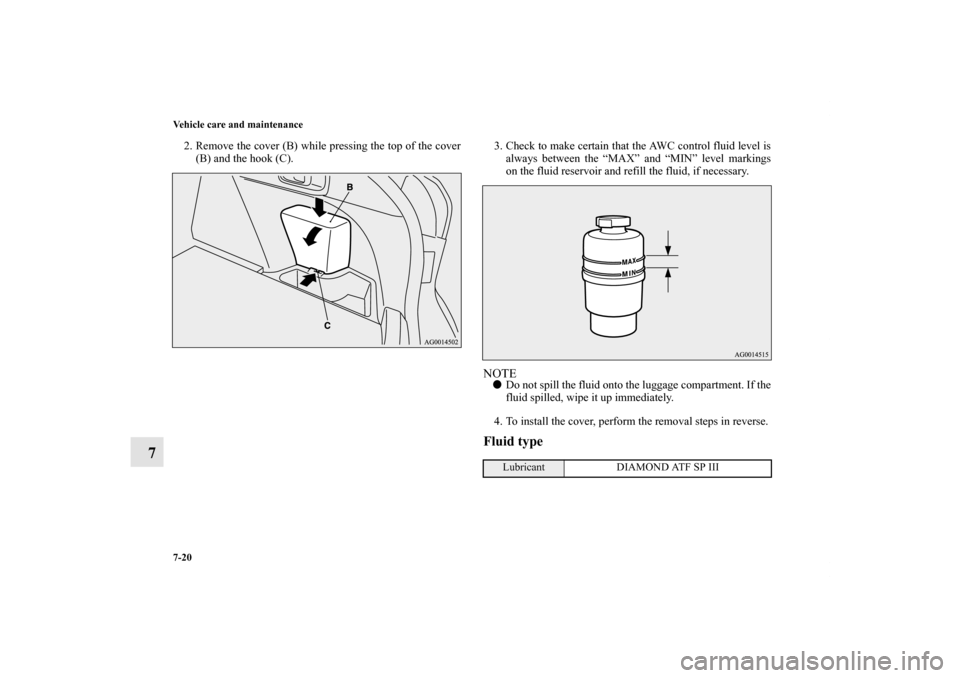

2. Remove the cover (B) while pressing the top of the cover
(B) and the hook (C).3. Check to make certain that the AWC control fluid level is
always between the “MAX” and “MIN” level markings
on the fluid reservoir and refill the fluid, if necessary.
NOTE
Do not spill the fluid onto the luggage compartment. If the
fluid spilled, wipe it up immediately.
4. To install the cover, perform the removal steps in reverse.Fluid type
Lubricant DIAMOND ATF SP III
BK0125300US.book 20 ページ ２０１０年５月１８日　火曜日　午後１時５３分

Vehicle care and maintenance
7-21

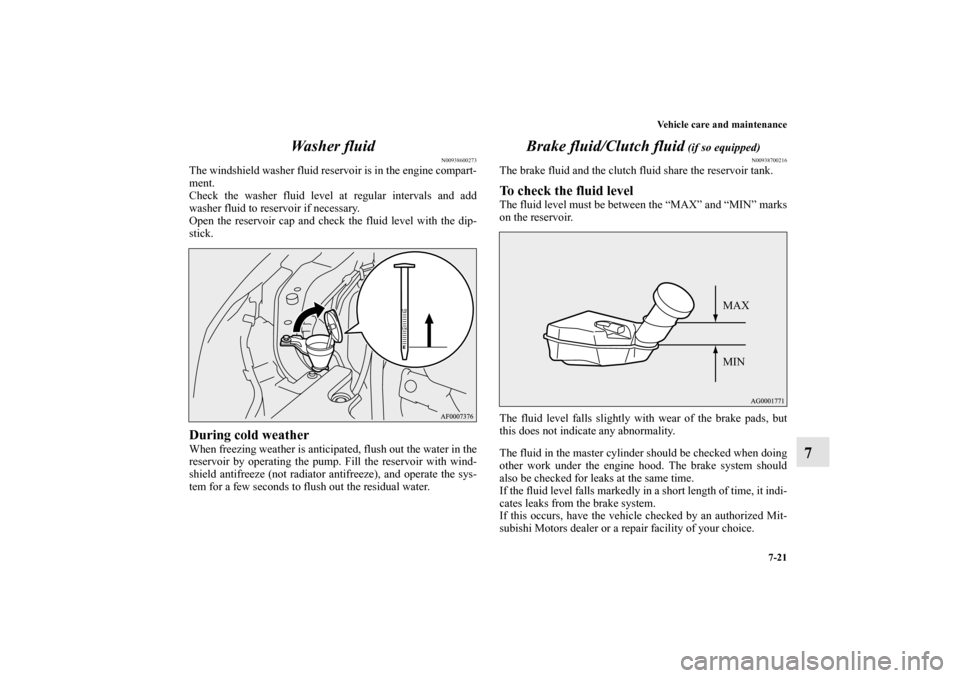

7 Wa s h e r f l u i d
N00938600273
The windshield washer fluid reservoir is in the engine compart-
ment.
Check the washer fluid level at regular intervals and add
washer fluid to reservoir if necessary.
Open the reservoir cap and check the fluid level with the dip-
stick.During cold weatherWhen freezing weather is anticipated, flush out the water in the
reservoir by operating the pump. Fill the reservoir with wind-
shield antifreeze (not radiator antifreeze), and operate the sys-
tem for a few seconds to flush out the residual water.
Brake fluid/Clutch fluid
(if so equipped)
N00938700216
The brake fluid and the clutch fluid share the reservoir tank.To check the fluid levelThe fluid level must be between the “MAX” and “MIN” marks
on the reservoir.
The fluid level falls slightly with wear of the brake pads, but
this does not indicate any abnormality.
The fluid in the master cylinder should be checked when doing
other work under the engine hood. The brake system should
also be checked for leaks at the same time.
If the fluid level falls markedly in a short length of time, it indi-
cates leaks from the brake system.
If this occurs, have the vehicle checked by an authorized Mit-
subishi Motors dealer or a repair facility of your choice.
MAX
MIN
