2011 MITSUBISHI LANCER SPORTBACK Owners Manual

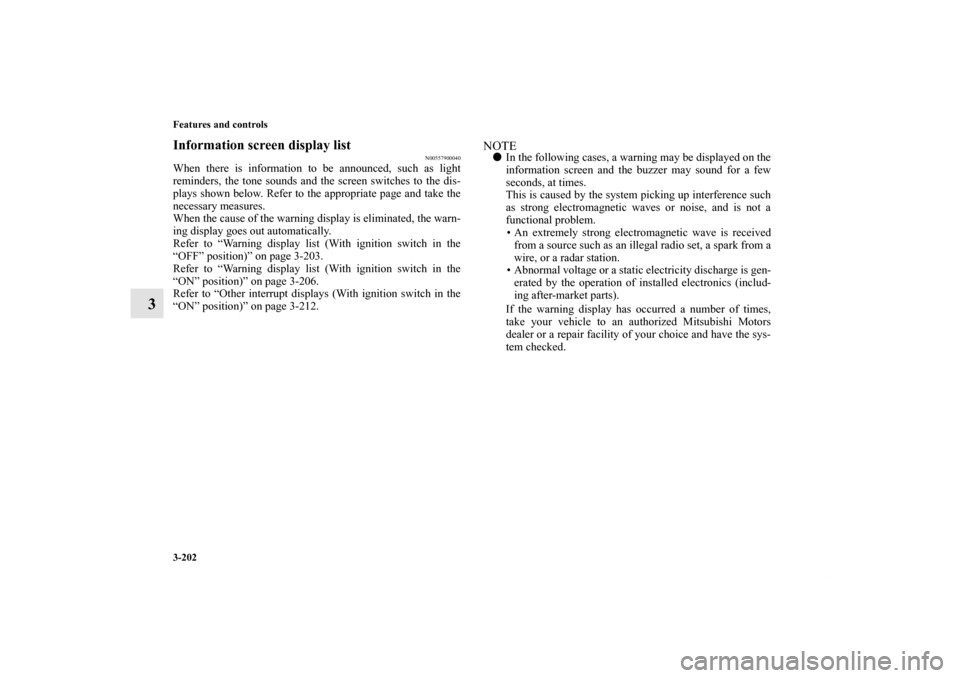

3-202 Features and controls
3
Information screen display list
N00557900040
When there is information to be announced, such as light
reminders, the tone sounds and the screen switches to the dis-
plays shown below. Refer to the appropriate page and take the
necessary measures.
When the cause of the warning display is eliminated, the warn-
ing display goes out automatically.
Refer to “Warning display list (With ignition switch in the
“OFF” position)” on page 3-203.
Refer to “Warning display list (With ignition switch in the
“ON” position)” on page 3-206.
Refer to “Other interrupt displays (With ignition switch in the
“ON” position)” on page 3-212.
NOTE
In the following cases, a warning may be displayed on the
information screen and the buzzer may sound for a few
seconds, at times.
This is caused by the system picking up interference such
as strong electromagnetic waves or noise, and is not a
functional problem.
• An extremely strong electromagnetic wave is received
from a source such as an illegal radio set, a spark from a
wire, or a radar station.
• Abnormal voltage or a static electricity discharge is gen-
erated by the operation of installed electronics (includ-
ing after-market parts).
If the warning display has occurred a number of times,
take your vehicle to an authorized Mitsubishi Motors
dealer or a repair facility of your choice and have the sys-
tem checked.
BK0125300US.book 202 ページ ２０１０年５月１８日　火曜日　午後１時５３分

Features and controls
3-203
3
Warning display list (With ignition switch in the “OFF” position)
N00558000208
Screen type 1
Screen type 2
Cause
Do this (Reference)

You have forgotten to remove the key
from the ignition switch.
Remove the key.
Refer to “Key reminder system” on
page 3-54.

You have forgotten to turn off the
lights.
Refer to “Light auto-cutout function
(headlights and other lights)” on page
3-223.

The theft-alarm is operating.
Refer to “Theft-alarm system” on page
3-62.

Immobilizer is registered.
Refer to “Electronic immobilizer
(Anti-theft starting system)” on page 3-
7, 3-42.
BK0125300US.book 203 ページ ２０１０年５月１８日　火曜日　午後１時５３分

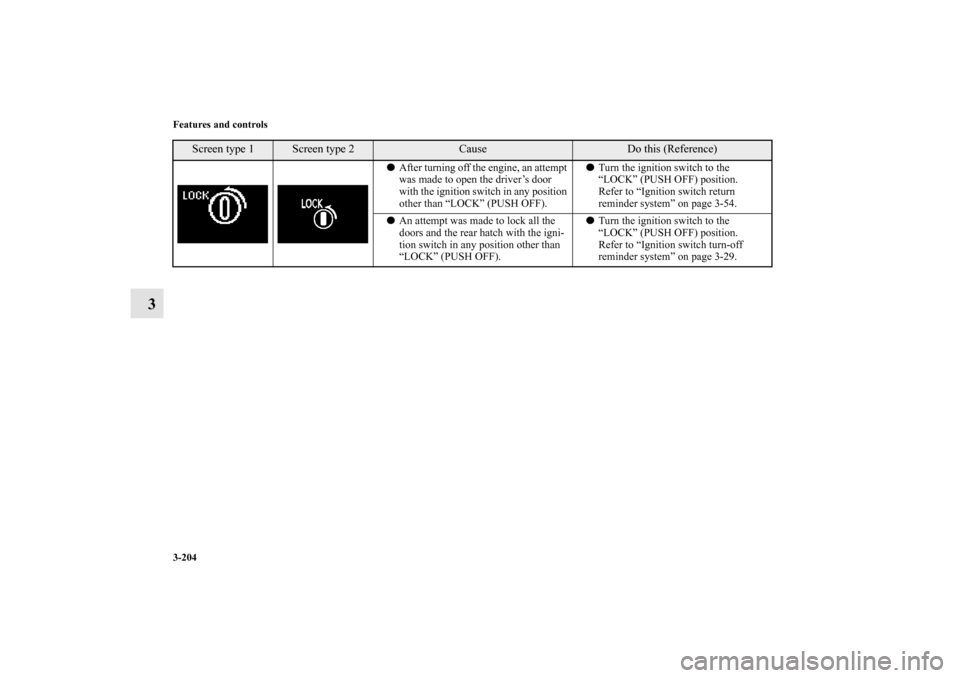

3-204 Features and controls
3

After turning off the engine, an attempt
was made to open the driver’s door
with the ignition switch in any position
other than “LOCK” (PUSH OFF).
Turn the ignition switch to the
“LOCK” (PUSH OFF) position.
Refer to “Ignition switch return
reminder system” on page 3-54.

An attempt was made to lock all the
doors and the rear hatch with the igni-
tion switch in any position other than
“LOCK” (PUSH OFF).
Turn the ignition switch to the
“LOCK” (PUSH OFF) position.
Refer to “Ignition switch turn-off
reminder system” on page 3-29.
Screen type 1
Screen type 2
Cause
Do this (Reference)
BK0125300US.book 204 ページ ２０１０年５月１８日　火曜日　午後１時５３分

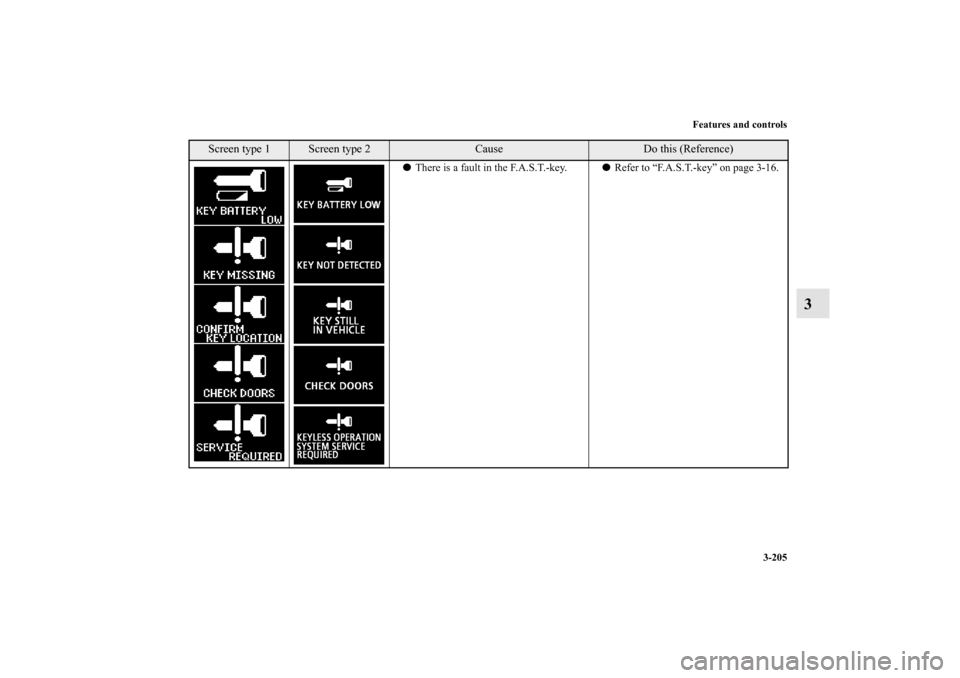

Features and controls
3-205
3

There is a fault in the F.A.S.T.-key.
Refer to “F.A.S.T.-key” on page 3-16.
Screen type 1
Screen type 2
Cause
Do this (Reference)
BK0125300US.book 205 ページ ２０１０年５月１８日　火曜日　午後１時５３分

3-206 Features and controls
3
Warning display list (With ignition switch in the “ON” position)
N00558100225
Screen type 1
Screen type 2
Cause
Do this (Reference)
—
There is a fault in the EPS.
Stop the vehicle in a safe place and
inspect it.

If the light still illuminates after the
inspection, contact an authorized Mit-
subishi Motors dealer or a repair facil-
ity of your choice for assistance.
Refer to “Electric power steering sys-
tem (EPS)” on page 3-143.
BK0125300US.book 206 ページ ２０１０年５月１８日　火曜日　午後１時５３分

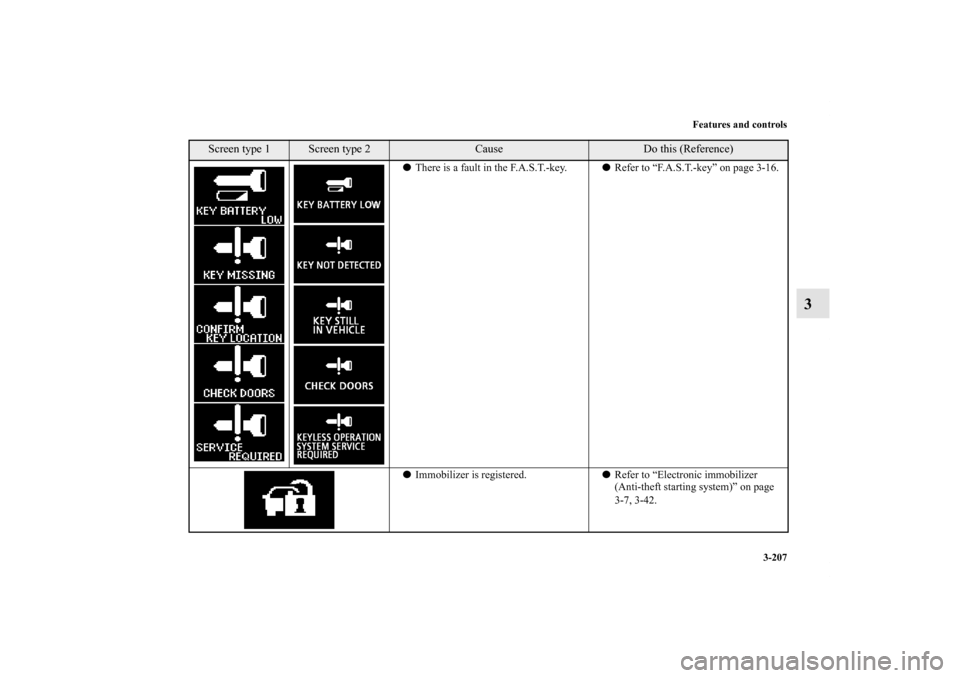

Features and controls
3-207
3

There is a fault in the F.A.S.T.-key.
Refer to “F.A.S.T.-key” on page 3-16.

Immobilizer is registered.
Refer to “Electronic immobilizer
(Anti-theft starting system)” on page
3-7, 3-42.
Screen type 1
Screen type 2
Cause
Do this (Reference)
BK0125300US.book 207 ページ ２０１０年５月１８日　火曜日　午後１時５３分

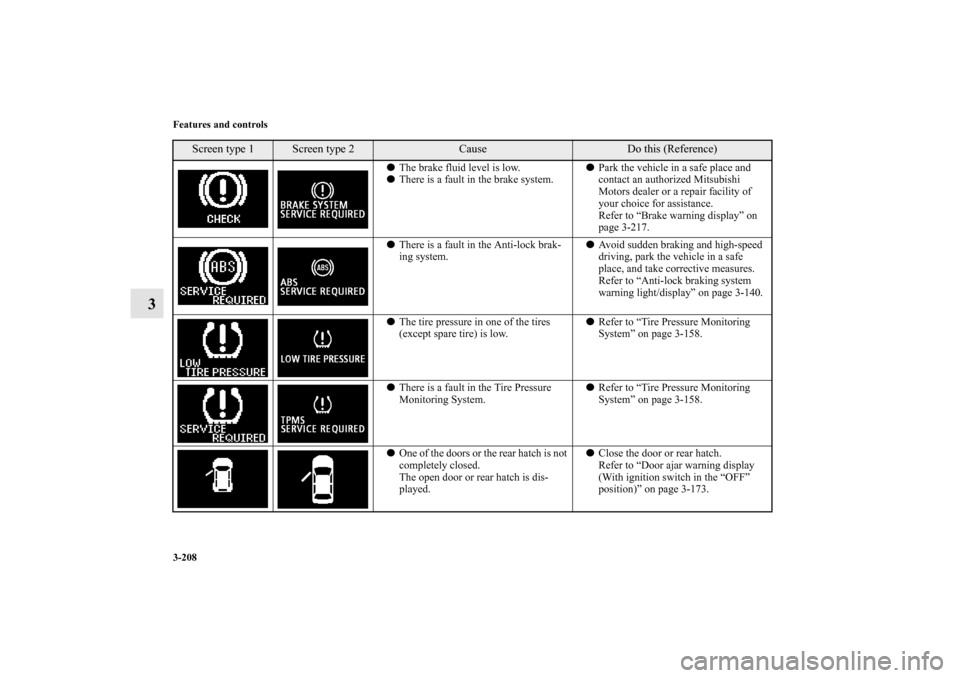

3-208 Features and controls
3

The brake fluid level is low.

There is a fault in the brake system.
Park the vehicle in a safe place and
contact an authorized Mitsubishi
Motors dealer or a repair facility of
your choice for assistance.
Refer to “Brake warning display” on
page 3-217.

There is a fault in the Anti-lock brak-
ing system.
Avoid sudden braking and high-speed
driving, park the vehicle in a safe
place, and take corrective measures.
Refer to “Anti-lock braking system
warning light/display” on page 3-140.

The tire pressure in one of the tires
(except spare tire) is low.
Refer to “Tire Pressure Monitoring
System” on page 3-158.

There is a fault in the Tire Pressure
Monitoring System.
Refer to “Tire Pressure Monitoring
System” on page 3-158.

One of the doors or the rear hatch is not
completely closed.
The open door or rear hatch is dis-
played.
Close the door or rear hatch.
Refer to “Door ajar warning display
(With ignition switch in the “OFF”
position)” on page 3-173.
Screen type 1
Screen type 2
Cause
Do this (Reference)
BK0125300US.book 208 ページ ２０１０年５月１８日　火曜日　午後１時５３分

Features and controls
3-209
3

The engine hood is open.
Close the engine hood.
Refer to “Engine hood” on page 7-4.

The engine is overheated.
Park the vehicle in a safe place and
take corrective measures.
Refer to “Engine overheating” on page
6-5.

The continuously variable transmission
(CVT) fluid or Twin Clutch SST fluid
temperature is increased.
Park the vehicle in a safe place and
take corrective measures.
Refer to “Continuously variable trans-
mission (CVT)” on page 3-95.
Refer to “Twin Clutch SST” on page 3-
107.

The seat belt is not fastened when the
ignition switch is in the “ON” position.
Fasten your seat belt properly.
Refer to “Driver’s seat belt
reminder/warning light and display” on
page 2-20.

There is a fault in the fuel system.
Contact an authorized Mitsubishi
Motors dealer or a repair facility of
your choice to have the system
checked.
Screen type 1
Screen type 2
Cause
Do this (Reference)
