2011 MITSUBISHI LANCER SPORTBACK Owners Manual

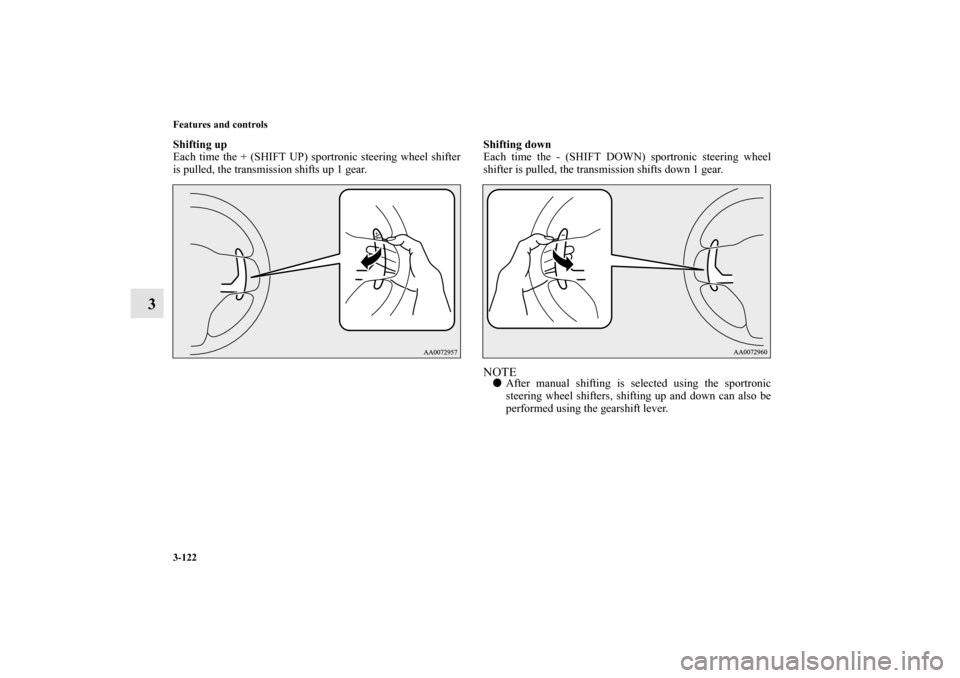

3-122 Features and controls
3
Shifting up
Each time the + (SHIFT UP) sportronic steering wheel shifter
is pulled, the transmission shifts up 1 gear.Shifting down
Each time the - (SHIFT DOWN) sportronic steering wheel
shifter is pulled, the transmission shifts down 1 gear.
NOTE
After manual shifting is selected using the sportronic
steering wheel shifters, shifting up and down can also be
performed using the gearshift lever.
BK0125300US.book 122 ページ ２０１０年５月１８日　火曜日　午後１時５３分

Features and controls
3-123
3
Returning to “D” range operation
When the gearshift lever is in the “D” (DRIVE) position, pull
the + (SHIFT UP) sportronic steering wheel shifter toward you
for 2 seconds or more to return to “D” range operation.
NOTE
If manual shifting is selected using the sportronic steering
wheel shifters when the gearshift lever is in the “D”
(DRIVE) position, the transmission will automatically
return to “D” range operation before the vehicle stops.

When the transmission returns to “D” range operation
from manual shifting, it may automatically shift up or
down from the gear selected using manual shifting
depending on the vehicle speed or driving conditions.

If manual shifting is selected using the sportronic steering
wheel shifters, “D” range operation will again be selected
by moving the gearshift lever from the “D” (DRIVE)
position toward the driver’s seat, then return it toward the
front passenger’s seat.
BK0125300US.book 123 ページ ２０１０年５月１８日　火曜日　午後１時５３分

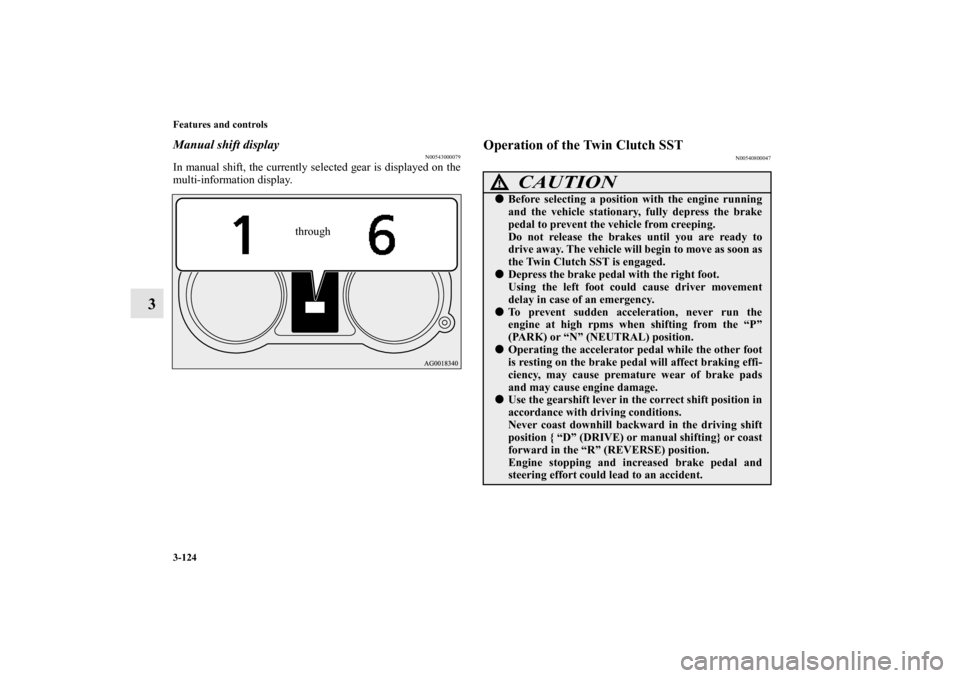

3-124 Features and controls
3
Manual shift display
N00543000079
In manual shift, the currently selected gear is displayed on the
multi-information display.
Operation of the Twin Clutch SST
N00540800047
through
CAUTION
!
Before selecting a position with the engine running
and the vehicle stationary, fully depress the brake
pedal to prevent the vehicle from creeping.
Do not release the brakes until you are ready to
drive away. The vehicle will begin to move as soon as
the Twin Clutch SST is engaged.
Depress the brake pedal with the right foot.
Using the left foot could cause driver movement
delay in case of an emergency.
To prevent sudden acceleration, never run the
engine at high rpms when shifting from the “P”
(PARK) or “N” (NEUTRAL) position.
Operating the accelerator pedal while the other foot
is resting on the brake pedal will affect braking effi-
ciency, may cause premature wear of brake pads
and may cause engine damage.
Use the gearshift lever in the correct shift position in
accordance with driving conditions.
Never coast downhill backward in the driving shift
position { “D” (DRIVE) or manual shifting} or coast
forward in the “R” (REVERSE) position.
Engine stopping and increased brake pedal and
steering effort could lead to an accident.
BK0125300US.book 124 ページ ２０１０年５月１８日　火曜日　午後１時５３分

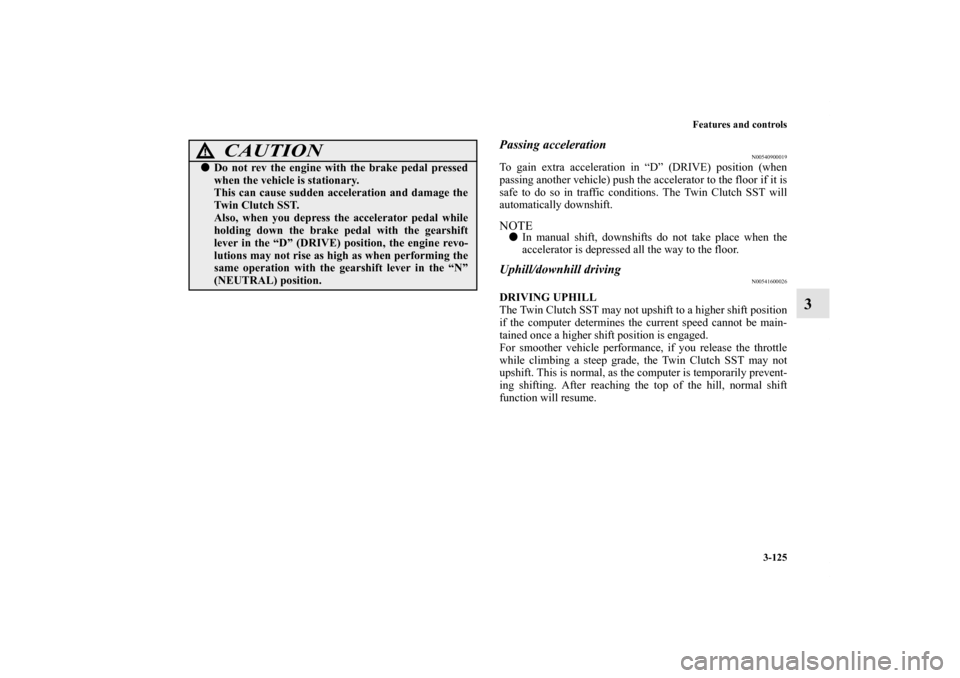

Features and controls
3-125
3
Passing acceleration
N00540900019
To gain extra acceleration in “D” (DRIVE) position (when
passing another vehicle) push the accelerator to the floor if it is
safe to do so in traffic conditions. The Twin Clutch SST will
automatically downshift.NOTE
In manual shift, downshifts do not take place when the
accelerator is depressed all the way to the floor.Uphill/downhill driving
N00541600026
DRIVING UPHILL
The Twin Clutch SST may not upshift to a higher shift position
if the computer determines the current speed cannot be main-
tained once a higher shift position is engaged.
For smoother vehicle performance, if you release the throttle
while climbing a steep grade, the Twin Clutch SST may not
upshift. This is normal, as the computer is temporarily prevent-
ing shifting. After reaching the top of the hill, normal shift
function will resume.

Do not rev the engine with the brake pedal pressed
when the vehicle is stationary.
This can cause sudden acceleration and damage the
Twin Clutch SST.
Also, when you depress the accelerator pedal while
holding down the brake pedal with the gearshift
lever in the “D” (DRIVE) position, the engine revo-
lutions may not rise as high as when performing the
same operation with the gearshift lever in the “N”
(NEUTRAL) position.
CAUTION
!
BK0125300US.book 125 ページ ２０１０年５月１８日　火曜日　午後１時５３分

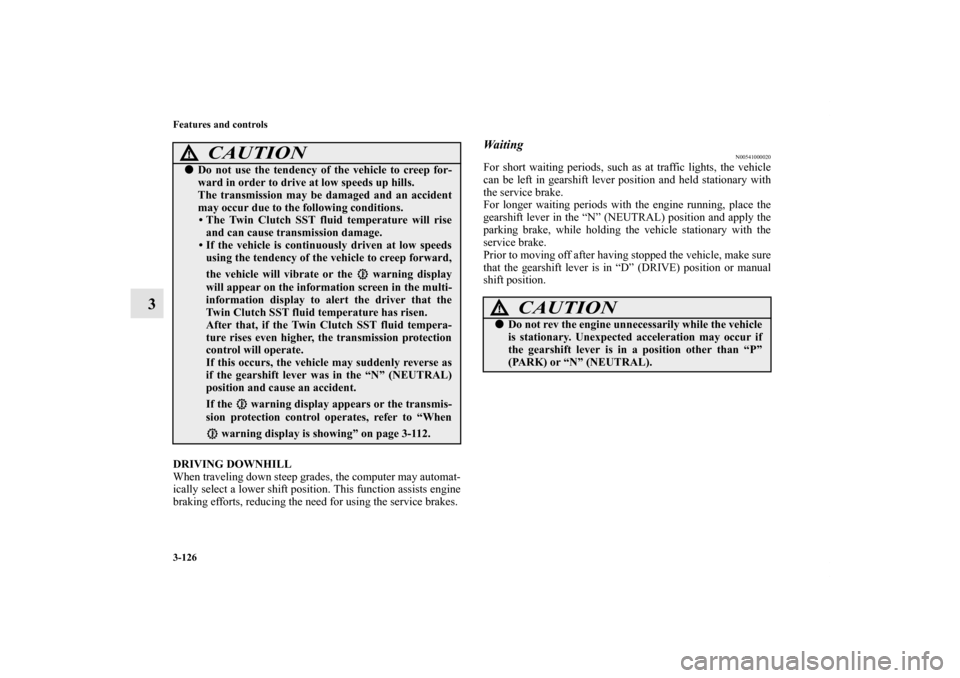

3-126 Features and controls
3
DRIVING DOWNHILL
When traveling down steep grades, the computer may automat-
ically select a lower shift position. This function assists engine
braking efforts, reducing the need for using the service brakes.
Waiting
N00541000020
For short waiting periods, such as at traffic lights, the vehicle
can be left in gearshift lever position and held stationary with
the service brake.
For longer waiting periods with the engine running, place the
gearshift lever in the “N” (NEUTRAL) position and apply the
parking brake, while holding the vehicle stationary with the
service brake.
Prior to moving off after having stopped the vehicle, make sure
that the gearshift lever is in “D” (DRIVE) position or manual
shift position.
CAUTION
!
Do not use the tendency of the vehicle to creep for-
ward in order to drive at low speeds up hills.
The transmission may be damaged and an accident
may occur due to the following conditions.
• The Twin Clutch SST fluid temperature will rise
and can cause transmission damage.
• If the vehicle is continuously driven at low speeds
using the tendency of the vehicle to creep forward,
the vehicle will vibrate or the warning display
will appear on the information screen in the multi-
information display to alert the driver that the
Twin Clutch SST fluid temperature has risen.
After that, if the Twin Clutch SST fluid tempera-
ture rises even higher, the transmission protection
control will operate.
If this occurs, the vehicle may suddenly reverse as
if the gearshift lever was in the “N” (NEUTRAL)
position and cause an accident.
If the warning display appears or the transmis-
sion protection control operates, refer to “When
warning display is showing” on page 3-112.
CAUTION
!
Do not rev the engine unnecessarily while the vehicle
is stationary. Unexpected acceleration may occur if
the gearshift lever is in a position other than “P”
(PARK) or “N” (NEUTRAL).
BK0125300US.book 126 ページ ２０１０年５月１８日　火曜日　午後１時５３分

Features and controls
3-127
3
Parking
N00541100018
To park the vehicle, first bring it to a complete stop, fully
engage the parking brake, and then move the gearshift lever to
the “P” (PARK) position.What to do if the following occur with the Twin Clutch
SST
N00541200051
If there is a problem in the Twin Clutch SST or engine elec-
tronic control module, the following may occur.

Twin Clutch SST does not shift.

Vehicle cannot move.

Twin Clutch SST acceleration is slow.

Vehicle does not creep.

“Shift shock” is large.

Shifting occurs at higher engine speed.

Response is slow.

Do not keep the vehicle in a stopped position on an
uphill slope by depressing the accelerator pedal
instead of the brake pedal.
The transmission may be damaged and an accident
may occur due to the following conditions.
• The Twin Clutch SST fluid temperature will rise
and can cause transmission damage.
• If the vehicle is kept in a stopped position by
depressing the accelerator pedal instead of the
brake pedal, the vehicle will vibrate or the
warning display will appear on the information
screen in the multi-information display to alert the
driver that the Twin Clutch SST fluid temperature
has risen.
After that, if the Twin Clutch SST fluid tempera-
ture rises even higher, the transmission protection
control will operate.
If this occurs, the vehicle may suddenly reverse as
if the gearshift lever was in the “N” (NEUTRAL)
position and cause an accident.
If the warning display appears or the transmis-
sion protection control operates, refer to “When
warning display is showing” on page 3-112.CAUTION
!
BK0125300US.book 127 ページ ２０１０年５月１８日　火曜日　午後１時５３分

3-128 Features and controls
3
If any of these occurs, perform the following procedure.
When warning display is showing
The temperature of Twin Clutch SST fluid is high.
Refer to “Warning display” on page 3-112 and follow the
appropriate measures.
When the engine malfunction indicator (“SERVICE
ENGINE SOON” or “Check engine light”) comes on or
blinking
There could be a malfunction in the engine electronic control
module.
Have the vehicle checked by an authorized Mitsubishi Motors
dealer or a repair facility of your choice as soon as possible.
When the gearshift lever position display is not showing
A safety device in the Twin Clutch SST has been activated due
to a possible malfunction in the Twin Clutch SST.
Refer to “If the gearshift lever position display is not showing”
on page 3-111 and follow the appropriate measures.When warning display is showing or when no warning is
showing in the multi-information display
A safety device in the Twin Clutch SST has been activated due
to a possible malfunction in the Twin Clutch SST or in the
engine electronic control module.
Perform the following procedure.
1. Park your vehicle in a safe place and stop the engine.
2. Restart the engine.
If the vehicle moves and accelerates normally after this proce-
dure is performed, there is no malfunction.
However, if the vehicle does not move or accelerate normally,
or if this problem occurs repeatedly, have the vehicle checked
by an authorized Mitsubishi Motors dealer or a repair facility
of your choice as soon as possible.
CAUTION
!
When the Twin Clutch SST fluid temperature is
high, the engine idle speed when the vehicle is
stopped may increase or the vehicle will have a weak
tendency to creep.
After that, if the Twin Clutch SST fluid temperature
rises even higher, the warning display will
appear.
BK0125300US.book 128 ページ ２０１０年５月１８日　火曜日　午後１時５３分

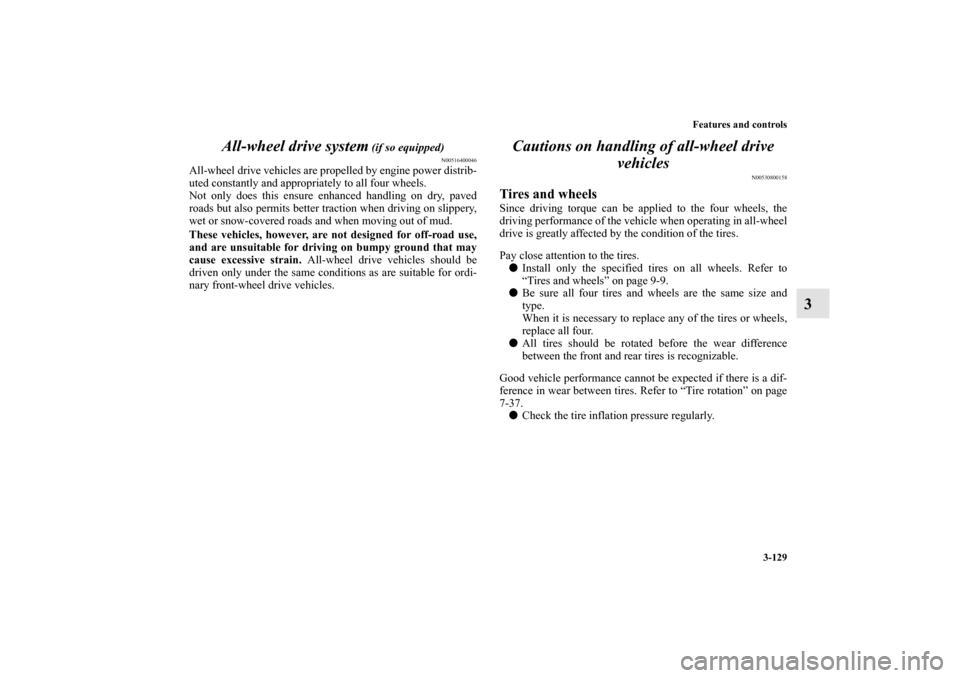

Features and controls
3-129
3 All-wheel drive system
(if so equipped)
N00516400046
All-wheel drive vehicles are propelled by engine power distrib-
uted constantly and appropriately to all four wheels.
Not only does this ensure enhanced handling on dry, paved
roads but also permits better traction when driving on slippery,
wet or snow-covered roads and when moving out of mud.
These vehicles, however, are not designed for off-road use,
and are unsuitable for driving on bumpy ground that may
cause excessive strain. All-wheel drive vehicles should be
driven only under the same conditions as are suitable for ordi-
nary front-wheel drive vehicles.
Cautions on handling of all-wheel drive
vehicles
N00530800158
Tires and wheelsSince driving torque can be applied to the four wheels, the
driving performance of the vehicle when operating in all-wheel
drive is greatly affected by the condition of the tires.
Pay close attention to the tires.

Install only the specified tires on all wheels. Refer to
“Tires and wheels” on page 9-9.

Be sure all four tires and wheels are the same size and
type.
When it is necessary to replace any of the tires or wheels,
replace all four.

All tires should be rotated before the wear difference
between the front and rear tires is recognizable.
Good vehicle performance cannot be expected if there is a dif-
ference in wear between tires. Refer to “Tire rotation” on page
7-37.

Check the tire inflation pressure regularly.
BK0125300US.book 129 ページ ２０１０年５月１８日　火曜日　午後１時５３分
