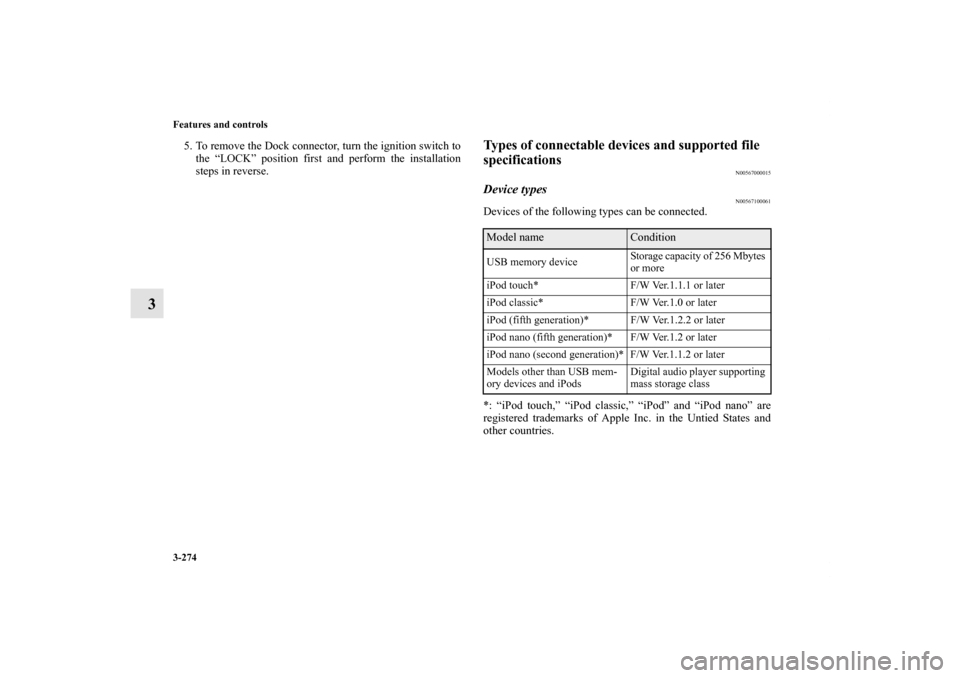

3-274 Features and controls
3
5. To remove the Dock connector, turn the ignition switch to
the “LOCK” position first and perform the installation
steps in reverse.
Types of connectable devices and supported file
specifications
N00567000015
Device types
N00567100061
Devices of the following types can be connected.
*: “iPod touch,” “iPod classic,” “iPod” and “iPod nano” are
registered trademarks of Apple Inc. in the Untied States and
other countries.Model name
Condition
USB memory deviceStorage capacity of 256 Mbytes
or more
iPod touch* F/W Ver.1.1.1 or later
iPod classic* F/W Ver.1.0 or later
iPod (fifth generation)* F/W Ver.1.2.2 or later
iPod nano (fifth generation)* F/W Ver.1.2 or later
iPod nano (second generation)* F/W Ver.1.1.2 or later
Models other than USB mem-
ory devices and iPodsDigital audio player supporting
mass storage class
BK0125300US.book 274 ページ ２０１０年５月１８日　火曜日　午後１時５３分

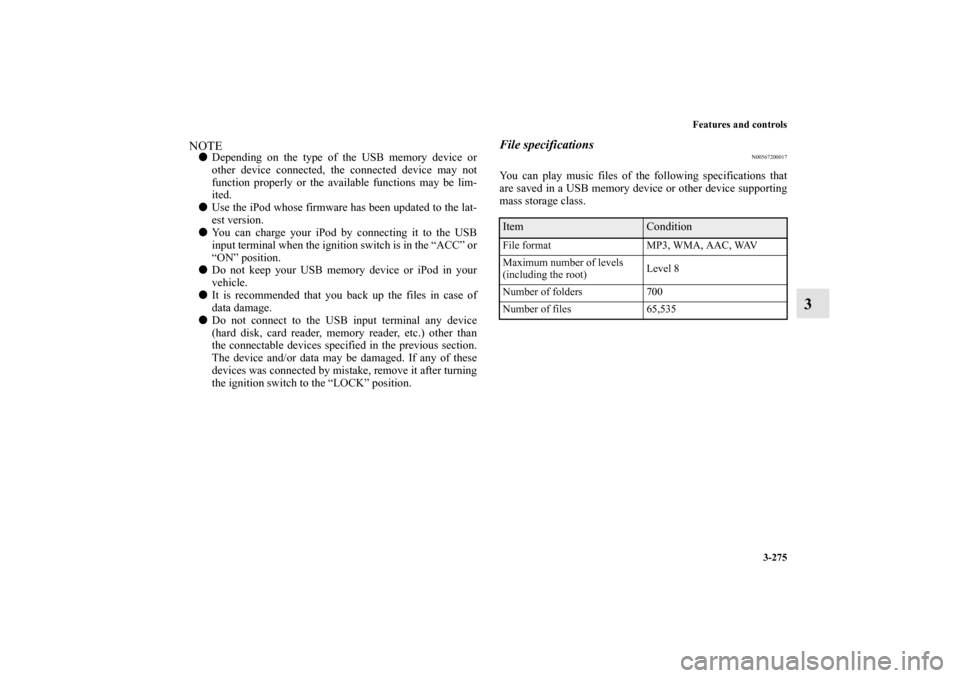

Features and controls
3-275
3
NOTE
Depending on the type of the USB memory device or
other device connected, the connected device may not
function properly or the available functions may be lim-
ited.

Use the iPod whose firmware has been updated to the lat-
est version.

You can charge your iPod by connecting it to the USB
input terminal when the ignition switch is in the “ACC” or
“ON” position.

Do not keep your USB memory device or iPod in your
vehicle.

It is recommended that you back up the files in case of
data damage.

Do not connect to the USB input terminal any device
(hard disk, card reader, memory reader, etc.) other than
the connectable devices specified in the previous section.
The device and/or data may be damaged. If any of these
devices was connected by mistake, remove it after turning
the ignition switch to the “LOCK” position.
File specifications
N00567200017
You can play music files of the following specifications that
are saved in a USB memory device or other device supporting
mass storage class.Item
Condition
File format MP3, WMA, AAC, WAV
Maximum number of levels
(including the root)Level 8
Number of folders 700
Number of files 65,535
BK0125300US.book 275 ページ ２０１０年５月１８日　火曜日　午後１時５３分

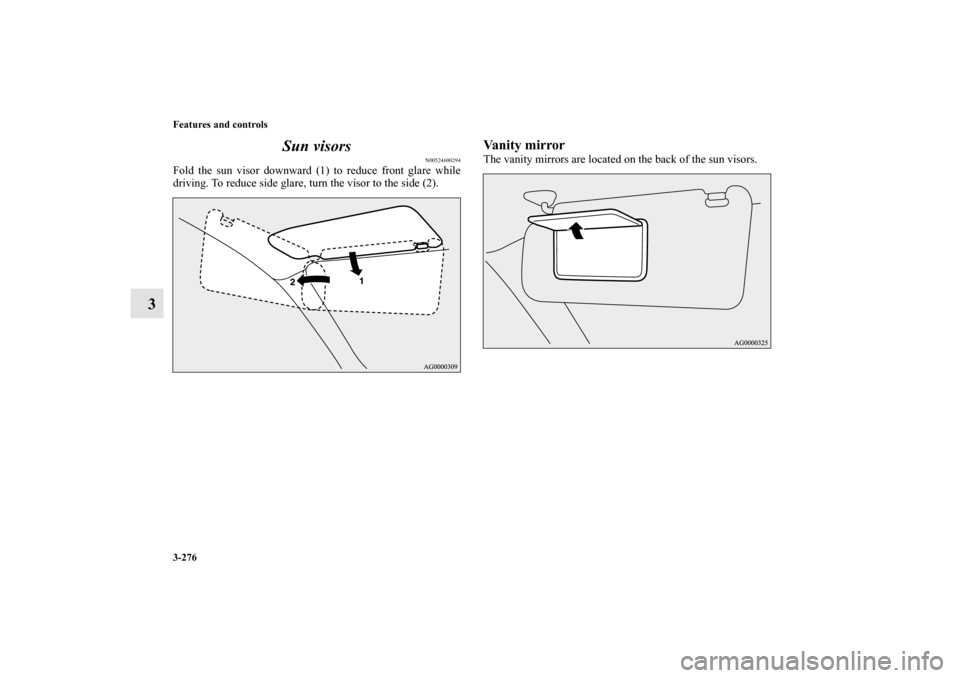

3-276 Features and controls
3Sun visors
N00524600294
Fold the sun visor downward (1) to reduce front glare while
driving. To reduce side glare, turn the visor to the side (2).
Vanity mirrorThe vanity mirrors are located on the back of the sun visors.
BK0125300US.book 276 ページ ２０１０年５月１８日　火曜日　午後１時５３分

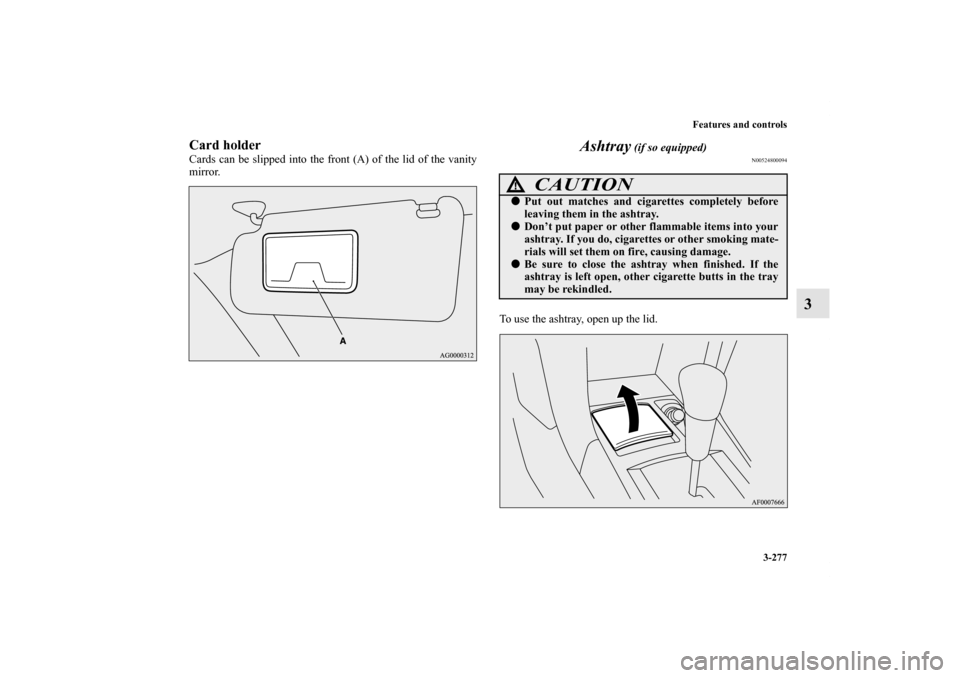

Features and controls
3-277
3
Card holderCards can be slipped into the front (A) of the lid of the vanity
mirror.
Ashtray
(if so equipped)
N00524800094
To use the ashtray, open up the lid.
CAUTION
!
Put out matches and cigarettes completely before
leaving them in the ashtray.
Don’t put paper or other flammable items into your
ashtray. If you do, cigarettes or other smoking mate-
rials will set them on fire, causing damage.
Be sure to close the ashtray when finished. If the
ashtray is left open, other cigarette butts in the tray
may be rekindled.
BK0125300US.book 277 ページ ２０１０年５月１８日　火曜日　午後１時５３分

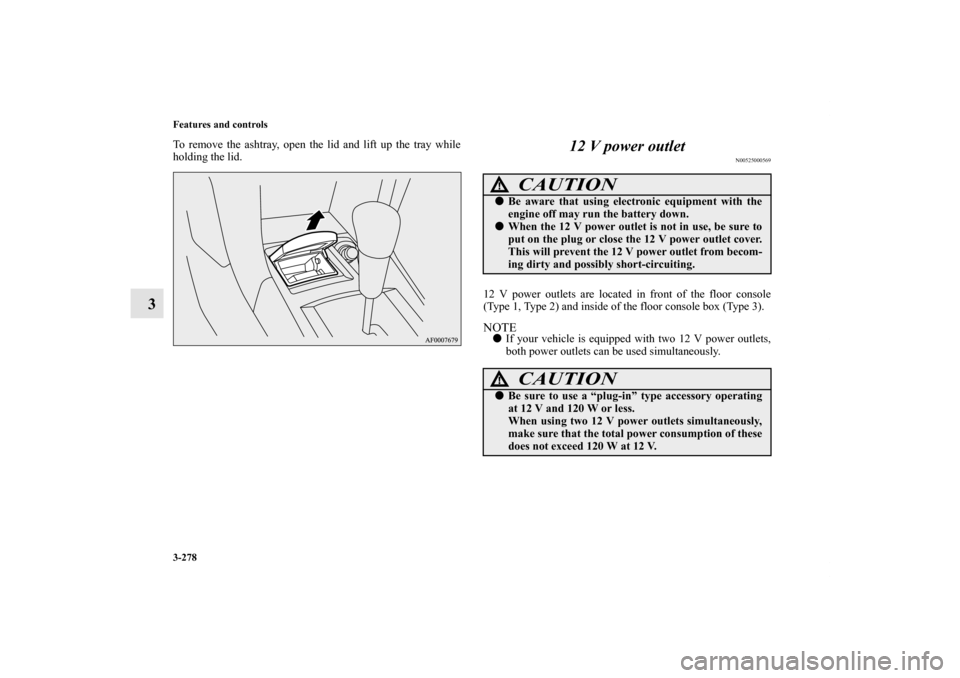

3-278 Features and controls
3
To remove the ashtray, open the lid and lift up the tray while
holding the lid.
12 V power outlet
N00525000569
12 V power outlets are located in front of the floor console
(Type 1, Type 2) and inside of the floor console box (Type 3).NOTE
If your vehicle is equipped with two 12 V power outlets,
both power outlets can be used simultaneously.
CAUTION
!
Be aware that using electronic equipment with the
engine off may run the battery down.
When the 12 V power outlet is not in use, be sure to
put on the plug or close the 12 V power outlet cover.
This will prevent the 12 V power outlet from becom-
ing dirty and possibly short-circuiting.
CAUTION
!
Be sure to use a “plug-in” type accessory operating
at 12 V and 120 W or less.
When using two 12 V power outlets simultaneously,
make sure that the total power consumption of these
does not exceed 120 W at 12 V.
BK0125300US.book 278 ページ ２０１０年５月１８日　火曜日　午後１時５３分

Features and controls
3-279
3
Type 1, Type 2The accessory can be operated when the ignition switch is in
the “ON” or “ACC” position.
To use a “plug-in” type accessory, pull out the plug, then insert
the plug in the socket.Ty p e 1
Ty p e 2
BK0125300US.book 279 ページ ２０１０年５月１８日　火曜日　午後１時５３分

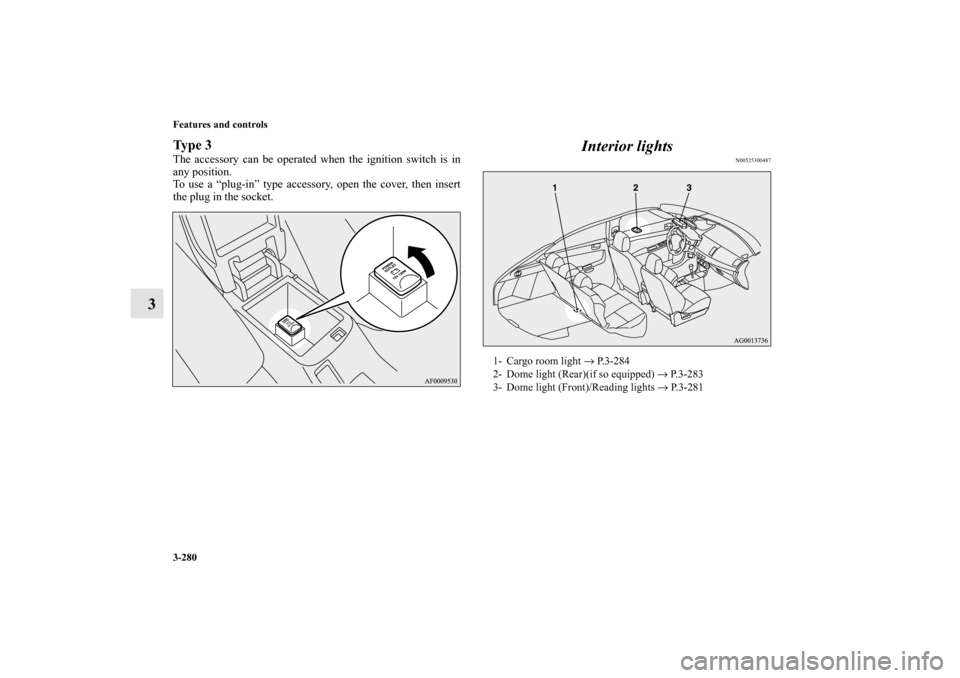

3-280 Features and controls
3
Ty p e 3The accessory can be operated when the ignition switch is in
any position.
To use a “plug-in” type accessory, open the cover, then insert
the plug in the socket.
Interior lights
N00525300487
1- Cargo room light → P.3-284
2- Dome light (Rear)(if so equipped) → P.3-283
3- Dome light (Front)/Reading lights → P.3-281
BK0125300US.book 280 ページ ２０１０年５月１８日　火曜日　午後１時５３分

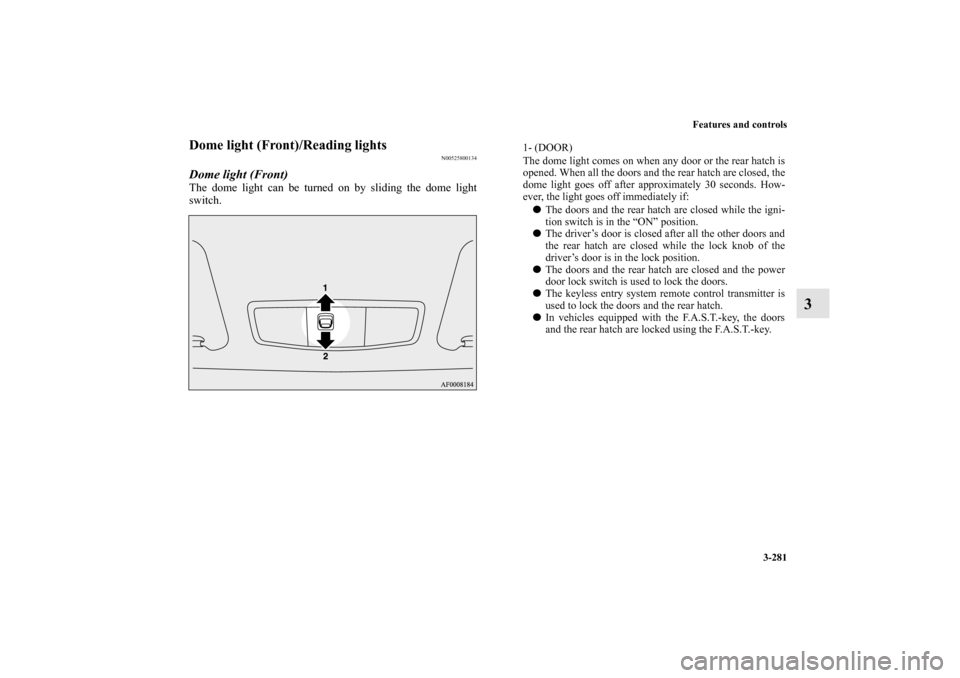

Features and controls
3-281
3
Dome light (Front)/Reading lights
N00525800134
Dome light (Front)The dome light can be turned on by sliding the dome light
switch.
1- (DOOR)
The dome light comes on when any door or the rear hatch is
opened. When all the doors and the rear hatch are closed, the
dome light goes off after approximately 30 seconds. How-
ever, the light goes off immediately if:

The doors and the rear hatch are closed while the igni-
tion switch is in the “ON” position.

The driver’s door is closed after all the other doors and
the rear hatch are closed while the lock knob of the
driver’s door is in the lock position.

The doors and the rear hatch are closed and the power
door lock switch is used to lock the doors.

The keyless entry system remote control transmitter is
used to lock the doors and the rear hatch.

In vehicles equipped with the F.A.S.T.-key, the doors
and the rear hatch are locked using the F.A.S.T.-key.
