2011 MITSUBISHI LANCER SPORTBACK Owners Manual

5-104 Comfort controls
5

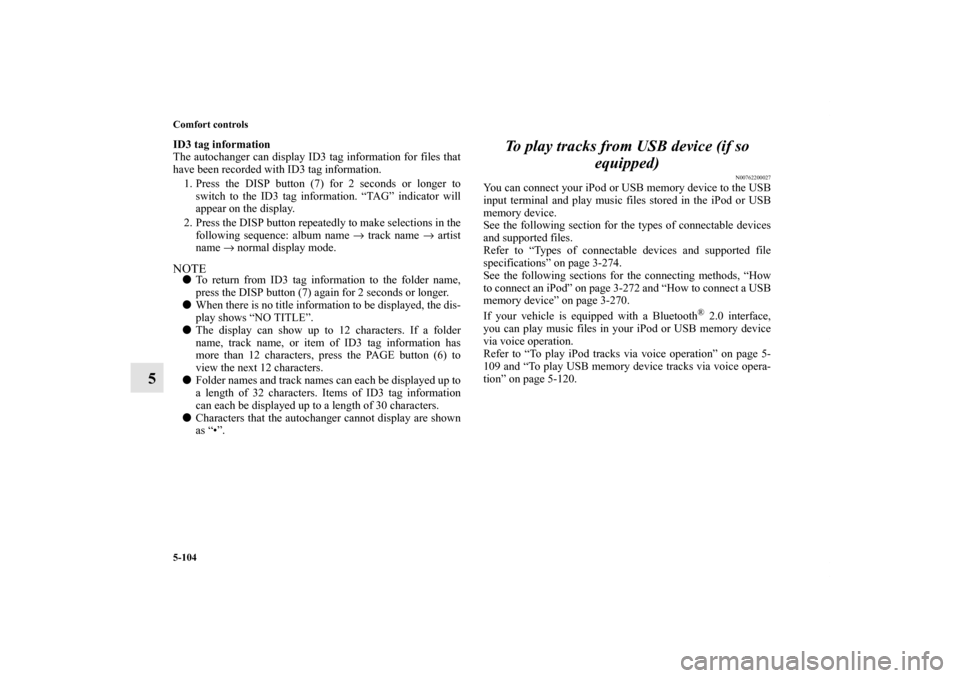

ID3 tag information
The autochanger can display ID3 tag information for files that
have been recorded with ID3 tag information.
1. Press the DISP button (7) for 2 seconds or longer to
switch to the ID3 tag information. “TAG” indicator will
appear on the display.
2. Press the DISP button repeatedly to make selections in the
following sequence: album name → track name → artist
name → normal display mode.NOTE
To return from ID3 tag information to the folder name,
press the DISP button (7) again for 2 seconds or longer.

When there is no title information to be displayed, the dis-
play shows “NO TITLE”.

The display can show up to 12 characters. If a folder
name, track name, or item of ID3 tag information has
more than 12 characters, press the PAGE button (6) to
view the next 12 characters.

Folder names and track names can each be displayed up to
a length of 32 characters. Items of ID3 tag information
can each be displayed up to a length of 30 characters.

Characters that the autochanger cannot display are shown
as “•”.
To play tracks from USB device (if so
equipped)
N00762200027
You can connect your iPod or USB memory device to the USB
input terminal and play music files stored in the iPod or USB
memory device.
See the following section for the types of connectable devices
and supported files.
Refer to “Types of connectable devices and supported file
specifications” on page 3-274.
See the following sections for the connecting methods, “How
to connect an iPod” on page 3-272 and “How to connect a USB
memory device” on page 3-270.
If your vehicle is equipped with a Bluetooth
® 2.0 interface,
you can play music files in your iPod or USB memory device
via voice operation.
Refer to “To play iPod tracks via voice operation” on page 5-
109 and “To play USB memory device tracks via voice opera-
tion” on page 5-120.
BK0125300US.book 104 ページ ２０１０年５月１８日　火曜日　午後１時５３分

Comfort controls
5-105
5

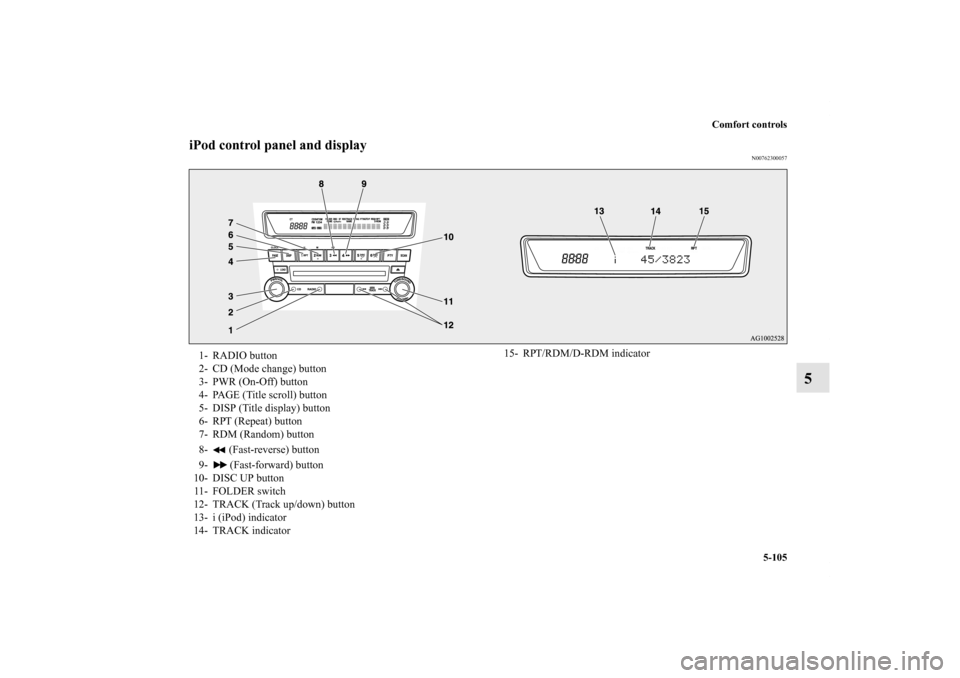

iPod control panel and display
N00762300057
1- RADIO button
2- CD (Mode change) button
3- PWR (On-Off) button
4- PAGE (Title scroll) button
5- DISP (Title display) button
6- RPT (Repeat) button
7- RDM (Random) button
8- (Fast-reverse) button
9- (Fast-forward) button
10- DISC UP button
11- FOLDER switch
12- TRACK (Track up/down) button
13- i (iPod) indicator
14- TRACK indicator
15- RPT/RDM/D-RDM indicator
BK0125300US.book 105 ページ ２０１０年５月１８日　火曜日　午後１時５３分

5-106 Comfort controls
5

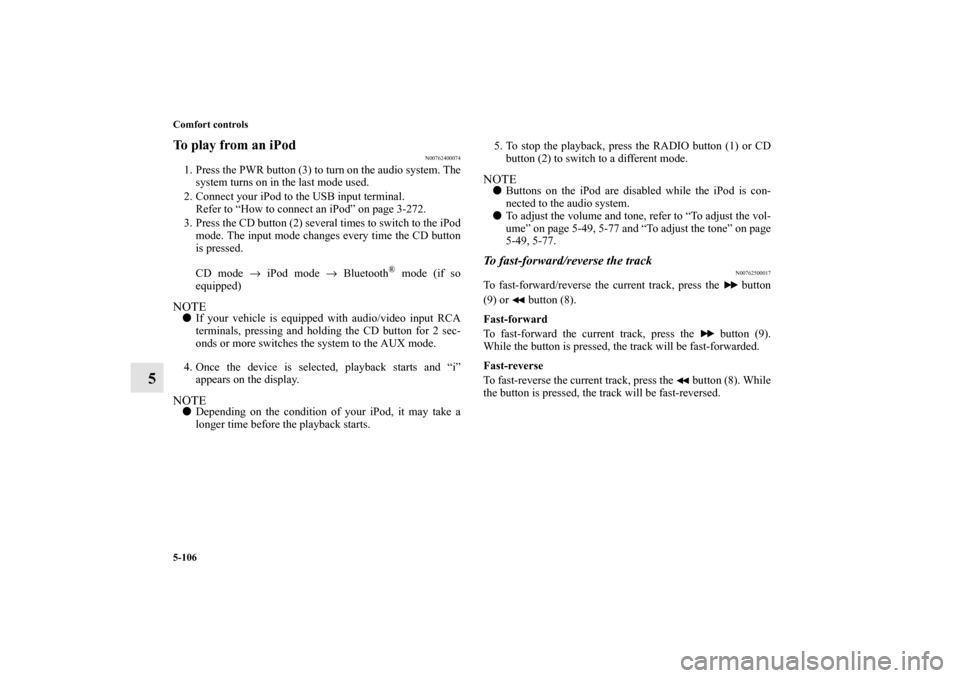

To play from an iPod
N00762400074
1. Press the PWR button (3) to turn on the audio system. The
system turns on in the last mode used.
2. Connect your iPod to the USB input terminal.
Refer to “How to connect an iPod” on page 3-272.
3. Press the CD button (2) several times to switch to the iPod
mode. The input mode changes every time the CD button
is pressed.
CD mode → iPod mode → Bluetooth
® mode (if so
equipped)
NOTE
If your vehicle is equipped with audio/video input RCA
terminals, pressing and holding the CD button for 2 sec-
onds or more switches the system to the AUX mode.
4. Once the device is selected, playback starts and “i”
appears on the display.NOTE
Depending on the condition of your iPod, it may take a
longer time before the playback starts.5. To stop the playback, press the RADIO button (1) or CD
button (2) to switch to a different mode.
NOTE
Buttons on the iPod are disabled while the iPod is con-
nected to the audio system.

To adjust the volume and tone, refer to “To adjust the vol-
ume” on page 5-49, 5-77 and “To adjust the tone” on page
5-49, 5-77.To fast-forward/reverse the track
N00762500017
To fast-forward/reverse the current track, press the button
(9) or button (8).
Fast-forward
To fast-forward the current track, press the button (9).
While the button is pressed, the track will be fast-forwarded.
Fast-reverse
To fast-reverse the current track, press the button (8). While
the button is pressed, the track will be fast-reversed.
BK0125300US.book 106 ページ ２０１０年５月１８日　火曜日　午後１時５３分

Comfort controls
5-107
5

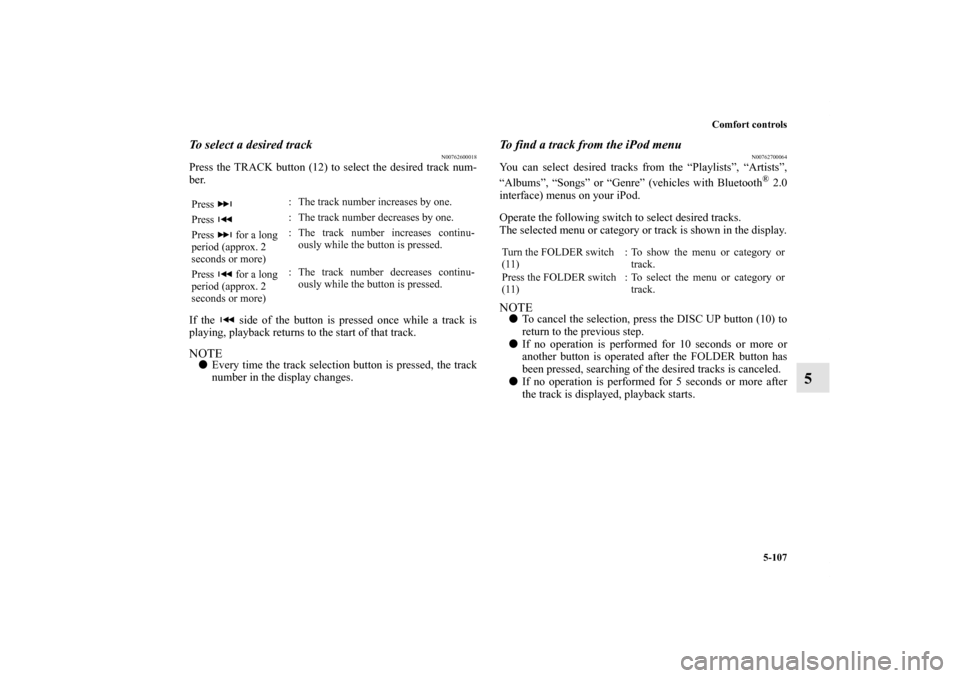

To select a desired track
N00762600018
Press the TRACK button (12) to select the desired track num-
ber.
If the side of the button is pressed once while a track is
playing, playback returns to the start of that track.NOTE
Every time the track selection button is pressed, the track
number in the display changes.
To find a track from the iPod menu
N00762700064
You can select desired tracks from the “Playlists”, “Artists”,
“Albums”, “Songs” or “Genre” (vehicles with Bluetooth
® 2.0
interface) menus on your iPod.
Operate the following switch to select desired tracks.
The selected menu or category or track is shown in the display.
NOTE
To cancel the selection, press the DISC UP button (10) to
return to the previous step.

If no operation is performed for 10 seconds or more or
another button is operated after the FOLDER button has
been pressed, searching of the desired tracks is canceled.

If no operation is performed for 5 seconds or more after
the track is displayed, playback starts.
Press : The track number increases by one.
Press : The track number decreases by one.
Press for a long
period (approx. 2
seconds or more): The track number increases continu-
ously while the button is pressed.
Press for a long
period (approx. 2
seconds or more): The track number decreases continu-
ously while the button is pressed.
Turn the FOLDER switch
(11): To show the menu or category or
track.
Press the FOLDER switch
(11): To select the menu or category or
track.
BK0125300US.book 107 ページ ２０１０年５月１８日　火曜日　午後１時５３分

5-108 Comfort controls
5
To play the same track repeatedly
N00762800010
Press the RPT button (6) during playback to show “RPT” in the
display.
To exit this mode, press the button again.To play tracks in random order
N00762900011
Press the RDM button (7) to show “RDM” in the display.
The iPod randomly selects tracks from the current category and
plays the selected tracks.
To exit this mode, press the button again.To play tracks in each album in random order
N00763000019
Press and hold the RDM button (7) until you hear a beep to
show “D-RDM” in the display.
The iPod randomly selects tracks in the album from the current
category and play the selected tracks.
To exit this mode, press the button again.
To switch the display
N00763100010
You can display the track titles, artist names and album titles
recorded in the iPod.
The display changes as follows every time the DISP button (5)
is pressed during playback.
Album title → Track name → Artist name → Normal displayNOTE
Up to 10 characters are shown in the display at once. If the
title is cut off in the middle, press the PAGE button (4).
The next characters are displayed every time this button is
pressed.

If no title is stored, “NO TITLE” is shown in the display.

Characters that cannot be displayed are substituted
by “ • ”.Album title
Track name
Artist name Example
BK0125300US.book 108 ページ ２０１０年５月１８日　火曜日　午後１時５３分

Comfort controls
5-109
5

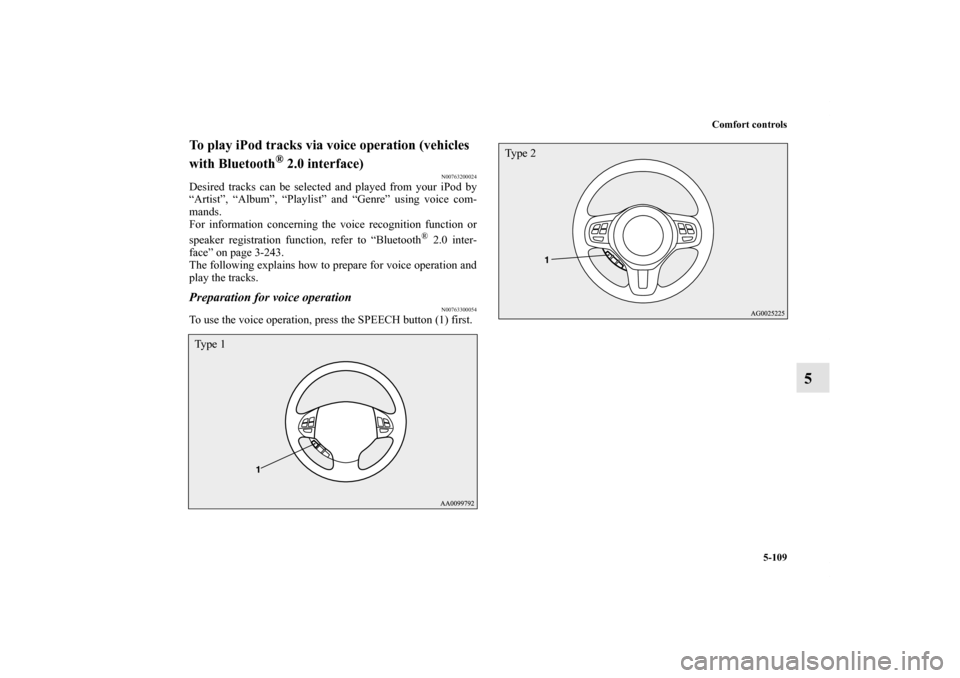

To play iPod tracks via voice operation (vehicles
with Bluetooth
® 2.0 interface)
N00763200024
Desired tracks can be selected and played from your iPod by
“Artist”, “Album”, “Playlist” and “Genre” using voice com-
mands.
For information concerning the voice recognition function or
speaker registration function, refer to “Bluetooth
® 2.0 inter-
face” on page 3-243.
The following explains how to prepare for voice operation and
play the tracks.
Preparation for voice operation
N00763300054
To use the voice operation, press the SPEECH button (1) first.Ty p e 1
Ty p e 2
BK0125300US.book 109 ページ ２０１０年５月１８日　火曜日　午後１時５３分

5-110 Comfort controls
5

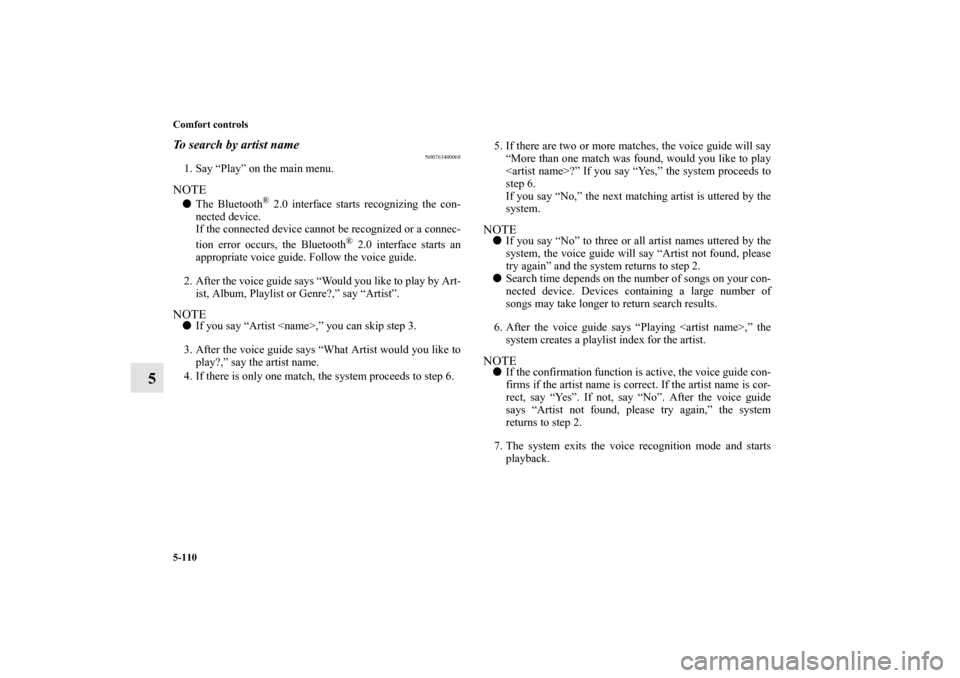

To search by artist name
N00763400068
1. Say “Play” on the main menu.NOTE
The Bluetooth
® 2.0 interface starts recognizing the con-
nected device.
If the connected device cannot be recognized or a connec-
tion error occurs, the Bluetooth
® 2.0 interface starts an
appropriate voice guide. Follow the voice guide.
2. After the voice guide says “Would you like to play by Art-
ist, Album, Playlist or Genre?,” say “Artist”.
NOTE
If you say “Artist ,” you can skip step 3.
3. After the voice guide says “What Artist would you like to
play?,” say the artist name.
4. If there is only one match, the system proceeds to step 6.5. If there are two or more matches, the voice guide will say
“More than one match was found, would you like to play
?” If you say “Yes,” the system proceeds to
step 6.
If you say “No,” the next matching artist is uttered by the
system.
NOTE
If you say “No” to three or all artist names uttered by the
system, the voice guide will say “Artist not found, please
try again” and the system returns to step 2.

Search time depends on the number of songs on your con-
nected device. Devices containing a large number of
songs may take longer to return search results.
6. After the voice guide says “Playing ,” the
system creates a playlist index for the artist.NOTE
If the confirmation function is active, the voice guide con-
firms if the artist name is correct. If the artist name is cor-
rect, say “Yes”. If not, say “No”. After the voice guide
says “Artist not found, please try again,” the system
returns to step 2.
7. The system exits the voice recognition mode and starts
playback.
BK0125300US.book 110 ページ ２０１０年５月１８日　火曜日　午後１時５３分

Comfort controls
5-111
5

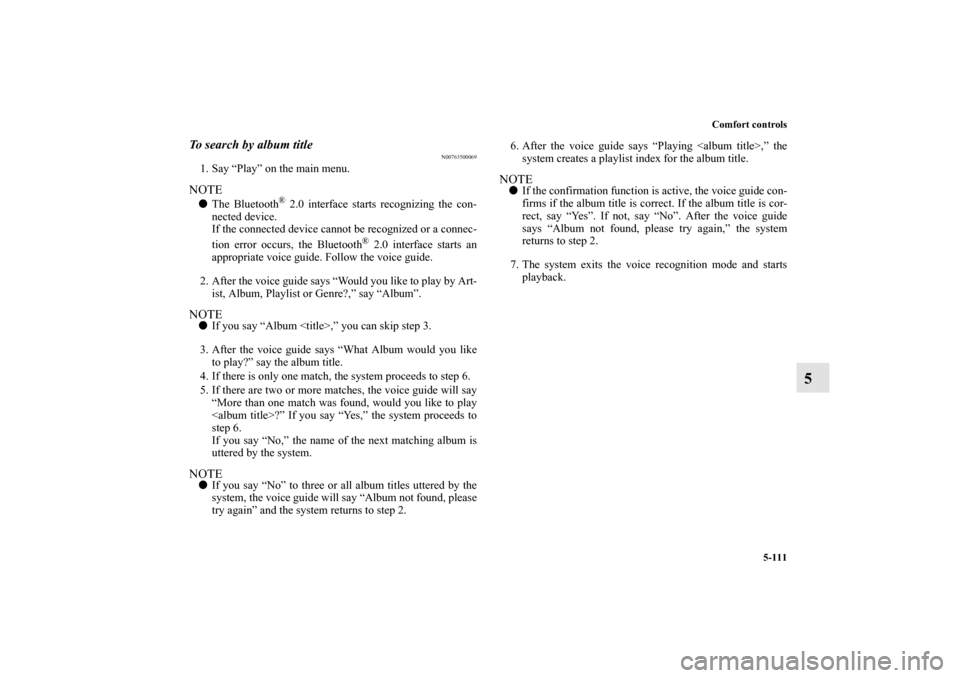

To search by album title
N00763500069
1. Say “Play” on the main menu.NOTE
The Bluetooth
® 2.0 interface starts recognizing the con-
nected device.
If the connected device cannot be recognized or a connec-
tion error occurs, the Bluetooth
® 2.0 interface starts an
appropriate voice guide. Follow the voice guide.
2. After the voice guide says “Would you like to play by Art-
ist, Album, Playlist or Genre?,” say “Album”.
NOTE
If you say “Album
