2011 HONDA ODYSSEY Owners Manual

If it takes several pushes on the
button to operate the rear
entertainment system, have your
dealer replace the batteries as soon
as possible.
The rear control panel can be
detached f rom the ceiling unit and
used as a remote control. To remove
it f rom the ceiling unit, press the
release button. The control panel will
swing down partway. Pivot it down
f urther past the detent until it
detaches f rom the hinge. To reinstall
it, reverse the procedure.
Battery type: BR3032
An improperly disposed of battery
can hurt the environment.
Always conf irm local regulations f or
battery disposal.
As required by the FCC: This device complies with Part 15 of theFCC rules. Operation is subject to thef ollowing two conditions: (1) This devicemay not cause harmf ul interf erence, and(2) this device must accept anyinterf erence received, includinginterf erence that may cause undesiredoperation.
Changes or modif ications not expresslyapproved by the party responsible f orcompliance could void the user’sauthority to operate the equipment.
This device complies with IndustryCanada Standard RSS-210.Operation is subject to the f ollowing twoconditions: (1) this device may not causeinterf erence, and (2) this device mustaccept any interf erence that may causeundesired operation of the device.
Remote Control Replacing the Remote Control
BatteriesUltrawide Rear Entertainment System470
COVER
RELEASE BUTTON
10/07/17 10:37:23 31TK8600_475
2011 Odyssey

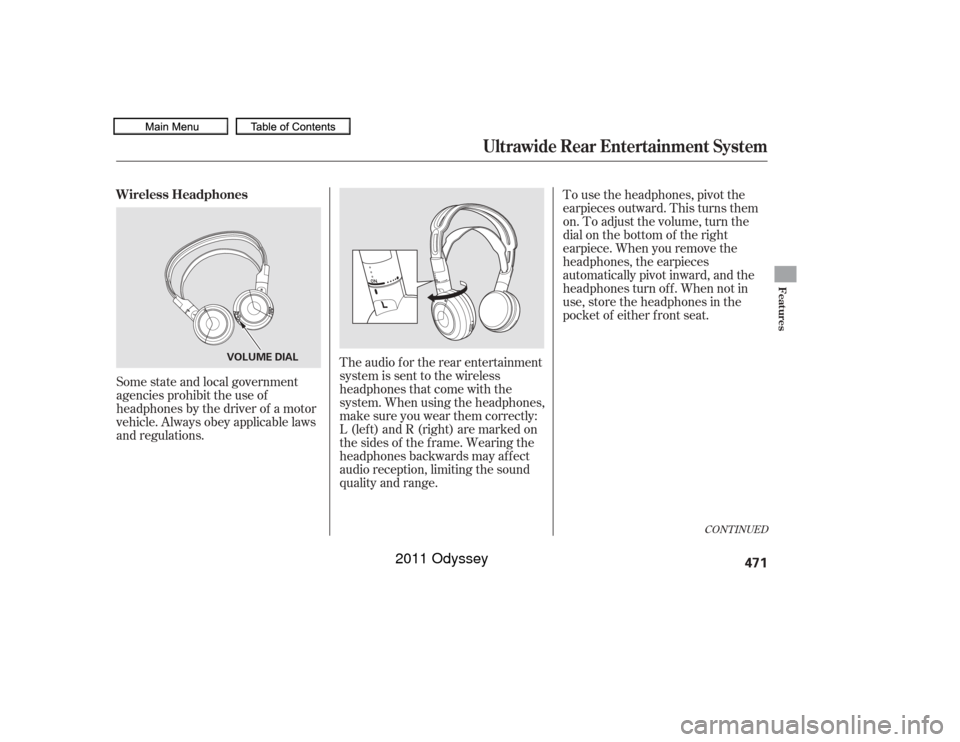

Some state and local government
agencies prohibit the use of
headphones by the driver of a motor
vehicle. Always obey applicable laws
and regulations.The audio f or the rear entertainment
system is sent to the wireless
headphones that come with the
system. When using the headphones,
make sure you wear them correctly:
L (lef t) and R (right) are marked on
the sides of the frame. Wearing the
headphones backwards may affect
audio reception, limiting the sound
quality and range. To use the headphones, pivot the
earpieces outward. This turns them
on. To adjust the volume, turn the
dial on the bottom of the right
earpiece. When you remove the
headphones, the earpieces
automatically pivot inward, and the
headphones turn of f . When not in
use, store the headphones in the
pocket of either f ront seat.
CONT INUED
Wireless Headphones
Ultrawide Rear Entertainment System
Features
471
VOLUME DIAL
10/07/17 10:37:29 31TK8600_476
2011 Odyssey

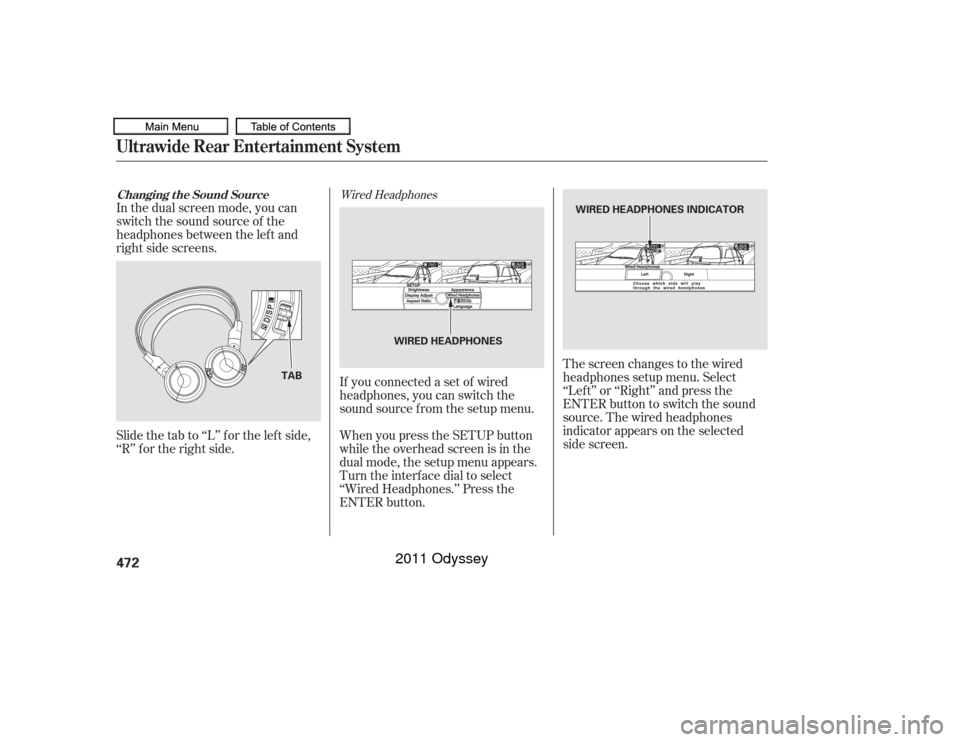

In the dual screen mode, you can
switch the sound source of the
headphones between the lef t and
right side screens.If you connected a set of wired
headphones, you can switch the
sound source f rom the setup menu.
Slide the tab to ‘‘L’’ f or the lef t side,
‘‘R’’ f or the right side. When you press the SETUP button
while the overhead screen is in the
dual mode, the setup menu appears.
Turn the interf ace dial to select
‘‘Wired Headphones.’’ Press the
ENTER button. The screen changes to the wired
headphones setup menu. Select
‘‘Lef t’’ or ‘‘Right’’ and press the
ENTER button to switch the sound
source. The wired headphones
indicator appears on the selected
side screen.
Wired Headphones
Ultrawide Rear Entertainment SystemChanging t he Sound Source472
WIRED HEADPHONESWIRED HEADPHONES INDICATOR
TAB
10/07/17 10:37:38 31TK8600_477
2011 Odyssey

Remove the battery. Install the new
battery in the earpiece as shown in
the diagram next to the battery slot.
Slide the cover back into place on the
earpiece, then press down on the
back edge to lock it in place.
Each headphone uses one AAA
battery. The battery is under the
cover on the lef t earpiece. To
remove the cover, insert a coin in the
slot and twist it slightly to pry the
cover away f rom the earpiece. Pull
the cover outward, and pivot it out of
the way.
An improperly disposed of battery
can hurt the environment.
Always conf irm local regulations f or
battery disposal.Auxiliary input jacks and headphone
connectors f or the rear
entertainment system are above the
third row seat armrest on the driver’s
side.
CONT INUED
Replacing Bat t eries
Auxiliary Input Jacks
Ultrawide Rear Entertainment System
Features
473
COVER
BATTERY
COIN
10/07/17 10:37:46 31TK8600_478
2011 Odyssey

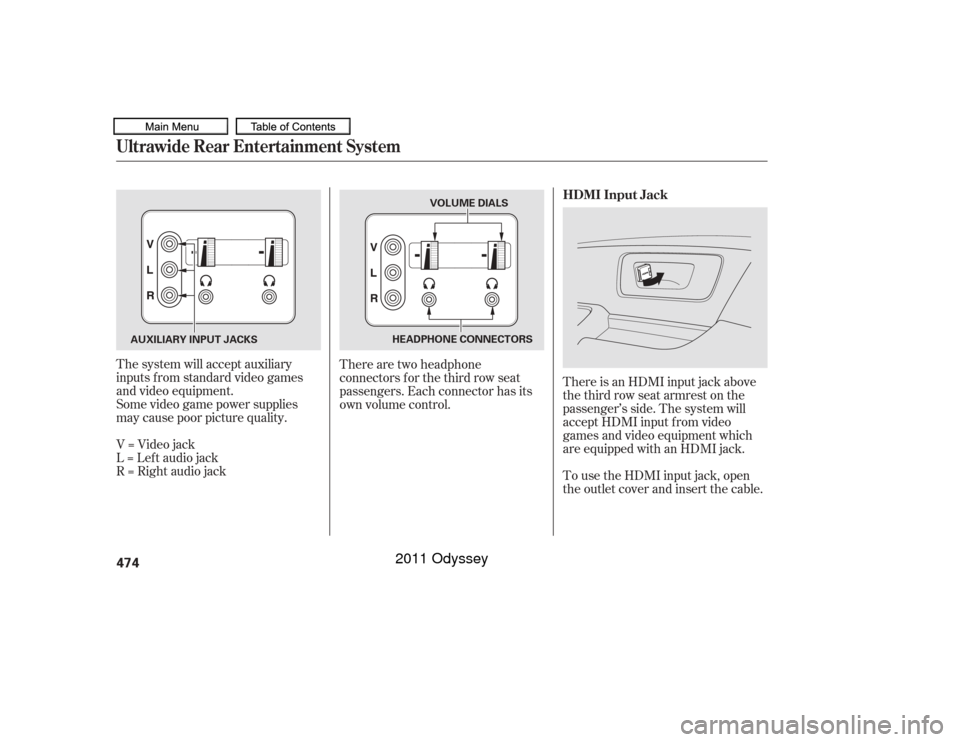

The system will accept auxiliary
inputs f rom standard video games
and video equipment.
Some video game power supplies
may cause poor picture quality.
V=Videojack
L = Lef t audio jack
R = Right audio jackThere are two headphone
connectors f or the third row seat
passengers. Each connector has its
own volume control.
There is an HDMI input jack above
the third row seat armrest on the
passenger’s side. The system will
accept HDMI input f rom video
games and video equipment which
are equipped with an HDMI jack.
To use the HDMI input jack, open
the outlet cover and insert the cable. HDMI Input JackUltrawide Rear Entertainment System474
VOLUME DIALS
HEADPHONE CONNECTORS
AUXILIARY INPUT JACKS
10/07/17 10:37:53 31TK8600_479
2011 Odyssey

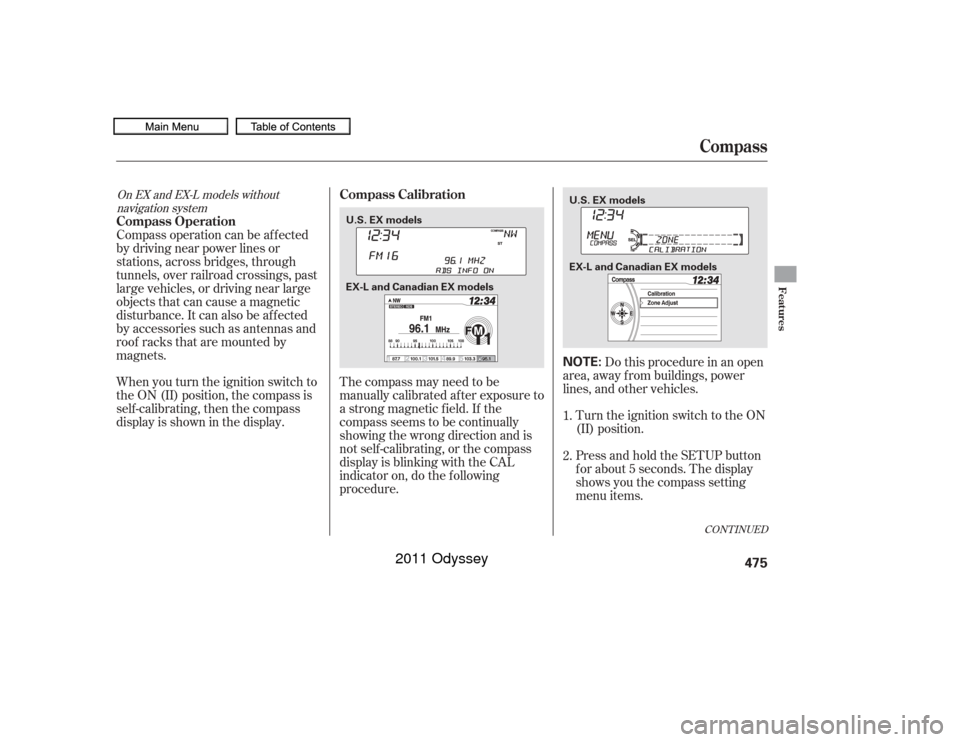

The compass may need to be
manually calibrated af ter exposure to
a strong magnetic field. If the
compassseemstobecontinually
showing the wrong direction and is
not self -calibrating, or the compass
display is blinking with the CAL
indicator on, do the f ollowing
procedure.Do this procedure in an open
area, away f rom buildings, power
lines, and other vehicles.
Turn the ignition switch to the ON
(II) position.
Press and hold the SETUP button
f or about 5 seconds. The display
shows you the compass setting
menu items.
When you turn the ignition switch to
the ON (II) position, the compass is
self-calibrating, then the compass
display is shown in the display. Compass operation can be af f ected
by driving near power lines or
stations, across bridges, through
tunnels, over railroad crossings, past
large vehicles, or driving near large
objects that can cause a magnetic
disturbance. It can also be af f ected
by accessories such as antennas and
roof racks that are mounted by
magnets.
1.
2.
CONT INUED
On EX and EX-L models withoutnavigation system
Compass Calibration
Compass Operation
Compass
Features
475
NOTE:
U.S. EX models
EX-L and Canadian EX models U.S. EX models
EX-L and Canadian EX models
10/07/19 15:54:24 31TK8600_480
2011 Odyssey

Turn the selector knob to select
‘‘CALIBRATION.’’While setting the compass, press
the RETURN button to go back to
the previous display. Pressing the
SETUP button will cancel the
compass setting mode.When the calibration is successf ully
completed, the CAL indicator goes
of f and the compass display will stop
blinking and show an actual heading.
The audio system is not related to
the compass system. Even if the
compasssystemiscalibrating,the
display returns to the normal display
which you last selected.
Drive the vehicle slowly in two
complete circles.
Press the selector knob to enter
your selection. The display shows
you ‘‘PUSH CAL START’’ or ‘‘Start
Calibration.’’ Press the selector knob. The
compass display is blinking and
the CAL indicator is shown.
3. 4. 5.
6.
Compass476U.S. EX models
EX-L and Canadian EX models
U.S. EX models
EX-L and Canadian EX models
10/07/19 15:54:33 31TK8600_481
2011 Odyssey

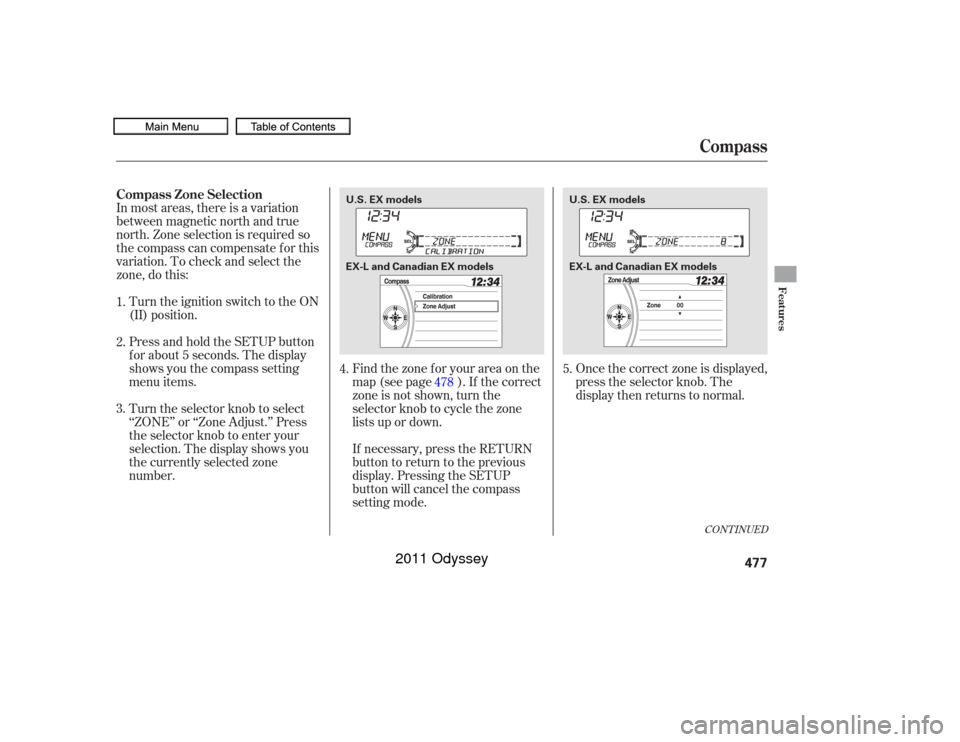

Once the correct zone is displayed,
press the selector knob. The
display then returns to normal.
Find the zone f or your area on the
map (see page ). If the correct
zone is not shown, turn the
selector knob to cycle the zone
lists up or down.
In most areas, there is a variation
between magnetic north and true
north. Zone selection is required so
the compass can compensate f or this
variation. To check and select the
zone, do this:
Turn the ignition switch to the ON
(II) position.
If necessary, press the RETURN
button to return to the previous
display. Pressing the SETUP
button will cancel the compass
setting mode.
Press and hold the SETUP button
f or about 5 seconds. The display
shows you the compass setting
menu items.
Turn the selector knob to select
‘‘ZONE’’ or ‘‘Zone Adjust.’’ Press
the selector knob to enter your
selection. The display shows you
the currently selected zone
number.
4.
5.
2.
3. 1.
478
CONT INUED
Compass Zone Selection
Compass
Features
477
U.S. EX models
EX-L and Canadian EX modelsU.S. EX models
EX-L and Canadian EX models
10/07/19 15:54:44 31TK8600_482
