2011 HONDA ODYSSEY Owners Manual

µµ
Insert a DVD into the lower DVD/
CD slot in the audio unit.
Push the DVD in half way, the drive
will pull it in the rest of the way.
Press the button if
the DVD does not start playing
automatically.
When you insert a DVD, the system
automatically starts to play. To turn
this f eature of f , see page .
Press the button to
pause the DVD. Press the button
again or press PLAY to resume.
Pause works only with the DVD
player. 423
PL AY
PAUSE
Ultrawide Rear Entertainment System446
PLAY/PAUSE BUTTON EJECT BUTTON
SKIP BAR
CD SLOT
DVD/CD
SLOT
10/07/17 10:33:57 31TK8600_451
2011 Odyssey

µ
µ To turn on the rear entertainment
system f rom the rear control panel,
press the (power) button. Press
the SOURCE button and display the
selectable entertainment sources in
the overhead screen. Turn the
interface dial and press the ENTER
button to set your selection. Make
sure the rear control operation has
not been disabled. When the f ront
audio system is of f or the f ront panel’s
Rear Power is off, the rear control
panel cannot be turned on.
Pressandholdthe
side of the SKIP bar to move
f orward. Press and hold the side of the SKIP bar to move
backward. Release the bar when the
system reaches the point you want.
Each time you press the side of
the SKIP bar and release it, the
system skips f orward to the
beginning of the next track or
chapter. Press and release the side of the SKIP bar to skip
backward to the beginning of the
current track. Press and release it
again to skip to the beginning of the
previous track or chapter.
Press the eject button to
remove the DVD from the drive.
See page . To return f ront panel control to the
f ront audio system, press the REAR
SOURCE button. You will hear a
beep and the indicator in the button
goes of f . The indicator also goes of f
automatically when you do not
operate the rear entertainment
system f or 20 seconds.
421
CONT INUED
Using the Rear Control Panel
SEEK /SK IP
EJECT To Return to Front Audio
Controls
Ultrawide Rear Entertainment System
DVD Set up
Features
447
10/07/17 10:34:05 31TK8600_452
2011 Odyssey

µµ
You can select between the two
screen modes, single or dual, f or the
overhead screen.
In single mode, your selected source
appears in the center of the screen.
In dual mode, two separate screens
appear side to side. In dual mode,
you can only select one output
source f rom the f ront audio system.
The other media f or the other screen
must come f rom ‘‘AUX-VIDEO’’ or
‘‘AUX-HDMI.’’
Press this
button to change the selectable
entertainment source f rom the
overhead screen. Turn the interf ace
dial and press the ENTER button to
set your selected source. When you press
this button while the overhead
screen is in the dual mode, you can
choose which source to continue in
single mode, and which source to
end. The message ‘‘Choose which
source to continue’’ appears. Turn
the interf ace dial to make your
selection, then press ENTER.
See page f or more details about
screen modes.
With the overhead screen in single
mode, the SINGLE button f unctions
the same as the SOURCE button.
450
SOURCE button
SINGLE button
Ultrawide Rear Entertainment SystemScreen modes448
SOURCE
BUTTONSINGLE
BUTTONDUAL
BUTTONSWAP
BUTTON INTERFACE DIAL
ENTER
BUTTON
DVD
BUTTON
AUX
BUTTON
10/07/17 10:34:12 31TK8600_453
2011 Odyssey

µµ
µ
µ
When you press
this button while the overhead
screen is in the single mode, you can
add another screen to play separate
media. A message appears that
allowsyoutochooseasidetoadda
second source. Turn the interf ace
dial, select right or lef t, and press the
ENTER button. The selectable
source menu will appear. Set the
source you want to add. The screen
will change to the dual mode.
If you press the DUAL button while
in dual mode, you can change the
media source on either side of the
screen. When you press this
button, the overhead screen changes
to the DVD video screen. When you
press the DVD button while the
overhead screen is in the dual mode,
a message to choose the lef t or right
side of the screen to be displayed
will appear. Turn the interf ace dial
and press the ENTER button to set
your selection.
When you press
this button while the overhead
screen is in the dual mode, you can
swap the lef t and right source on the
overhead screen.
When you press this
button, the overhead screen changes
to the last selected auxiliary mode. If
you press this button while the rear
screen is in the dual mode, a
message to choose the lef t or right
side of the screen to be displayed
will appear. Turn the interf ace dial
and press the ENTER button. Your
selected side screen will change to
the auxiliary source menu. Select
your source and press ENTER again.
CONT INUED
DUAL button DVD button
SWAP button
AUX button
Ultrawide Rear Entertainment System
Features
449
10/07/17 10:34:18 31TK8600_454
2011 Odyssey

µ

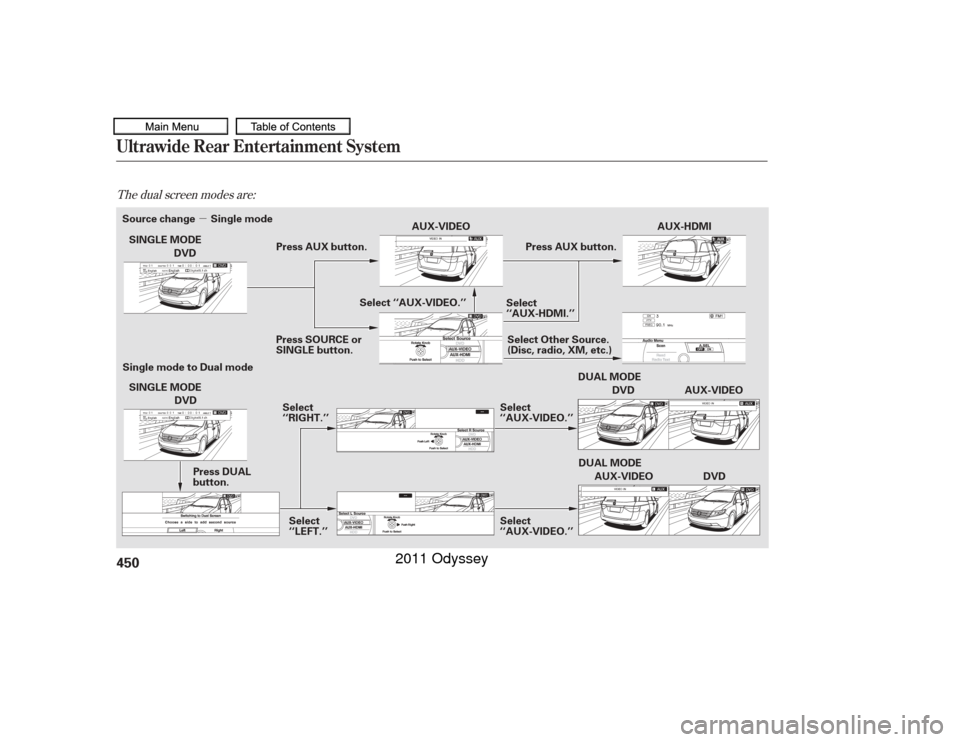

The dual screen modes are:Ultrawide Rear Entertainment System450Source change Single modeSingle mode to Dual mode AUX-VIDEO
AUX-HDMI
Select
‘‘RIGHT.’’ Select
‘‘LEFT.’’ Select
‘‘AUX-VIDEO.’’
Select
‘‘AUX-VIDEO.’’
DUAL MODE
AUX-VIDEO DVD
DVD
SINGLE MODE
DUAL MODE
DVD AUX-VIDEO
Press AUX button.
Press DUAL
button.
SINGLE MODE
DVD Press AUX button.
Select
‘‘AUX-HDMI.’’
Press SOURCE or
SINGLE button. Select Other Source.
(Disc, radio, XM, etc.)
Select ‘‘AUX-VIDEO.’’
10/07/17 10:34:32 31TK8600_455
2011 Odyssey

Ultrawide Rear Entertainment System
Features
451

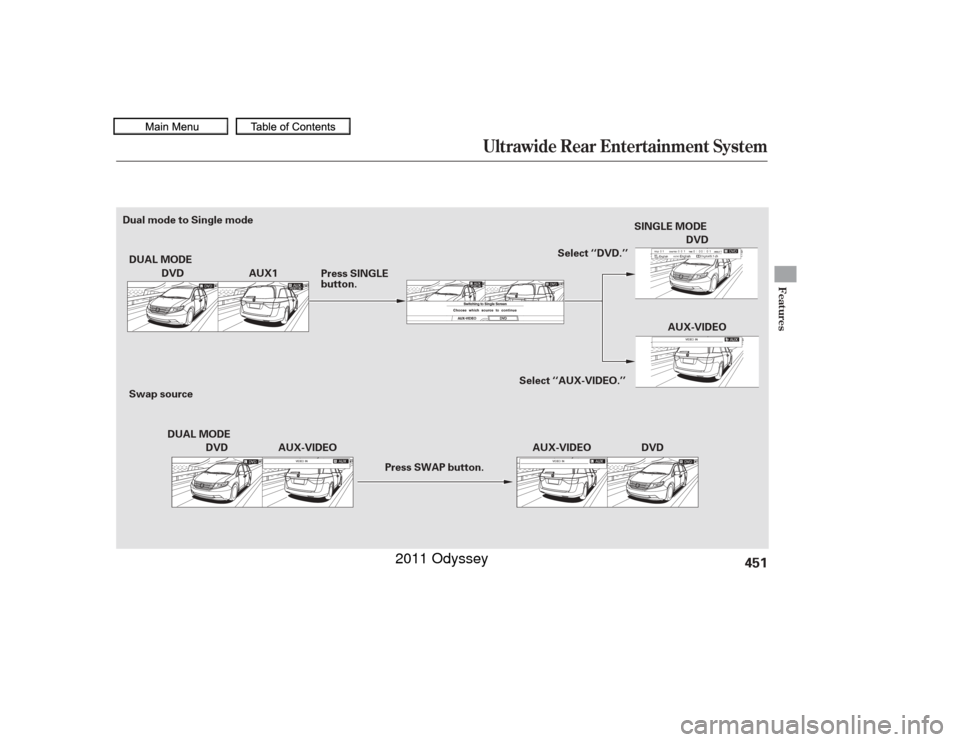

Press SWAP button.
Press SINGLE
button.
DVD
AUX1
DUAL MODE DVD AUX-VIDEO AUX-VIDEO DVDSelect ‘‘DVD.’’
SINGLE MODE
DVD
Select ‘‘AUX-VIDEO.’’ AUX-VIDEO
Swap source DUAL MODE
Dual mode to Single mode
10/07/17 20:21:28 31TK8600_456
2011 Odyssey

Press the SOURCE button and turn
the interf ace dial to ‘‘XM1’’ or ‘‘XM2.’’
Press ENTER to listen to the XM
Radio. You can press either side
(or)oftheTUNE/SKIP
bar to scroll up/down and select
channels within a category (in
CATEGORY mode), or to scroll up/
down and select f rom among all
available channels (in CH mode).Press the MENU button to display
theaudiomenuontheoverhead
screen. You can enter the
highlighted f unction by pressing the
ENTER button. These f unctions
have the same features as those of
the f ront audio system.
Pressing and holding the TITLE/
SCROLL button f or 5 seconds
enables you to switch between
search modes.
To listen to the radio, press the
SOURCE button for the selectable
sources to appear in the overhead
screen. Turn the interf ace dial to
select ‘‘AM,’’ ‘‘FM1’’ or ‘‘FM2,’’ then
press the ENTER button.
Press the MENU button to display
theAudioMenuontheoverhead
screen. You can enter the
highlighted f unction by pressing the
ENTER button. These f unctions
have the same features as those of
the f ront audio system. You can
press and hold either side ( or
)of theTUNE/SKIPbarto
skip (seek) up/down, and press
either side ( of ) of the
TUNE/SKIP bar to tune up/down. To Play the Radio f rom the Rear
Control Panel
To Play the XM Radio f rom the
Rear Control Panel
Ultrawide Rear Entertainment System452
REAR CONTROL PANEL
OVERHEAD SCREEN
10/07/17 10:34:48 31TK8600_457
2011 Odyssey

Use the interf ace dial to highlight
REPEAT, RANDOM (or SHUFFLE
if your source is iPod), or SCAN on
the screen. You can enter the
highlighted f unction by pressing the
ENTER button. These f unctions
have the same features as those of
the f ront audio system.The video screen is f or use by rear
seat passengers only. The driver and
f ront seat passenger should not try
to view the screen while driving.
Open the overhead screen by
pushing the OPEN button. The
screen will swing down part-way.
Pivot the screen the rest of the way.
If you pivot the screen too f ar
f orward, past the second detent. The
display will turn of f . Pivot the screen
back to the second or first detent to
turn the display back on. To close
the screen, pivot it up until it latches.
Press the button when you
want to pause the DVD. Press this
button again to go back to PLAY. Pressthe buttontoskiptothe
beginning of the next chapter. Press
the button to return to the
beginning of the current chapter.
Press the button again quickly
to go to the previous chapter.
To move rapidly within a chapter,
press and hold the or
button. The system will
continue to move through the
chapter. Press the button to
move forward, or the button to
move backward. Release the button
when the system reaches the point
you want.
ToselectthemenuontheDVD,
press the MENU button. Use the
interface dial to turn to the desired
menu selection, then press the
ENTER button to enter your
selection.
When the TITLE/SCROLL button is
pressed, the title scrolls f or about 10
seconds. When it is pushed again,
scrolling stops. To Play a Disc, HDD, USB, or
iPod
f rom the Rear Control
Panel To Play a DVD from the Rear
Control Panel
Ultrawide Rear Entertainment System
Features
453
