2011 HONDA ODYSSEY Owners Manual

To remove f og f rom the inside of the
windows:Set the f an to high.
Select . The system
automatically switches to the fresh
air mode and turns on the A/C.
The indicator in the A/C button
will not come on (LX and Canadian
DX models), or the A/C ON
indicator will not come on (EX,
EX-L, Touring, and Canadian SE
models), if the A/C was of f to
start with.
Adjust the temperature so the
airflow feels warm.
Select to help clear the
rear window.
When you switch to another mode
f rom , the A/C turns of f . But
if it was on to start with, it stays on.
Air conditioning, as it cools, removes
moisture from the air. When used in
combination with the heater, it
makes the interior warm and dry.
Switch the f an on.
Turn on the air conditioning.
Select and fresh air mode.
Adjust the temperature to your
pref erence.
This setting is suitable f or all driving
conditions whenever the outside
temperature is above 32°F (0°C).
Set the f an to the desired speed.
Select the MAX A/C mode.
The system automatically turns on
the A/C, selects and
switches to recirculation mode.
Make sure the temperature is set
to maximum cool.
1.
2.
3.
4. 1.
2.
3.
4.
4.
/
1.
2.
3.
To cool the interior with MAX A/C:Vents, Heating, and A/C
To Def og and Def rost
Dehumidif y the Interior
222
10/07/17 10:04:00 31TK8600_227
2011 Odyssey

Select . The system
automatically switches to f resh air
mode and turns on the A/C.
The indicator in the A/C button
will not come on (LX and Canadian
DX models), or the A/C ON
indicator will not come on (EX,
EX-L, Touring, and Canadian SE
models), if the A/C was of f to
start with.
Select .
Set the f an and temperature
controls to maximum level.To turn the system completely off,
press the ON/OFF button.
Keep the system completely of f
f or short periods only.
To keep stale air and mustiness
f rom collecting, you should have
the f an running at all times.
To clear the windows f aster, you can
close the dashboard corner vents by
rotating the wheel next to each vent.
This sends more warm air to the
windshield def roster vents. Once the
windshield is clear, select f resh air
mode to avoid f ogging the windows.
For your saf ety, make sure you have
a clear view through all the windows
bef ore driving.
1.
2.
3.
CONT INUED
Vents, Heating, and A/C
T o Remove Exterior Frost or Ice
From the Windows
To Turn Everything Off
Features
223
10/07/17 10:04:07 31TK8600_228
2011 Odyssey

Û
Ý
Û
Ý Press the fan control button to
increase the f an speed and airf low,
and the button to decrease it. The
f an speed you adjust is shown in the
system display.
Each time you press the MODE
button, the display shows the mode
selected. Press the temperature control
button to increase the temperature
of airflow, and the button to
decrease it. The temperature you
adjust is shown in the system display.
When is selected, air f lows
f rom the rear ceiling vents.
When is selected, air f lows
f rom the rear f loor vents.
When is selected, airf low is
divided between the rear f loor vents
and rear ceiling vents.
To control the rear A/C, press the
REAR ON/OFF button. The rear
control display will come on. You can
adjust the temperature, the mode,
the f an speed and airf low of the rear
passenger compartment on the f ront
control panel.
Fan Cont rol
Mode Cont rol
T emperat ure Cont rol
Vents, Heating, and A/CREAR A/C Controls224
10/07/17 10:04:16 31TK8600_229
2011 Odyssey

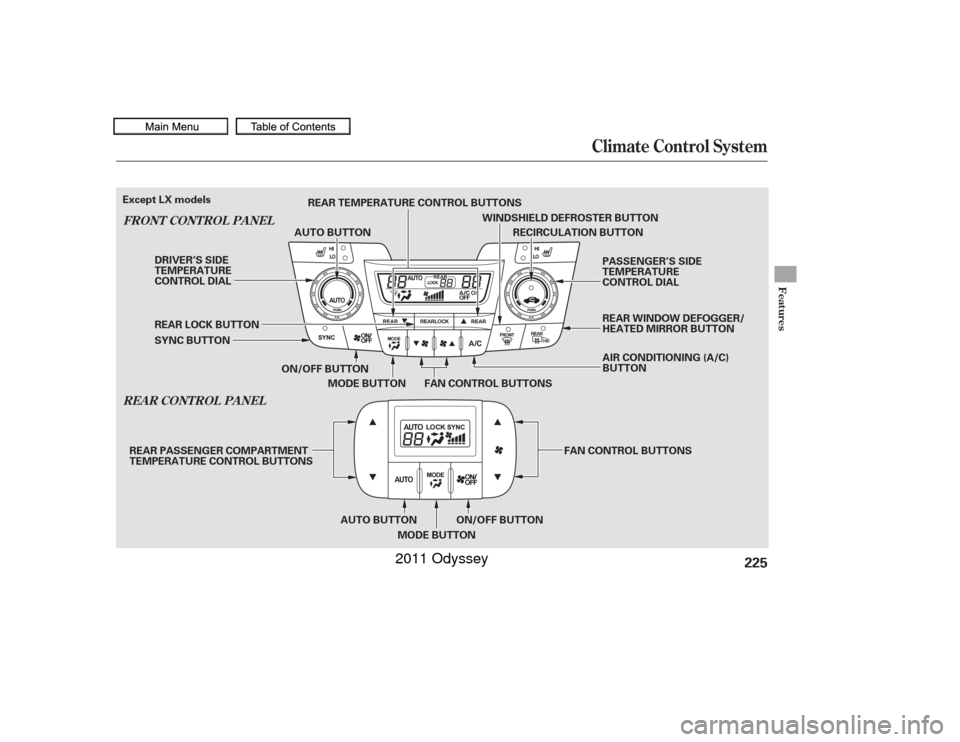

Climate Control System
REA R CONT ROL PA NEL
FRONT CONT ROL PA NEL
Features
225
RECIRCULATION BUTTON
ON/OFF BUTTON FAN CONTROL BUTTONS
MODE BUTTON
SYNC BUTTON REAR LOCK BUTTON AUTO BUTTON
WINDSHIELD DEFROSTER BUTTON
DRIVER’S SIDE
TEMPERATURE
CONTROL DIAL PASSENGER’S SIDE
TEMPERATURE
CONTROL DIAL
AIR CONDITIONING (A/C)
BUTTON
ON/OFF BUTTON
AUTO BUTTON
MODE BUTTON FAN CONTROL BUTTONS
REAR TEMPERATURE CONTROL BUTTONS
REAR PASSENGER COMPARTMENT
TEMPERATURE CONTROL BUTTONS
Except LX models
REAR WINDOW DEFOGGER/
HEATED MIRROR BUTTON
10/07/17 10:04:23 31TK8600_230
2011 Odyssey

Û
Ý
The automatic climate control
system in your vehicle maintains the
interior temperature you select. The
system also adjusts the f an speed
and airf low levels.
The climate control system f or your
vehicle can also be operated using
the voice control system. See the
navigation system manual f or
complete details.
Press the AUTO button.
Set the desired temperature with
the temperature control dial.
You can set the driver’s side
temperature, the passenger’s side
temperature, and the temperature
of the rear passenger
compartment separately.
The system automatically selects
the proper mix of conditioned
and/or heated air that will, as
quickly as possible, raise or lower
the interior temperature to your
pref erence. The system also
dehumidif ies the interior.The driver’s side temperature, the
passenger’s side temperature and
the rear passenger compartment
temperature can be set separately.
Turning each temperature control
dial on the f ront control panel
clockwise will increase the
temperature of airflow. On the rear
control panel, press the button to
increase the temperature of airf low.
Press the button to decrease it.
Each set temperature is shown in the
display. The rear set temperature is
shown in the display on the ceiling
above the second row seat outer
position.
1.
2.
3.
On vehicles with navigation system
Using A utomatic Climate Control
Voice Control System
Climate Control System
T emperat ure Cont rol
226
10/07/17 10:04:32 31TK8600_231
2011 Odyssey

When you press a f an control button,
the fan is taken out of AUTO mode. When you set the temperature to its
lower limit ( ) or its upper limit
( ), the system runs at f ull
cooling or heating only. It does not
regulate the interior temperature.In the Auto mode, the vehicle’s
interior temperature is
independently regulated f or the
driver, f ront passenger, and rear
passengers according to each
adjusted temperature. The system
also regulates each temperature
basedontheinformationof the
sunlight sensor and the sun’s
position which is updated
automatically by the navigation’s
global positioning system (GPS). For
example, if the driver’s side of the
vehicle is getting too much sun, the
system will adjust to a lower
temperature. When you press this button, the
indicator in the button comes on, and
the passenger’s side temperature
and the rear passenger compartment
is synchronized to the driver’s side
set temperature. Changing the
passenger’s side temperature or
pressing any control button f or the
rear passenger compartment makes
the indicator go off, and takes the
system out of SYNC mode.
On vehicles with navigation system
Climate Control System
SYNC Button
Features
227
10/07/17 10:04:38 31TK8600_232
2011 Odyssey

Û
Ý
You can manually select various
f unctions of the climate control
system when it is in f ully automatic
mode. All other f eatures remain
automatically controlled. Making any
manual selection causes the word
AUTO in the display to go out.
Press the button to increase
the fan speed and airflow. Press the
button to decrease it.
This button turns the air
conditioningonandoff.Youwillsee
A/C ON or A/C OFF in the display.
When you turn the A/C of f , the
system cannot regulate the inside
temperature if you set the
temperature control below the
outside temperature. When the indicator in the button is
on, air f rom the vehicle’s interior is
sent through the system again.
When the indicator is off, air is
brought in f rom the outside of the
vehicle (fresh air mode).
Switch to recirculation mode when
driving through dusty or smoky
conditions, then return to fresh air
mode. Thesystemshouldbeleftinfresh
air mode under almost all conditions.
Keeping the system in recirculation
mode, particularly with the A/C of f ,
can cause the windows to fog up. The outside air intakes f or the
climate control system are at the
base of the windshield. Keep this
area clear of leaves and other debris.
To turn the system completely off,
press the ON/OFF button.
Keep the system completely of f
f or short periods only.
To keep stale air and mustiness
f rom collecting, you should have
the f an running at all times. Semi-automatic Operation
To Turn Everything Off
Fan Control
A ir Condit ioning (A /C) But t onRecirculat ion But t on
Climate Control System228
10/07/17 10:04:50 31TK8600_233
2011 Odyssey

For your saf ety, make sure you have
a clear view through all the windows
bef ore driving.
This button turns the rear window
def ogger of f and on (see page ).
Pushing this button also turns the
power mirror heaters on and of f .
Use the mode control button to
select the vents the air flows from.
Some air will flow from the
dashboard vents in all modes. When the indicator in the button is
on, the f ront passenger’s
temperature cannot be set separately
f rom the driver’s.
Airf low is divided between
the f loor and corner vents and the
defroster vents at the base of the
windshield.
Air f lows f rom the f loor
vents.
Airf low is divided between
the vents in the dashboard and the
f loor vents. Air flows from the center
and corner vents in the dashboard.
This button directs the main airflow
to the windshield for faster
def rosting. It also overrides any
mode selection you may have made.
When you select , the system
automatically switches to f resh air
mode and turns on the A/C. For
f aster def rosting, manually set the
fanspeedtohigh.Youcanalso
increase airf low to the windshield by
closing the corner vents on the
dashboard.
When you turn of f by
pressing the button again, the
system returns to its former settings.
142
Rear Window Def ogger But t on
Mode Cont rol Windshield Def rost er But t on
Climate Control System
Features
229
10/07/17 10:05:04 31TK8600_234
2011 Odyssey
