2008 TOYOTA FJ CRUISER Owners Manual

50 1−3. Adjustable components (seats, mirrors, steering wheel)
 Adjusting the height of the head restraints
 Adjusting the rear seat head restraints
Always raise the head restraint one level from the stowed position when
using.
 Head restraints of different seats
The head restraints are specially designed for the seats on which they are
installed.
CAUTION
 Head restraint precautions
Observe the following precautions regarding the head restraints. Failure to
do so may result in death or serious injury.
 Adjust the head restraints to the correct position at all times.

Do not drive with the head restraints removed.
Make sure that the head restraints are
adjusted so that the center of the head
restraint is closest to the top of your ears.

51
1
1−3. Adjustable components (seats, mirrors, steering wheel)
Before driving

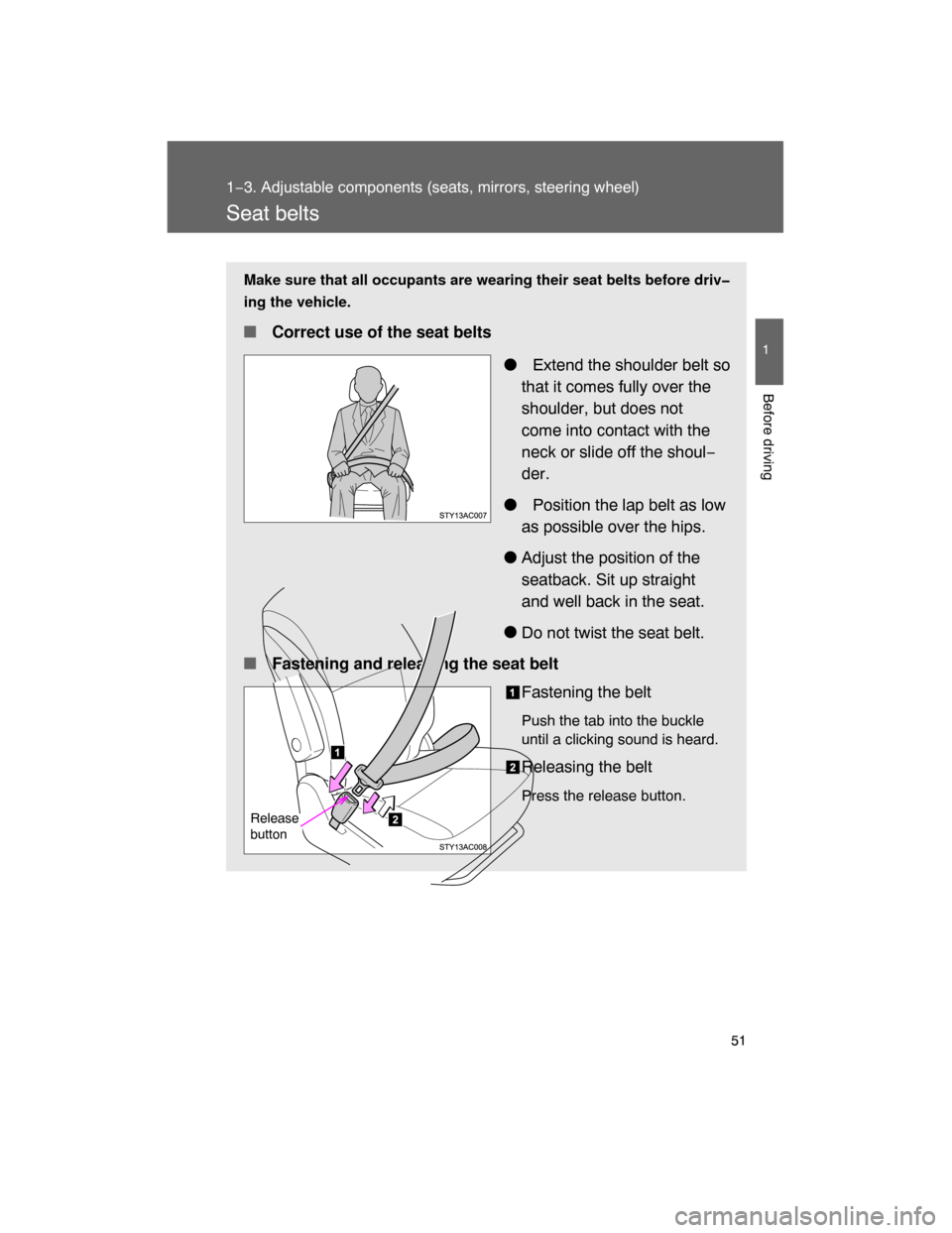

Seat belts
Make sure that all occupants are wearing their seat belts before driv
ing the vehicle.
 Correct use of the seat belts
 Extend the shoulder belt so
that it comes fully over the
shoulder, but does not
come into contact with the
neck or slide off the shoul−
der.
 Position the lap belt as low
as possible over the hips.
Adjust the position of the
seatback. Sit up straight
and well back in the seat.

Do not twist the seat belt.
 Fastening and releasing the seat belt
Fastening the belt
Push the tab into the buckle
until a clicking sound is heard.
Releasing the belt
Press the release button.
Release
button

52 1−3. Adjustable components (seats, mirrors, steering wheel)
Seat belt pretensioners (front seats)
The pretensioner helps the seat
belt to quickly restrain the occu−
pant by retracting the seat belt
when the vehicle is subjected to
certain types of severe frontal
collision.
The pretensioner may not acti−
vate in the event of a minor frontal
impact, a side impact or a rear
impact.
 Adjusting the height of the belt (front seats)
Up
Move the height adjuster up as
needed until you hear a click.
Down
Push the lock release button
and slide the height adjuster
down.

53
1−3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
 Emergency locking retractor (ELR)
The retractor will lock the belt during a sudden stop or on impact. It may also
lock if you lean forward too quickly. A slow, easy motion will allow the belt to
extend so that you can move around fully.
 Automatic locking retractor (ALR)
When a passenger’s shoulder belt is completely extended and then
retracted even slightly, the belt is locked in that position and cannot be
extended. This feature is used to hold the child restraint system (CRS) firmly.
To free the belt again, fully retract the belt and then pull the belt out once
more. ( P. 90)

Pregnant women
 People suffering illness
Obtain medical advice and wear the seat belt in the proper way.
Child seat belt usage
The seat belts of your vehicle were principally designed for persons of adult
size.
Use a child restraint system appropriate for the child, until the child
become large enough to properly wear the vehicle’s seat belt. (
P. 90)
 When the child becomes large enough to properly wear the vehicle’s seat
belt, follow the instructions on P. 51 regarding seat belt usage.Obtain medical advice and wear the seat
belt in the proper way. ( P. 51)
Women who are pregnant should position
the lap belt as low as possible over the
hips in the same manner as other occu−
pants. Extend the shoulder belt com−
pletely over the shoulder and position the
belt across the chest. Avoid belt contact
over the rounding of the abdominal area.
If the seat belt is not worn properly, not
only a pregnant woman, but also the fetus
could suffer death or serious injury as a
result of sudden braking or a collision.

54 1−3. Adjustable components (seats, mirrors, steering wheel)
 Replacing the belt after the pretensioner has been activated
The seat belts cannot be used after a pretensioner has been activated. After
an accident, have the pretensioners inspected by your Toyota dealer. Make
sure the pretensioners are replaced if they have been activated.
 Seat belt extender
CAUTION
 Wearing a seat belt
Observe the following precautions to reduce the risk of injury in the event of
sudden braking or an accident.
Failing to do so may cause death or severe injury.
 Ensure that all passengers wear a seat belt.
Always wear a seat belt properly.
Each seat belt should be used by one person only. Do not use a seat belt
for more than one person at once, including children.
 Toyota recommends that children be seated in the rear seat and always
use a seat belt and/or an appropriate child restraint system.
Do not recline the seat any more than necessary to achieve a proper seat−
ing position. The seat belt is most effective when the occupants are sitting
up straight and well back in the seats.
 Do not wear the shoulder belt under your arm.

Always wear your seat belt low and snug across your hips.
If your seat belts cannot be fastened
securely because they are not long
enough, a personalized seat belt
extender is available from your Toyota
dealer free of charge.

55
1−3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
CAUTION
 Seat belt pretensioners
Do not place anything, such as a cushion, on the front passenger ’s seat.
Doing so will disperse the passenger ’s weight, which prevents the sensor
from detecting the passenger ’s weight properly. As a result, the seat belt
pretensioner for the front passenger ’s seat may not activate in the event of a
collision.
 Seat belt damage and wear
 Do not damage the seat belts by allowing the belt, plate, or buckle to be
jammed in the door.
Inspect the seat belt system periodically. Check for cuts, fraying, and loose
parts. Do not use a damaged seat belt until it is replaced. Damaged seat
belt cannot protect an occupant from death or serious injury.
 Ensure that the belt and tab are locked and the belt is not twisted.
If the seat belt does not function correctly, immediately contact your Toyota
dealer.
 Replace the seat assembly, including the belts, if your vehicle has been
involved in a serious accident, even if there is no obvious damage.
Do not attempt to install, remove, modify, disassemble or dispose of the
seat belts. Have any necessary repairs carried out by your Toyota dealer.
Inappropriate handling of the pretensioner may prevent it from operating
properly resulting in death or serious injury.
 Using a seat belt extender
 Do not wear the seat belt extender, if you can fasten the seat belt without
the extender.
Do not use the seat belt extender when installing a child restraint system,
because the belt will not securely hold the child restraint system, increas−
ing the risk of death or serious injury in the event of a collision.
 The personalized extender may not be safe on another vehicle, when
used by another person, or at a different seating position other than the
one originally intended.

56 1−3. Adjustable components (seats, mirrors, steering wheel)
NOTICE
 When using a seat belt extender
When releasing the seat belt, press on the buckle release button on the
extender, not on the seat belt.
This helps prevent damage to the vehicle interior and the extender itself.

57
1
1−3. Adjustable components (seats, mirrors, steering wheel)
Before driving
Steering wheel
CAUTION
 Caution while driving
Do not adjust the steering wheel while driving.
Doing so may cause the driver to mishandle the vehicle and an accident
may occur resulting in death or serious injury.
 After adjusting the steering wheel
Make sure that the steering wheel is securely locked.
Otherwise, the steering wheel may move suddenly, possibly causing an
accident and resulting in death or serious injury.
The steering wheel can be adjusted to a comfortable position.
Hold the steering
wheel and pull the
lever.
Adjust to the ideal
position by moving the
steering wheel verti−
cally.
Release the lever.
