2008 TOYOTA FJ CRUISER Owners Manual

350
5−2. Steps to take in an emergency

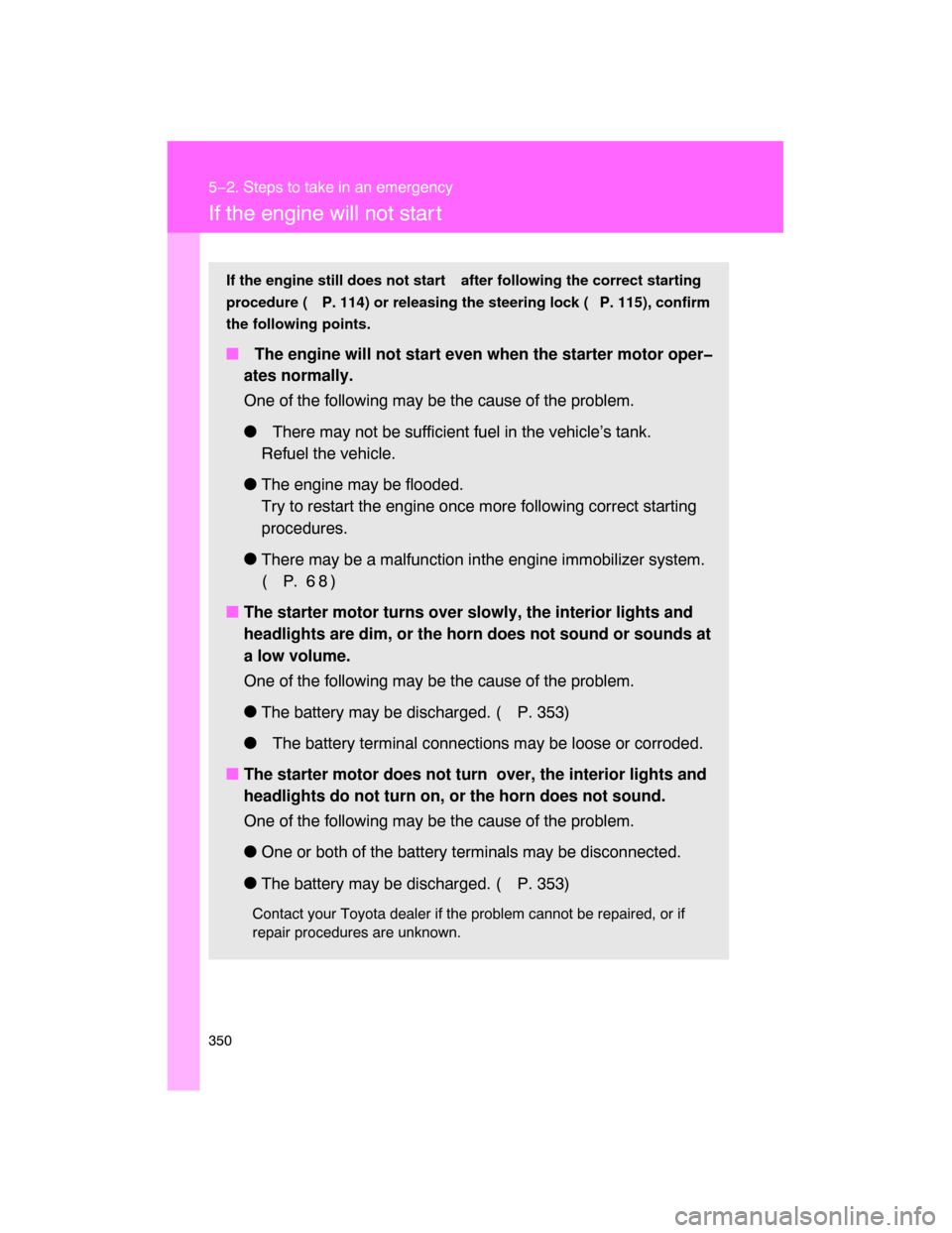

If the engine will not star t
If the engine still does not start after following the correct starting
procedure ( P. 114) or releasing the steering lock ( P. 115), confirm
the following points.
 The engine will not start even when the starter motor oper
ates normally.
One of the following may be the cause of the problem.
 There may not be sufficient fuel in the vehicle’s tank.
Refuel the vehicle.
The engine may be flooded.
Try to restart the engine once more following correct starting
procedures.

There may be a malfunction inthe engine immobilizer system.
(P. 6 8 )

The starter motor turns over slowly, the interior lights and
headlights are dim, or the horn does not sound or sounds at
a low volume.
One of the following may be the cause of the problem.

The battery may be discharged. ( P. 353)
 The battery terminal connections may be loose or corroded.
The starter motor does not turn over, the interior lights and
headlights do not turn on, or the horn does not sound.
One of the following may be the cause of the problem.

One or both of the battery terminals may be disconnected.

The battery may be discharged. ( P. 353)
Contact your Toyota dealer if the problem cannot be repaired, or if
repair procedures are unknown.

5
When trouble arises
351
5−2. Steps to take in an emergency

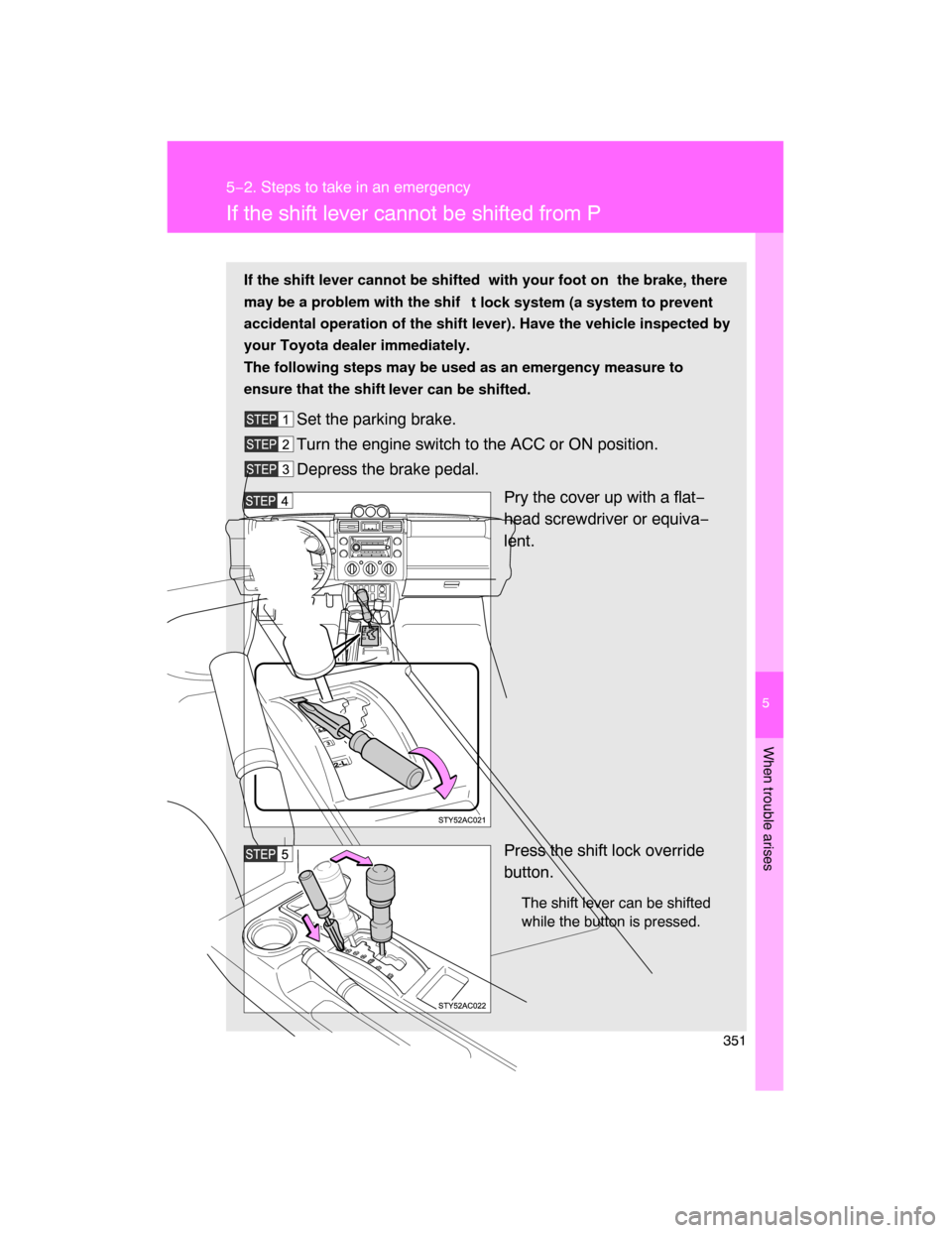

If the shift lever cannot be shifted from P
If the shift lever cannot be shifted with your foot on the brake, there
may be a problem with the shif
t lock system (a system to prevent
accidental operation of the shift lever). Have the vehicle inspected by
your Toyota dealer immediately.
The following steps may be used as an emergency measure to
ensure that the shift
lever can be shifted.
Set the parking brake.
Turn the engine switch to the ACC or ON position.
Depress the brake pedal.
Pry the cover up with a flat−
head screwdriver or equiva−
lent.
Press the shift lock override
button.
The shift lever can be shifted
while the button is pressed.

352
5−2. Steps to take in an emergency
If you lose your keys
 If you lose all your master keys.
You cannot make new keys; the whole engine immobilizer system must be
replaced. New genuine Toyota keys can be made by your Toyota dealer using
one of the master keys and the
key number stamped on your key
number plate. ( P. 28)

5
When trouble arises
353
5−2. Steps to take in an emergency
If the vehicle batter y is discharged
The following procedures may be u sed to start the engine if the
vehicle’s battery is discharged.
You can call your Toyota dealer, Roadside Assistance or Toyota
Customer Service Assistance.
If you have a set of jumper (or boo ster) cables and a second vehi−
cle with a 12−volt battery, you can
jump start your Toyota following
the steps below.
Connecting the jumper cables
If required, remove all vent plugs from the booster and dis−
charged batteries. Lay a cloth over the open vents on the batter−
ies. (This helps reduce the explosion hazard, personal injuries
and burns.)
Positive (+) battery terminal on your vehicle
Positive (+) battery terminal on the second vehicle
Negative (−) battery terminal on the second vehicle
Connect the jumper cable to gr
ound on your vehicle as shown in
the illustration.

354 5−2. Steps to take in an emergency
 Avoiding a discharged battery
 Turn off the headlights and the audio system while the engine is turned
off.

Turn off any unnecessary electrical components when the vehicle is run−
ning at a low speed for an extended period, such as in heavy traffic, etc.
CAUTION
 Avoiding battery fires or explosions
Observe the following precautions to prevent accidentally igniting the flam−
mable gas that may be emitted from the battery.
 Make sure the jumper cable is connected to the correct terminal and that it
is not unintentionally in contact with any part other than the intended termi−
nal.
 Do not allow the jumper cables to come into contact with the “+” and “−” ter−
minals.

Do not smoke, use matches, cigarette lighters or allow open flame near
the battery.
Start the engine of the second vehicle. Increase the engine
speed slightly and maintain at
that level for approximately 5
minutes to recharge the battery of your vehicle.
Maintain the engine speed of the second vehicle and start
the vehicle’s engine.
Once the vehicle’s engine has started, remove the jumper
cables in the exact reverse order in which they were con−
nected.
If removed, replace all the battery vent plugs.
Once the engine starts, have the vehicle checked at your Toyota
dealer as soon as possible.

5
When trouble arises
355 5−2. Steps to take in an emergency
CAUTION
 Battery precautions
The battery contains poisonous and corrosive acidic electrolyte, while
related parts contain lead and lead compounds. Observe the following pre−
cautions when handling the battery.
 When working with the battery, always wear safety glasses and take care
not to allow any battery fluids (acid) to come into contact with skin, clothing
or the vehicle body.
 Do not lean over the battery.
In the event that battery fluid comes into contact with the skin or eyes,
immediately wash the affected area with water and seek medical attention.
Place a wet sponge or cloth over the affected area until medical attention
can be received.
 Always wash your hands after handling the battery support, terminals, and
other battery−related parts.

Do not allow children near the battery.
NOTICE
 To prevent damaging the vehicle
Do not pull− or push−start the vehicle, because the three−way catalytic con−
verter may overheat and become a fire hazard.
 When handling jumper cables
Be careful that the jumper cables do not become tangled in the cooling fan
or any of the belts when connecting or disconnecting them.

356
5−2. Steps to take in an emergency

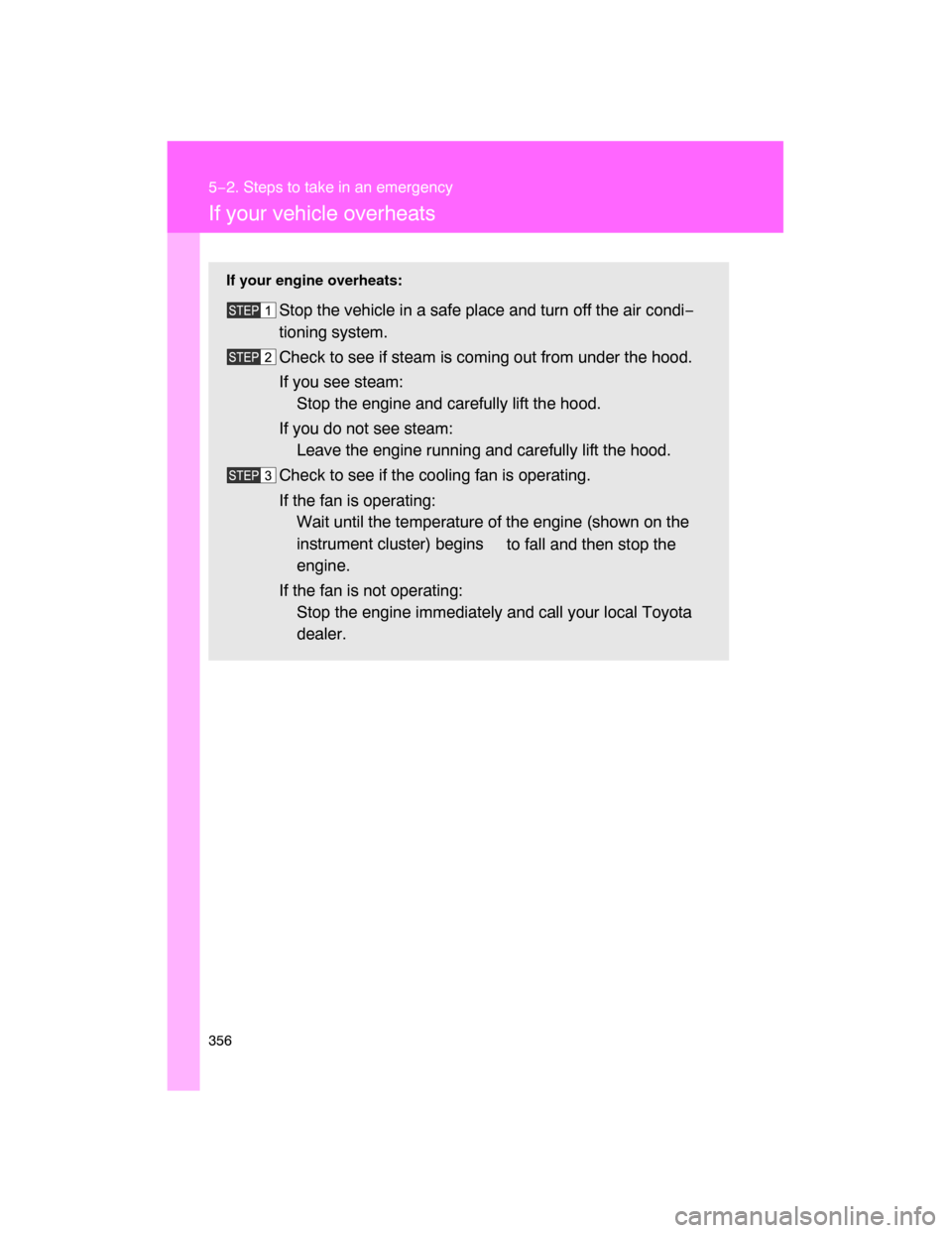

If your vehicle overheats
If your engine overheats:
Stop the vehicle in a safe place and turn off the air condi−
tioning system.
Check to see if steam is coming out from under the hood.
If you see steam:
Stop the engine and carefully lift the hood.
If you do not see steam:
Leave the engine running and carefully lift the hood.
Check to see if the cooling fan is operating.
If the fan is operating:
Wait until the temperature of the engine (shown on the
instrument cluster) begins
to fall and then stop the
engine.
If the fan is not operating:
Stop the engine immediately and call your local Toyota
dealer.

5
When trouble arises
357 5−2. Steps to take in an emergency

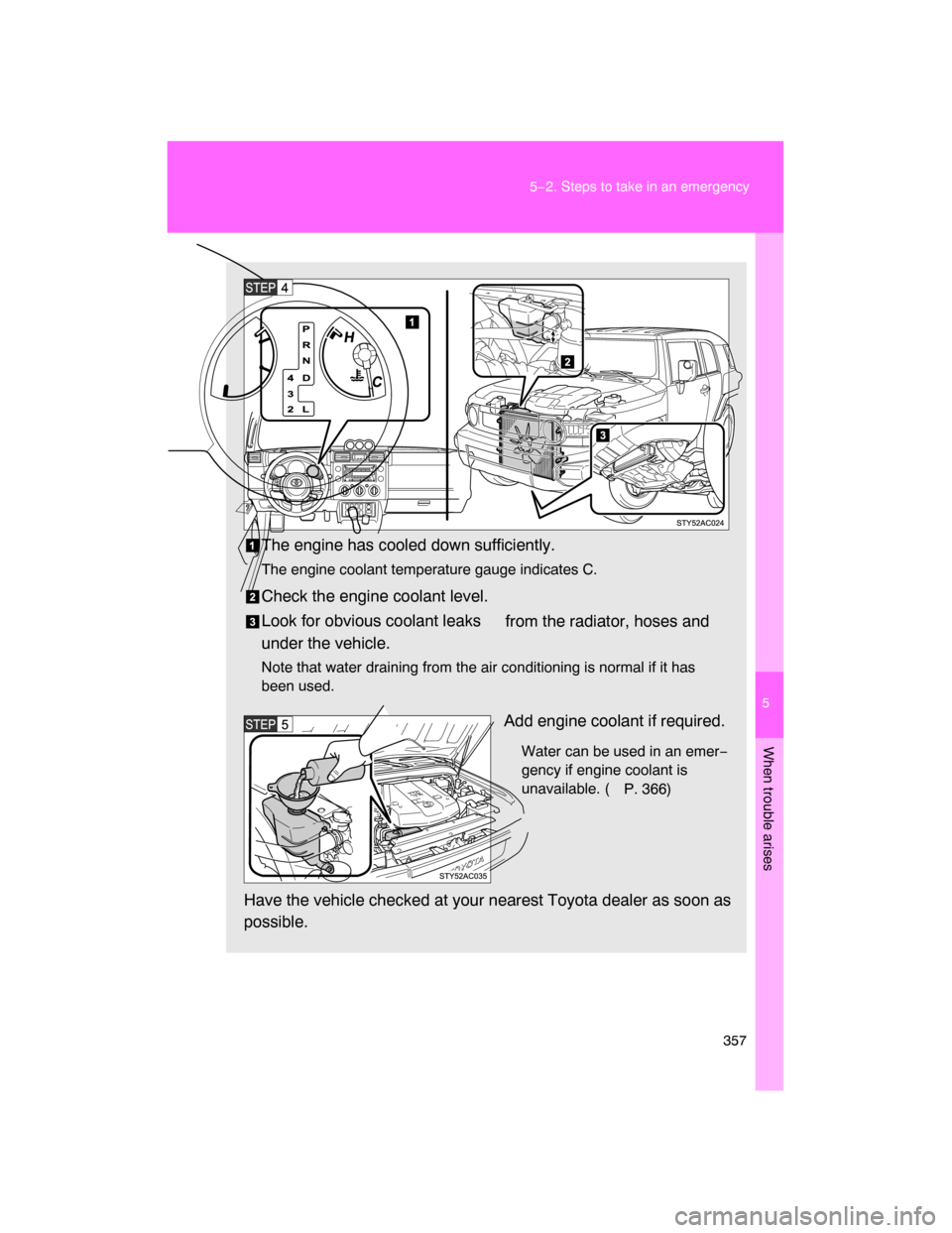

The engine has cooled down sufficiently.
The engine coolant temperature gauge indicates C.
Check the engine coolant level.
Look for obvious coolant leaks
from the radiator, hoses and
under the vehicle.
Note that water draining from the air conditioning is normal if it has
been used.
Add engine coolant if required.
Water can be used in an emer−
gency if engine coolant is
unavailable. (
P. 366)
Have the vehicle checked at your nearest Toyota dealer as soon as
possible.
