2008 TOYOTA FJ CRUISER Owners Manual

115
2−1. Driving procedures
2
When driving
 Turning the key from ACC to LOCK
 Steering lock release
 If the engine does not start
The engine immobilizer system may not have been deactivated. ( P. 68)
 Key reminder function
A buzzer sounds if the driver ’s door is opened, while the engine switch is in
the ACC or LOCK position to remind you to remove the key.
CAUTION
 When starting the engine
Always start the engine while sitting in the driver’s seat. Do not depress the
accelerator while starting the engine under any circumstances.
Doing so may cause an accident resulting in death or serious injury.
Shift the shift lever to P (auto−
matic transmission) or N (man−
ual transmission). (
P. 1 1 7119)
Push in the key and turn to the
LOCK position.
When starting the engine, the engine
switch may seem stuck in the LOCK posi−
tion. To free it, turn the key while turning
the steering wheel slightly in either direc−
tion.

116 2−1. Driving procedures
CAUTION
 Caution while driving
Do not turn the engine switch to the LOCK position.
If in an emergency, you must turn the engine off while the vehicle is moving,
turn the engine switch only to the ACC position.
NOTICE
 To prevent battery discharge
Do not leave the engine switch in the ACC or ON position for long periods if
the engine is not running.
 When starting the engine
 Do not crank for more than 30 seconds at a time. This may overheat the
starter and wiring systems.
Do not race a cold engine.

If the engine becomes difficult to start or stalls frequently, have the engine
checked immediately.

117
2−1. Driving procedures
2
When driving

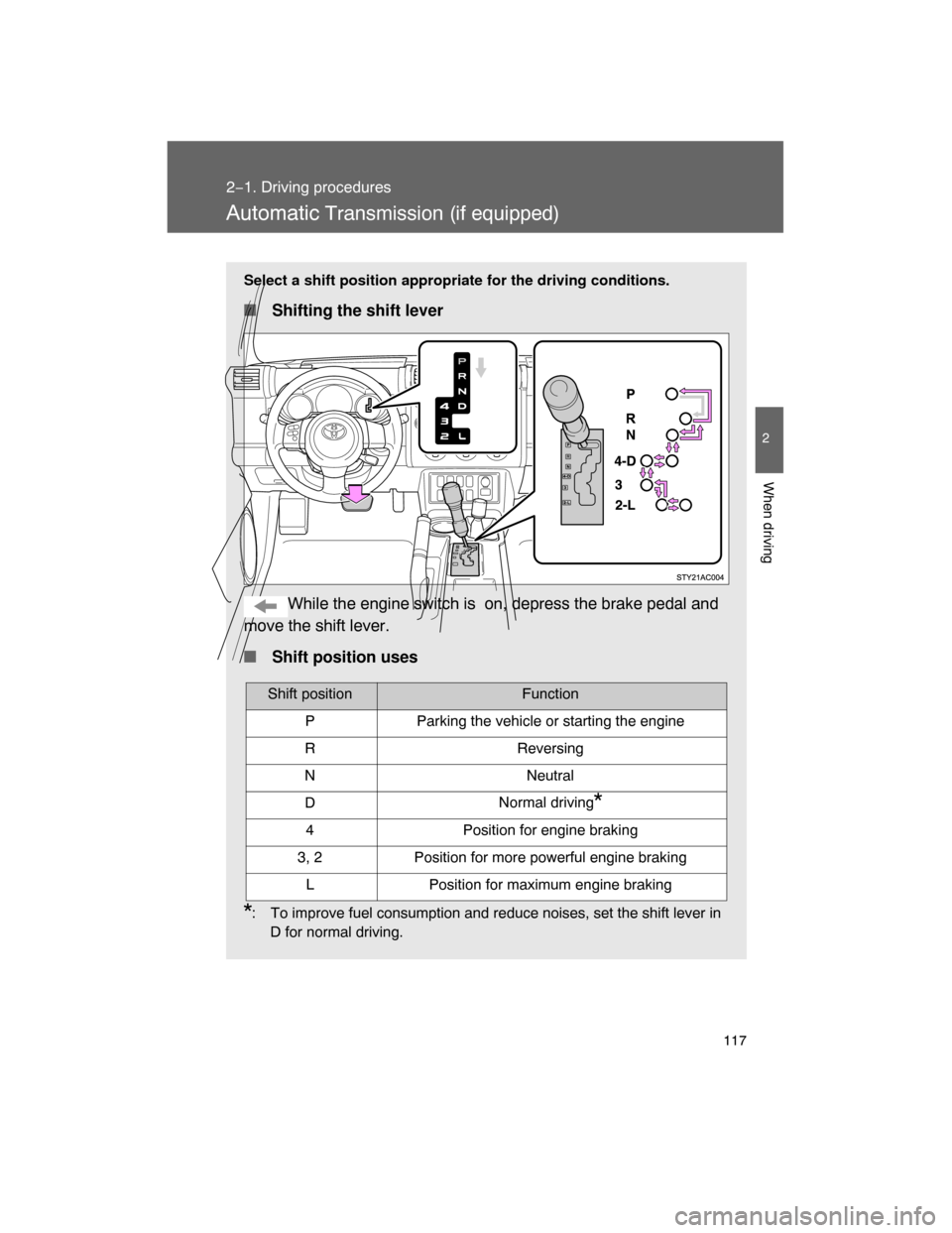

Automatic Transmission (if equipped)
Select a shift position appropriate for the driving conditions.
 Shifting the shift lever
While the engine switch is on, depress the brake pedal and
move the shift lever.
 Shift position uses
*: To improve fuel consumption and reduce noises, set the shift lever in
D for normal driving.
Shift positionFunction
PParking the vehicle or starting the engine
RReversing
NNeutral
DNormal driving*
4Position for engine braking
3, 2Position for more powerful engine braking
LPosition for maximum engine braking

118 2−1. Driving procedures
 Downshifting restrictions
The shift lever cannot be downshifted if the following speeds are exceeded.
2WD models
4WD models
 When driving with the cruise control system (if equipped)
The engine brake will not operate when downshifting from D to 4.( P. 136)
 If the shift lever cannot be shifted from P (
P. 351)
 AISHIFT
The AI−SHIFT automatically shifts the gear to the optimal position according
to the driver performance and driving conditions.
The AI−SHIFT automatically operates when the shift lever is in D.
DownshiftingMaximum speed
mph (km/h)
43 86 (140)
3 2 59 (95)
2
L 25 (41)
DownshiftingTransfer positionMaximum speed
mph (km/h)
43H2 and H4 86 (140)
L4 33 (54)
32H2 and H4 59 (95)
L4 22 (37)
2LH2 and H4 25 (41)
L4 9 (15)

119
2−1. Driving procedures
2
When driving

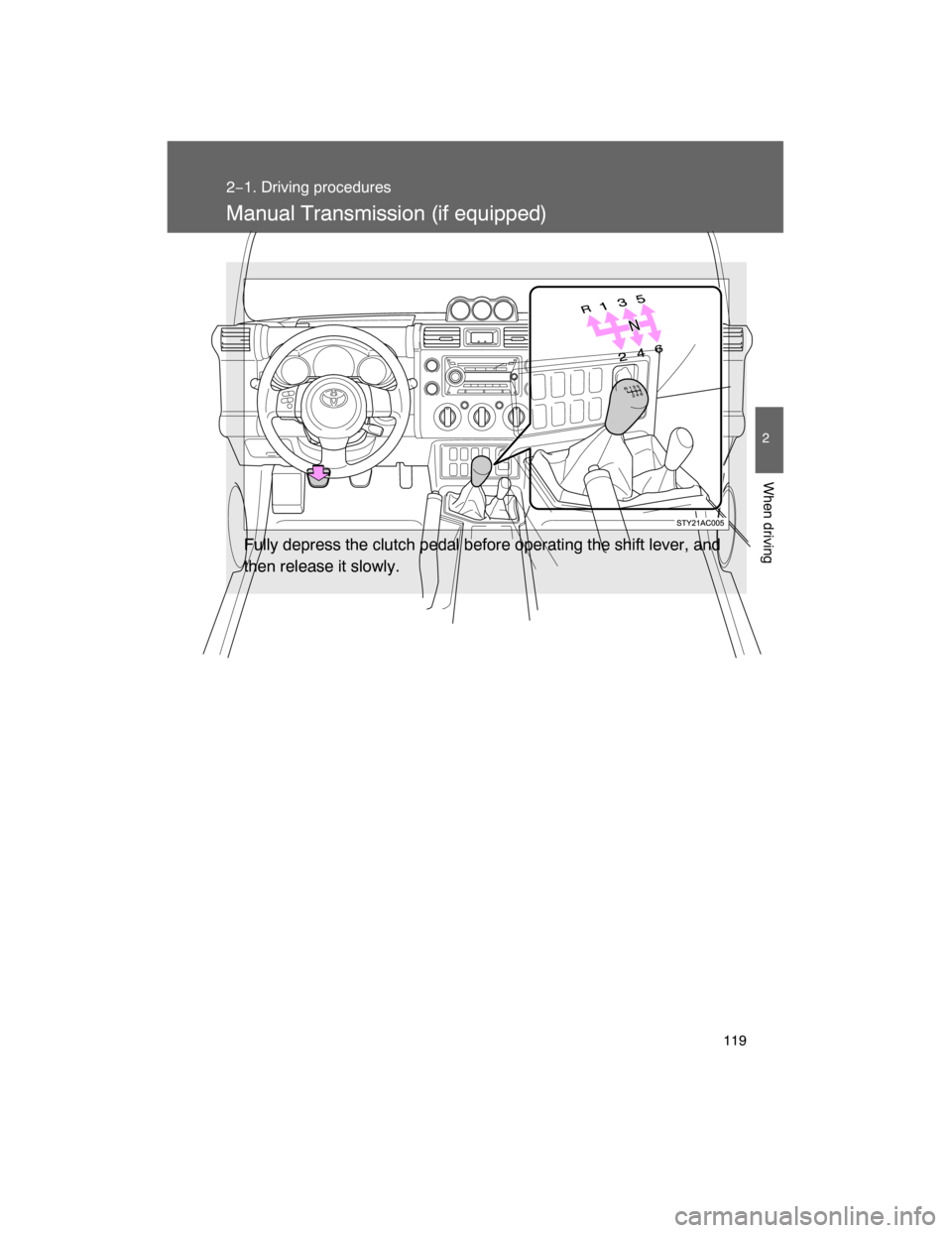

Manual Transmission (if equipped)
Fully depress the clutch pedal before operating the shift lever, and
then release it slowly.

120 2−1. Driving procedures
 Maximum allowable speed
Observe the following maximum allowable speeds in each gear when maxi−
mum acceleration is necessary.
 Reverse warning buzzer
When shifting into R, a buzzer will sound to inform the driver that the shift
lever is in R.
Shift positionTransfer positionMaximum speed
mph (km/h)
1H or HL 30 (48)
LL 11 (18)
2H or HL 58 (93)
LL 22 (35)
3H or HL 86 (138)
LL 33 (53)
4H or HL 107 (172)
LL 41 (66)
5H or HL 109 (175)
LL 50 (80)

121
2−1. Driving procedures
2
When driving

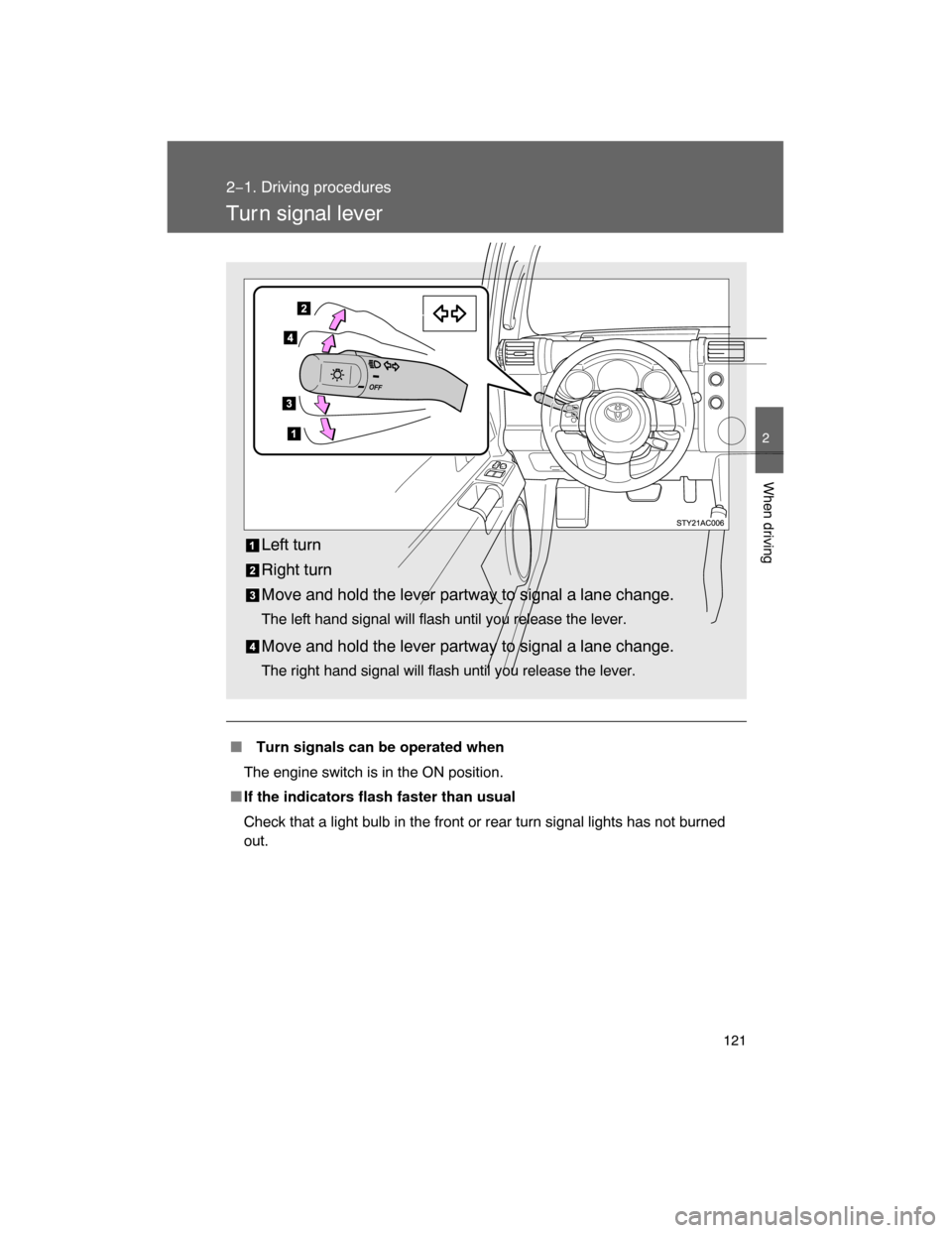

Tur n signal lever
 Turn signals can be operated when
The engine switch is in the ON position.
If the indicators flash faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned
out.
Left turn
Right turn
Move and hold the lever partway to signal a lane change.
The left hand signal will flash until you release the lever.
Move and hold the lever partway to signal a lane change.
The right hand signal will flash until you release the lever.

122
2−1. Driving procedures

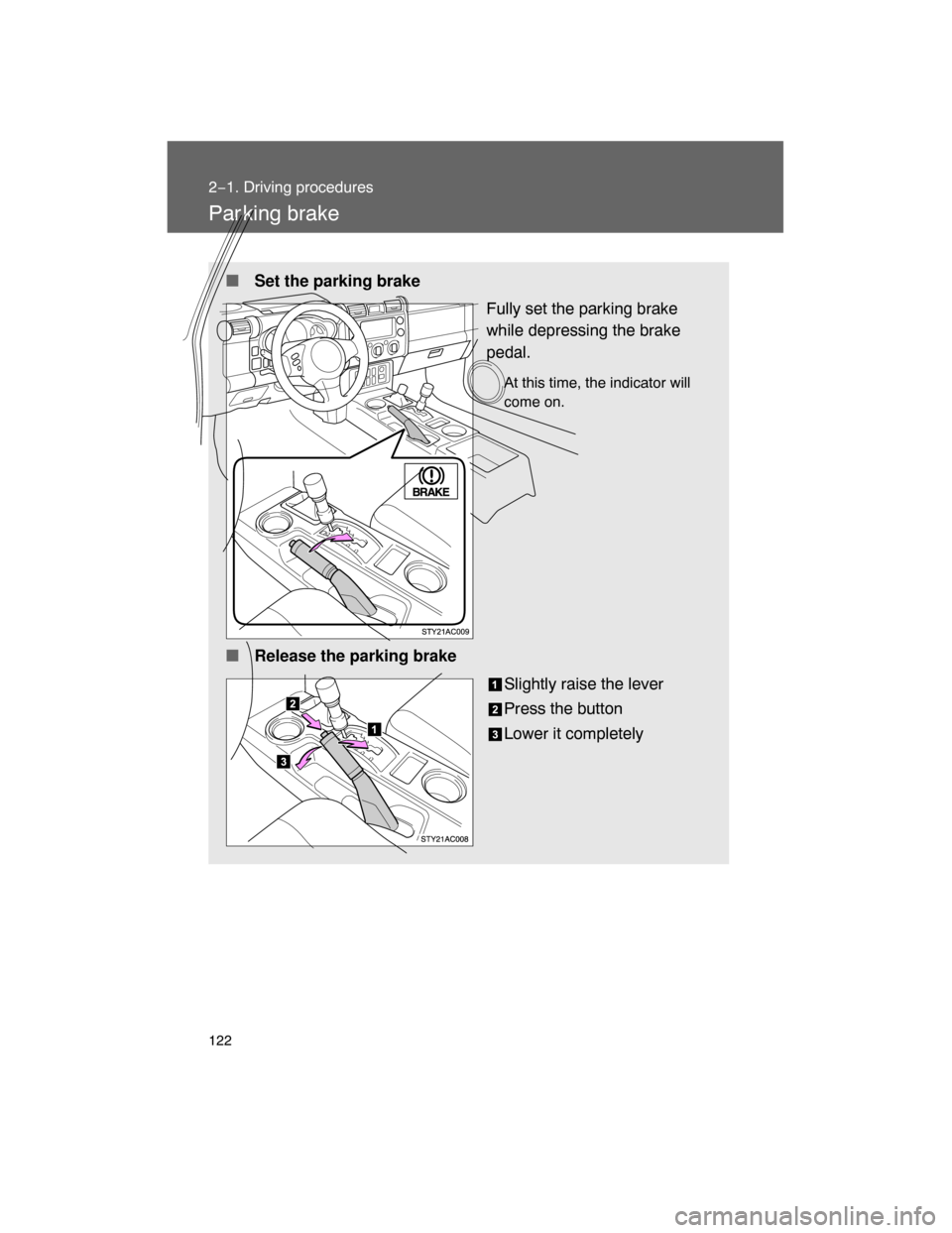

Par king brake
 Set the parking brake
Fully set the parking brake
while depressing the brake
pedal.
At this time, the indicator will
come on.
 Release the parking brake
Slightly raise the lever
Press the button
Lower it completely
