2008 TOYOTA FJ CRUISER Owners Manual

220
3−2. Using the audio system

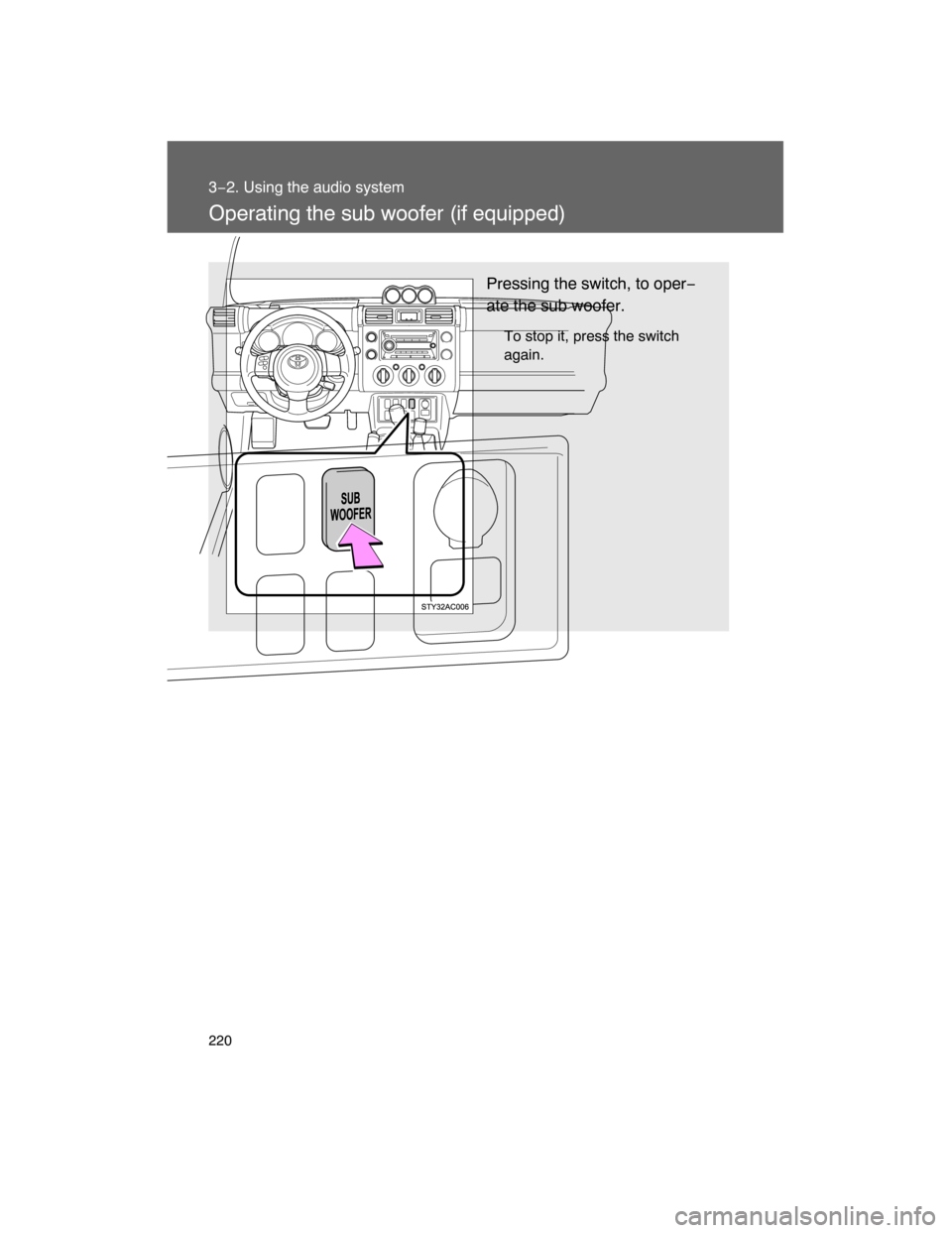

Operating the sub woofer (if equipped)
Pressing the switch, to oper−
ate the sub woofer.
To stop it, press the switch
again.

221
3−2. Using the audio system
3
Interior features

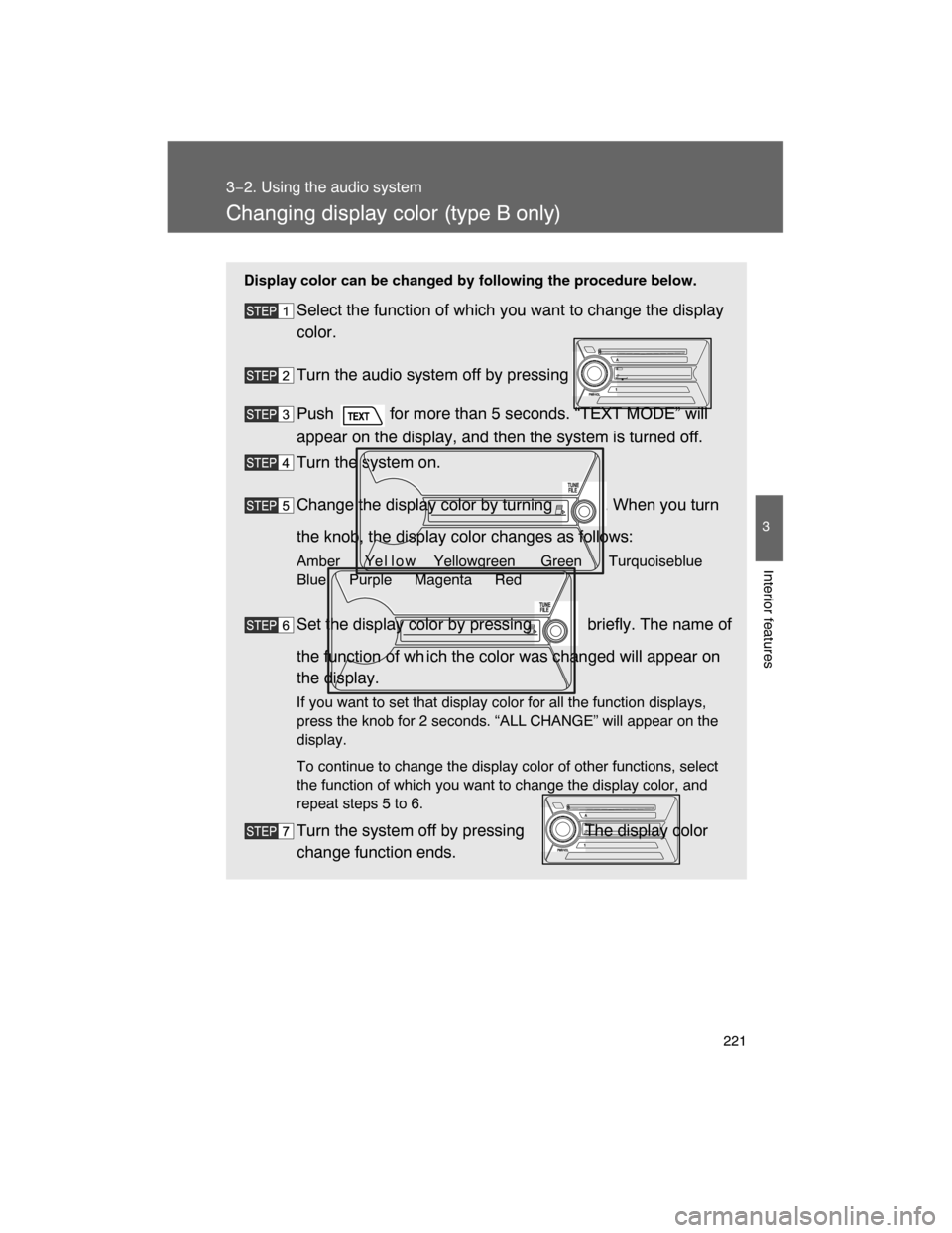

Changing display color (type B only)
Display color can be changed by following the procedure below.
Select the function of which you want to change the display
color.
Turn the audio system off by pressing .
Push for more than 5 seconds. “TEXT MODE” will
appear on the display, and then the system is turned off.
Turn the system on.
Change the display color by turning . When you turn
the knob, the display color changes as follows:
Amber Ye l l o w Yellowgreen Green Turquoiseblue
Blue Purple Magenta Red
Set the display color by pressing briefly. The name of
the function of wh ich the color was changed will appear on
the display.
If you want to set that display color for all the function displays,
press the knob for 2 seconds. “ALL CHANGE” will appear on the
display.
To continue to change the display color of other functions, select
the function of which you want to change the display color, and
repeat steps 5 to 6.
Turn the system off by pressing . The display color
change function ends.

222
3−2. Using the audio system
Using the AUX adapter
This adapter can be used to connect a portable audio device and lis
ten to it through
the vehicle’s speakers.
Connect the portable audio
device.
Type A
Press .

223
3−2. Using the audio system
3
Interior features
 Operating portable audio devices connected to the audio system
The volume can be adjusted using the vehicle’s audio controls. All other
adjustments must be made on the portable audio device itself.
 When using a portable audio device
connected to the power outlet or
cigarette lighter
Noise may occur during playback. Use the power source of the portable
audio device.
Type B
Press .

224
3−2. Using the audio system
Using the steering wheel audio switches (if equipped)
Turning on the power
Press when the audio system is turned OFF.
The audio system can be turned off by holding the switch down until the
system turns off.
Changing the audio source
Press when the audio system is turned ON. The audio source
changes as follows each time is pressed.
CD player without changer:
FM1 FM2 CD AUX AM
CD player with changer:
FM1 FM2 CD changer AUX AM SAT1 SAT2SAT3
Adjusting the volume
Press “+” on to increase the volume and “–” to decrease the
volume.
Press and hold “+” or “–” on to continue increasing or decreasing
the volume. Some audio features can be contro lled using the switches on the
steering wheel.
Vo l u m e
Radio: Select radio stations
CD: Select tracks, files
(MP3 and WMA) and discs
Power on, select audio
source

225
3−2. Using the audio system
3
Interior features
Selecting a radio station
Press to select the radio mode.
Press “
” or “ ” on to select a preset station.
To scan for receivable stations, press and hold the switch until you
hear a beep.
Selecting a track/file
Press to select the CD mode.
Press “
” or “
” on to select the desired track/file.
Selecting a disc in the CD player (CD player with changer only)
Press to select the CD mode.
Press and hold “
” or “
” on until you want to listen to is
set.
CAUTION
 To reduce the risk of an accident
Exercise care when operating the audio switches on the steering wheel.

226
3−3. Using the interior lights
Interior lights list
 Illuminated entry system
When the interior light switch is in the DOOR position, the interior light auto−
matically turns on/off according to whether the doors are locked/unlocked
and whether the doors are open/closed and the engine switch position.
 To prevent the battery from being discharged
If the interior light remains on when the door is not fully closed and the inte−
rior light switch is in the DOOR position, the light will go off automatically
after 30 minutes.
 Customization that can be configured at Toyota dealer
Settings (e.g. The time elapsed before lights turn off) can be changed.
(Customizable features
P. 386)
Front interior light (P. 227)
Rear interior light (
P. 227)
1
2

227
3−3. Using the interior lights
3
Interior features
Interior lights
Front
DOOR position
OFF
ON
Rear
DOOR position
OFF
ON
Interior lights
