2008 TOYOTA FJ CRUISER Owners Manual

25
Symbols used throughout this manual
Cautions & Notices
Safety symbol
CAUTION
This is a warning against anything which may cause injury to people if the
warning is ignored. You are informed about what you must or must not do in
order to reduce the risk of injury to yourself and others.
NOTICE
This is a warning against anything which may cause damage to the vehicle or
its equipment if the warning is ignored. You are informed about what you must
or must not do in order to avoid or reduce the risk of damage to your Toyota
and its equipment.
Throughout this manual, you will also see the symbol of a circle with
a slash through it. This means “Do not”, “Do not do this”, or “Do not
let this happen”.

26

28
1−1. Key information
Ke ys
 Key number plate
Keep the plate in a safe place such as your wallet, not in the vehicle. In the
event that a key is lost, a new key can be made by your Toyota dealer using
the key number plate. (
P. 352)
NOTICE
 To prevent key damage
 Do not subject the keys to strong shocks, expose them to high tempera−
tures by placing them in direct sunlight, or get them wet.
The following keys are provided with the vehicle.
Vehicles with wireless remote control system
Master keys (with wireless
remote control function)
Operating the wireless remote
control function (
P. 30)
Va l e t k e y
Key number plate
Vehicles without wireless remote control system
Master keys
Va l e t k e y
Key number plate

29
1−1. Key information
1
Before driving
NOTICE
 To prevent key damage
 Do not expose the keys to electromagnetic materials or attach any mate−
rial that blocks electromagnetic waves to the key surface.

30
1−2. Opening, closing and locking the doors
Wireless remote control (if equipped)
 2step unlocking function
When you push the UNLOCK button, the driver ’s door is unlocked. Pushing
the button again within 3 seconds unlocks the other doors.
 Operation signals
A buzzer sounds and the emergency flashers flash to indicate that the doors
have been locked/unlocked. (Locked: Once; Unlocked: Twice)
Panic mode
 Door lock buzzer
If a door or glass hatch is not fully closed, a buzzer sounds for 10 seconds if
an attempt to lock the door and glass hatch are made. Fully close the door
and glass hatch to stop the buzzer, and lock the vehicle once more. The wireless remote control can be used to lock and unlock the vehi
cle from outside the vehicle.
Locks all doors
Unlocks all doors
Sounds alarm
(push and hold)
When PANIC button is pushed for longer
than about one second, an alarm will
sound for about 60 seconds and the vehi−
cle lights will flash to deter any person
from trying to break into or damage your
vehicle.
To stop the alarm, push any button on the
wireless remote control.
UN
LOCKLOCK
PA NIC

31
1−2. Opening, closing and locking the doors
1
Before driving
 Key battery depletion
The standard battery life is 1 to 2 years. (The battery becomes depleted
even if the key is not used.) If the wireless remote control function does not
operate, the battery may be depleted. Replace the battery when necessary.
(P. 301)
Security feature
If a door is not opened within approximately 60 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again.
Conditions affecting operation
The wireless remote control function may not operate normally in the follow−
ing situations.
Near a TV tower, radio station, electr ic power plant, airport or other facil−
ity that generates strong radio waves
 When carrying a portable radio, cell ular phone or other wireless commu−
nication device
Conditions affecting operation
When multiple wireless keys are in the vicinity
When the wireless key has come into contact with, or is covered by a
metallic object
 When a wireless key (that emits radio waves) is being used nearby
When the wireless key has been left near an electrical appliance such as
a personal computer
 Customization that can be configured at Toyota dealer
Settings (e.g. wireless remote control system) can be changed.
(Customizable features
P. 386)

32 1−2. Opening, closing and locking the doors
Certification for wireless remote control
For vehicles sold in U.S.A.
NOTE:
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) this device may not cause harmful interfer−
ence, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
NOTICE:
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part
15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. How−
ever, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
 Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
 Consult the dealer or an experienced radio/TV technician for help.
FCC WARNING:
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
For vehicles sold in Canada
NOTE:
Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference, includ−
ing interference that may cause undesired operation of the device.

33
1
1−2. Opening, closing and locking the doors
Before driving

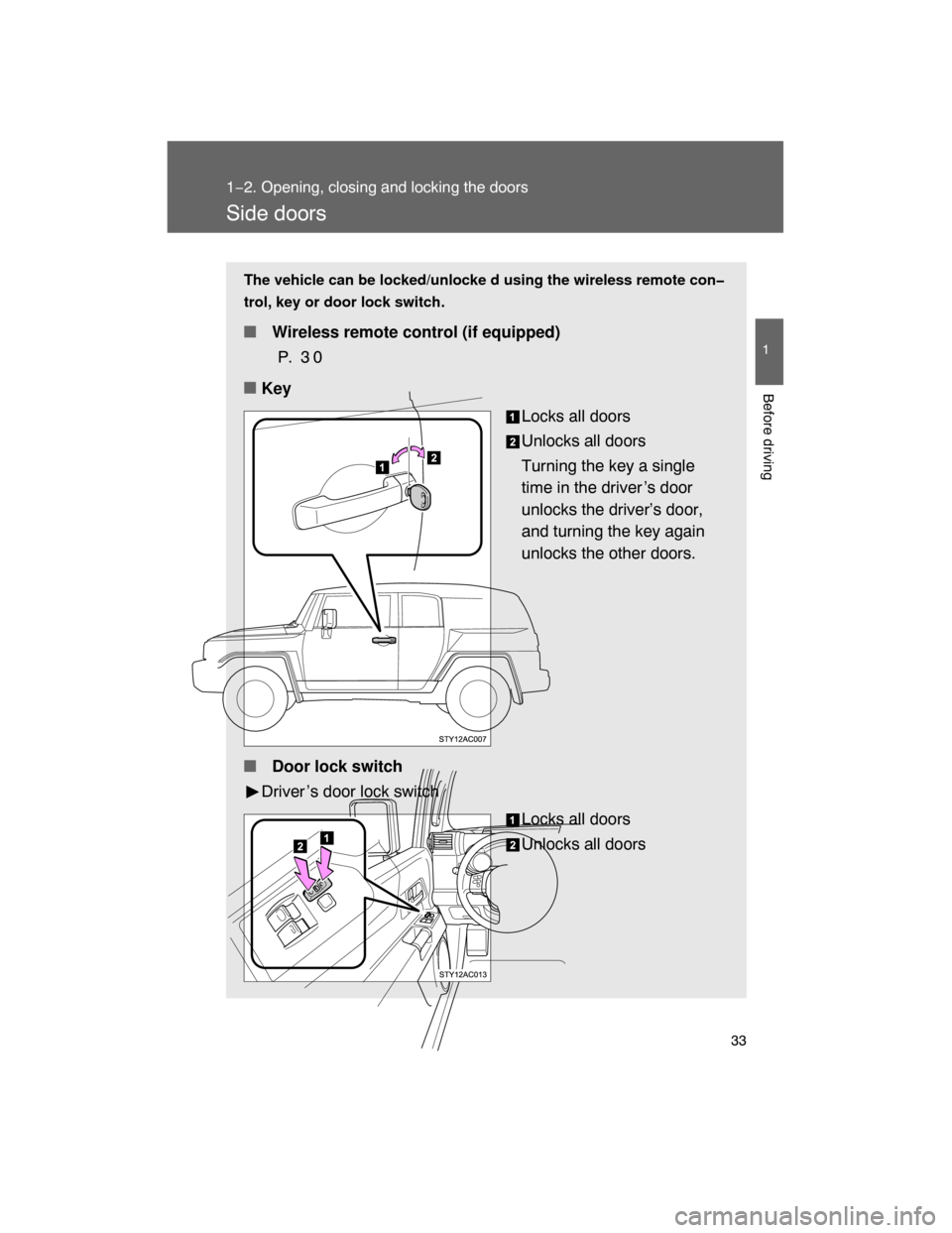

Side doors
The vehicle can be locked/unlocke d using the wireless remote con
trol, key or door lock switch.
 Wireless remote control (if equipped)
P. 3 0

Key
Locks all doors
Unlocks all doors
Turning the key a single
time in the driver ’s door
unlocks the driver’s door,
and turning the key again
unlocks the other doors.
 Door lock switch
Driver ’s door lock switch
Locks all doors
Unlocks all doors
