274
4−3. Do−it−yourself maintenance
Engine compar tment
Washer fluid tank (P. 286)
Power steering fluid reservoir
(P. 282)
Radiator cap
Engine oil level dipstick
(P. 275)
Engine coolant reservoir
(
P. 279)Engine oil filler cap
(P. 275)
Brake fluid reservoir
(P. 280)
Fuse box (
P. 303)
Battery (
P. 283)
Condenser ( P. 280)
Radiator (P. 280)
5214
910
6873

306 4−3. Do−it−yourself maintenance

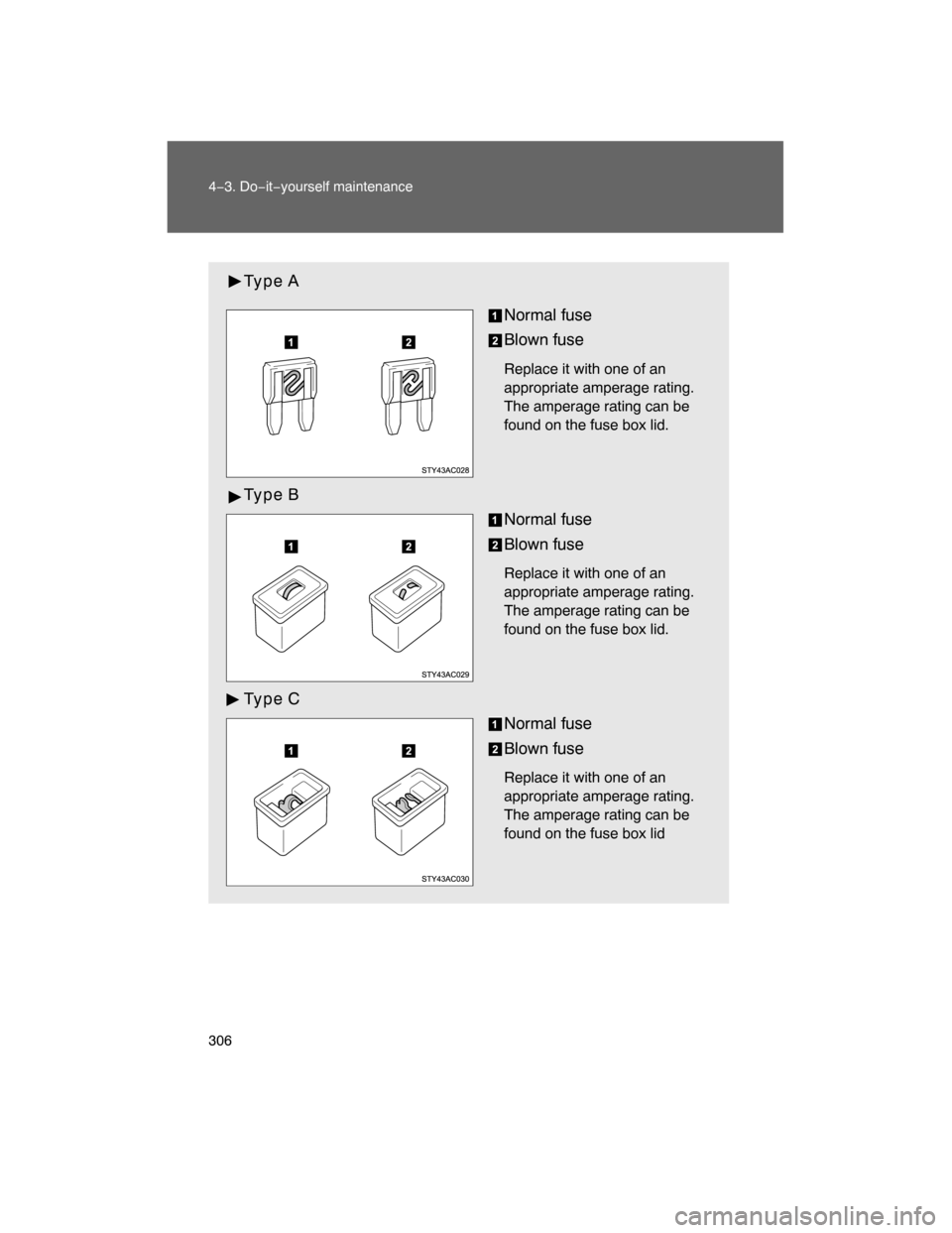

Type A
Normal fuse
Blown fuse
Replace it with one of an
appropriate amperage rating.
The amperage rating can be
found on the fuse box lid.
Type B
Normal fuse
Blown fuse
Replace it with one of an
appropriate amperage rating.
The amperage rating can be
found on the fuse box lid.
Type C
Normal fuse
Blown fuse
Replace it with one of an
appropriate amperage rating.
The amperage rating can be
found on the fuse box lid

313
4−3. Do−it−yourself maintenance
4
Maintenance and care
 After a fuse is replaced
 If the lights do not turn on even after the fuse has been replaced, a bulb
may need replacement. ( P. 314)
 If the replaced fuse blows again, have the vehicle inspected by your
Toyota dealer.

If there is an overload in the circuits
The fuses are designed to blow before the entire wiring harness is damaged.
CAUTION
 To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failing to do so may cause damage, and possibly a fire or injury.
 Never use a fuse of a higher amperage rating than indicated, or use any
other object in place of a fuse.
Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
This can cause extensive damage or even fire.
 Do not modify the fuse or the fuse box.
NOTICE
 Before replacing fuses
Have the cause of electrical overload determined and repaired by your Toy−
ota dealer as soon as possible.
