1−2. Opening, closing and locking the doors
Before driving
Glass hatch
 Opening the glass hatch
 The glass hatch opens slightly, after the back door is locked.
When the rear window wiper is working, the wiper returns to the original
position and stops working.
The wiper restarts its working about 3 seconds after the glass hatch is
closed.
 Closing the glass hatch
 Make sure that the glass hatch is securely closed after closing it.
If the glass hatch is not securely closed, the rear window wiper and
washer will not work.
 Be careful not to lock your keys in the vehicle. The glass hatch can be opened using the key.
Turn the key clockwise and
hold it for about 1 second.
Raise

104
2−1. Driving procedures

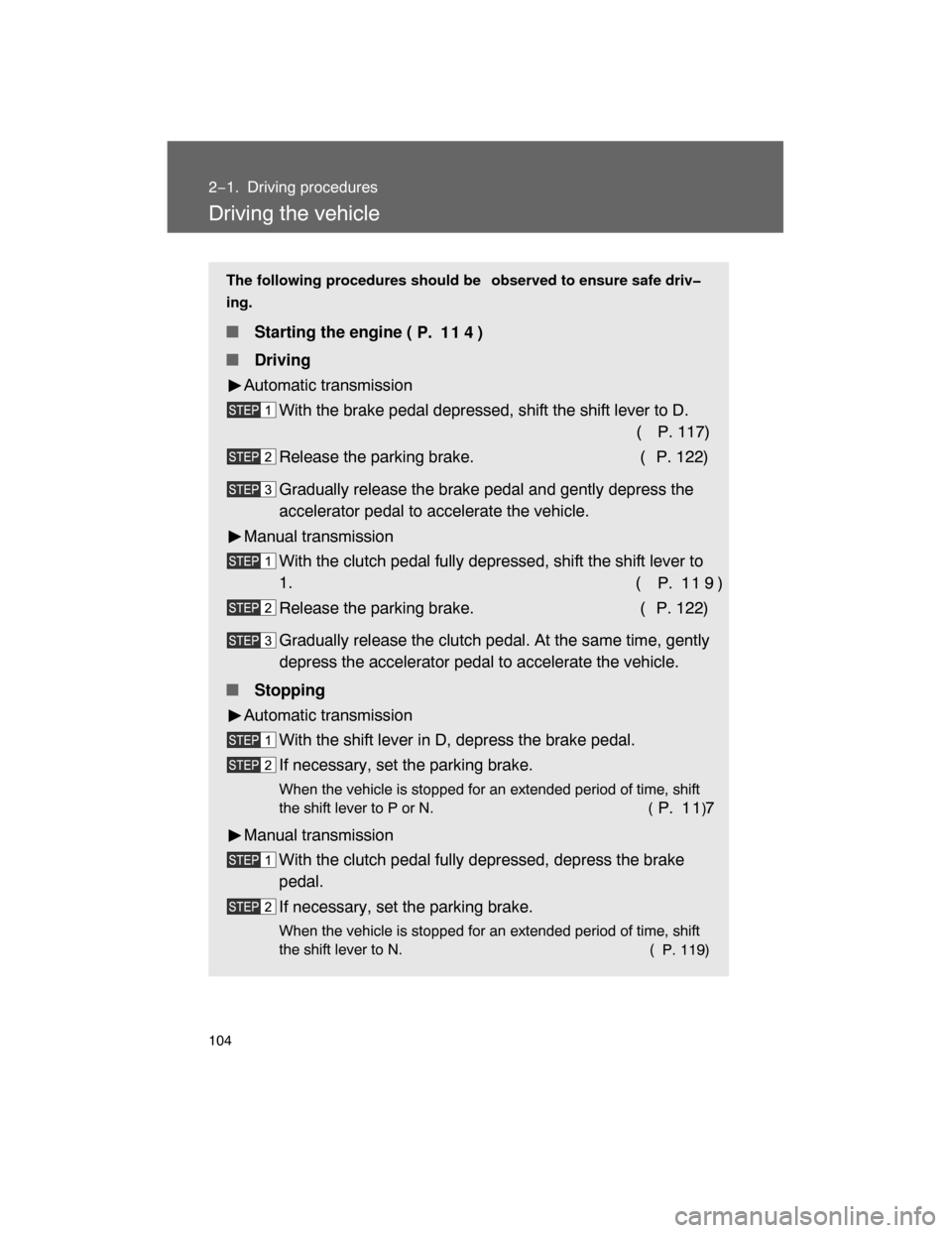

Driving the vehicle
The following procedures should be observed to ensure safe driv
ing.
 Starting the engine (
P. 114)
 Driving
Automatic transmission
With the brake pedal depressed, shift the shift lever to D.
( P. 117)
Release the parking brake. ( P. 122)
Gradually release the brake pedal and gently depress the
accelerator pedal to accelerate the vehicle.
Manual transmission
With the clutch pedal fully depressed, shift the shift lever to
1. (
P. 119)
Release the parking brake. ( P. 122)
Gradually release the clutch pedal. At the same time, gently
depress the accelerator pedal to accelerate the vehicle.
 Stopping
Automatic transmission
With the shift lever in D, depress the brake pedal.
If necessary, set the parking brake.
When the vehicle is stopped for an extended period of time, shift
the shift lever to P or N. (
P. 1 1 7)
Manual transmission
With the clutch pedal fully depressed, depress the brake
pedal.
If necessary, set the parking brake.
When the vehicle is stopped for an extended period of time, shift
the shift lever to N. (
P. 119)

105
2−1. Driving procedures
2
When driving
Starting on a steep uphill
Automatic transmission
With the brake pedal depressed, firmly set the parking brake
and shift the shift lever to D.
Gently depress the accelerator pedal.
Release the parking brake.
Manual transmission
With the parking brake firmly set and the clutch pedal fully
depressed, shift the shift lever to 1.  Parking the vehicle
Automatic transmission
With the shift lever in D, depress the brake pedal.
Set the parking brake. (
P. 122)
Shift the shift lever to P. ( P. 117)
When parking on a hill, if necessary, block the wheels.
Turn the engine switch off to stop the engine.
Lock the door, making sure that you have the key on your
person.
Manual transmission
With the clutch pedal fully depressed, depress the brake
pedal.
Set the parking brake. ( P. 114)
Shift the shift lever to N. ( P. 1 1 9 )
When parking on a hill, shift the shift lever to 1 or R. If necessary,
block the wheels.
Turn the engine switch off to stop the engine.
Lock the door, making sure that you have the key on your
person.

106 2−1. Driving procedures
Lightly depress the accelerator pedal at the same time as
gradually releasing the clutch pedal.
Release the parking brake.
 Driving in the rain
 Drive carefully when it is raining, because visibility will be reduced, the
windows may become fogged−up, and the road will be slippery.
Drive carefully when it starts to rain, because the road surface will be
especially slippery.
 Refrain from high speeds when driving on an expressway in the rain,
because there may be a layer of water between the tires and the road
surface, preventing the steering and brakes from operating properly.
 Breaking in your new Toyota
To extend the life of the vehicle, the following precautions are recommended
to observe:
 For the first 200 miles (300 km):
Avoid sudden stops.
For the first 500 miles (800 km):
Do not tow a trailer.
 For the first 1000 miles (1600 km):
Do not drive at extremely high speeds.
Avoid sudden acceleration.
Do not drive continuously in the low gears.
Do not drive at a constant speed for extended periods.
 Drumin disc type parking brake system
Your vehicle has a drum−in−disc type parking brake system. This type of
brake system needs bedding−down of the brake shoes periodically or when−
ever the parking brake shoes and/or drum are replaced. Have your Toyota
dealer perform the bedding down.
 Operating your vehicle in a foreign country
Comply with the relevant vehicle registration laws and confirm the availability
of the correct fuel. (
P. 364)

107
2−1. Driving procedures
2
When driving
 Normal characteristics after turning off the engine
Approximately five hours after the engine is turned off, you may hear sound
coming from under the vehicle for several minutes. This is the sound of a
fuel evaporation leakage check and, it does not indicate a malfunction.
CAUTION
 When starting the vehicle
Vehicles with an automatic transmission, always keep your foot on the brake
pedal while stopped with the engine running. This prevents the vehicle from
creeping.
 When driving the vehicle
 Do not drive if you are unfamiliar with the location of the brake and accel−
erator pedals to avoid depressing the wrong pedal.
Accidentally depressing the accelerator pedal instead of the brake pedal
will result in sudden acceleration that may lead to an accident that could
result in death or serious injury.
 Do not drive the vehicle over or stop the vehicle near flammable materials.
The exhaust system and exhaust gases can be extremely hot. This may
cause a fire if there is any flammable material nearby.
 Vehicles with an automatic transmission, do not let the vehicle roll back−
wards while the shift lever is in a driving position, or roll forward while the
shift lever is in R.
Doing so may cause the engine to stall or lead to poor brake and steering
performance, resulting in an accident or damage to the vehicle.
 If the smell of exhaust is noticed inside the vehicle, open the windows and
check that the back door and glass hatch are closed. Large amounts of
exhaust in the vehicle can cause driver drowsiness and an accident,
resulting in death or a serious health hazard. Have the vehicle inspected
by your Toyota dealer immediately.
 Do not under any circumstances shift the shift lever to P, R or N (automatic
transmission) or R (manual transmission) while the vehicle is moving.
Doing so can cause significant damage to the transmission system and
may result in a loss of vehicle control.

112 2−1. Driving procedures
NOTICE
 When driving the vehicle
Vehicles with a manual transmission
Do not rest your foot on the clutch pedal while driving.
Doing so may cause clutch trouble.
 Do not use any gears other than the first gear when starting off and mov−
ing forward.
Doing so may damage the clutch.
 Do not use the clutch to hold the vehicle when stopping on an uphill grade.
Doing so may damage the clutch.
Vehicles with an automatic transmission
Do not use the accelerator pedal or depress accelerator and brake pedals
together to hold the vehicle on a hill.
 When parking the vehicle
Vehicles with an automatic transmission: Always put the shift lever in P.
Failure to do so may cause the vehicle to move or the vehicle may acceler−
ate suddenly if the accelerator pedal is accidentally depressed.
 Avoiding damage to vehicle parts
 Do not turn the steering wheel fully in either direction and hold it there for a
long time.
Doing so may damage the power steering pump.
 When driving over bumps in the road, drive as slowly as possible to avoid
damaging the wheels, underside of the vehicle, etc.
If you hear a squealing or scraping noise while driving (brake pad wear
limit indicators)
Have the brake pads checked and replaced by your Toyota dealer as soon
as possible.
The rotor damage can result if the pads are not replaced when needed.
It is dangerous to drive the vehicle when the wear limits of the brake pads
and/or that of the brake discs are exceeded.

149
2−4. Using other driving systems
2
When driving
 When the rear differential is locked
(vehicles with the rear differential
lock system)
The active traction control system is activated only when the vehicle speed
is less than 4 mph (6 km/h).
Sounds and vibrations caused by the active traction control system
A sound may be heard from the engine compartment when the engine is
started or just after the vehicle begins to move. This sound does not indi−
cate that a malfunction has occurred in the system.
 Vibrations may be felt through the vehicle body and steering. It may
occur when the system is operating.
If the brake system overheats
The system will cease operation and a buzzer will sound to alert the driver.
Stop the vehicle in a safe place. (There is no problem with continuing normal
driving.)
CAUTION
 The active traction control system may not operate effectively when
Directional control and power may not be achievable while driving on slip−
pery road surfaces, even if the active traction control system is operating.
Do not drive the vehicle in conditions where stability and power may be lost.

153
2−4. Using other driving systems
2
When driving
Manual transmission
Before using the rear differential lock system.
Shift the four−wheel drive control lever into LL to see if this is
sufficient. If this has no effect, additionally use the rear differ−
ential lock system.
Be sure to stop the wheels.
Depress the clutch pedal.
Press the RR DIFF LOCK switch.
After the rear differential is locked, the indicator will come on.
Slowly release the clutch pedal.
Unlock the rear differential as soon as the vehicle moves out.
To unlock the rear differential, push the switch again.
 Locking the rear differential
 When the rear differential is locked, VSC is automatically turned off.
(The rear differential lock and VSC OFF indicators come on.)
The following systems do not operate when the rear differential is locked.
It is normal operation for the ABS warning light, VSC OFF indicator and
slip indicator to be on at this time.
ABS
Brake assist system
VSC
TRAC
 The rear differential lock is disengaged when
 Shift the four−wheel drive control lever to H or HL. (4WD models with a
manual transmission)
Shift the front−wheel drive control lever to H2 or H4. (4WD models with
an automatic transmission)
Never forget to turn off the switch after using this feature.
After unlocking the rear differential
Check the indicator go off, turn the engine switch to the ON position, but do
not start the engine.
