2008 TOYOTA 4RUNNER Owners Manual

317
NOTICE
To prevent the battery from being
discharged, do not use the power
outlet longer than necessary when
the engine is not running.
 Close the power outlet lid when the
power outlet is not in use. Inserting
anything other than an appropriate
plug that fits the outlet may cause
electrical failure or short circuits.
The power outlet is not designed for
the following electric appliances even
though their power consumption is un-
der 115 VAC/100W. These appliances
may not operate properly.
Appliances with high initial peak watt-
age: cathode−ray tube type televisions,
compressor−driven refrigerators, electric
pumps, electric tools, etc.
Measuring devices which process pre-
cise data: medical equipment, measur-
ing instruments, etc.
Other appliances requiring an extremely
stable power supply: microcomputer−
controlled electric blankets, touch sen-
sor lamps, etc.
Certain electrical appliances may cause
radio noise.
CY19127
To use the glove box:
Open by pulling the lever.
Lock by inserting the master key and turn-
ing it clockwise.
Unlock by inserting the master key and
turning it counterclockwise.
With the instrument panel lights on, the
glove box light will come on.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the glove box door
closed while driving.
Glove box

318
CY19070
On some models, an auxiliary box is
located inside the glove box.
To increase the capacity of the glove box,
raise the lower panel of the auxiliary box.
CY19130
Indicator light
Buttons
The garage door opener (\b
Universal Transceiver) is manufactured
under license from HomeLink\b and can
be programmed to operate garage
doors, gates, entry doors, door locks,
home lighting systems, and security
systems, etc.
Garage door opener

319
(a) Programming the HomeLink\b
The HomeLink\b in your vehicle has 3
buttons and you can store one program
for each button.
To ensure correct programming into the
HomeLink
\b, install a new battery in the
hand−held transmitter prior to program-
ming.
The battery side of the hand−held trans-
mitter must be pointed away from the
HomeLink
\b during the programming pro-
cess.
For Canadian users, follow the procedure
in Programming an entrance gate/pro-
gramming all devices in the Canadian
market".
1. Decide which of 3 HomeLink
\b buttons
you want to program.
CY19131
HomeLink
25 to 75 mm
(1 to 3 in.)
Hand−held
garage
transmitter
2. Place your hand−held garage transmit-
ter 25 to 75 mm (1 to 3 in.) away from
the surface of the HomeLink
\b.
Keep the indicator light on the HomeLink
\b
in view while programming.
CY19132
3. Simultaneously press and hold the hand−held garage transmitter button
along with the selected HomeLink
\b but-
ton.
Do not release the buttons until step 4
has been completed. 4. When the indicator light on the HomeLink
\b changes from a slow to a
rapid flash after 20 seconds, you can
release both buttons.

320
CY19034
5. Test the operation of the HomeLink\b by
pressing the newly programmed button.
If programming a garage door opener,
check to see if the garage door opens
and closes.
If the garage door does not operate,
identify if your garage transmitter is of the
Rolling C ode" type. Press and hold the
programmed HomeLink
\b button. The
garage door has the rolling code feature if
the indicator light (on the HomeLink
\b)
flashes rapidly and then remains lit after 2
seconds. If your garage transmitter is the
Rolling C ode" type, proceed to the
heading Programming a rolling code
system". 6. Repeat steps 2 through 5 for each re-
maining HomeLink
\b button to program
another device.
Programming a rolling code system
If your device is Rolling Code"
equipped, it is necessary to follow
steps 1 through 4 under the heading
Programming the HomeLink
\b" before
proceeding with the steps listed below.
1. Locate the training" button on the ceil- ing mounted garage door opener motor.
The exact location and color of the
button may vary by brand of garage
door opener. Refer to the owner ’s
guide supplied by the garage door
opener manufacturer for the location of
this training" button.
2. Press the training" button on the ceil- ing mounted garage door opener motor.
Following this step, you have 30 seconds
in which to initiate step 3 below. 3. Press and release the vehicle’s pro- grammed HomeLink
\b button twice. The
garage door may open. If the door
does open, the programming process is
complete. If the door does not open,
press and release the button a third
time. This third press and release will
complete the programming process by
opening the garage door. The ceiling m
ounted garage door opener
motor should now recognize the
HomeLink
\b unit and be able activate the
garage door up/down.
4. Repeat steps 1 through 3 for each re- maining HomeLink
\b button to program
another rolling code system.
Programming an entrance gate/program-
ming all devices in the Canadian market 1. Decide which of the 3 HomeLink
\b but-
tons you want to program.
2. Place your hand−held gate/device transmitter 25 to 75 mm (1 to 3 in.)
away from the surface of the
HomeLink
\b.
Keep the indicator light on the HomeLink
\b
in view while programming. 3. Press and hold the selected HomeLink
\b button.
4. Continuously press and release ( cycle)
the hand−held gate/device transmitter
button every two seconds until step 5
is complete.
5. When the indicator light on the HomeLink
\b changes from a slow to a
rapid flash after 20 seconds, you can
release both buttons.

321
6. Test the operation of the HomeLink\b by
pressing the newly programmed button.
Check to see if the gate/device oper-
ates correctly.
7. Repeat steps 1 through 6 for each re- maining HomeLink
\b button to program
another device.
Programming other devices
To program other devices such as home
security systems, home door locks or
lighting, contact your authorized Toyota
dealer for assistance.
Reprogramming a button
Individual HomeLink
\b buttons cannot be
erased, however, to reprogram a single
button, follow the procedure Programming
the HomeLink
\b".
(b) Operating the HomeLink
\b
To operate the HomeLink\b, press the
appropriate HomeLink\b button to activate
the programmed device. The HomeLink\b
indicator light should come on. The
HomeLink\b continues to send the signal
for up to 20 seconds as long as the
button is pressed.
CY19133
(c) Erasing the entire HomeLink\b
memory (all three programs)
To erase all previously programmed codes
at one time, press and hold down the 2
outside buttons for 20 seconds until the
indicator light flashes.
If you sell your vehicle, be sure to erase
the programs stored in the HomeLink
\b
memory. For additional programming assistance
with your HomeLink
\b Universal
Transceiver call the:
The Toyota Customer Experience
Center at 1−800−331−4331 (U.S.A.)
Toyota Canada Customer Interaction
Centre at 1−888−869−6828 (Canada)
Refer to HomeLink
\b on the internet at:
WWW.HOMELINK.COM

322

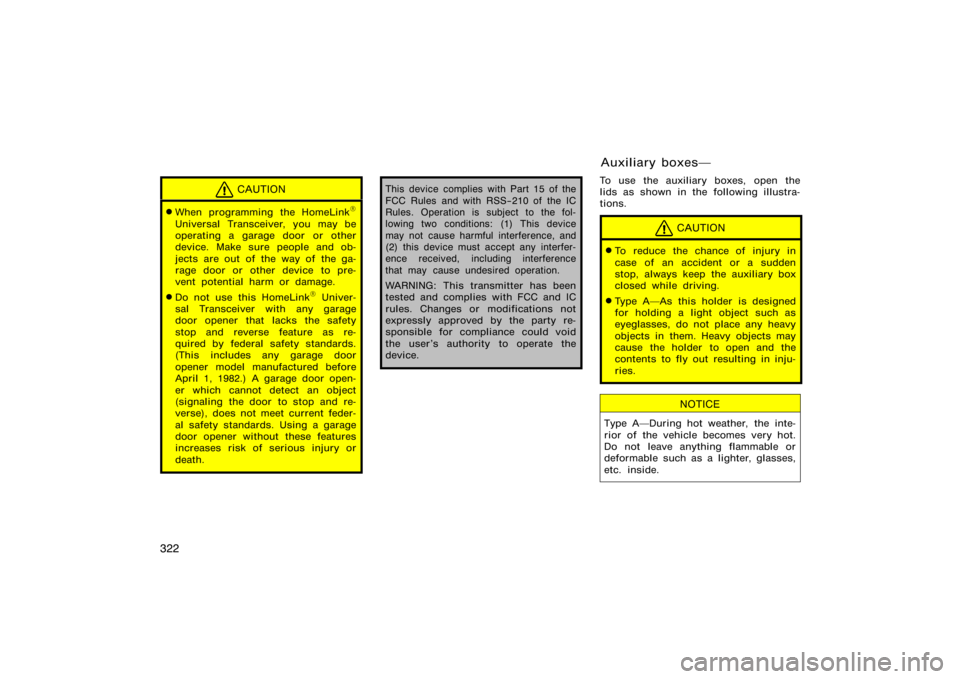

CAUTION
When programming the HomeLink\b
Universal Transceiver, you may be
operating a garage door or other
device. Make sure people and ob-
jects are out of the way of the ga-
rage door or other device to pre-
vent potential harm or damage.
Do not use this HomeLink\b Univer-
sal Transceiver with any garage
door opener that lacks the safety
stop and reverse feature as re-
quired by federal safety standards.
(This includes any garage door
opener model manufactured before
April 1, 1982.) A garage door open-
er which cannot detect an object
(signaling the door to stop and re-
verse), does not meet current feder-
al safety standards. Using a garage
door opener without these features
increases risk of serious injury or
death.
This device complies with Part 15 of the
FCC Rules and with RSS−210 of the IC
Rules. Operation is subject to the fol-
lowing two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference
that may cause undesired operation.
WARNING: This transmitter has been
tested and complies with FCC and IC
rules. Changes or modifications not
expressly approved by the party re-
sponsible for compliance could void
the user’s authority to operate the
device.To use the auxiliary boxes, open the
lids as shown in the following illustra-
tions.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden
stop, always keep the auxiliary box
closed while driving.
Type AAs this holder is designed
for holding a light object such as
eyeglasses, do not place any heavy
objects in them. Heavy objects may
cause the holder to open and the
contents to fly out resulting in inju-
ries.
NOTICE
Type ADuring hot weather, the inte-
rior of the vehicle becomes very hot.
Do not leave anything flammable or
deformable such as a lighter, glasses,
etc. inside.
Auxiliary boxes

323
CY19005
Type A (overhead console)
CY19007
Type B (instrument panel)
CY19036
Type C (rear console box)
CY19112
Type D (rear tire house)
CY19069
Type E (right side of luggage compart-
ment)

324
CY19074
The right side of luggage compartment
auxiliary box is equipped with a belt to
hold the objects.
To use the belt, do the following.1. To loosen: Pull the buckle forward.
2. To tighten: Pull on the belt.
Make sure the objects are securely held.CY19071
CONSOLE BOX TABLE
To use the console box table, open it.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the table closed while
driving.
NOTICE
To prevent damage to the table, do
not place any object heavier than 1
kg (2.20 lb.) on it, and do not leave
any object on the table for a long
time.
Using the holding belts Rear console box
