2008 TOYOTA 4RUNNER Owners Manual

245
USING THE CONTROLLER
To use the rear seat entertainment sys-
tem controller, direct the signal output
portion of the controller to the signal
reception portion of the rear seat enter-
tainment system display.
The controller does not operate properly
when the signal reception portion of the
display is exposed to direct sunlight.
Block the display from direct sunlight.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop
while driving, stow the controller in
the console box or front seat side
table when it is not in use.
NOTICE
Observe the followings, otherwise the
controller may be damaged.
Do not drop or strongly knock the
controller against hard objects.
 Do not sit on or place heavy ob-
jects on the controller.
 Do not leave the controller exposed
to high temperatures (such as on
the instrument panel) for a long
time.

246

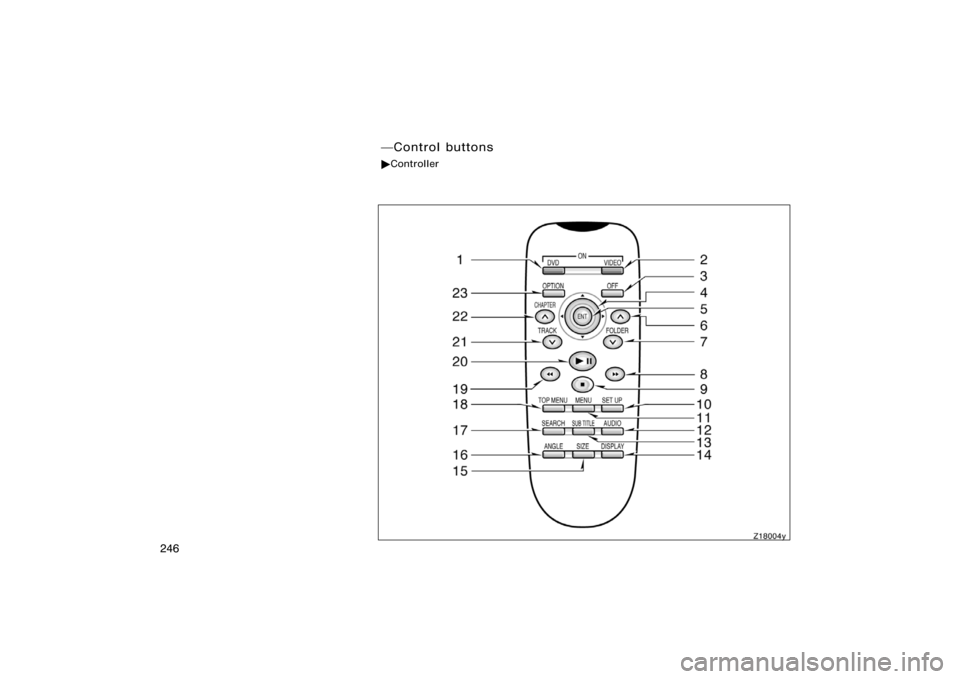

Control buttons
Controller

247
1. DVD" buttonThis button turns on the DVD mode.
2. VIDEO" button This button causes the display to use
the video signal from an external video
device.
3. OFF" button
This button turns off the rear seat en-
tertainment system.
4. Joystick This joystick selects a control switch,
mode switch on the screen or the
menu for the disc.
5. ENT" button
This button inputs the selected switch
or the selected menu for the disc.
6. FOLDER
" button
This button selects a desired folder.
7. FOLDER
" button
This button selects a desired folder.
8.
" button
This button fast forwards a screen
when the DVD player is operated. 9.
" button
This button stops a screen when the
DVD player is operated.
10. SET UP" button
This button indicates the initial set up
screen when the DVD player is oper-
ated.
11. MENU" button This button indicates the menu screen
for DVD video when the DVD player is
operated.
12. AUDIO" button This button indicates the changing au-
dio screen when the DVD player is
operated.
13. SUB TITLE" button
This button indicates the changing sub-
title screen when the DVD player is
operated.
14. DISPLAY" button
This button adjusts the color, tone,
contrast and brightness of the screen.
15. SIZE" button
This button changes the display mode
when the DVD player is operated. 16. ANGLE" button
This button selects the angle of the
screen when the DVD player is oper-
ated.
17. SEARCH" button
This button indicates the title search
screen when the DVD player is oper-
ated.
18. TOP MENU" button This button indicates the title selection
screen for DVD video when the DVD
player is operated.
19.
" button
This button reverse a screen when the
DVD player is operated.
20.
" button
This button plays or pauses a screen
when the DVD player is operated.
21. TRACK/CHAPTER
" button
This button selects track/chapter.
22. TRACK/CHAPTER
" button
This button selects track/chapter.
23. OPTION" button This button indicates the control
switches on the screen when the DVD
player is operated.

248
REPLACING CONTROLLER BATTERY
For replacement, use 3 AA batteries.
CAUTION
Special care should be taken to pre-
vent small children from swallowing
the removed battery or components.
NOTICE
When replacing the battery, be care-
ful not to lose the components.
 Replace only with the same or
equivalent type recommended by a
Toyota dealer.
 Dispose of used batteries according
to the local laws.

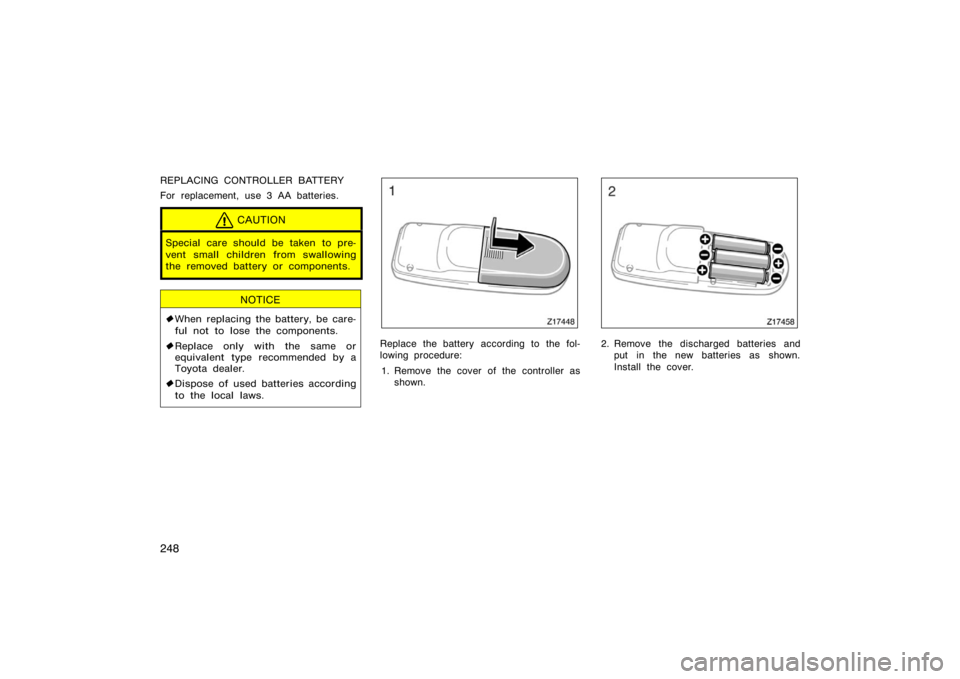

Z17448
Replace the battery according to the fol-
lowing procedure:
1. Remove the cover of the controller as shown.
Z17458
2. Remove the discharged batteries andput in the new batteries as shown.
Install the cover.

249
NOTICE
Be sure that the positive side and
negative side of the controller bat-
tery should be faced correctly.
 Do not replace the battery with wet
hands. Water may cause rust.
 Do not touch or move any compo-
nents inside of the controller, or it
may interfere with proper operation.
 Be careful not to bend the electrode
of the controller battery insertion.
 Close the battery case securely.
After replacing the battery, check that the
controller operates properly. If the control-
ler still does not operate properly, contact
your Toyota dealer.
Z17453
To turn on the system, push the DVD"
button or VIDEO" button.
When the DVD" button is pushed, the
disc load screen changes to the DVD
player operation screen.
When the VIDEO" button is pushed, the
images and sounds from the personal au-
dio machine are output.
The DVD" button is effective only when
a disc is inserted.
Z17455
To turn off the system, push the OFF"
button.
When the front audio system is turned off,
the rear audio system and the DVD player
will be turned off simultaneously.
Turning the rear seat
entertainment system on and
off

250
Z18033
Vehicles with navigation systemThe rear
seat entertainment system can be
switched ON and OFF by pushing the
Rear" switch on the front audio system.The rear DVD player can be operated
through the front audio system.
The audio system controls in the instru-
ment panel allow the operation of the rear
seat entertainment system by rear seat
passengers to be disabled.
Turning on the rear system lock prevents
small children from using the remote con-
troller or operation panel of the DVD play-
er unit to operate the rear seat entertain-
ment system during driving.
Turn the audio system on. Push the
AUDIO CONTROL" knob repeatedly until
RSE" is displayed. Next, turn the AUDIO
CONTROL" knob until ON" is displayed,
and then push the AUDIO CONTROL"
knob.
Front audio system
operation
Rear system lock

251
Z18031E
Vehicles with navigation system
Push the INFO" button to change the
screen to Screen Setting".
Push the ON" switch on the Screen
Setting" screen to turn on the Rear
system lock". Then push OK".
Z17443
When the rear system lock is on and any
button is pushed on the remote controller
or the operation panel, the screen shown
above is displayed for approximately 6
seconds.
Even when the rear system lock is turned
on during play mode, the images and
sounds continue without interruption.
The condition of the rear system lock is
maintained, even when the engine switch
is turned off.The DVD player can play audio CDs/
MP3 CDs, DVD video discs, CD texts,
dts−CDs and video CDs.
For appropriate discs for this player, see
Audio/video system operating hints" on
page 280 in this Section.
The DVD player works when the engine
switch is in the ACC" or ON" position.
To turn on the DVD player, a disc must
be loaded in the player.
To turn off the player, eject the disc.
Error messages
If the player malfunctions, your audio sys-
tem will display following error messages.
If DISC CHECK" appears on the
screen:
It indicates that the disc is dirty,
damaged or it was inserted upside down.
Clean the disc or insert it correctly.
If REGION CODE ERROR" appears on
the screen: It indicates that the DVD re-
gion code is not set properly.
If DVD ERROR" appears on the
screen: There is a problem inside the
player. Eject the disc. Set the disc again.
If the malfunction still exists, take your
vehicle to your Toyota dealer.
DVD player

252
CY17062
INSERTING THE DISC
Insert a disc into the slot with the label
side up.
DISC" indicator light turns on while the
disc is loaded.
If the label faces down, the disc cannot
be played. In this case, DISC CHECK"
and disc number appear on the screen.If a disc which is not playable is inserted,
DISC CHECK" will also appear on the
screen. For appropriate discs for this play-
er, see Audio/video system operating
hints" on page 280 in this Section.
The player will play the track or chapter,
and it will play from the beginning of the
track or chapter again after it reaches the
end.
NOTICE
Never try to disassemble or oil any
part of the DVD player. Do not insert
anything other than a disc into the
slot.
8 cm (3 in.) compact disc singles
Your compact disc player needs an adap-
tor to play compact disc singles. Compact
disc singles are about 8 cm (3 in.) in
diameter−smaller than standard di
scs.
