2008 TOYOTA 4RUNNER Owners Manual

11 7
CY13285
Canada only
Ty p e A
CY13286
Canada only
Ty p e B
3. Widen the slits of the seat cushionslightly and confirm the position of
the lower anchorages near the but-
ton on the seatback.
4. Type ALatch the hooks of lower straps onto the anchorages and
tighten the lower straps.
Type BLatch the buckles onto the
anchorages.
For owners in Canada The symbol on
a child restraint system indicates the pres-
ence of a lower connector system.
If your child restraint system has a top
strap, it should be anchored. (For the
installation of the top strap, see Using
a top strap" on page 112 in this Section.)
For installation details, refer to the instruc-
tion manual equipped with each product.

11 8

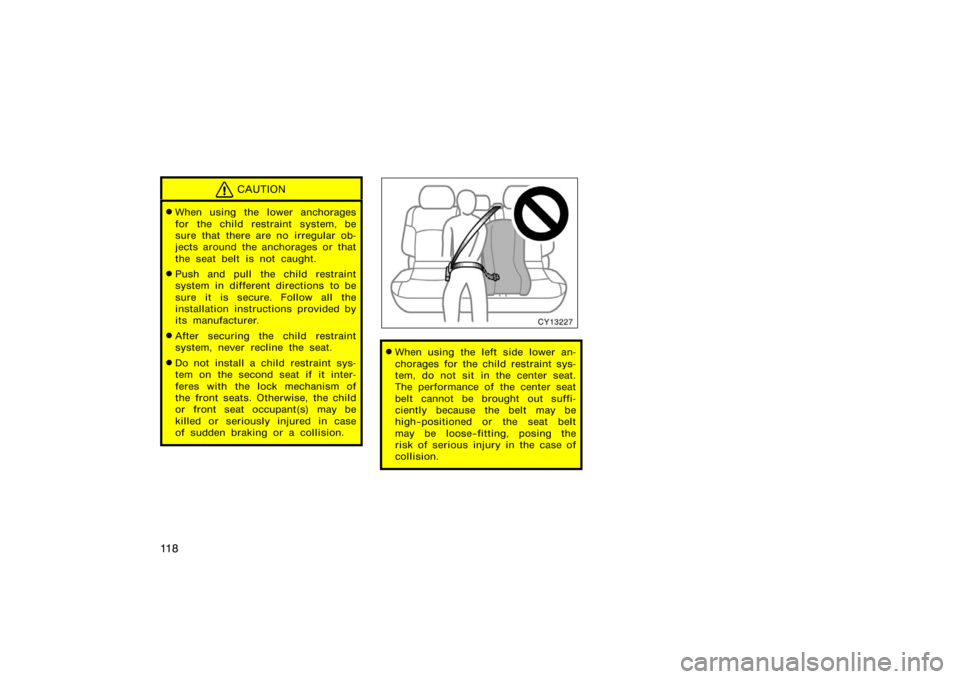

CAUTION
When using the lower anchorages
for the child restraint system, be
sure that there are no irregular ob-
jects around the anchorages or that
the seat belt is not caught.
Push and pull the child restraint
system in different directions to be
sure it is secure. Follow all the
installation instructions provided by
its manufacturer.
After securing the child restraint
system, never recline the seat.
Do not install a child restraint sys-
tem on the second seat if it inter-
feres with the lock mechanism of
the front seats. Otherwise, the child
or front seat occupant(s) may be
killed or seriously injured in case
of sudden braking or a collision.
CY13227
When using the left side lower an-
chorages for the child restraint sys-
tem, do not sit in the center seat.
The performance of the center seat
belt cannot be brought out suffi-
ciently because the belt may be
high−positioned or the seat belt
may be loose−fitting, posing the
risk of serious injury in the case of
collision.

11 9
OPERATION OF INSTRUMENTS AND
CONTROLS
Steering wheel and Mirrors
Tilt steering wheel120
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
Tilt and telescopic steering wheel 120
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Outside rear view mirrors 121
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Anti−glare inside rear view mirror 123
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Auto anti−glare inside rear view mirror 124
. . . . . . . . . . . . . . . . . . . . . . . .
Rear side−view mirrors 125
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Sun visors 125
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . .
SECTION 1− 4

120

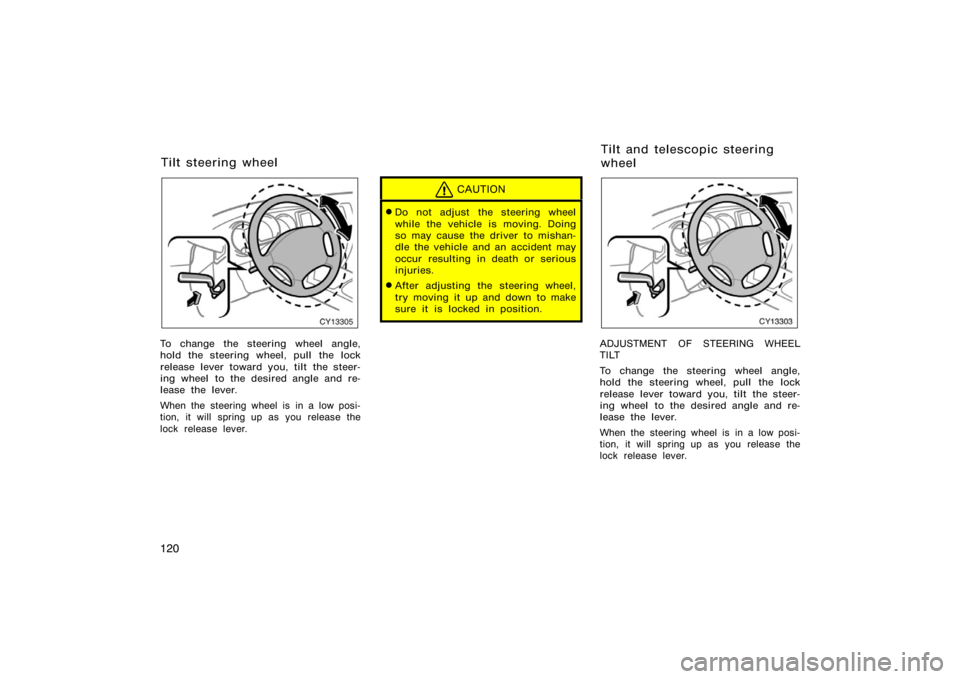

CY13305
To change the steering wheel angle,
hold the steering wheel, pull the lock
release lever toward you, tilt the steer-
ing wheel to the desired angle and re-
lease the lever.
When the steering wheel is in a low posi-
tion, it will spring up as you release the
lock release lever.
CAUTION
Do not adjust the steering wheel
while the vehicle is moving. Doing
so may cause the driver to mishan-
dle the vehicle and an accident may
occur resulting in death or serious
injuries.
After adjusting the steering wheel,
try moving it up and down to make
sure it is locked in position.
CY13303
ADJUSTMENT OF STEERING WHEEL
TILT
To change the steering wheel angle,
hold the steering wheel, pull the lock
release lever toward you, tilt the steer-
ing wheel to the desired angle and re-
lease the lever.
When the steering wheel is in a low posi-
tion, it will spring up as you release the
lock release lever.
Tilt steering wheelTilt and telescopic steering
wheel

121

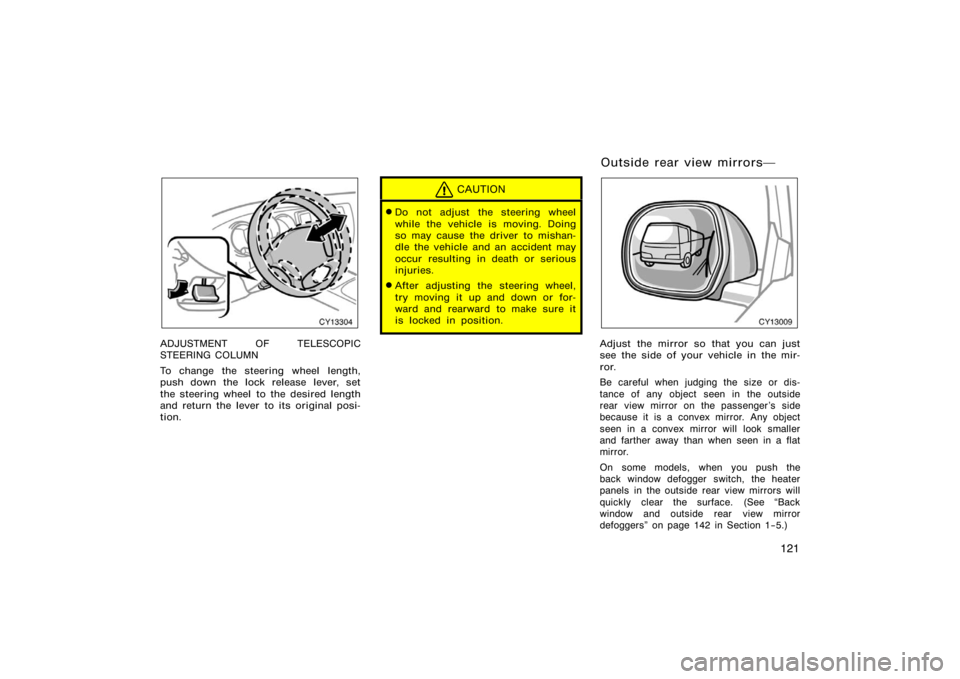

CY13304
ADJUSTMENT OF TELESCOPIC
STEERING COLUMN
To change the steering wheel length,
push down the lock release lever, set
the steering wheel to the desired length
and return the lever to its original posi-
tion.
CAUTION
Do not adjust the steering wheel
while the vehicle is moving. Doing
so may cause the driver to mishan-
dle the vehicle and an accident may
occur resulting in death or serious
injuries.
After adjusting the steering wheel,
try moving it up and down or for-
ward and rearward to make sure it
is locked in position.
CY13009
Adjust the mirror so that you can just
see the side of your vehicle in the mir-
ror.
Be careful when judging the size or dis-
tance of any object seen in the outside
rear view mirror on the passenger ’s side
because it is a convex mirror. Any object
seen in a convex mirror will look smaller
and farther away than when seen in a flat
mirror.
On some models, when you push the
back window defogger switch, the heater
panels in the outside rear view mirrors will
quickly clear the surface. (See Back
window and outside rear view mirror
defoggers" on page 142 in Section 1−5.)
Outside rear view mirrors

122
On some models, the outside rear view
mirrors are rain clearing mirrors that clear
the driver’s rear view when it rains. (For
details, see Rain clearing mirrors" on
page 419 in Section 5.)
CAUTION
Do not adjust the mirror while the
vehicle is moving. Doing so may
cause the driver to mishandle the
vehicle and an accident may occur
resulting in death or serious inju-
ries.
On some models, since the mirror
surfaces can get hot, do not touch
them when the defogger switch is
on.
CY13010
To adjust a mirror, use the switches.1. Master switchTo select the mirror to be adjusted
Push the switch to L" (left) or R"
(right).
2. Control switchTo move the mirror Push the switch in the desired direc-
tion.
Mirrors can be adjusted when the key is
in the ACC" or ON" position.
NOTICE
If ice should jam the mirror, do not
operate the control or scrape the mir-
ror face. Use a spray de−icer to free
the mirror.
Power rear view mirror
control

123

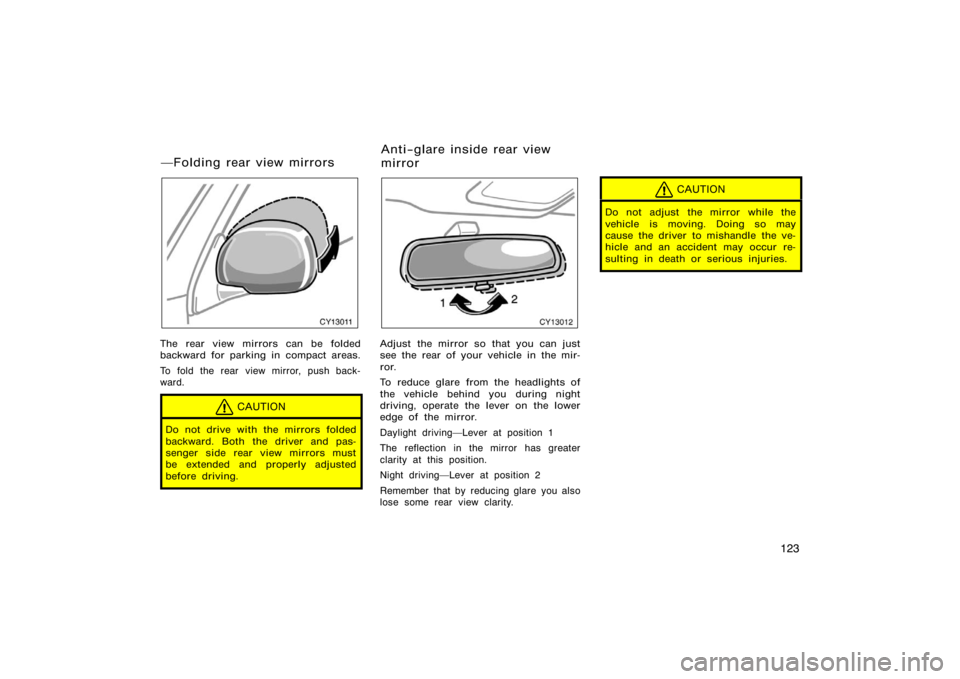

CY13011
The rear view mirrors can be folded
backward for parking in compact areas.
To fold the rear view mirror, push back-
ward.
CAUTION
Do not drive with the mirrors folded
backward. Both the driver and pas-
senger side rear view mirrors must
be extended and properly adjusted
before driving.
CY13012
Adjust the mirror so that you can just
see the rear of your vehicle in the mir-
ror.
To reduce glare from the headlights of
the vehicle behind you during night
driving, operate the lever on the lower
edge of the mirror.
Daylight drivingLever at position 1
The reflection in the mirror has greater
clarity at this position.
Night drivingLever at position 2
Remember that by reducing glare you also
lose some rear view clarity.
CAUTION
Do not adjust the mirror while the
vehicle is moving. Doing so may
cause the driver to mishandle the ve-
hicle and an accident may occur re-
sulting in death or serious injuries.
Folding rear view mirrorsAnti−glare inside rear view
mirror

124
CY13312
Adjust the mirror so that you can just
see the rear of your vehicle in the mir-
ror.
This mirror is equipped with auto anti−
glare function. The function is designed
to reduce glare from the headlights of
the vehicle behind you during night
driving.
When the engine switch is turned on, the
inside rear view mirror always turns on in
the automatic function mode.
The indicator illuminates to show you that
the function is on.In automatic function mode, if the mirror
detects light from the headlights of the
vehicle behind you, the mirror surface
darkens slightly to reduce the reflected
light.
To turn off and on the automatic function,
push the
" switch for longer than 3
seconds.
Adjust it before driving so that the rear
view is in the best condition.
When the inside air temperature is low, it
may take a little longer for the mirror to
darken in response to the detection of
headlights.
CAUTION
Do not adjust the mirror while the
vehicle is moving. Doing so may
cause the driver to mishandle the ve-
hicle and an accident may occur re-
sulting in death or serious injuries.
CY13313
To ensure correct functioning of anti−
glare mirror sensors located on both
sides of the mirror, do not touch or
cover the sensors with your finger or
a piece of cloth, etc.
Auto anti−glare inside rear
view mirror
