2008 TOYOTA 4RUNNER Owners Manual

373
Driving in the rain
Driving on a slippery road surface
Drive carefully when it is raining, because
visibility will be reduced, the windows may
become fogged−up, and the road will be
slippery.
Drive carefully when it starts to rain,
because the road surface will be espe-
cially slippery.
Refrain from high speeds when driving
on an expressway in the rain, because
there may be a layer of water between
the tires and the road surface, prevent-
ing the steering and brakes from oper-
ating properly.
CAUTION
Sudden braking, acceleration and
steering when driving on a slippery
road surface may cause tire slip-
page and reduce your ability to
control the vehicle, resulting in an
accident.
Sudden changes in engine speed,
such as sudden engine braking,
may cause the vehicle to skid, re-
sulting in an accident.
After driving through a puddle,
lightly depress the brake pedal to
make sure that the brakes are func-
tioning properly. Wet brake pads
may prevent the brakes from func-
tioning properly. If the brakes on
only one side are wet and not func-
tioning properly, steering control
may be affected, resulting in an ac-
cident.
When encountering flooded roads
Do not drive on a road that has flooded
after heavy rain etc. Doing so may cause
serious damage to the vehicle.
NOTICE
Driving on a flooded road may cause
the engine to stall as well as cause
serious vehicle malfunctions such as
shorts in electrical components and
engine damage from water immersion.
In the event that you drive on a
flooded road and the vehicle is
flooded, be sure to have your Toyota
dealer check brake function, changes
in quantity and quality of oil and fluid
used for the engine, transmission,
transfer (4WD vehicles), differentials,
etc. and lubricant condition for the
propeller shaft, bearings and suspen-
sion joints (where possible) and the
function of all joints and bearings.

374
When driving your vehicle off−road, please
observe the following precautions to en-
sure your driving enjoyment and to help
prevent the closure of areas to off−road
vehicles.a. Drive your vehicle only in areas where off−road vehicles are permitted to trav-
el.
b. Respect private property. Get owner ’s permission before entering private prop-
erty.
c. Do not enter areas that are closed. Honor gates, barriers and signs that re-
strict travel.
d. Stay on established roads. When condi- tions are wet, driving techniques should
be changed or travel delayed to pre-
vent damage to roads.
For owners in U.S. mainland, Hawaii and
Puerto Rico:
To obtain additional information pertaining
to driving your vehicle off−road, consult
the following organizations.
State and Local Parks and Recreation
Departments
State Motor Vehicle Bureau
Recreational Vehicle Clubs
U.S. Forest Service and Bureau of
Land Management

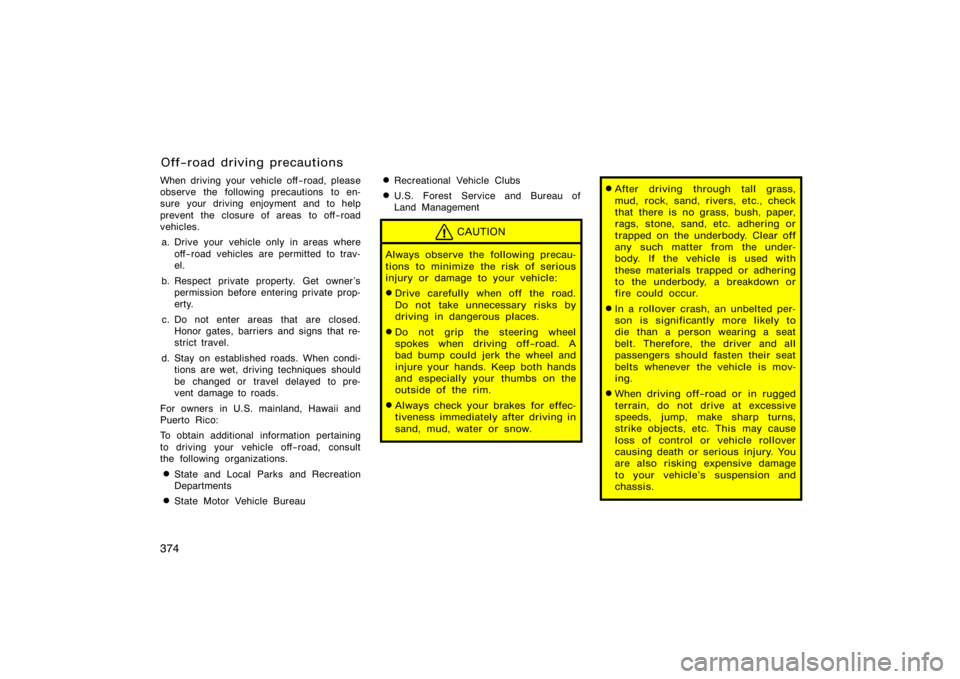

CAUTION
Always observe the following precau-
tions to minimize the risk of serious
injury or damage to your vehicle:
Drive carefully when off the road.
Do not take unnecessary risks by
driving in dangerous places.
Do not grip the steering wheel
spokes when driving off−road. A
bad bump could jerk the wheel and
injure your hands. Keep both hands
and especially your thumbs on the
outside of the rim.
Always check your brakes for effec-
tiveness immediately after driving in
sand, mud, water or snow.
After driving through tall grass,
mud, rock, sand, rivers, etc., check
that there is no grass, bush, paper,
rags, stone, sand, etc. adhering or
trapped on the underbody. Clear off
any such matter from the under-
body. If the vehicle is used with
these materials trapped or adhering
to the underbody, a breakdown or
fire could occur.
In a rollover crash, an unbelted per-
son is significantly more likely to
die than a person wearing a seat
belt. Therefore, the driver and all
passengers should fasten their seat
belts whenever the vehicle is mov-
ing.
When driving off−road or in rugged
terrain, do not drive at excessive
speeds, jump, make sharp turns,
strike objects, etc. This may cause
loss of control or vehicle rollover
causing death or serious injury. You
are also risking expensive damage
to your vehicle’s suspension and
chassis.
Off−road driving precautions

375
NOTICE
If driving through water, such as
when crossing shallow streams,
first check the depth of the water
and the bottom of the river bed for
firmness. Drive slowly and avoid
deep water.
 Take all necessary safety measures
to ensure that water damage to the
engine or other components does
not occur.
 Water entering the engine air intake
will cause severe engine damage.
 Water entering the automatic trans-
mission will cause deterioration in
shift quality, locking up of your
transmission accompanied by vibra-
tion, and ultimately damage.
 Water can wash the grease from
wheel bearings, causing rusting and
premature failure, and may also en-
ter the differentials, transmission
and transfer case, reducing the gear
oil’s lubricating qualities.
Sand and mud that has accumulated
in brake drums and around brake
discs may affect braking efficiency
and may damage brake system com-
ponents.
 Always perform a maintenance
inspection after each day of
off−road driving that has taken you
through rough terrain, sand, mud,
or water. For scheduled
maintenance information, refer to
the Scheduled Maintenance Guide"
or Owner ’s Manual Supplement".Make sure your coolant is properly pro-
tected against freezing.
Only use Toyota Super Long Life Coolant"
or similar high quality ethylene glycol
based non−silicate, non−amine, non−nitrite,
and non−borate coolant with long−life hy-
brid organic acid technology. (Coolant with
long−life hybrid organic acid technology is
a combination of low phosphates and or-
ganic acids.)
See Checking the engine coolant level"
on page 438 in Section 7−2 for details of
coolant type selection.
For the U.S.A.Toyota Super Long Life
Coolant" is a mixture of 50% coolant and
50% deionized water. This coolant pro-
vides protection down to about −35 C
(−31 F).
For the CanadaToyota Super Long Life
Coolant" is a mixture of 55% coolant and
45% deionized water. This coolant pro-
vides protection down to about −42 C
(−44 F).
NOTICE
Do not use plain water alone.
Winter driving tips

376
Check the condition of the battery and
cables.
Cold temperatures reduce the capacity of
any battery, so it must be in top shape to
provide enough power for winter starting.
Section 7−3 tells you how to visually in-
spect the battery. Your Toyota dealer and
most service stations will be pleased to
check the level of charge.
Make sure the engine oil viscosity is
suitable for the cold weather.
See page 437 in Section 7−2 for recom-
mended viscosity. Leaving a heavy sum-
mer oil in your vehicle during winter
months may cause harder starting. If you
are not sure about which oil to use, call
your Toyota dealerthey will be pleased
to help.
Keep the door locks from freezing.
Squirt lock de−icer or glycerine into the
locks to keep them from freezing.
Use a washer fluid containing an anti-
freeze solution.
This product is available at your Toyota
dealer and most auto parts stores. Follow
the manufacturer ’s directions for how
much to mix with water.NOTICE
Do not use engine antifreeze or any
other substitute because it may dam-
age your vehicle’s paint.
Do not use your parking brake when
there is a possibility it could freeze.
When parking, put the transmission into
P" and block the front wheels. Do not
use the parking brake, or snow or water
accumulated in and around the parking
brake mechanism may freeze, making it
hard to release.
Keep ice and snow from accumulating
under the fenders.
Ice and snow built up under your fenders
can make steering difficult. During bad
winter driving, stop and check under the
fenders occasionally.
Depending on where you are driving,
we recommend you carry some emer-
gency equipment.
Some of the things you might put in the
vehicle are tire chains, window scraper,
bag of sand or salt, flares, small shovel,
jumper cables, etc.CY30020
Your vehicle is not designed to be
dinghy towed (with four wheels on the
ground) behind a motorhome.
NOTICE
Do not tow your vehicle with four
wheels on the ground. This may
cause serious damage to your vehicle.
Dinghy towing

377
Your vehicle is designed primarily as a
passenger−and−load−carrying vehicle. Tow-
ing a trailer will have an adverse effect on
handling, performance, braking, durability
and driving economy (fuel consumption,
etc.). Your safety and satisfaction depend
on the proper use of correct equipment
and cautious driving habits. For your safe-
ty and the safety of others, you must not
overload your vehicle or trailer. Ask your
local Toyota dealer for further details be-
fore towing.

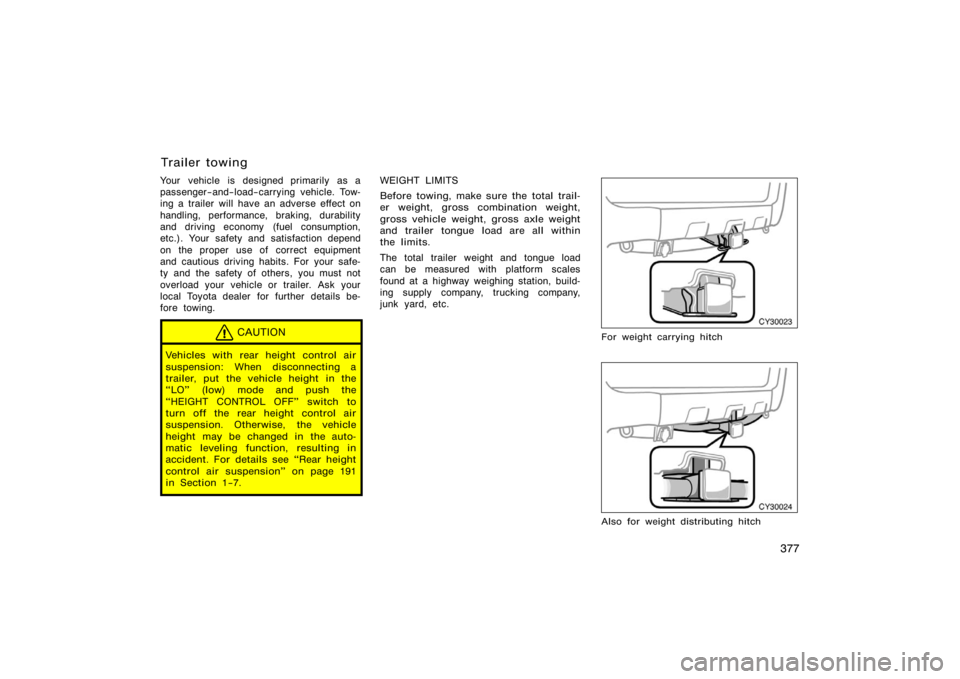

CAUTION
Vehicles with rear height control air
suspension: When disconnecting a
trailer, put the vehicle height in the
LO" (low) mode and push the
HEIGHT CONTROL OFF" switch to
turn off the rear height control air
suspension. Otherwise, the vehicle
height may be changed in the auto-
matic leveling function, resulting in
accident. For details see Rear height
control air suspension" on page 191
in Section 1−7.
WEIGHT LIMITS
Before towing, make sure the total trail-
er weight, gross combination weight,
gross vehicle weight, gross axle weight
and trailer tongue load are all within
the limits.
The total trailer weight and tongue load
can be measured with platform scales
found at a highway weighing station, build-
ing supply company, trucking company,
junk yard, etc.
CY30023
For weight carrying hitch
CY30024
Also for weight distributing hitch
Tr ailer to win g

378

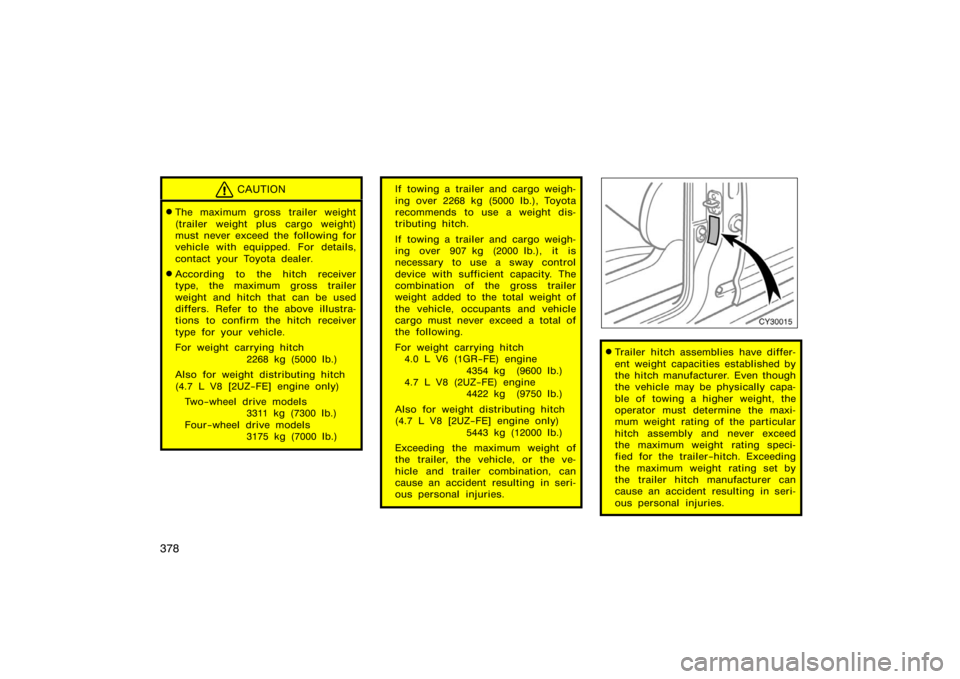

CAUTION
The maximum gross trailer weight
(trailer weight plus cargo weight)
must never exceed the following for
vehicle with equipped. For details,
contact your Toyota dealer.
According to the hitch receiver
type, the maximum gross trailer
weight and hitch that can be used
differs. Refer to the above illustra-
tions to confirm the hitch receiver
type for your vehicle.
For weight carrying hitch2268kg(5000lb.)
Also for weight distributing hitch
(4.7 L V8 [2UZ−FE] engine only) Two−wheel drive models 3311kg(7300lb.)
Four−wheel drive models 3175kg(7000lb.)
If towing a trailer and cargo weigh-
ing over 2268 kg (5000 lb.), Toyota
recommends to use a weight dis-
tributing hitch.
If towing a trailer and cargo weigh-
ing over 907kg (2000lb.), it is
necessary to use a sway control
device with sufficient capacity. The
combination of the gross trailer
weight added to the total weight of
the vehicle, occupants and vehicle
cargo must never exceed a total of
the following.
For weight carrying hitch4.0 L V6 (1GR−FE) engine
4354kg(9600lb.)
4.7 L V8 (2UZ−FE) engine 4422kg(9750lb.)
Also for weight distributing hitch
(4.7 L V8 [2UZ−FE] engine only) 5443kg(12000lb.)
Exceeding the maximum weight of
the trailer, the vehicle, or the ve-
hicle and trailer combination, can
cause an accident resulting in seri-
ous personal injuries.
CY30015
Trailer hitch assemblies have differ-
ent weight capacities established by
the hitch manufacturer. Even though
the vehicle may be physically capa-
ble of towing a higher weight, the
operator must determine the maxi-
mum weight rating of the particular
hitch assembly and never exceed
the maximum weight rating speci-
fied for the trailer−hitch. Exceeding
the maximum weight rating set by
the trailer hitch manufacturer can
cause an accident resulting in seri-
ous personal injuries.

379

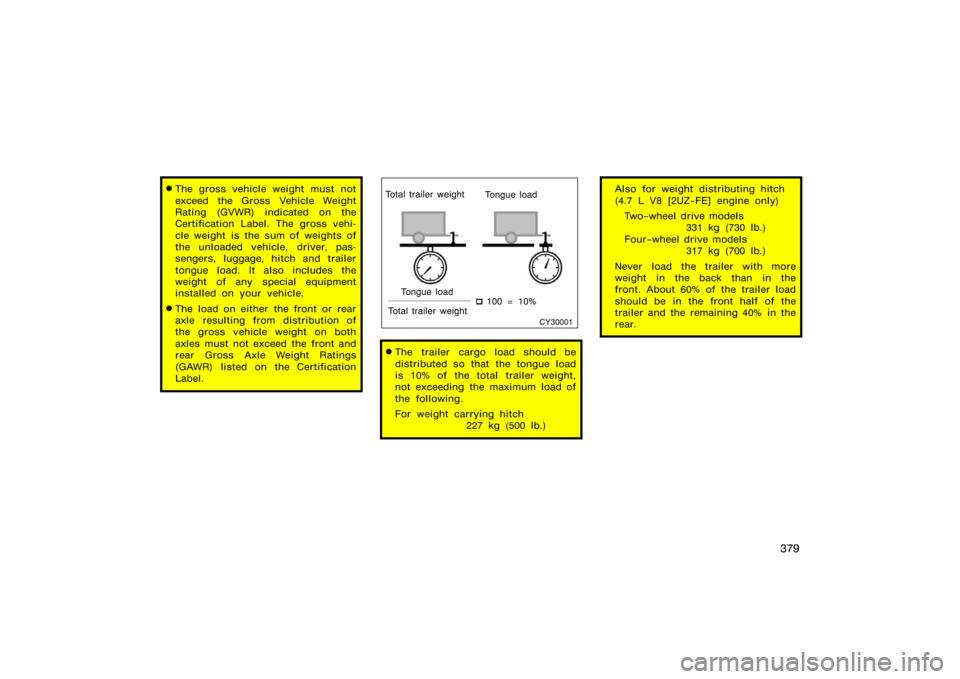

The gross vehicle weight must not
exceed the Gross Vehicle Weight
Rating (GVWR) indicated on the
Certification Label. The gross vehi-
cle weight is the sum of weights of
the unloaded vehicle, driver, pas-
sengers, luggage, hitch and trailer
tongue load. It also includes the
weight of any special equipment
installed on your vehicle.
The load on either the front or rear
axle resulting from distribution of
the gross vehicle weight on both
axles must not exceed the front and
rear Gross Axle Weight Ratings
(GAWR) listed on the Certification
Label.
CY30001
Total trailer weightTongue load
Tongue load
Total trailer weight
100=10%
The trailer cargo load should be
distributed so that the tongue load
is 10% of the total trailer weight,
not exceeding the maximum load of
the following.
For weight carrying hitch
227kg(500lb.)
Also for weight distributing hitch
(4.7 L V8 [2UZ−FE] engine only)
Two−wheel drive models 331kg(730lb.)
Four−wheel drive models 317kg(700lb.)
Never load the trailer with more
weight in the back than in the
front. About 60% of the trailer load
should be in the front half of the
trailer and the remaining 40% in the
rear.

380
HITCHES
If you wish to install a trailer hitch, you
should consult with your Toyota dealer.
Use only a hitch recommended by the
hitch manufacturer and the one which
conforms to the total trailer weight re-
quirement.
According to the hitch receiver type,
the maximum gross trailer weight and
hitch that can be used differs. Refer to
the above illustrations to confirm the
hitch receiver type for your vehicle.
If you wish to install an aftermarket
hitch, the hitch must be bolted securely
to the vehicle frame and installed ac-
cording to the hitch manufactures’ in-
structions.
The hitch ball and king pin should have
a light coat of grease.
Toyota recommends the ball mount as-
sembly be removed when not towing to
prevent injury and to prevent damage
in the event of a rear end collision.
After removing the ball mount assem-
bly, install the grommet to the hitch to
prevent entry of dirt and mud.
CAUTION
Do not tow the vehicle using the
hooked portion of the weight carrying
hitch. The hooked portion may break
and cause serious injury or damage
to the vehicle.
NOTICE
Do not install weight distributing
hitch to weight carrying hitch re-
ceiver because it will be damaged
your vehicle.
 Do not use axle−mounted hitches as
they can cause damage to the axle
housing, wheel bearings, wheels or
tires. Also, never install a hitch
which may interfere with the normal
function of an Energy Absorbing
Bumper, if so equipped.
CY30003
1 Trailer ball load rating
2 Ball diameter
3 Shank length
4 Shank diameter
