2008 TOYOTA 4RUNNER Owners Manual

453
If the new fuse immediately blows out,
there is a problem with the electrical sys-
tem. Have your Toyota dealer correct it as
soon as possible.
CAUTION
Never use a fuse with a higher am-
perage rating, or any other object, in
place of a fuse. This may cause ex-
tensive damage and possibly a fire.CY73025
If any washer does not work, the wash-
er tank may be empty. Check the wash-
er fluid level on the level gauge. If the
washer fluid level is below LOW" or
only slightly above the LOW" level,
add washer fluid.
For vehicles sold in Canada
If any washer does not work or low
windshield washer fluid level warning
light comes on, the washer tank may be
empty. Add washer fluid.You may use plain water as washer fluid.
However, in cold areas where tempera-
tures range below the freezing point, use
washer fluid containing antifreeze. This
product is available at your Toyota dealer
and most auto parts stores. Follow the
manufacturer ’s directions for how much to
mix with water.
NOTICE
Do not use engine antifreeze or any
other substitute because it may dam-
age your vehicle’s paint.
Adding washer fluid

454
The following illustrations show how to
gain access to the bulbs. When replacing
a bulb, make sure the engine switch and
light switch are off. Use bulbs with the
wattage ratings given in the table.
The stop/tail and rear side marker lights
consist of a number of LEDs. If any of
the LEDs burn out, take your vehicle to
your Toyota dealer to have the light re-
placed.
CAUTION
To prevent burning yourself, do not
replace the light bulbs while they
are hot.
Halogen bulbs have pressurized gas
inside and require special handling.
They can burst or shatter if
scratched or dropped. Hold a bulb
only by its plastic or metal case.
Do not touch the glass part of a
bulb with bare hands.
NOTICE
Only use a bulb of the listed type.
The inside of the lens of exterior lights
such as headlights may temporarily fog up
when the lens becomes wet in the rain or
in a car wash. This is not a problem
because the fogging is caused by the
temperature difference between the outside
and inside of the lens, just like the
windshield fogs up in the rain. However, if
there is a large drop of water on the
inside of the lens, or if there is water
pooled inside the light, contact your
Toyota dealer.
Replacing light bulbs

455
A: HB3 halogen bulbs
B: H11 halogen bulbs
C: HB4 halogen bulbs
D: Wedge base bulbs (amber)
E: Single end bulbs
F: Wedge base bulbs (clear)
G: Double end bulbs
9005
Ty p e
WBulb No.Light bulbs
Headlights (high beam)
Headlights (low beam)
Front fog lights
Parking and front side marker lights
Front turn signal lights
Rear turn signal lights
Back−up lights
License plate lights
High mounted stoplight
Interior light
Personal lights
Vanity lights
Door courtesy lights
Glove box light
Luggage compartment light
Running board lights
9006 168




921



921
168
1156NA 60
55
51
5
27
21
18 5
18 8
5
3
3.8
1.2 8
3.8 A
B
C
D E
D F
F
F
G F
G
F
F
G F

456

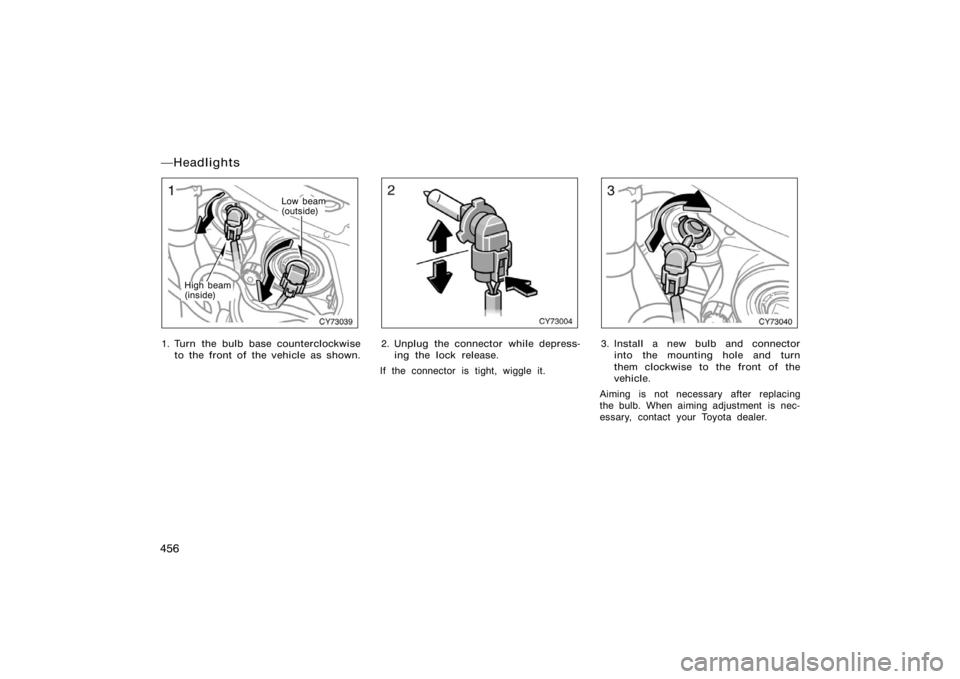

CY73039
High beam
(inside)
Low beam
(outside)
1. Turn the bulb base counterclockwiseto the front of the vehicle as shown.
CY73004
2. Unplug the connector while depress-ing the lock release.
If the connector is tight, wiggle it.
CY73040
3. Install a new bulb and connector into the mounting hole and turn
them clockwise to the front of the
vehicle.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer.
Headlights

457

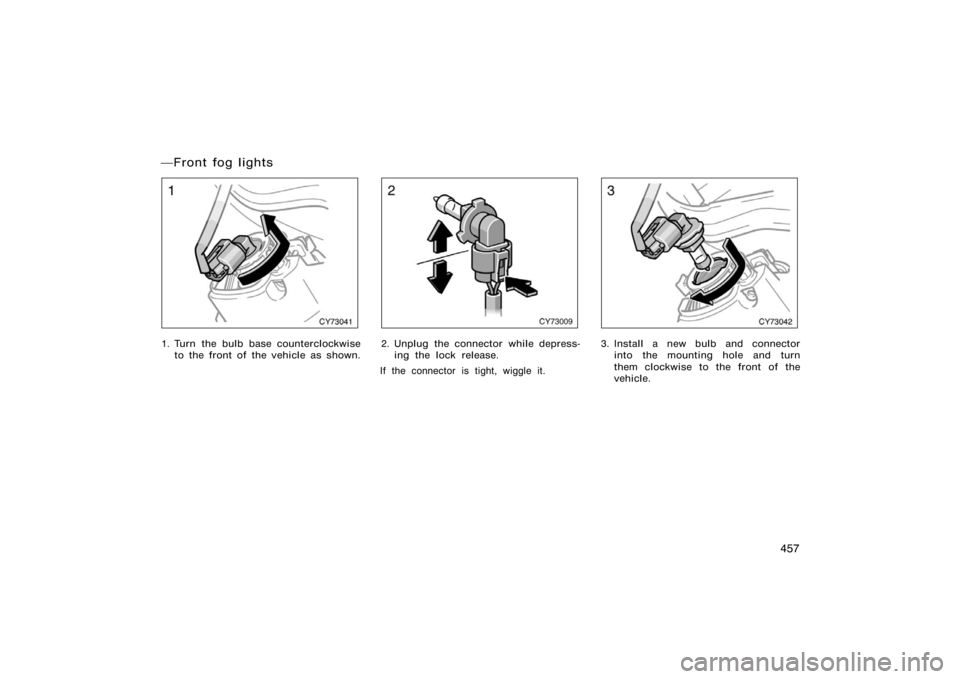

CY73041
1. Turn the bulb base counterclockwiseto the front of the vehicle as shown.
CY73009
2. Unplug the connector while depress-ing the lock release.
If the connector is tight, wiggle it.
CY73042
3. Install a new bulb and connector into the mounting hole and turn
them clockwise to the front of the
vehicle.
Front fog lights

458

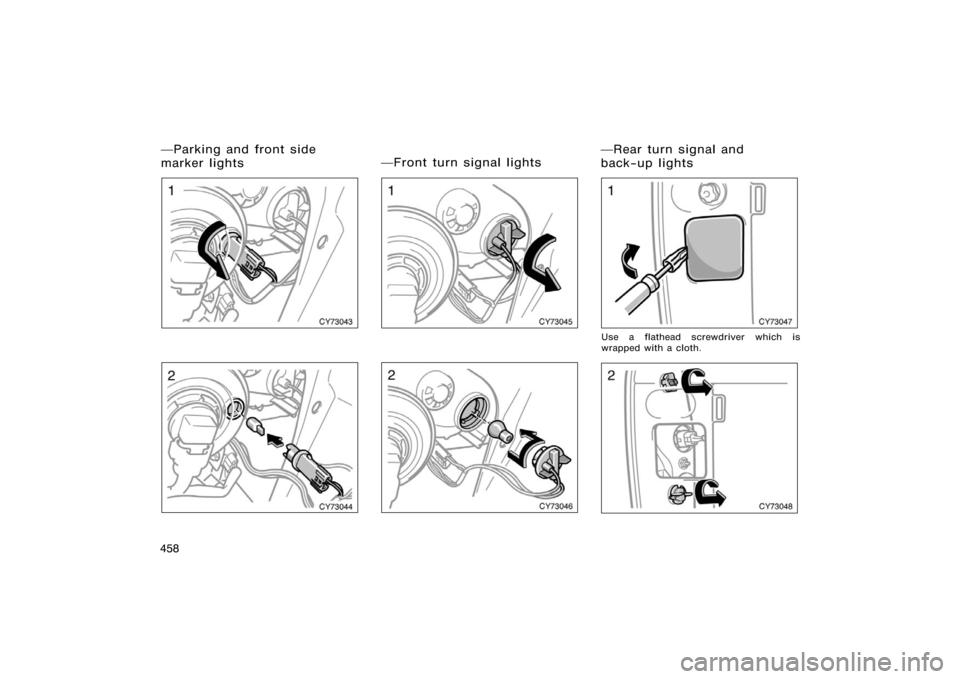

CY73043
CY73044
CY73045
CY73046
CY73047
Use a flathead screwdriver which is
wrapped with a cloth.
CY73048
Parking and front side
marker lightsFront turn signal lightsRear turn signal and
back−up lights

459

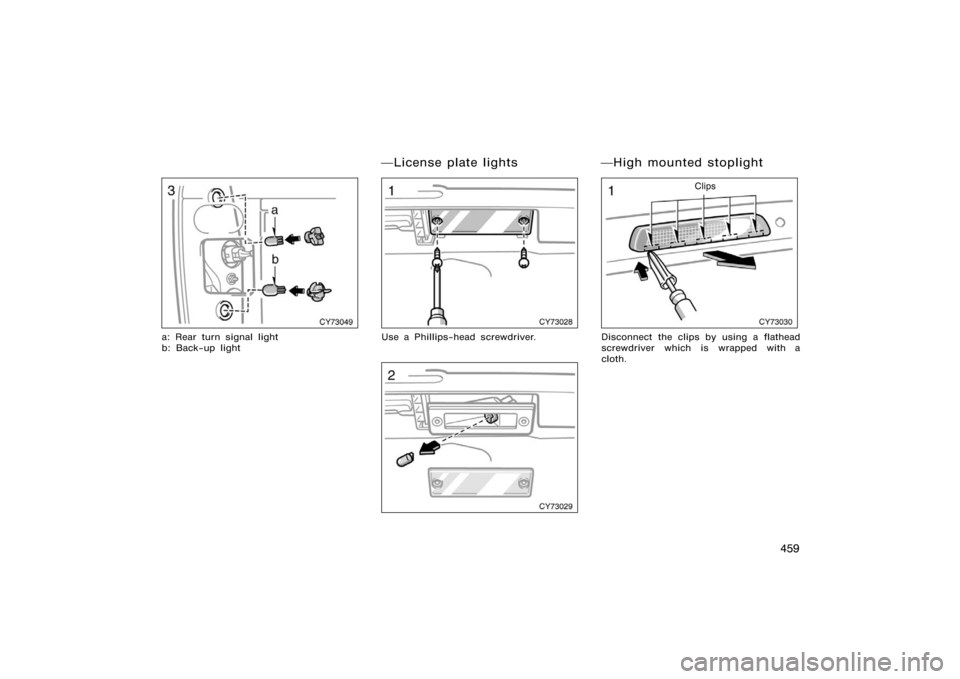

CY73049
a: Rear turn signal light
b: Back−up light
CY73028
Use a Phillips−head screwdriver.
CY73029
CY73030
Clips
Disconnect the clips by using a flathead
screwdriver which is wrapped with a
cloth.
License plate lightsHigh mounted stoplight

460

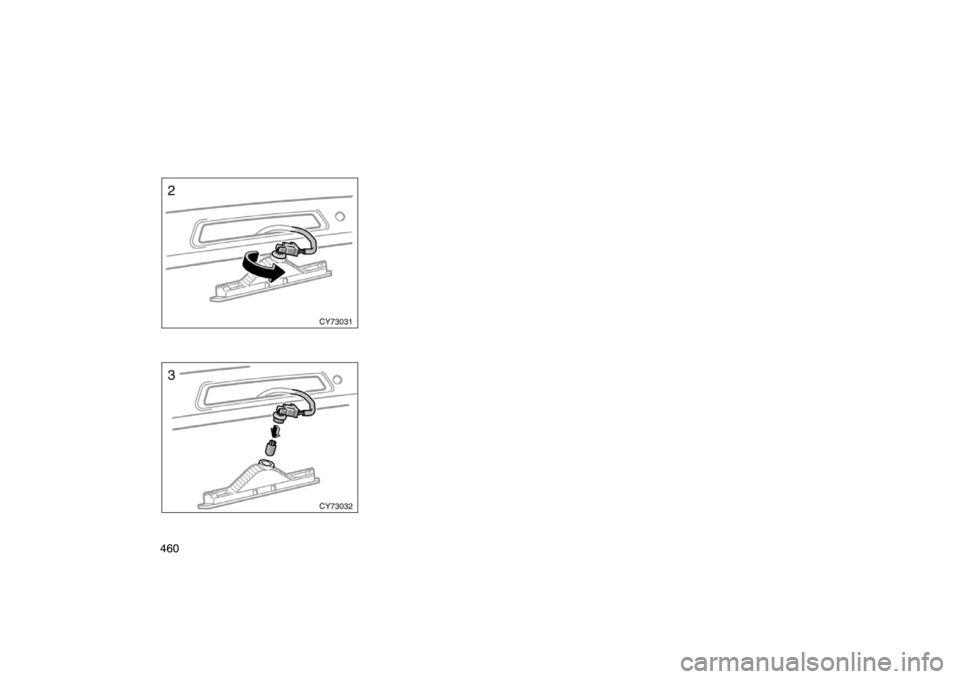

CY73031
CY73032
