2008 TOYOTA 4RUNNER Owners Manual

469
19. ECU−B 10 A: Anti−lock brake system,
traction control system (two−wheel
drive models), active traction control
system (four−w heel drive models), ve-
hicle stability control system, air c ondi-
tioning system, multiplex communica-
tion system, theft deterrent system,
driving position memory system, front
passenger occupant classification sys-
tem
20. ALT−S 7.5 A: Charging system
21. HORN 10 A: Horns
22. A/F HEATER 15 A: A/F sensor
23. TRN−HAZ 15 A: Turn signal lights,
emergency flashers
24. ETCS 10 A: Multiport fuel injection
system/s equential multiport fuel injec-
tion system
25. EFI 20 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system
26. DR/LCK 20 A: Power door lock system
27. TOWING 30 A: Towing converter
28. RADIO NO.2 20 A: Audio system29. IGN 10 A:
Multiport fuel injection sys-
tem/sequential multiport fuel injection
system, anti−lock brake system, trac-
tion control system (two−wheel drive
models), active traction control system
(four−wheel drive models), vehicle sta-
bility control system, meter and g auge,
front passenger occupant classification
system
30. SRS 10 A: SRS airbag system
31. GAUGE 7.5 A: Meter and gauge
32. STA NO.2 7.5 A: Multiport fuel injec-
tion system/sequential multiport fuel in-
jection system
33. FR WIP−WSH 30 A: Windshield wipers
and washer
34. 4WD 20 A: Four−wheel drive control
system
35. D P/SEAT 30 A: Driver ’s power seat
36. P P/SEAT 30 A: Front passenger ’s
power seat
37. PWR OUTLET 15 A: Power outlets
38. RR WSH 15 A: Back window washer,
multiplex communication system 39. ECU−IG 10 A:
Shift lock control sys-
tem, power windows, anti−lock brake
system, traction control system (two−
wheel drive models), active traction
control system (four−wheel drive mod-
els), vehicle stability control system,
electric moon roof, multiplex commu-
nication system, theft deterrent system,
rear height control air suspension, tire
pressure warning system, driving posi-
tion memory system
40. IG1 15 A: Anti−lock brake system,
traction control system (two−wheel
drive models), active traction control
system (four−w heel drive models), ve-
hicle stability control system, air c ondi-
tioning system, charging system, back
window defogger, back−up lights, emer-
gency flashers, seat heaters, AC invert-
er, instrument panel light control, auto
anti−glare inside rear view mirror, seat
belt tension reducer
41. STA 7.5 A: No circuit
42. SECU/HORN 10 A: Theft deterrent sys-
tem

470
43. TAIL 10 A: Tail lights, license plate
lights, parking lights, instrument panel
light control, multiport fuel injection
system/s equential multiport fuel injec-
tion system, instrument panel lights,
meter and gauge, glove box light
44. ACC 7.5 A: Power outlets, outside rear
view mirrors, audio system, navigation
system, shift lock control system, in-
strument panel lights, rear seat enter-
tainment system
45. CIG 10 A: No circuit
Fuses (type B)
46. A/PUMP 50 A: Multiport fuel injection
system/s equential multiport fuel injec-
tion system
47. AIRSUS 50 A: Rear height control air
suspension
48. AM1 50 A: All components in ACC",
CIG", IG1", ECU−IG", FR WIP−
WSH", RR−WSH", 4WD", and STA"
fuses
49. TOWING BRK 30 A: Trailer brake con-
troller
50. J/B 50 A: All components in PWR
OUTLET", D P/SEAT", P P/SEAT",
POWER", TAIL" and SECU/HORN"
fuses 51. BATT CHG 30 A:
Trailer sub battery
52. TOWING 40 A: Trailer lights (tail
lights)
53. ABS MTR 40 A: Anti−lock brake sys-
tem, traction control system (two−wheel
drive models), active traction control
system (four−w heel drive models), ve-
hicle stability control system
54. AM2 30 A: Starter system, IGN",
GAUGE", STA NO.2" and SRS" fuses
55. ABS SOL 30 A: Anti−lock brake sys-
tem, traction control system (two−wheel
drive models), active traction control
system (four−w heel drive models), ve-
hicle stability control system
56. POWER 30 A: Power windows, electric
moon roof
Fuses (type C)
57. ALT 140 A: All components in
A/PUMP", AIRSUS", AM1", TOWING
BRK", J/B", BATT CHG", TOWING",
TAIL", STOP", AC 115V INV", FR
FOG", OBD", DEFOG" and MIR
HEATER" fuses
58. HEATER 60 A: Air conditioning system

471
FOR OWNERS
Reporting safety defects for U.S. owners472
. . . . . . . . . . . . . . . . . . . . . .
Seat belt instructions for Canadian owners (in French) 472
. . . . . . . . . .
SECTION 9

472
If you believe that your vehicle
has a defect which could cause a
crash or could cause injury or
death, you should immediately in-
form the National Highway Traffic
Safety Administration (NHTSA) in
addition to notifying Toyota Motor
Sales, U.S.A., Inc.
(Toll−free: 1−800−331−4331).
If NHTSA receives similar com-
plaints, it may open an investiga-
tion, and if it finds that a safety
defect exists in a group of ve-
hicles, it may order a recall and
remedy campaign. However,
NHTSA cannot become involved
in individual problems between
you, your dealer, or Toyota Motor
Sales, U.S.A., Inc.To contact NHTSA, you may call
the Vehicle Safety Hotline toll−free
at 1−888−327−4236 (TTY:
1−800−424−9153); go to
http://www.safercar.gov
; or write
to: Administrator, NHTSA, 1200
New Jersey Ave, S.E.,
Washington, DC 20590. You can
also obtain other information about
motor vehicle safety from

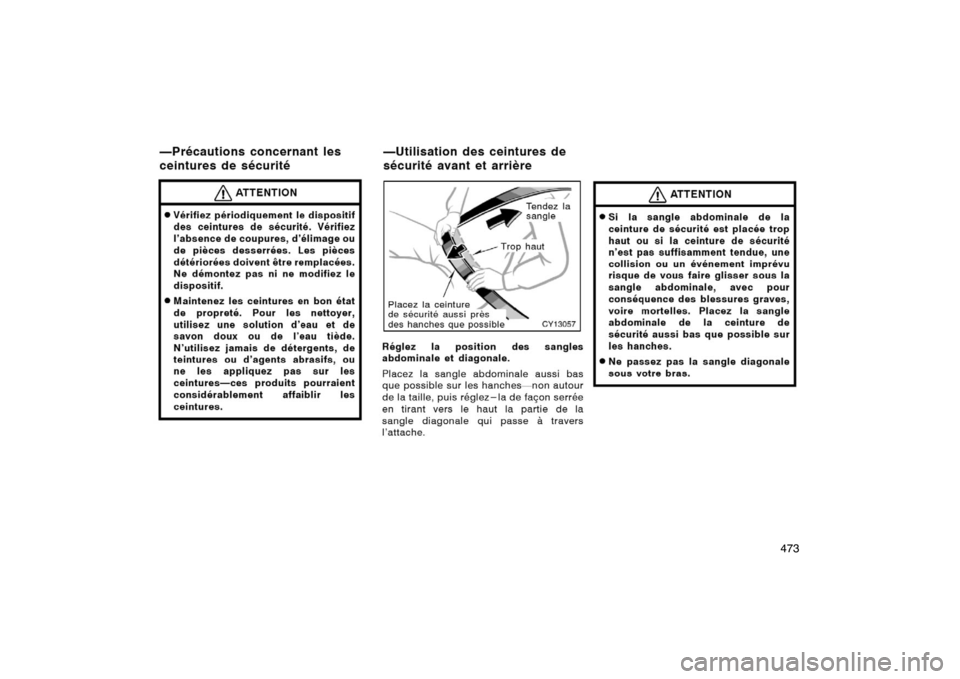

http://www.safercar.gov .The following is a French explanation
of seat belt instructions extracted from
the seat belt section in this manual.
See the seat belt section for more de-
tailed seat belt instructions in English.
Reporting safety defects for
U.S. owners Seat belt instructions for
Canadian owners
(in French)

473

474

475
INDEX
SECTION 10

476 A
AUTO LSD" system180
. . . . . . . . . . . . . . . . . .
Active traction control system 178
. . . . . . . . .
Adding washer fluid 453
. . . . . . . . . . . . . . . . . .
Adjustment
Front seats 44,45
. . . . . . . . . . . . . . . . . . . . . .
Rear seats 53
. . . . . . . . . . . . . . . . . . . . . . . . .
Seat belt 64
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Air conditioning filter 300
. . . . . . . . . . . . . . . . . .
Air conditioning system 290,293
. . . . . . . . . . .
Airbags 74,81,91
. . . . . . . . . . . . . . . . . . . . . . . . .
Aluminum wheel precautions 448
. . . . . . . . . .
Anti−glare inside rear view mirror 123 . . . . . .
Anti−lock brake system warning light 149
. . . . . . . . . . . . . . . . . . . . . . .
Anti−theft steering column lock 162 . . . . . . . .
Appearance care
Cleaning the interior 417
. . . . . . . . . . . . . . . .
Protecting your Toyota from corrosion 414
. . . . . . . . . . . . . . . . . . . . . . . .
Rain clearing mirrors 419
. . . . . . . . . . . . . . .
Washing and waxing 415
. . . . . . . . . . . . . . . .
Armrest 63
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Audio remote controls 238
. . . . . . . . . . . . . . . .
Audio system 208
. . . . . . . . . . . . . . . . . . . . . . . .
Audio system
AUX 239
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Audio/video system 240
. . . . . . . . . . . . . . . . . .
Audio/video system operating tips 280 . . . . . .
Auto anti−glare inside rear view mirror
Compass 307
. . . . . . . . . . . . . . . . . . . . . . . . . .
Automatic door locking and unlocking functions 25
. . . . . . . . . . . . . . . . . . Automatic transmission
Driving with an automatic transmission 163
. . . . . . . . . . . . . . . . . . . . .
Shift lock override button 410
. . . . . . . . . . . .
Shift pattern 163
. . . . . . . . . . . . . . . . . . . . . . .
Shifting speed 163
. . . . . . . . . . . . . . . . . . . . .
Automatic transmission fluid temperature warning light 149
. . . . . . . . . . .
AUX 239
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Auxiliary boxes 322
. . . . . . . . . . . . . . . . . . . . . .
Auxiliary catch, Engine hood 34
. . . . . . . . . . .
B
Back door 32
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Back door lock 32
. . . . . . . . . . . . . . . . . . . . . . . .
Back window and outside rear view mirror defogger switch 142
. . . . . . . . .
Back window wiper and washer switch 141
. . . . . . . . . . . . . . . . . . . . .
Battery
Checking battery condition 450
. . . . . . . . . .
Gas caution 450
. . . . . . . . . . . . . . . . . . . . . . .
Handling safety 450
. . . . . . . . . . . . . . . . . . . .
Recharging precautions 451
. . . . . . . . . . . . .
Winter driving tips 375
. . . . . . . . . . . . . . . . . .
Before starting the engine 370
. . . . . . . . . . . . .
Bottle holders 330
. . . . . . . . . . . . . . . . . . . . . . . .
Brake pad wear limit indicators 349 . . . . . . . .
Brake system 345
. . . . . . . . . . . . . . . . . . . . . . . .
Brake system warning buzzer 149
. . . . . . . . .
Brake system warning light 149
. . . . . . . . . . . . Brakes
Fluid level 439
. . . . . . . . . . . . . . . . . . . . . . . . .
Pad wear limit indicators 349
. . . . . . . . . . . .
Parking 202
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Break−in tips 339
. . . . . . . . . . . . . . . . . . . . . . . .
Brightness control 135
. . . . . . . . . . . . . . . . . . . .
C
Carbon monoxide caution 343
. . . . . . . . . . . . .
Cargo and luggage
Capacity 364
. . . . . . . . . . . . . . . . . . . . . . . . . .
Capacity and distribution 366
. . . . . . . . . . . .
Stowage precautions 365
. . . . . . . . . . . . . . .
Cargo net hooks 332
. . . . . . . . . . . . . . . . . . . . .
Center vents 299
. . . . . . . . . . . . . . . . . . . . . . . . .
Certification label 349
. . . . . . . . . . . . . . . . . . . .
Charging system warning light 149
. . . . . . . . .
Checking and replacing fuses 452
. . . . . . . . .
Checking and replacing the air
conditioning filter 300
. . . . . . . . . . . . . . . . . . .
Checking brake fluid 439
. . . . . . . . . . . . . . . . . .
Checking the engine oil level 436
. . . . . . . . . .
Checking the radiator and
condenser 439
. . . . . . . . . . . . . . . . . . . . . . . . .
Child restraint
Child restraint system 97
. . . . . . . . . . . . . . .
Installation 99
. . . . . . . . . . . . . . . . . . . . . . . . .
Installation with child restraint lower anchorages 114,116
. . . . . . . . . . . .
Precautions 96
. . . . . . . . . . . . . . . . . . . . . . . .
Types of child restraint system 98 . . . . . . . .
Using a top strap 109,112
. . . . . . . . . . . . . . .
