2008 TOYOTA 4RUNNER Owners Manual

29
OPERATING THE PASSENGERS’
WINDOWS
Use the switch on each passenger’s
door or the switches on the driver ’s
door that control each passenger ’s win-
dow.
The window moves as long as you hold
the switch.
To open: Push down the switch.
To close: Pull up the switch.
If you push in the window lock switch on
the driver ’s door, the passengers’ windows
cannot be operated.CAUTION

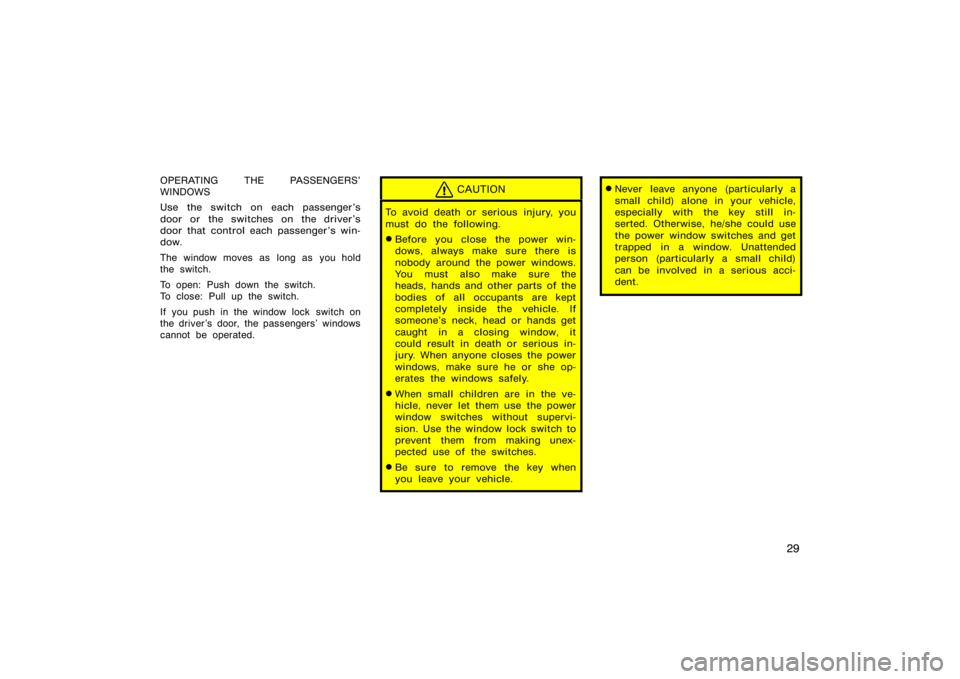

To avoid death or serious injury, you
must do the following.
Before you close the power win-
dows, always make sure there is
nobody around the power windows.
You must also make sure the
heads, hands and other parts of the
bodies of all occupants are kept
completely inside the vehicle. If
someone’s neck, head or hands get
caught in a closing window, it
could result in death or serious in-
jury. When anyone closes the power
windows, make sure he or she op-
erates the windows safely.
When small children are in the ve-
hicle, never let them use the power
window switches without supervi-
sion. Use the window lock switch to
prevent them from making unex-
pected use of the switches.
Be sure to remove the key when
you leave your vehicle.
Never leave anyone (particularly a
small child) alone in your vehicle,
especially with the key still in-
serted. Otherwise, he/she could use
the power window switches and get
trapped in a window. Unattended
person (particularly a small child)
can be involved in a serious acci-
dent.

30

CY12036
The back window can be operated with
the switch on the instrument panel or
the key operation in the back door key-
hole.
The power back window works when the
engine switch is in the ON" position.
You can open the back window when the
back window wiper is working. At that
time, the wiper stops working until the
window is closed again.
If the back window is not fully closed, the
back window wiper, washer and defogger
will not work. (See Back window wiper
and washer" on page 141 and Back
window and outside rear view mirror
defoggers" on page 142 in Section 1−5.)If the battery is disconnected or run
down,
the power back window may not
operate automatically and the jam protec-
tion function will not function correctly af-
ter you reconnect, replace or recharge the
battery. In any of these cases, you should
normalize the power back window with the
power back window switch.
To normalize the power back window:
1. Push the  " (down) switch and lower
the window halfway.
2. Push the  " (up) switch until the win-
dow closes and hold the switch for a
second.
Make sure that the window opens and
closes automatically. If the power back
window cannot be operated properly, have
it checked by your Toyota dealer.
OPERATING FROM INSIDE
The engine switch must be in the ON"
position.
Normal operation: To open or close the
back window, quickly push and release the
  " (down) or  " (up) switch. Automatic operation:
To open or close
the back window, push and hold the  "
(down) or  " (up) switch. The window
will fully open or close. To stop the win-
dow partway, push the switch on either
the  " (down) or  " (up) side briefly.
Key off operation: If both front doors are
closed, it works for 43 seconds even after
the engine switch is turned off. It stops
working when either front door is opened.
Jam protection function: During automat-
ic closing operation or key off closing op-
eration, the window stops and opens half
way if something gets caught between the
window and window frame.
If the window receives a strong impact,
this function may work even if nothing is
caught.
CAUTION
Never try jamming any part of your
body to activate the jam protection
function intentionally, as it could re-
sult in death or serious injury.
The jam protection function may
not work if something gets caught
just before the window is fully
closed.
Power back window

31
CY12008
If you push in the window lock switch on
the driver ’s door, the back window cannot
be operated.CY12086
OPERATING FROM OUTSIDE
The back window can be opened and
closed with the key operation in the back
door keyhole.
To open: Turn the key fully counterclock-
wise and hold it.
After the door is unlocked, the window
begins to open. To stop the window part-
way, release the key.
To close: Turn the key fully clockwise and
hold it.
After the door is locked, the window be-
gins to close. To stop the window partway,
release the key.
This door key linked function can be dis-
abled. For details, contact your Toyota
dealer.
Jam protection function: During closing
operation, the window stops and opens
half way if something gets caught between
the window and window frame.
If the window receives a strong impact,
this function may work even if nothing is
caught.

32

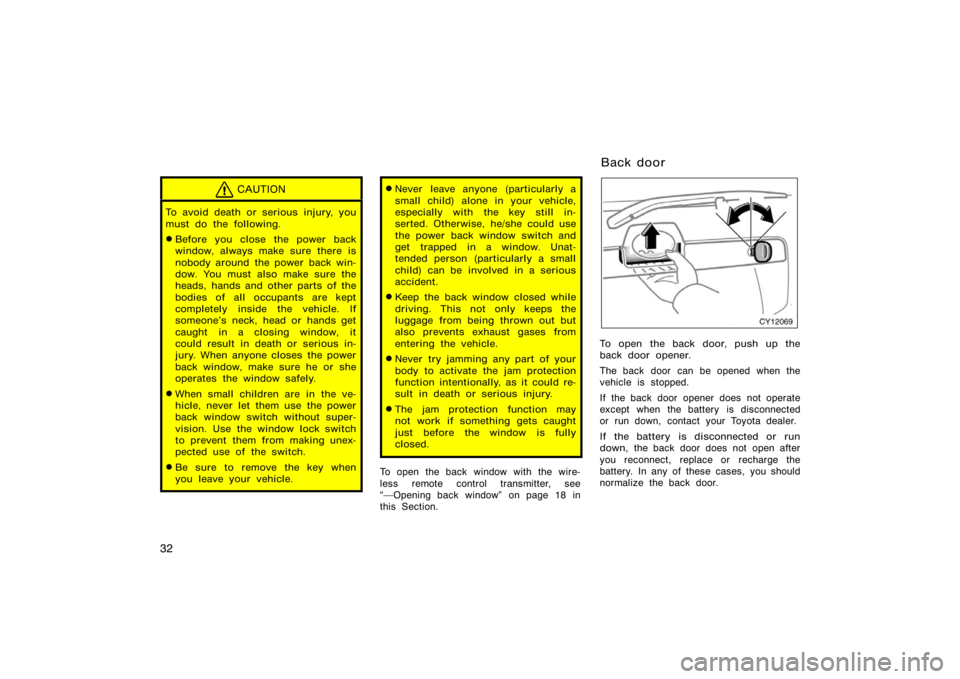

CAUTION
To avoid death or serious injury, you
must do the following.
Before you close the power back
window, always make sure there is
nobody around the power back win-
dow. You must also make sure the
heads, hands and other parts of the
bodies of all occupants are kept
completely inside the vehicle. If
someone’s neck, head or hands get
caught in a closing window, it
could result in death or serious in-
jury. When anyone closes the power
back window, make sure he or she
operates the window safely.
When small children are in the ve-
hicle, never let them use the power
back window switch without super-
vision. Use the window lock switch
to prevent them from making unex-
pected use of the switch.
Be sure to remove the key when
you leave your vehicle.
Never leave anyone (particularly a
small child) alone in your vehicle,
especially with the key still in-
serted. Otherwise, he/she could use
the power back window switch and
get trapped in a window. Unat-
tended person (particularly a small
child) can be involved in a serious
accident.
Keep the back window closed while
driving. This not only keeps the
luggage from being thrown out but
also prevents exhaust gases from
entering the vehicle.
Never try jamming any part of your
body to activate the jam protection
function intentionally, as it could re-
sult in death or serious injury.
The jam protection function may
not work if something gets caught
just before the window is fully
closed.
To open the back window with the wire-
less remote control transmitter, see
Opening back window" on page 18 in
this Section.
CY12069
To open the back door, push up the
back door opener.
The back door can be opened when the
vehicle is stopped.
If the back door opener does not operate
except when the battery is disconnected
or run down, contact your Toyota dealer.
If the battery is disconnected or run
down, the back door does not open after
you reconnect, replace or recharge the
battery. In any of these cases, you should
normalize the back door.
Back door

33
To normalize the back door, unlock it with
the key, remote control transmitter or pow-
er door lock switch, see Locking and
unlocking doors" on page 16 and Side
doors" on page 22 in this Section.
Make sure that the back door opens. If
the back door cannot be opened properly,
have it checked by your Toyota dealer.
The back door can be locked or unlocked
in the following ways.
All the side doors and back door lock
and unlock simultaneously with the
back door. Insert the key into the key-
hole, turn it clockwise to lock and turn
it counterclockwise to unlock.
Operate the power door lock switch.
(See Side doors" on page 22 in this
Section.)
Operate the wireless remote control.
(See Locking and unlocking doors"
on page 16 in this Section.)
All the side doors and back door are
locked and unlocked simultaneously
with the driver’s door. (See Side
doors" on page 22 in this Section.)
If the battery terminal is disconnected and
reconnected, the back door will be auto-
matically locked. Be careful not to lock
your keys in the vehicle. When all the side doors and back door
are unlocked simultaneously with a key,
the interior light, luggage compartment
light, engine switch light and running
board lights (on some models) will come
on and remain on for about 15 seconds
before fading out. (For details, see Interi-
or light" on page 136, Luggage compart-
ment light" on page 138, Engine (ignition)
switch light" on page 139 and Running
board lights" on page 140 in Section 1−5.)
The back window can be opened and
closed with the key operation in the back
door keyhole. (For details, see Power
back window" on page 30 in this Section.)
CY12009
When closing the back door, the inside
strap can be used to make the reach
easier.
To close the back door, lower it and press
down on it. After closing the back door,
try pulling it up to make sure it is secure-
ly closed.
Back door closer:
When the back door
has not been fully closed, it is automati-
cally closed completely.
See Stowage precautions" on page 365
in Section 2 for precautions when loading
luggage.

34
CAUTION
Keep the back window and back
door closed while driving. This not
only keeps the luggage from being
thrown out but also prevents ex-
haust gases from entering the ve-
hicle.
Careful attention is needed so as
not to get your fingers trapped as
the back door automatically closes
when it has not been fully closed.
Never allow a child to operate the
back door.
NOTICE
To avoid damage to the back door
dampers, do not apply any force,
paint or let any other foreign matter
on them.
 Do not apply excessive force when
the back door closer is operating.
Otherwise, the back door closer
may become defective.
CY12053

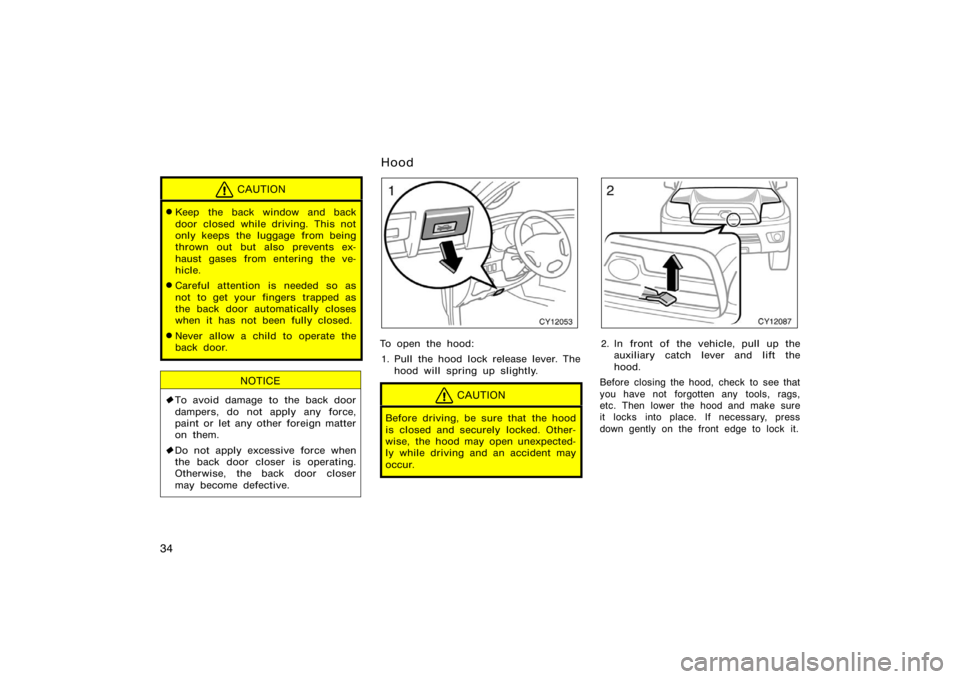

To open the hood:
1. Pull the hood lock release lever. The hood will spring up slightly.
CAUTION
Before driving, be sure that the hood
is closed and securely locked. Other-
wise, the hood may open unexpected-
ly while driving and an accident may
occur.
CY12087
2. In front of the vehicle, pull up theauxiliary catch lever and lift the
hood.
Before closing the hood, check to see that
you have not forgotten any tools, rags,
etc. Then lower the hood and make sure
it locks into place. If necessary, press
down gently on the front edge to lock it.
Hood

35
CY12054

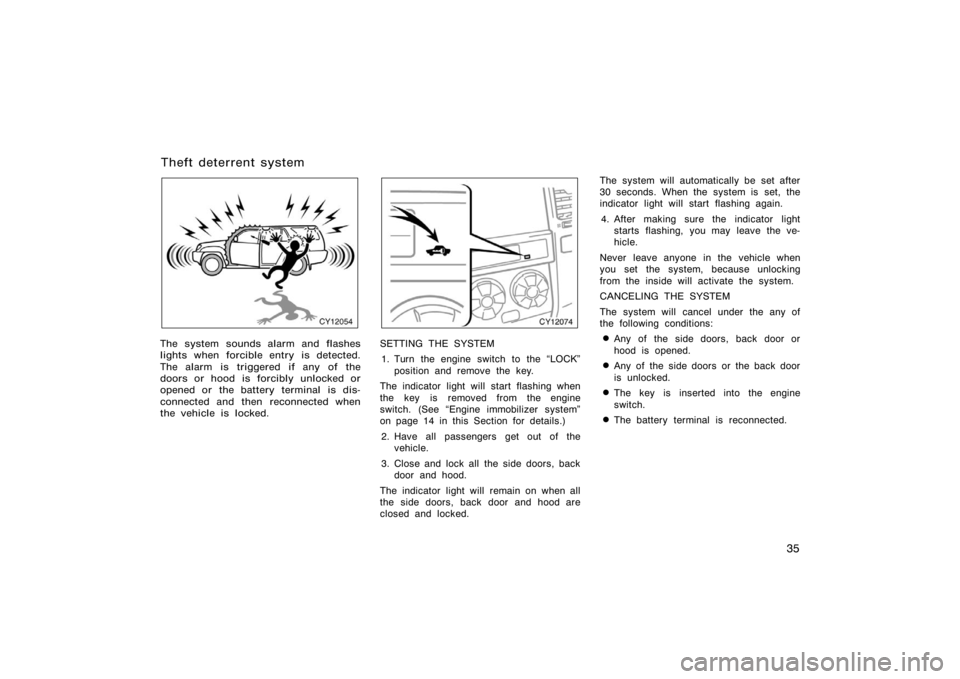

The system sounds alarm and flashes
lights when forcible entry is detected.
The alarm is triggered if any of the
doors or hood is forcibly unlocked or
opened or the battery terminal is dis-
connected and then reconnected when
the vehicle is locked.
CY12074
SETTING THE SYSTEM1. Turn the engine switch to the LOCK" position and remove the key.
The indicator light will start flashing when
the key is removed from the engine
switch. (See Engine immobilizer system"
on page 14 in this Section for details.)
2. Have all passengers get out of the vehicle.
3. Close and lock all the side doors, back door and hood.
The indicator light will remain on when all
the side doors, back door and hood are
closed and locked. The system will automatically be set after
30 seconds. When the system is set, the
indicator light will start flashing again.
4. After making sure the indicator light starts flashing, you may leave the ve-
hicle.
Never leave anyone in the vehicle when
you set the system, because unlocking
from the inside will activate the system.
CANCELING THE SYSTEM
The system will cancel under the any of
the following conditions:Any of the side doors, back door or
hood is opened.
Any of the side doors or the back door
is unlocked.
The key is inserted into the engine
switch.
The battery terminal is reconnected.
Theft deterrent system

36
WHEN THE SYSTEM IS SET
Activating the system
The system will sound the alarm under
the following conditions:
If any of the side doors is unlocked or
opened without the key or wireless re-
mote control transmitter, or if the back
door or hood is forcibly opened.
If the battery terminal is disconnected
and then reconnected.
If the ignition is hotwired.
The indicator light will come on when the
system is activated.
If the alarm has been activated and the
key is not in the engine switch, all the
side doors and back door will re−lock au-
tomatically.
After one minute, the alarm will automati-
cally stop and the indicator light will starts
flashing again.
Reactivating the alarm
Once set, the system automatically resets
the alarm after the alarm stops.
The alarm will activate again under the
same circumstances described in
Activating the system". Stopping the alarm
The alarm will be stopped by the following
these ways:
Unlock any of the side doors or the
back door with the key or wireless re-
mote control transmitter.
Turn the engine switch from the
LOCK" to ON" position.
These ways cancel the system at the
same time.
If the battery becomes discharged due
to the vehicle being unused for a long
time, etc., when the battery is recharged
or replaced, the system will give the
alarm. If this happens, immediately unlock
any of the side doors or the back door
with the key or the wireless remote con-
trol transmitter, and the alarm will stop. TESTING THE SYSTEM
1. Open all the windows.
2. Set the system as described above. The side doors and back door should
be locked with the key or wireless re-
mote control transmitter. Be sure to
wait until the indicator light goes off or
starts flashing.
3. Unlock any side door from the inside. The system should activate the alarm.
4. Stop the alarm as described above.
5. Repeat this operation for the other doors and hood. When testing the
hood, also check that the system is
activated when the battery terminal is
disconnected and then reconnected.
If the system does not work properly,
have it checked by your Toyota dealer.
