To remove the booster seat:
Press the buckle release button and allow
the belt to retract.
CY13306
Follow the procedure below for a child
restraint system that requires the use
of a top strap.
CY13307
Symbol
Anchor brackets
Use the anchor brackets behind the rear
seatbacks to attach the top strap.
Anchor brackets are installed for each
rear seating position.
This symbol indicates the locations of the
anchor brackets.
 U sin g a to p st rap
(vehicles without third seats)

11 0

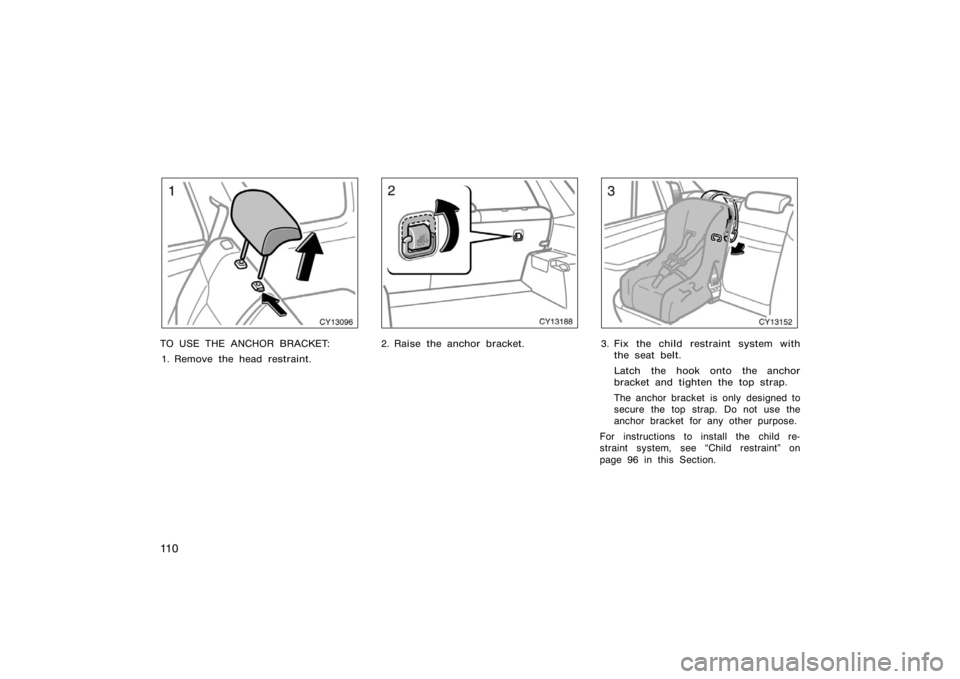

CY13096
TO USE THE ANCHOR BRACKET:1. Remove the head restraint.
CY13188
2. Raise the anchor bracket.
CY13152
3. Fix the child restraint system with the seat belt.
Latch the hook onto the anchor
bracket and tighten the top strap.
The anchor bracket is only designed to
secure the top strap. Do not use the
anchor bracket for any other purpose.
For instructions to install the child re-
straint system, see Child restraint" on
page 96 in this Section.

111
CAUTION
Make sure the top strap is securely
latched, and check that the child re-
straint system is secure by pushing
and pulling it in different directions.
Follow all the installation instructions
provided by its manufacturer.

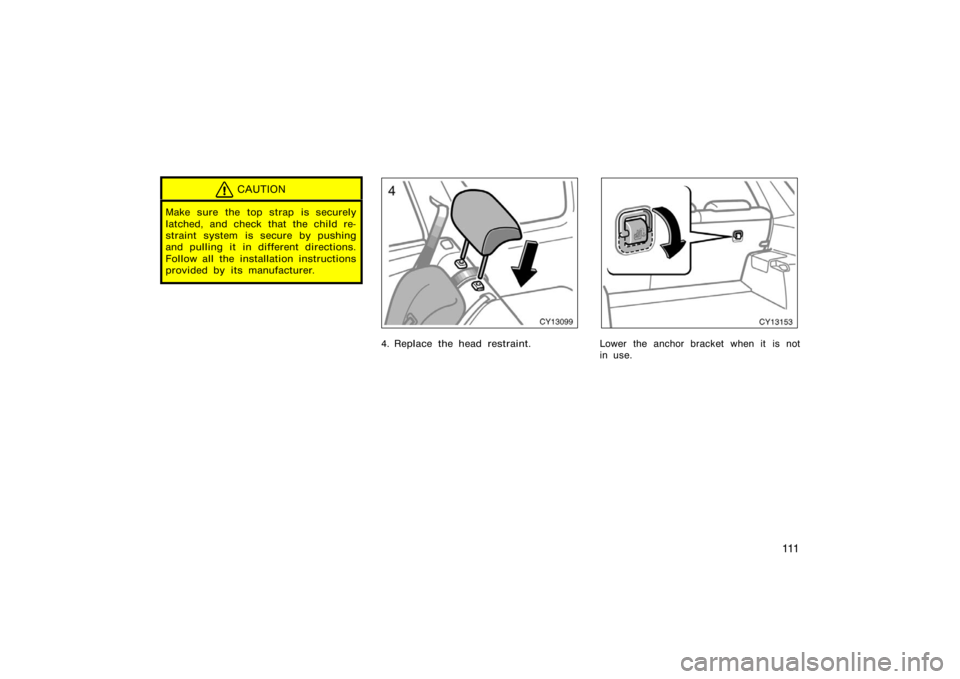

CY13099
4. Replace the head restraint.
CY13153
Lower the anchor bracket when it is not
in use.

11 2
CY13308
Follow the procedure below for a child
restraint system that requires the use
of a top strap.

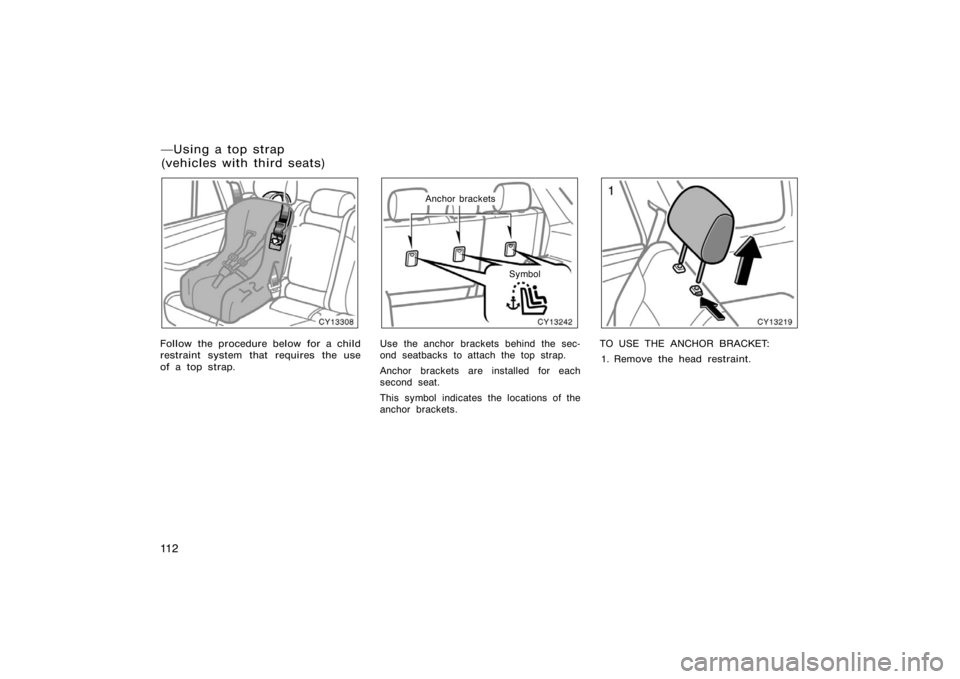

CY13242
Anchor bracketsSymbol
Use the anchor brackets behind the sec-
ond seatbacks to attach the top strap.
Anchor brackets are installed for each
second seat.
This symbol indicates the locations of the
anchor brackets.
CY13219
TO USE THE ANCHOR BRACKET:1. Remove the head restraint.
 U sin g a to p st rap
(vehicles with third seats)

11 3

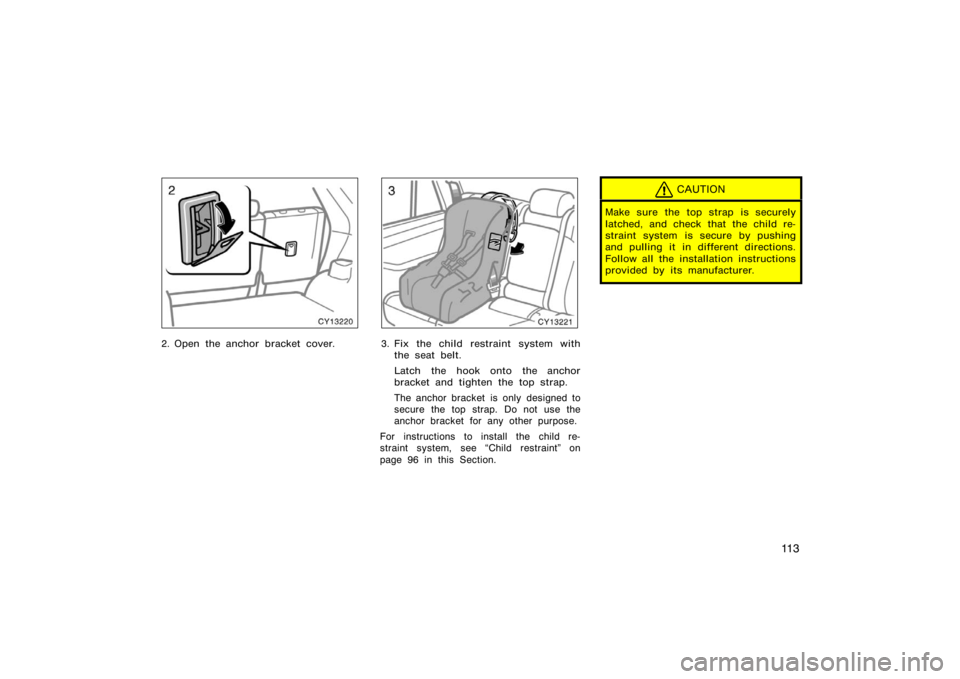

CY13220
2. Open the anchor bracket cover.
CY13221
3. Fix the child restraint system withthe seat belt.
Latch the hook onto the anchor
bracket and tighten the top strap.
The anchor bracket is only designed to
secure the top strap. Do not use the
anchor bracket for any other purpose.
For instructions to install the child re-
straint system, see Child restraint" on
page 96 in this Section.
CAUTION
Make sure the top strap is securely
latched, and check that the child re-
straint system is secure by pushing
and pulling it in different directions.
Follow all the installation instructions
provided by its manufacturer.

11 4
CY13222
4. Replace the head restraint.
Close the anchor bracket cover when the
anchor bracket is not used.

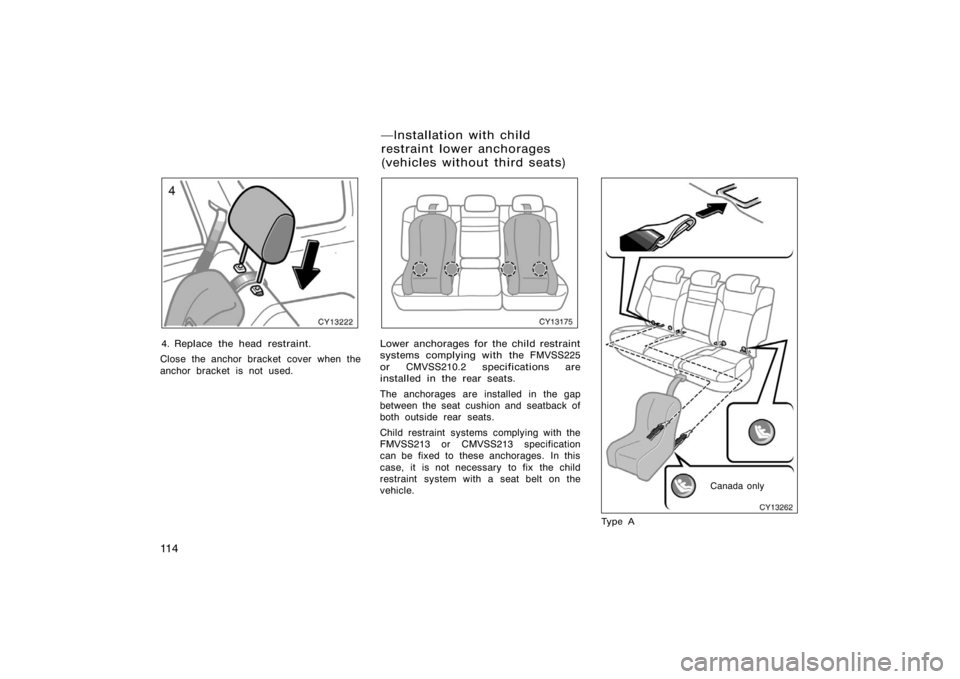

CY13175
Lower anchorages for the child restraint
systems complying with the FMVSS225
or CMVSS210.2 specifications are
installed in the rear seats.
The anchorages are installed in the gap
between the seat cushion and seatback of
both outside rear seats.
Child restraint systems complying with the
FMVSS213 or CMVSS213 specification
can be fixed to these anchorages. In this
case, it is not necessary to fix the child
restraint system with a seat belt on the
vehicle.CY13262
Canada only
Ty p e A
Installation with child
restraint lower anchorages
(vehicles without third seats)

11 5

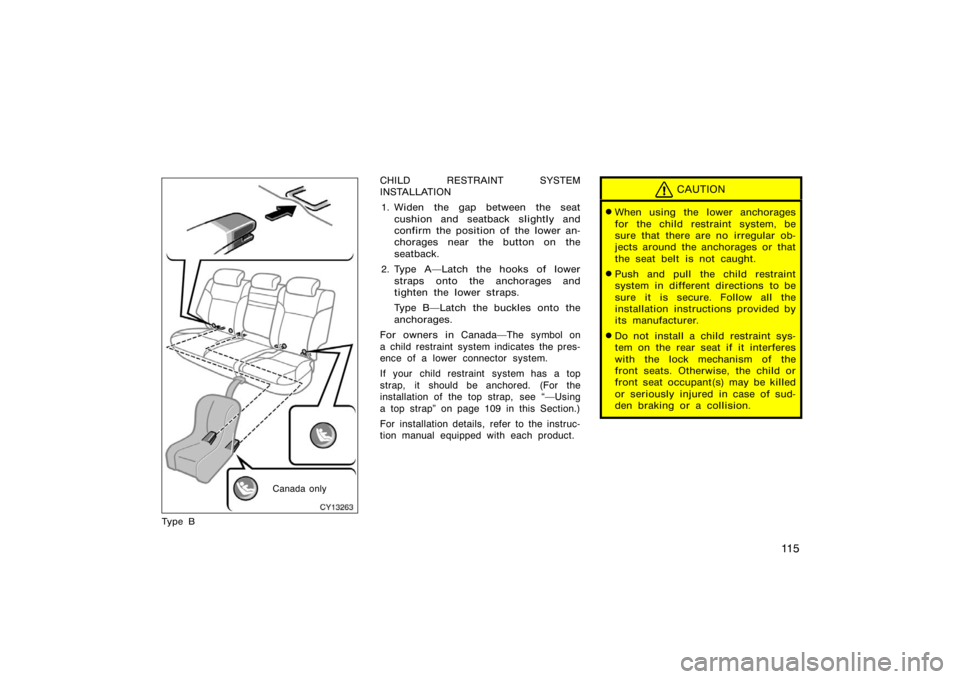

CY13263
Canada only
Ty p e B
CHILD RESTRAINT SYSTEM
INSTALLATION1. Widen the gap between the seat cushion and seatback slightly and
confirm the position of the lower an-
chorages near the button on the
seatback.
2. Type ALatch the hooks of lower straps onto the anchorages and
tighten the lower straps.
Type BLatch the buckles onto the
anchorages.
For owners in Canada The symbol on
a child restraint system indicates the pres-
ence of a lower connector system.
If your child restraint system has a top
strap, it should be anchored. (For the
installation of the top strap, see Using
a top strap" on page 109 in this Section.)
For installation details, refer to the instruc-
tion manual equipped with each product.CAUTION
When using the lower anchorages
for the child restraint system, be
sure that there are no irregular ob-
jects around the anchorages or that
the seat belt is not caught.
Push and pull the child restraint
system in different directions to be
sure it is secure. Follow all the
installation instructions provided by
its manufacturer.
Do not install a child restraint sys-
tem on the rear seat if it interferes
with the lock mechanism of the
front seats. Otherwise, the child or
front seat occupant(s) may be killed
or seriously injured in case of sud-
den braking or a collision.

11 6
CY13223
Lower anchorages for the child restraint
systems complying with the FMVSS225
or CMVSS210.2 specifications are
installed in the second seats.
The anchorages are installed in the seat
cushion of the right side seating position
and between the center and left side seat-
ing position.
Child restraint systems complying with the
FMVSS213 or CMVSS213 specification
can be fixed to these anchorages. In this
case, it is not necessary to fix the child
restraint system with a seat belt on the
vehicle.

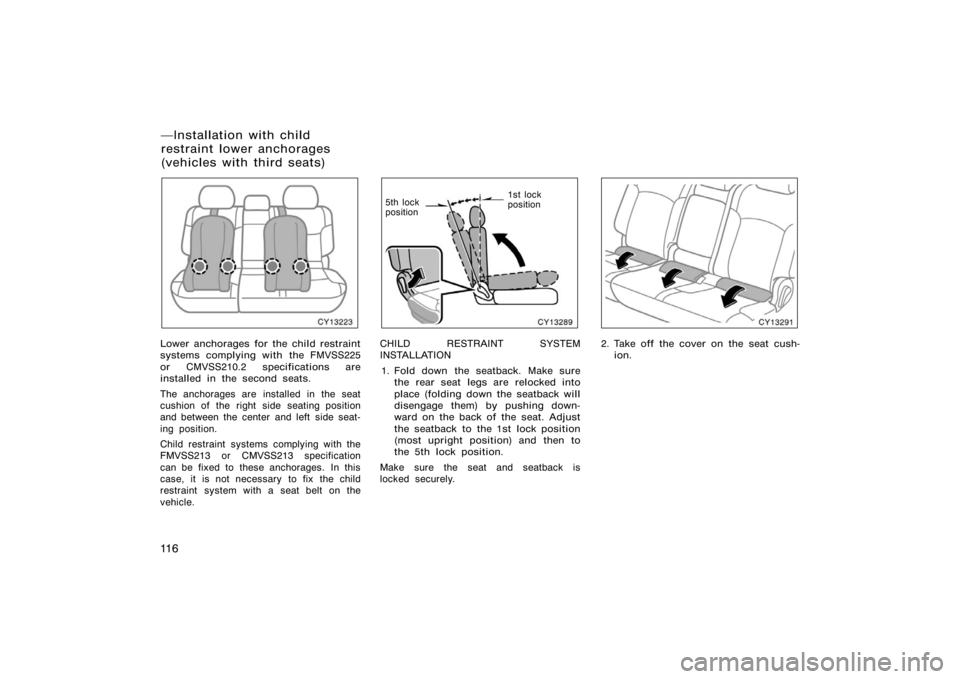

CY13289
1st lock
position
5th lock
position
CHILD RESTRAINT SYSTEM
INSTALLATION
1. Fold down the seatback. Make sure the rear seat legs are relocked into
place (folding down the seatback will
disengage them) by pushing down-
ward on the back of the seat. Adjust
the seatback to the 1st lock position
(most upright position) and then to
the 5th lock position.
Make sure the seat and seatback is
locked securely.
CY13291
2. Take off the cover on the seat cush- ion.
Installation with child
restraint lower anchorages
(vehicles with third seats)
