2008 TOYOTA 4RUNNER Owners Manual

5
15. Engine switch
16. Cruise control switch
17. Hood lock release lever
18. Fuel filler door opener
19. Roll sensing of curtain shield airbags off switch
20. VSC OFF" switch
21. Center differential lock switch
22. Power outlet main switch
23. Instrument panel light control dial
CY11065
1. Volume control switches for audio system/hands−free system (For the
hands−free system, see the separate
Navigation System Owner ’s Manual".)
2.  " switch
3. MODE" switch
4. Telephone switches (See the separate Navigation System Owner ’s Manual".)
5. Speech command switch (See the separate Navigation System Owner ’s
Manual".)

Steering switches

6

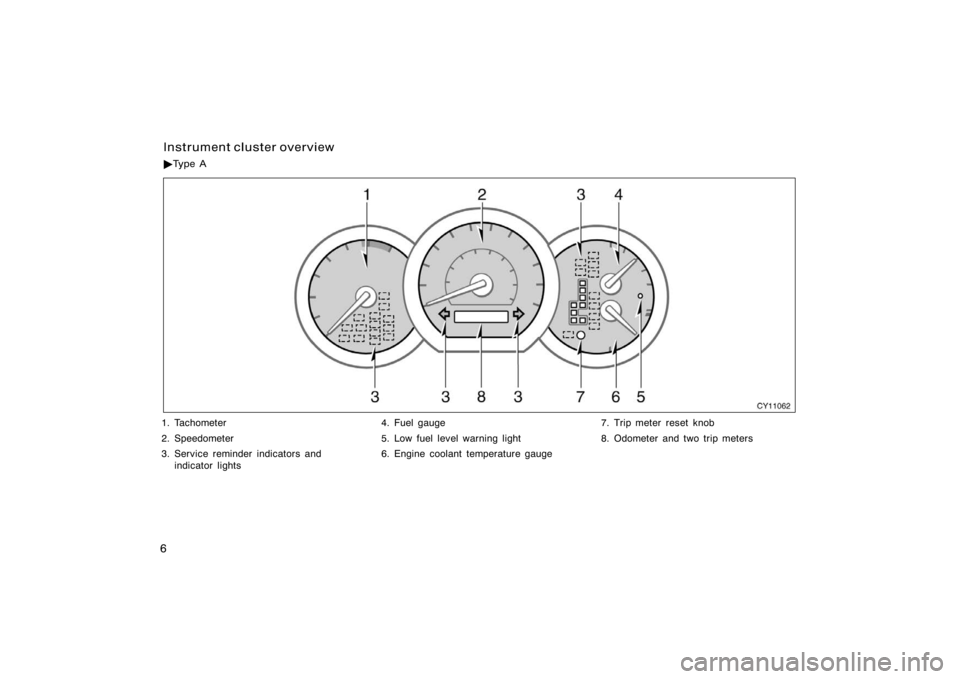

CY11062
1. Tachometer
2. Speedometer
3. Service reminder indicators andindicator lights 4. Fuel gauge
5. Low fuel level warning light
6. Engine coolant temperature gauge
7. Trip meter reset knob
8. Odometer and two trip meters
Instrument cluster overview

Ty p e A

7

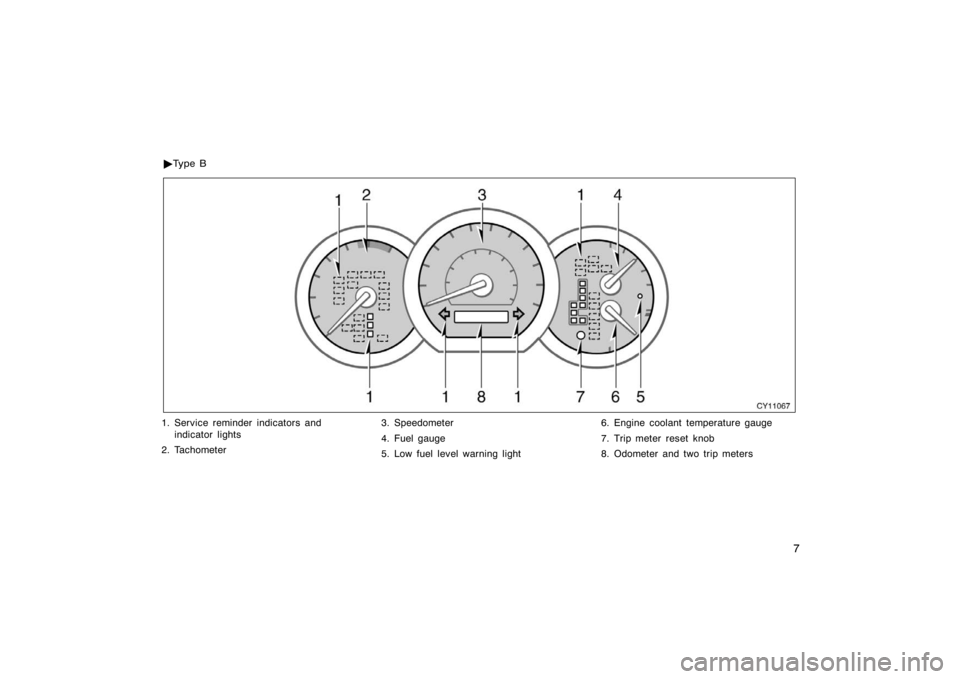

CY11067
1. Service reminder indicators andindicator lights
2. Tachometer 3. Speedometer
4. Fuel gauge
5. Low fuel level warning light6. Engine coolant temperature gauge
7. Trip meter reset knob
8. Odometer and two trip meters

Ty p e B

8
or
Driver ’s seat belt reminder light∗1
Low engine oil pressure warning light∗1
Engine oil replacement reminder light∗1
(for vehicles sold in U.S.A.) Brake system warning light
∗ 1
Malfunction indicator lamp∗1
Charging system warning light∗1
Anti−lock brake system warning light∗1
SRS warning light∗1
Open door warning light∗1
Front passenger ’s seat belt reminder light∗1Automatic transmission fluid temperature
warning light∗1 (four−wheel drive models)
Tire pressure warning light∗1
Engine immobilizer/theft deterrent system
indicator light
Roll sensing of curtain shield airbags off
indicator light∗2
Low windshield washer fluid level warning
light∗1 (for vehicles sold in Canada)
Front passenger occupant classification indicator
light
Indicator symbols on the instrument panel

9
Slip indicator light
Turn signal indicator lightsDownhill assist control system indicator light
(four−wheel drive models)
Headlight high beam indicator light
Headlight low beam indicator light
Tail light indicator light
AUTO LSD" indicator light
Four−wheel drive indicator light∗
3
(multi−mode four−wheel drive models)
Center differential lock indicator light∗3
(four−wheel drive models) Automatic transmission indicator lights
Low speed four−wheel drive indicator light∗3
(four−wheel drive models)
Vehicle stability control system off
indicator/warning light∗1
Front fog light indicator light
Cruise control indicator light∗5
Height control OFF" indicator light∗4
Height control indicator lights

10
∗1: For details, see Service reminder indicators and warning
buzzers" on page 149 in Section 1−6.
∗2: For details, see Roll sensing of curtain shield airbags off
switch" on page 95 in Section 1−3.
∗3: If this light flashes, see Four−wheel drive system" on page
168 in Section 1−7.
∗4: If this light flashes, see Rear height control air suspension"
on page 191 in Section 1−7.
∗5: If this light flashes, see Cruise control" on page 203 in
Section 1−7.

11
OPERATION OF INSTRUMENTS AND
CONTROLS
Keys and Doors
Keys12
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . .
Engine immobilizer system 14
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wireless remote control 15
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Side doors 22
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Power windows 27
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Power back window 30
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . .
Back door 32
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . .
Hood 34
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Theft deterrent system 35
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Fuel tank cap 37
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Electric moon roof 39
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
SECTION 1− 2

12
CY12049
Your vehicle is supplied with the two
kinds of keys.1. Master keys (black)These keys work in every lock. Your Toyota dealer will
need one of them to make a new key
with a built−in transponder chip.
2. Sub key (gray)This key does not work in the glove box.
A transponder chip for engine immobilizer
system has been placed in the head of
the master and sub keys. These chips are
needed to enable the system to function
correctly, so be careful not to lose these
keys. If you make your own duplicate key,
you will not be able to cancel the system
or start the engine. To protect items locked in the glove box
when using valet parking, leave the sub
key with the attendant.
Since the side doors can be locked with-
out a key, you should always carry a
spare key in case you accidentally lock
your keys inside the vehicle.
CY12022
NOTICE
When using a key containing a trans-
ponder chip, observe the following
precautions:

When starting the engine, do not
use the key with a key ring resting
on the key grip and do not press
the key ring against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts.
Keys
