2008 TOYOTA 4RUNNER weight

86
When the airbags inflate, they produce a
fairly loud noise and release some smoke
and residue along with non−toxic gas. This
does not indicate a fire. This smoke may
remain inside the vehicle for some time,
and may cause some minor irritation to
the eyes, skin or breathing. Be sure to
wash off any residue as soon as possible
to prevent any potential skin irritation with
soap and water. If you can safely exit
from the vehicle, you should do so imme-
diately.
Deployment of the airbags happens in a
fraction of a second, so the airbags must
inflate with considerable force. While the
system is designed to reduce serious inju-
ries, it may also cause minor burns or
abrasions and swelling.
Front seats as well as parts of the front
and rear pillars, front, center and rear
garnish and roof interior may be hot for
several minutes, but the airbags them-
selves will not be hot. The airbags are

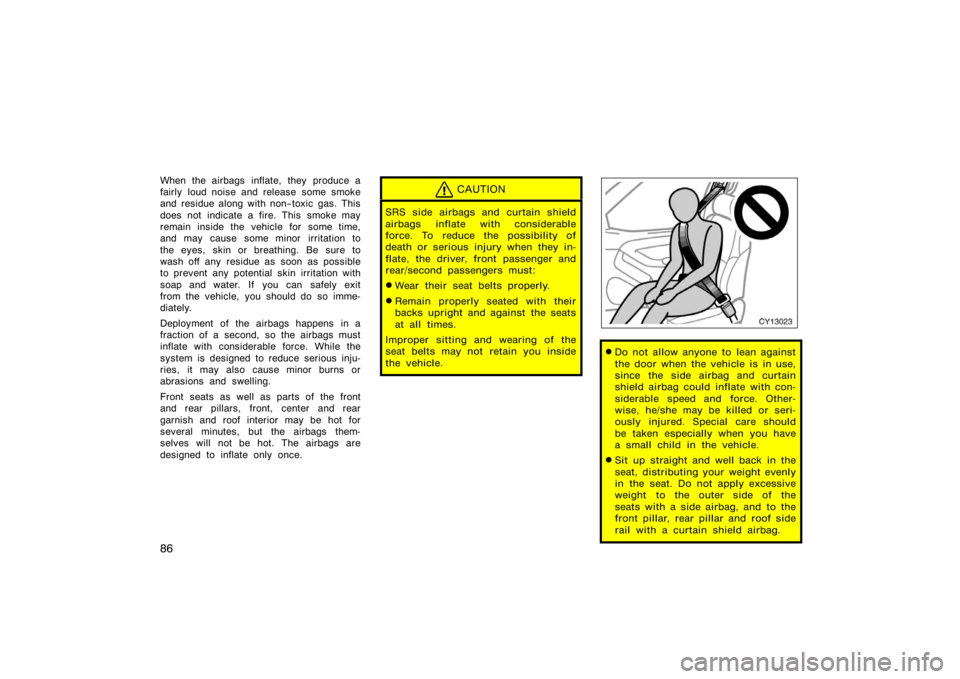

designed to inflate only once.CAUTION
SRS side airbags and curtain shield
airbags inflate with considerable
force. To reduce the possibility of
death or serious injury when they in-
flate, the driver, front passenger and
rear/second passengers must:
Wear their seat belts properly.
Remain properly seated with their
backs upright and against the seats
at all times.
Improper sitting and wearing of the
seat belts may not retain you inside
the vehicle.
CY13023
Do not allow anyone to lean against
the door when the vehicle is in use,
since the side airbag and curtain
shield airbag could inflate with con-
siderable speed and force. Other-
wise, he/she may be killed or seri-
ously injured. Special care should
be taken especially when you have
a small child in the vehicle.
Sit up straight and well back in the
seat, distributing your weight evenly
in the seat. Do not apply excessive
weight to the outer side of the
seats with a side airbag, and to the
front pillar, rear pillar and roof side
rail with a curtain shield airbag.

91
In the following cases, contact your Toyota
dealer as soon as possible:
Any of the SRS side airbags and cur-
tain shield airbags have been inflated.
The portion of the doors (shaded in the
illustration) was involved in an accident
that was not severe enough to cause
the SRS side airbags and curtain
shield airbags to inflate.
The surface of the seats with the side
airbag (shaded in the illustration) is
scratched, cracked, or otherwise dam-
aged.
The portion of the front, center and
rear garnish, and roof interior contain-
ing the curtain shield airbags inside
(shaded in the illustration) is scratched,
cracked, or otherwise damaged.
NOTICE
Do not disconnect the battery cables
before contacting your Toyota dealer.
Your vehicle is equipped with a front
passenger occupant classification sys-
tem. This system detects the conditions
14 in the table on page 93 and based
on these conditions activates or deacti-
vates the following systems;
Front passenger airbag
Side airbag on the front passenger
seat
Front passenger ’s seat belt pretension-
er
The system monitors the weight and
load on the front passenger seat, and
the seat belt buckle switch to determine
conditions 14.
In order for the system to detect the
conditions correctly, do not do any of
the following:
Apply a heavy load to the front pas-
senger seat.
Attach a commercial seatback table,
etc. to the front passenger seatback.
Put weight on the front passenger seat
by putting your hands or feet on the
seatback from the rear passenger seat.
CY13267a
The front passenger occupant classifi-
cation indicator light indicates the ac-
tuation of the front passenger airbag,
side airbag on the front passenger seat
and front passenger’s seat belt preten-
sioner.
The indicator light will indicate OFF"
when the engine switch is in the ON"
position with the condition 2 in the table
shown below.
Front passenger occupant
classification system

94

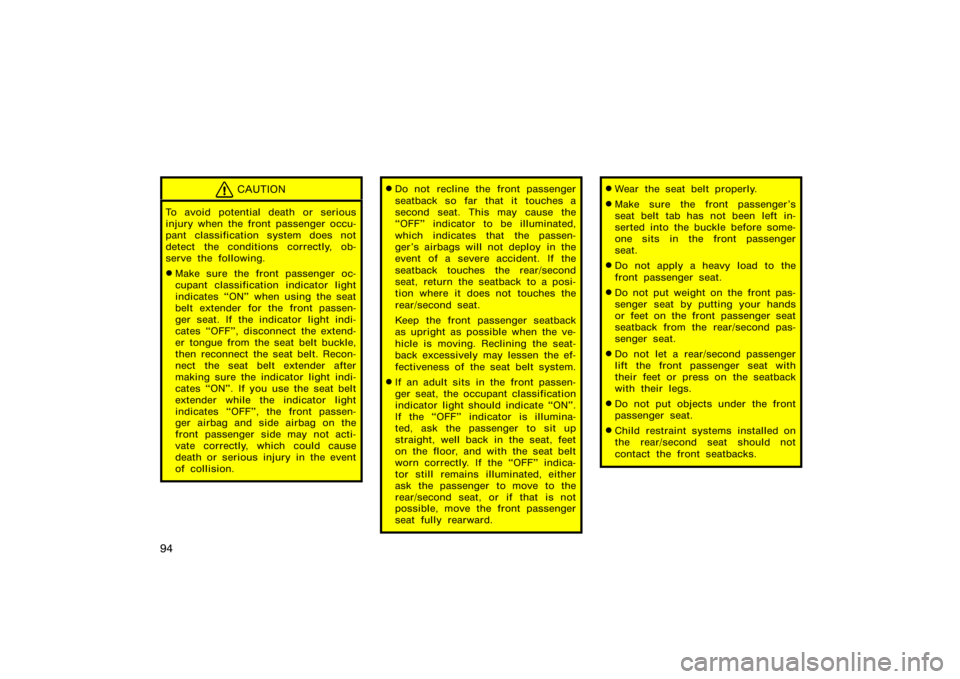

CAUTION
To avoid potential death or serious
injury when the front passenger occu-
pant classification system does not
detect the conditions correctly, ob-
serve the following.
Make sure the front passenger oc-
cupant classification indicator light
indicates ON" when using the seat
belt extender for the front passen-
ger seat. If the indicator light indi-
cates OFF", disconnect the extend-
er tongue from the seat belt buckle,
then reconnect the seat belt. Recon-
nect the seat belt extender after
making sure the indicator light indi-
cates ON". If you use the seat belt
extender while the indicator light
indicates OFF", the front passen-
ger airbag and side airbag on the
front passenger side may not acti-
vate correctly, which could cause
death or serious injury in the event
of collision.
Do not recline the front passenger
seatback so far that it touches a
second seat. This may cause the
OFF" indicator to be illuminated,
which indicates that the passen-
ger’s airbags will not deploy in the
event of a severe accident. If the
seatback touches the rear/second
seat, return the seatback to a posi-
tion where it does not touches the
rear/second seat.
Keep the front passenger seatback
as upright as possible when the ve-
hicle is moving. Reclining the seat-
back excessively may lessen the ef-
fectiveness of the seat belt system.
If an adult sits in the front passen-
ger seat, the occupant classification
indicator light should indicate ON".
If the OFF" indicator is illumina-
ted, ask the passenger to sit up
straight, well back in the seat, feet
on the floor, and with the seat belt
worn correctly. If the OFF" indica-
tor still remains illuminated, either
ask the passenger to move to the
rear/second seat, or if that is not
possible, move the front passenger
seat fully rearward.
Wear the seat belt properly.
Make sure the front passenger’s
seat belt tab has not been left in-
serted into the buckle before some-
one sits in the front passenger
seat.
Do not apply a heavy load to the
front passenger seat.
Do not put weight on the front pas-
senger seat by putting your hands
or feet on the front passenger seat
seatback from the rear/second pas-
senger seat.
Do not let a rear/second passenger
lift the front passenger seat with
their feet or press on the seatback
with their legs.
Do not put objects under the front
passenger seat.
Child restraint systems installed on
the rear/second seat should not
contact the front seatbacks.

102

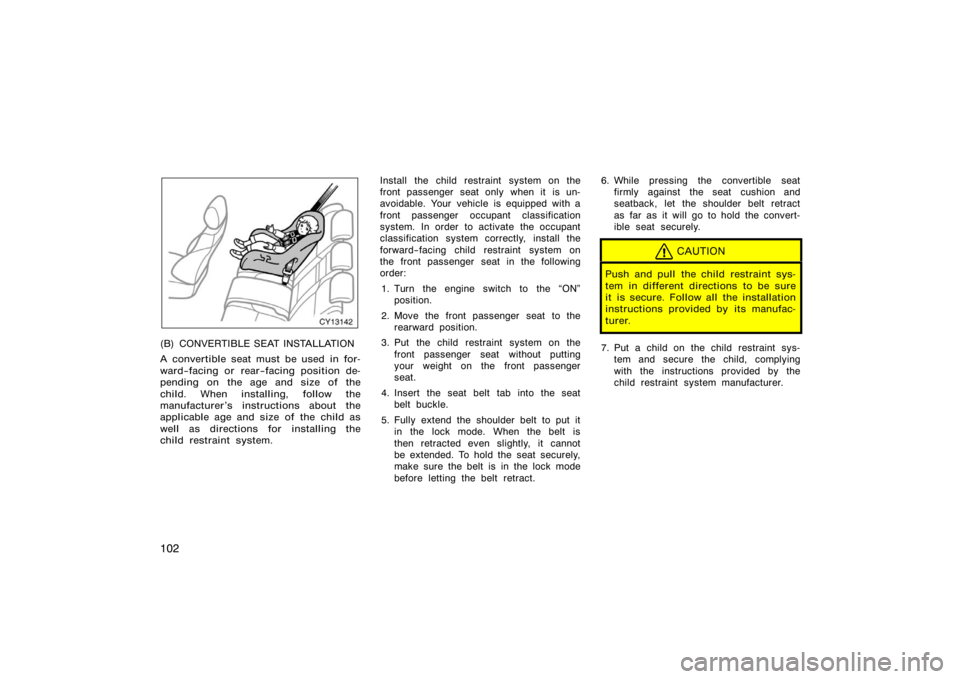

CY13142
(B) CONVERTIBLE SEAT INSTALLATION
A convertible seat must be used in for-
ward−facing or rear−facing position de-
pending on the age and size of the
child. When installing, follow the
manufacturer’s instructions about the
applicable age and size of the child as
well as directions for installing the
child restraint system.Install the child restraint system on the
front passenger seat only when it is un-
avoidable. Your vehicle is equipped with a
front passenger occupant classification
system. In order to activate the occ
upant
classification system correctly, install the
forward−facing child restraint system on
the front passenger seat in the following
order:
1. Turn the engine switch to the ON" position.
2. Move the front passenger seat to the rearward position.
3. Put the child restraint system on the front passenger seat without putting
your weight on the front passenger
seat.
4. Insert the seat belt tab into the seat belt buckle.
5. Fully extend the shoulder belt to put it in the lock mode. When the belt is
then retracted even slightly, it cannot
be extended. To hold the seat securely,
make sure the belt is in the lock mode
before letting the belt retract. 6. While pressing the convertible seat
firmly against the seat cushion and
seatback, let the shoulder belt retract
as far as it will go to hold the convert-
ible seat securely.
CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.
7. Put a child on the child restraint sys-tem and secure the child, complying
with the instructions provided by the
child restraint system manufacturer.

153
(b) Driver’s Seat Belt Reminder Lightand Buzzer
The light and buzzer act as a reminder to
buckle up the driver’s seat belt.
Once the engine switch is turned to ON"
or START", the reminder light flashes and
buzzer come on if the driver’s seat belt
is not fastened. Unless the driver fastens
the belt, the light continues flashing and
the buzzer sounds for about 4 to 8 se-
conds.
If the vehicle speed rises above 20 km/h
(12 mph) with the seat belt unfastened,
the buzzer will sound for about 10 sec-
onds. Then, if the seat belt is still unfas-
tened, the buzzer will sound in a different
tone for 20 seconds. Even if the vehicle
speed drops below 20 km/h (12 mph), the
buzzer will continue to sound. To stop the
buzzer, fasten the seat belt. If the buzzer
still sounds, make sure the front passen-
ger ’s seat belt is fastened.
The vehicle speed linked seat belt remind-
er buzzer can be disabled. For details,
contact your Toyota dealer.
However, Toyota recommends that the
seat belt reminder buzzer be operational
to alert the driver and front passenger that
the seat belts are not fastened. The buzzer can be disabled. For details,
contact your Toyota dealer.
(c) Front Passenger ’s Seat Belt
Reminder Light and Buzzer
The light and buzzer act as a reminder to
have the front passenger buckle up the
seat belt.
Once the engine switch is turned to the
ON" position, the reminder light flashes if
a passenger sits in the front passenger
seat and does not fasten the seat belt.
If the vehicle speed rises above 20 km/h
(12 mph) with the seat belt unfastened,
the buzzer will sound for 10 seconds.
Then, if the seat belt is still unfastened,
the buzzer will sound in a different tone
for 20 seconds. Even if the vehicle speed
drops below 20 km/h (12 mph), the buzzer
will continue to sound. To stop the buzzer,
fasten the seat belt. If the buzzer still
sounds, make sure the driver ’s seat belt
is fastened.
The buzzer can be disabled. For details,
contact your Toyota dealer.
If luggage or other load is placed on the
front passenger seat, depending on its
weight, the reminder light to flash and
buzzer to sounds.
The vehicle speed linked seat belt remind-
er buzzer can be disabled. For details,
contact your Toyota dealer.

335
The roof luggage carrier consists of
roof rails (1) attached to the roof and
sliding cross rails (2).
To adjust the positions of cross rails, do
this.1. Turn the knobs counterclockwise to loosen the cross rails.
2. Slide the cross rails to the desired position for loading the luggages of
various sizes.
3. After adjusting, be sure to tighten the cross rails by turning knobs clockwise.
Follow the manufacturer ’s instructions and
precautions when installing the attach-
ments or their equivalent.
When there is no luggage on the roof
luggage carrier, Toyota recommends that
the front and rear cross rails be secured
in the positions indicated in the illustra-
tion, according to the following procedure.
This may diminish wind noise during driv-
ing.CAUTION
When you load cargo on the roof lug-
gage carrier, observe the following:
Place the cargo so that its weight
is distributed evenly between the
front and rear axles.
If loading long or wide cargo, never
exceed the vehicle overall length or
width. (See Dimensions and
weights" on page 462 in Section 8
for information on your vehicle
overall length and width.)
Before driving, make sure the cargo
is securely fastened on the roof
luggage carrier.
Loading cargo on the roof luggage
carrier will make the center of the
vehicle gravity higher. Avoid high
speeds, sudden starts, sharp turns,
sudden braking or abrupt maneu-
vers, otherwise it may result in loss
of control or vehicle rollover due to
failure to operate this vehicle cor-
rectly.
If driving for a long distance, on
rough roads, or at high speeds,
stop the vehicle now and then dur-
ing the trip to make sure the cargo
remains in its place.
Do not exceed 54 kg (120 lb.) cargo
weight on the roof luggage carrier.
NOTICE
When loading the luggages, be careful
not to scratch the surface of the
moon roof.

357
Ti r e relat ed ter m
Meaning
Cold tire inflation pressure
tire inflation pressure when the vehicle has been parked for at least 3 hours
or more, or it has not been driven more than 1.5 km or 1 mile under that
condition
Maximum inflation pressurethe maximum cold inflation
pressure to which a tire may be inflated and it is
shown on the sidewall of the tire
Recommended inflation pressurecold tire inflation pressure recommended by a manufacturer
Accessory weight
the combined weight (in excess of those standard items which may be replaced)
of automatic transmission, power steering, power brakes, power windows, pow-
er seats, radio, and heater, to the extent that these items are available as
factory−installed equipment (whether installed or not)
Curb weight
the weight of a motor vehicle with standard equipment including the maximum
capacity of fuel, oil, and coolant, and, if so equipped, air conditioning and addi-
tional weight optional engine
Maximum loaded vehicle weight
the sum of
(a) curb weight;
(b) accessory weight;
(c) vehicle capacity weight; and
(d) production options weight
Normal occupant weight68 kg (150 lb.) times the number of occupants specified in the second column
of Table 1 that follows
Glossary of tire terminology

358Ti r e relat ed ter m
Meaning
Occupant distributiondistribution of occupants in a vehicle as specified in the third column of Table
1 that follows
Production options weight
the combined weight of those installed regular production options weighing over
2.3 kg (5 lb.) in excess of those standard items which they replace, not pre-
viously considered in curb weight or accessory weight, including heavy duty
brakes, ride levelers, roof rack, heavy duty battery, and special trim
Rima metal support for a tire or a tire and
tube assembly upon which the tire beads
are seated
Rim diameter (Wheel diameter)nominal diameter of the bead seat
Rim size designationrim diameter and width
Rim type designationthe industry of manufacturer ’s designation for a rim by style or code
Rim widthnominal distance between rim flanges
Vehicle capacity weight
(Total load capacity)the rated cargo and luggage load plus 68 kg (150 lb.) times the vehicle’s desig-
nated seating capacity
Vehicle maximum load on the tirethe load on an individual tire that is determined by distributing to each axle
its share of the maximum loaded vehi cle weight and dividing by two
Vehicle normal load on the tire
the load on an individual tire that is determined by distributing to each axle
its share of the curb weight, accessory weight, and normal occupant weight
(distributed in accordance with Table 1 that follows) and dividing by two
