2008 TOYOTA 4RUNNER inflation pressure

viii
Installation of a mobiletwo−way radio system
As the installation of a mobile two−way radio system in
your vehicle could affect electronic systems such as fol-
lows, be sure to check with your Toyota dealer for precau-
tionary measures or special instructions regarding installa-
tion.
Multiport fuel injection system/sequential multiport
fuel injection system
 SRS airbag system
 Seat belt pretensioner system
 Traction control system (two−wheel drive models)
 Active traction control system
(four−wheel drive models)
 AUTO LSD" system (two−wheel drive models)
 Vehicle stability control system
 Downhill assist control system
(four−wheel drive models)
 Hill−start assist control system
 Rear height control air suspension
Tire pressure warning system
 Cruise control system
 Anti−lock brake system
 Electronic throttle control system
Tires and loading on your
To y o t a
Underinflated or overinflated tire pressure and the
excess load may result in the deterioration of
steering ability and braking ability, leading to an
accident. Check the tire inflation pressure periodi-
cally and be sure to keep the load limits given in
this Owner ’s Manual. For details about tire inflation
pressure and load limits, see pages 441 and 364.

150
If the indicator or buzzer comes on...Do this.
(h)Replace engine oil.
(i)orTake vehicle to Toyota dealer. If brake system warning light is also on, stop
immediately and contact Toyota dealer.
(j)If the light flashes, take vehicle to Toyota dealer.
(k)Close all side doors and back door.
(l)Take vehicle to Toyota dealer immediately.
(m)Stop and check.
(n)Adjust tire inflation pressure (including spare tire). If the warning light comes on after
blinking for 1 minute, contact Toyota dealer.

158
The SRS warning light will come on and
front passenger occupant classification in-
dicator light will indicate OFF" if there is
a malfunction in the front passenger occu-
pant classification system.
(m) Automatic Transmission FluidTemperature Warning Light
(four−wheel drive models)
This light warns that the automatic trans-
mission fluid temperature is too high.
If this light comes on while you are driv-
ing, slow down and pull off the road. Stop
the vehicle at a safe place and put the
selector lever in P". With the engine id-
ling, wait until the light goes off. If the
light goes off, you may start the vehicle
again. If the light does not go off, call a
Toyota dealer or qualified repair shop for
assistance.
NOTICE
Continued driving with the warning
light on may damage the automatic
transmission.
(n) Tire Pressure Warning Light
This light warns that the tire pressure of
one or more of your tires (including the
spare tire) is low. The light comes on
when the engine switch is turned to the
ON" position. It goes off after a few sec-
onds. This indicates that the tire pressure
warning system is functioning properly.
If the warning light comes on, stop your
vehicle in a safe place as soon as pos-
sible and check that the inflation pressure
of all tires (including the spare tire) is as
specified on the tire and loading informa-
tion label. (See Checking tire inflation
pressure" on page 441 in Section 7−2.)
The light should go off a few minutes after
the tire pressure is adjusted.
If the warning light comes on after blink-
ing for 1 minute, the tire pressure warning
system may be malfunctioning. Contact
your Toyota dealer.
For details, see Tire pressure warning
system" on page 197 in Section 1−7. (o) Low Windshield Washer Fluid Level
Warning Light (for vehicles sold in
Canada)
The light warns that the windshield washer
fluid level is too low. Add washer fluid at
your earliest opportunity. (For instructions,
see Adding washer fluid" on page 453 in
Section 7−3.)
(p) Key Reminder Buzzer
This buzzer acts as a reminder to remove
the key when you open the driver’s door
with the engine switch in the ACC" or
LOCK" position.
(q) Parking Brake Reminder Buzzer
The buzzer acts once when the parking
brake is not completely released at the
vehicle speed of 5 km/h (3 mph) or more.
Stop the vehicle and release the parking
brake fully.

197
The tire pressure warning system warns
you that the tire inflation pressure is
low.
The tire pressure warning system is not
a substitute for checking normal tire infla-
tion pressure. Check the tire inflation
pressure with a tire pressure gauge regu-
larly.
CAUTION
The warning system may not activate
immediately if blowout or sudden air
loss should occur.
CY16069
Ty p e A
CY16068
Ty p e B
The tire pressure warning light comes on
when the engine switch is in ON" position
and goes off after a few seconds. This
means the tire pressure warning system is
operating properly. If the tire inflation pres-
sure becomes low, the light comes on
again. In this case, adjusting the tire infla-
tion pressure will turn off the light after a
few minutes. If the light comes on after
blinking for 1 minute, the tire pressure
warning system is not working properly.Indicatorstatus
MeaningsDo this
ON
Tire inflation
pressure is
lowAdjust the
tire
inflation
pressure
ON after
blinking for
1 minuteTire pressure
warning
system
malfunctionHave the
system
checked at
your Toyota
dealer
Tire pressure warning system

198
CAUTION
If the tire pressure warning light
comes on, be sure to observe the
following precautions. Failure to do
so could cause loss of vehicle control
and result in death or serious injury.
Stop your vehicle in a safe place as
soon as possible. Adjust the tire
inflation pressure immediately.
If the tire pressure waring light
comes on even after tire inflation
pressure adjustment, it is probable
that you have a flat tire. Check the
tires. If the tire is flat, change to
the spare tire and have the flat tire
repaired by the nearest Toyota deal-
er.
Avoid abrupt maneuvering and brak-
ing. If the vehicle tires deteriorate,
you could lose control of the steer-
ing wheel or the brakes.
The tire pressure warning light may turn
on due to natural causes such as natural
air leaks or tire inflation pressure changes
caused by temperature. In this case, ad-
justing the tire inflation pressure will turn
off the light after a few minutes.
The spare tire is also equipped with the
tire pressure warning valve and transmit-
ter. The tire pressure waning light will turn
on if the tire inflation pressure of the
spare tire is low. If a tire goes flat, even
though the flat tire is replaced with the
spare tire, the warning light does not turn
off. Replace the spare tire with the re-
paired tire and adjust the proper tire infla-
tion pressure. The tire pressure warning
light will turn off after a few minutes.CAUTION
Each tire, including the spare (if pro-
vided), should be checked monthly
when cold and inflated to the inflation
pressure recommended by the vehicle
manufacturer on the vehicle placard
or tire inflation pressure label (tire
and load information label). (If your
vehicle has tires of a different size
than the size indicated on the vehicle
placard or tire inflation pressure label
(tire and load information label), you
should determine the proper tire infla-
tion pressure for those tires.)

199
As an added safety feature, your ve-
hicle has been equipped with a tire
pressure monitoring system (TPMS−
tire pressure warning system) that il-
luminates a low tire pressure telltale
(tire pressure warning light) when one
or more of your tires is significantly
under−inflated. Accordingly, when the
low tire pressure telltale (tire pres-
sure warning light) illuminates, you
should stop and check your tires as
soon as possible, and inflate them to
the proper pressure. Driving on a sig-
nificantly under−inflated tire causes
the tire to overheat and can lead to
tire failure. Under−inflation also re-
duces fuel efficiency and tire tread
life, and may affect the vehicle’s han-
dling and stopping ability.
Please note that the TPMS (tire pres-
sure warning system) is not a substi-
tute for proper tire maintenance, and
it is the driver ’s responsibility to
maintain correct tire pressure, even if
under−inflation has not reached the
level to trigger illumination of the
TPMS low tire pressure telltale (tire
pressure warning light).Your vehicle has also been equipped
with a TPMS (tire pressure warning
system) malfunction indicator to indi-
cate when the system is not operat-
ing properly. The TPMS (tire pressure
warning system) malfunction indicator
is combined with the low tire pres-
sure telltale (tire pressure warning
light). When the system detects a
malfunction, the telltale will flash for
approximately one minute and then
remain continuously illuminated. This
sequence will continue upon subse-
quent vehicle start−ups as long as
the malfunction exists. When the mal-
function indicator is illuminated, the
system may not be able to detect or
signal low tire pressure as intended.TPMS (tire pressure warning system)
malfunctions may occur for a variety
of reasons, including the installation
of replacement or alternate tires or
wheels on the vehicle that prevent
the TPMS (tire pressure warning sys-
tem) from functioning properly. Al-
ways check the TPMS (tire pressure
warning system) malfunction telltale
after replacing one or more tires or
wheels on your vehicle to ensure that
the replacement or alternate tires and
wheels allow the TPMS (tire pressure
warning system) to continue to func-
tion properly.
NOTICE
 Do not use liquid sealants for a flat
tire as tire pressure warning valve
and transmitter will be damaged.
 When the tires must be repaired or
replaced, have them repaired or re-
placed by the nearest Toyota dealer
or an authorized tire dealer. The
tire pressure warning valves and
transmitters will be affected by the
installation or removal of tires.

200

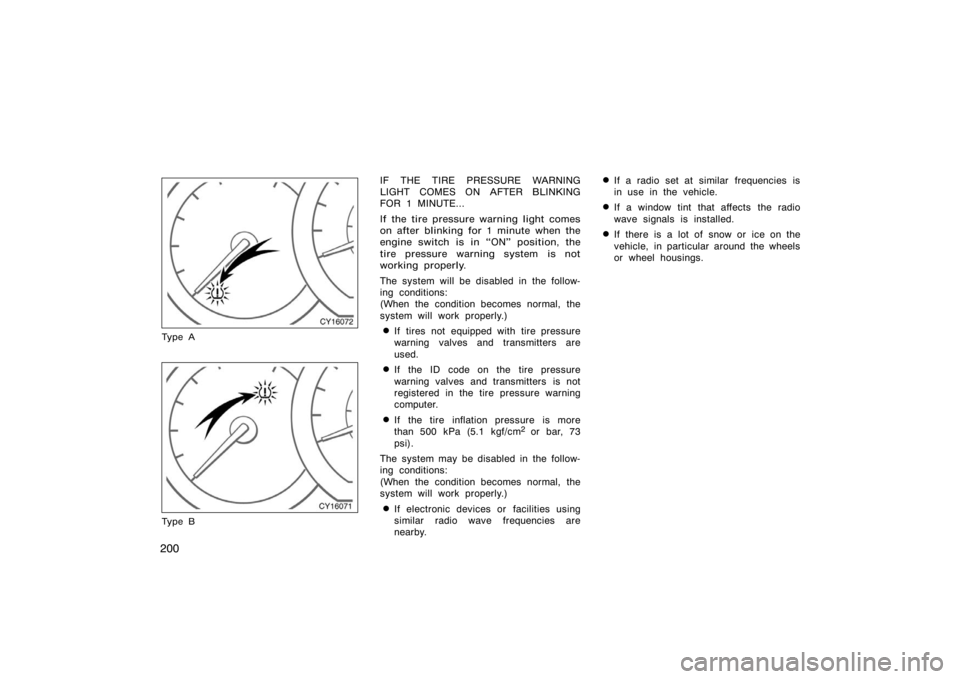

CY16072
Ty p e A
CY16071
Ty p e B
IF THE TIRE PRESSURE WARNING
LIGHT COMES ON AFTER BLINKING
FOR 1 MINUTE...
If the tire pressure warning light comes
on after blinking for 1 minute when the
engine switch is in ON" position, the
tire pressure warning system is not
working properly.
The system will be disabled in the follow-
ing conditions:
(When the condition becomes normal, the
system will work properly.)
If tires not equipped with tire pressure
warning valves and transmitters are
used.
If the ID code on the tire pressure
warning valves and transmitters is not
registered in the tire pressure warning
computer.
If the tire inflation pressure is more
than 500 kPa (5.1 kgf/cm2
or bar, 73
psi).
The system may be disabled in the follow-
ing conditions:
(When the condition becomes normal, the
system will work pr operly.)
If electronic devices or facilities using
similar radio wave frequencies are
nearby.
If a radio set at similar frequencies is
in use in the vehicle.
If a window tint that affects the radio
wave signals is installed.
If there is a lot of snow or ice on the
vehicle, in particular around the wheels
or wheel housings.

353
7. TUBELESS" or TUBE
TYPE" A tubeless tire does not
have a tube inside the tire and air
is directly filled in the tire. A tube
type tire has a tube inside the tire
and the tube maintains the air
pressure.
8. Load limit at maximum cold tire inflation pressure For details,
see Checking and replacing tires"
on page 443.
9. Maximum cold tire inflation pressure This means the pres-
sure to which a tire may be in-
flated. For details about recom-
mended cold tire inflation
pressure, see Tires" on page 467.
10.Summer tire or all season tireAn all season tire has M+S"
on the sidewall. The tire not
marked with M+S" is a summer
tire. For details, see Types of
tires" on page 368.

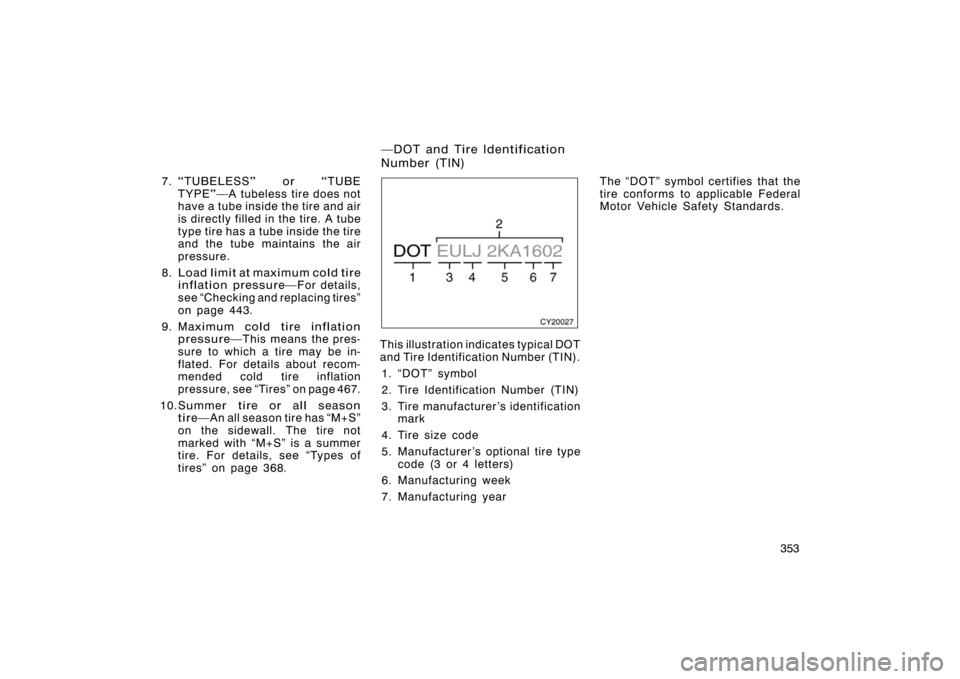

CY20027
This illustration indicates typical DOT
and Tire Identification Number (TIN).
1. DOT" symbol
2. Tire Identification Number (TIN)
3. Tire manufacturer ’s identification mark
4. Tire size code
5. Manufacturer ’s optional tire type code (3 or 4 letters)
6. Manufacturing week
7. Manufacturing year The DOT" symbol certifies that the
tire conforms to applicable Federal
Motor Vehicle Safety Standards.
DOT and Tire Identification
Number (TIN)
