2008 PONTIAC G8 Owners Manual

Service Charging System
This message is displayed when
there is a fault in the battery
charging system, see your
dealer/retailer.
You can press
3or8to
acknowledge that you received the
message, but
"Low Batt will
continue to appear in the bottom of
the DIC display until the vehicle
has been serviced.
:Service Engine Oil
This message is displayed when the
engine oil needs to be changed.
When you change the engine oil, be
sure to reset the Oil Life System.
SeeEngine Oil Life System on
page 9-10for information on how to
reset the message. SeeEngine
Oil on page 9-8andScheduled
Maintenance on page 11-4for more
information.
vService Vehicle Soon
This message is displayed when
there is a problem with the vehicle,
see your dealer/retailer.
You can press
3or8to
acknowledge that you received the
message, but
*Service will
continue to appear in the bottom of
the DIC display until the vehicle
has been serviced.
DSport Shift
This message is displayed when the
automatic transmission is operating
in sport shift mode.
SeeAutomatic Transmission
Operation on page 8-6.
LStability Ctrl (Control)
Assistance
This message is displayed when the
Electronic Stability Program
(ESP
®) is actively helping the
vehicle with road grip and stability.
ESP CTRL appears at the bottom
of the display and remains
illuminated as long as the ESP is
actively helping with road grip
and stability. SeeElectronic Stability
Program on page 8-16.
FStability Ctrl (Control) Off
This message is displayed when the
ESP has been turned off.
SeeElectronic Stability Program on
page 8-16. If this message is
displayed and you have not turned
off the ESP, it means there is a
problem with the ESP, see
your dealer/retailer.
Instruments and Controls 4-31
2008 - Pontiac G8 Owner Manual

You can press3or8to
acknowledge that you received the
message, but ESP OFF will
continue to appear in the bottom of
the DIC display until the vehicle
has been serviced.
7Check XX Tire Pressure
This message is displayed when the
ination pressure is low or very
low in the indicated tire.
You can press
3or8to
acknowledge that you received the
message, but
7LF Tire,7RF
Tire,
7LR Tire, or7RR Tire will
continue to appear in the bottom
of the DIC display until the tire
pressure is at a normal level. See
Tire Pressure Monitor System
on page 9-49for more information.
7Tire Pressure System
Fault
This message is displayed when
there is a problem with the Tire
Pressure Monitor System.
You can press
3or8to
acknowledge that you received the
message, but
7Tire Fault will
continue to appear in the bottom of
the DIC display until the tire
pressure is at a normal level. See
Tire Pressure Monitor System
on page 9-49for more information.
xVery Low Fuel
This message is displayed when the
fuel level is very low.
You can press
3or8to
acknowledge that you received the
message, but
.V.Low Fuel will
continue to appear in the bottom of
the DIC display until enough fuel
tank has been lled above the
low fuel level.
DIC Vehicle
Customization
Your vehicle has features that you
can customize through the DIC.
Using the Customization Menu
Press3until you see Customize
Options and then press
8. The
customization options will only be
available when the vehicle speed is
less than 6 mph (10 km/h). If the
vehicle is moving faster than that the
display will show Not Available.
Move the thumbwheel up
Q
or downRto scroll through the
available options. Press
8to select
an item. To exit the current
menu, or go back, use the
thumbwheel to select
qat the top
of the screen and then press
8.
4-32 Instruments and Controls
2008 - Pontiac G8 Owner Manual

The following items are part of the
main customization menu.
Exit
Reset settings
Security
Lighting
Trip Computer
Language
Remote key
See the information following for
detailed descriptions of the
items available under each menu
item. There are also help screens
available to explain the features.
When selecting a menu item,
wait for a few seconds and a help
screen pops up with an explanation
of the selected feature.
Exit
To exit the customization menu
scroll to Exit and press
8.
You can also exit the customization
menu by:
Press3at any time to return
to the trip/fuel menu.
Drive the vehicle at more than
6 mph (10 km/h).
Turn the ignition off.
Reset settings
This item will reset all the
customization options to the factory
defaults.
Security
This item will allow you to
customize:
Auto unlock
Auto lock
Flash remote lck (lock)
Beep remote lck (lock)
Flash rem (remote) unlock
2 Stage unlock
Remote Start
Some of these work with your
Remote Keyless Entry (RKE)
transmitter. SeeRemote Keyless
Entry (RKE) System Operation
on page 2-4for more information.
Auto unlock
If you select Auto unlock you will be
able to choose when you want
the doors to unlock automatically.
Off:No automatic unlock of
any doors.
Driver door key out:The driver
door will unlock when the key
is removed.
Driver door in park:The driver
door will unlock when you put
the shift lever into PARK (P).
All doors at key out:All doors will
unlock when the key is removed.
Instruments and Controls 4-33
2008 - Pontiac G8 Owner Manual

All doors in park:All doors will
unlock when you put the shift lever
into PARK (P).
Auto lock
If you select Auto lock you will be
able to choose when you want
the doors to lock automatically.
At vehicle speed:The doors will
lock when the vehicle speed is at or
above 8 mph (13 km/h).
Out of Park:The doors will lock
when you move the shift lever out of
PARK (P).
Flash remote lock
If you select Flash remote lock you
will be able to choose if the
parking lamps will ash when you
lock the doors with the RKE
transmitter.
Beep remote lock
If you select Beep remote lock you
will be able to choose if the horn
will sound when you lock the doors
with the RKE transmitter.Flash remote unlock
If you select Flash remote unlock
you will be able to choose if
the parking lamps will ash when
you unlock the doors with the
RKE transmitter.
2 Stage unlock
If you select 2 stage unlock you will
be able to choose if you want
only the driver door to unlock with
the rst press of the unlock
button on the RKE transmitter.
Remote Start
If you select Remote start you will
be able to enable or disable
the remote start feature. See
Remote Vehicle Start on page 2-6
for more information.Lighting
This item will allow you to
customize:
Approach lighting
Egress lighting timer
Approach lighting
If you select Approach lighting you
will be able to choose if you
want the exterior lamps to turn on
when you unlock the doors with the
RKE transmitter.
Egress lighting timer
If you select Egress lighting timer you
will be able to choose if, and for how
long, the exterior lamps should stay
on when you lock the doors.
Trip Computer
This item will allow you to
customize:
Underspeed Chime
Distance to go
Distance to go Default
4-34 Instruments and Controls
2008 - Pontiac G8 Owner Manual

Digital speedo (speedometer)
Pressure Units
Rest reminder
Underspeed Chime
If you select Underspeed Chime you
will be able to enable or disable
the underspeed chime feature. See
DIC Operation and Displays on
page 4-23for more information.
Distance to go
If you select Distance to go you will
be able to choose if you want
the distance to go display to to be
shown on the DIC. SeeDIC
Operation and Displays on
page 4-23for more information.
Distance to go Default
If you select Distance to go Default
you will be able to change the
distance to go default setting. The
default setting is 500 km. Set
the value you want it to be.Digital speedometer
If you select Digital speedometer
you will be able to choose if
you want the digital speedometer to
be shown on the DIC display.
Pressure Units
If you select Pressure Units you can
choose how the tire pressures will
be displayed. If you select PSI
then all tire pressures will be
displayed in PSI. If you select kPa
then all tire pressures will be
displayed in kPa. If you select
Automatic and the Unit selection is
English then all tire pressures
will be displayed in PSI. If you select
Automatic and the Unit selection
is Metric then all tire pressures will
be displayed in kPa.
Rest reminder
If you select Rest reminder you will
be able to enable or disable the
rest reminder feature. SeeDIC
Warnings and Messages on
page 4-27for more information.
Language
This item will allow you to set the
language for the display to English
or French.
Remote Key programming
Choose Program if the vehicle’s
remote keys require programming.
Follow the instructions on the
DIC display to complete key
programming. All the vehicle’s keys
must be programmed at the
same time. If an existing key is not
reprogrammed during the
procedure it will no longer work.
Choose Instructions if information is
required to complete programming
procedure.
Choose Exit to return to the
customization menu.
SeeRemote Keyless Entry (RKE)
System Operation on page 2-4
for more information.
Instruments and Controls 4-35
2008 - Pontiac G8 Owner Manual

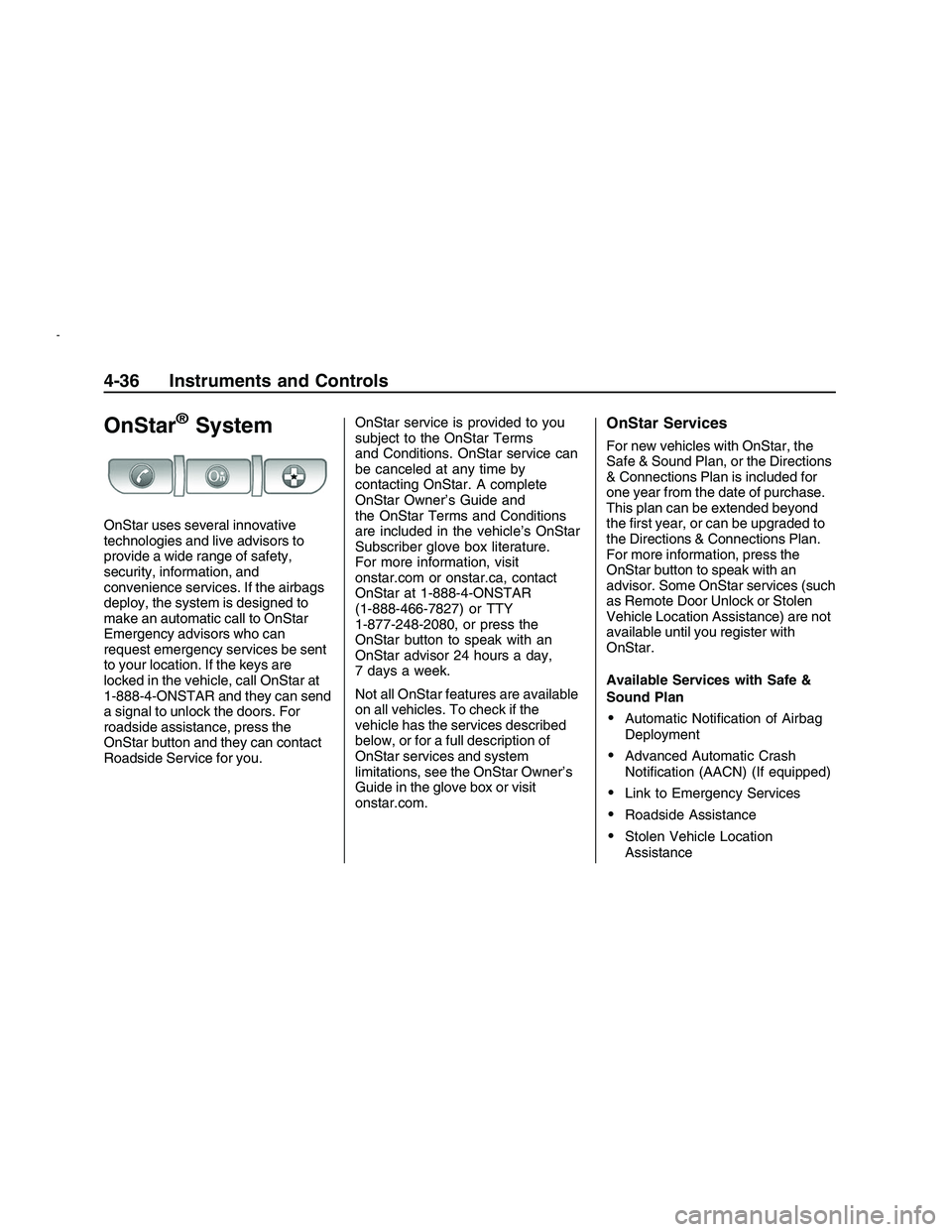

OnStar®System
OnStar uses several innovative
technologies and live advisors to
provide a wide range of safety,
security, information, and
convenience services. If the airbags
deploy, the system is designed to
make an automatic call to OnStar
Emergency advisors who can
request emergency services be sent
to your location. If the keys are
locked in the vehicle, call OnStar at
1-888-4-ONSTAR and they can send
a signal to unlock the doors. For
roadside assistance, press the
OnStar button and they can contact
Roadside Service for you.OnStar service is provided to you
subject to the OnStar Terms
and Conditions. OnStar service can
be canceled at any time by
contacting OnStar. A complete
OnStar Owner’s Guide and
the OnStar Terms and Conditions
are included in the vehicle’s OnStar
Subscriber glove box literature.
For more information, visit
onstar.com or onstar.ca, contact
OnStar at 1-888-4-ONSTAR
(1-888-466-7827) or TTY
1-877-248-2080, or press the
OnStar button to speak with an
OnStar advisor 24 hours a day,
7 days a week.
Not all OnStar features are available
on all vehicles. To check if the
vehicle has the services described
below, or for a full description of
OnStar services and system
limitations, see the OnStar Owner’s
Guide in the glove box or visit
onstar.com.
OnStar Services
For new vehicles with OnStar, the
Safe & Sound Plan, or the Directions
& Connections Plan is included for
one year from the date of purchase.
This plan can be extended beyond
the rst year, or can be upgraded to
the Directions & Connections Plan.
For more information, press the
OnStar button to speak with an
advisor. Some OnStar services (such
as Remote Door Unlock or Stolen
Vehicle Location Assistance) are not
available until you register with
OnStar.
Available Services with Safe &
Sound Plan
Automatic Notication of Airbag
Deployment
Advanced Automatic Crash
Notication (AACN) (If equipped)
Link to Emergency Services
Roadside Assistance
Stolen Vehicle Location
Assistance
4-36 Instruments and Controls
2008 - Pontiac G8 Owner Manual

AccidentAssist
Remote Door Unlock/Vehicle
Alert
OnStar Vehicle Diagnostics
GM Goodwrench On Demand
Diagnostics
OnStar Hands-Free Calling with
30 complimentary minutes
OnStar Virtual Advisor
(U.S. Only)
Available Services included with
Directions & Connections Plan
All Safe and Sound Plan Services
Driving Directions - Advisor
delivered or OnStar Turn-by-Turn
Navigation (If equipped)
RideAssist
Information and Convenience
Services
OnStar Hands-Free Calling
OnStar Hands-Free Calling allows
eligible OnStar subscribers to
make and receive calls using voice
commands. Hands-Free Calling
is fully integrated into the vehicle,
and can be used with OnStar
Pre-Paid Minute Packages.
Hands-Free Calling can also be
linked to a Verizon Wireless service
plan in the U.S. or a Bell Mobility
service plan in Canada, depending
on eligibility. To nd out more,
refer to the OnStar Owner’s Guide
in the vehicle’s glove box, visit
www.onstar.com or www.onstar.ca,
or speak with an OnStar advisor
by pressing the OnStar button
or calling 1-888-4-ONSTAR
(1-888-466-7827).
OnStar Virtual Advisor
OnStar Virtual Advisor is a feature
of OnStar Hands-Free Calling
that uses minutes to access
location-based weather, local traffic
reports, and stock quotes. Press
the phone button and give afew simple voice commands to
browse through the various topics.
See the OnStar Owner’s Guide
for more information (only available
in the continental U.S.).
OnStar Steering Wheel
Controls
The vehicle may have a Talk/Mute
button that can be used to interact
with OnStar Hands-Free Calling.
On some vehicles, you may have to
hold the button for a few seconds
and give the command “ONSTAR” in
order to activate the OnStar
Hands-Free Calling feature.
On some vehicles, the mute button
can be used to dial numbers into
voicemail systems, or to dial phone
extensions. See the OnStar Owner’s
Guide for more information.
Instruments and Controls 4-37
2008 - Pontiac G8 Owner Manual

How OnStar Service Works
The OnStar system can record and
transmit vehicle information. This
information is automatically sent to
an OnStar Call Center when the
OnStar button is pressed, the
emergency button is pressed, or if
the airbags or AACN system deploy.
The vehicle information usually
includes your GPS location and, in
the event of a crash, additional
information regarding the accident
that the vehicle has been involved in
(e.g. the direction from which the
vehicle was hit). When the Virtual
Advisor feature of OnStar
Hands-Free Calling is used, the
vehicle also sends OnStar your GPS
location so that we can provide
services where you are located.
OnStar service cannot work unless
the vehicle is in a place where
OnStar has an agreement with a
wireless service provider for service
in that area. OnStar service also
cannot work unless you are in
a place where the wireless service
provider OnStar has hired forthat area has coverage, network
capacity and reception when
the service is needed, and
technology that is compatible with
the OnStar service. Not all services
are available everywhere,
particularly in remote or enclosed
areas, or at all times.
Location information about the
vehicle is only available if the GPS
satellite signals are available
and unobstructed.
The vehicle must have a working
electrical system (including adequate
battery power) for the OnStar
equipment to operate. There are
other problems OnStar cannot
control that may prevent OnStar from
providing OnStar service to you at
any particular time or place. Some
examples are damage to important
parts of the vehicle in an accident,
hills, tall buildings, tunnels, weather
or wireless phone network
congestion.Your Responsibility
Increase the volume of the radio if
you cannot hear the OnStar advisor.
If the light next to the OnStar
buttons is red, the system is not
functioning properly and should be
checked by your dealer/retailer.
If the light appears clear (no light is
appearing), the OnStar subscription
has expired. Press the blue
OnStar button to conrm that the
OnStar equipment is active.
4-38 Instruments and Controls
2008 - Pontiac G8 Owner Manual
