2008 PONTIAC G8 Owners Manual

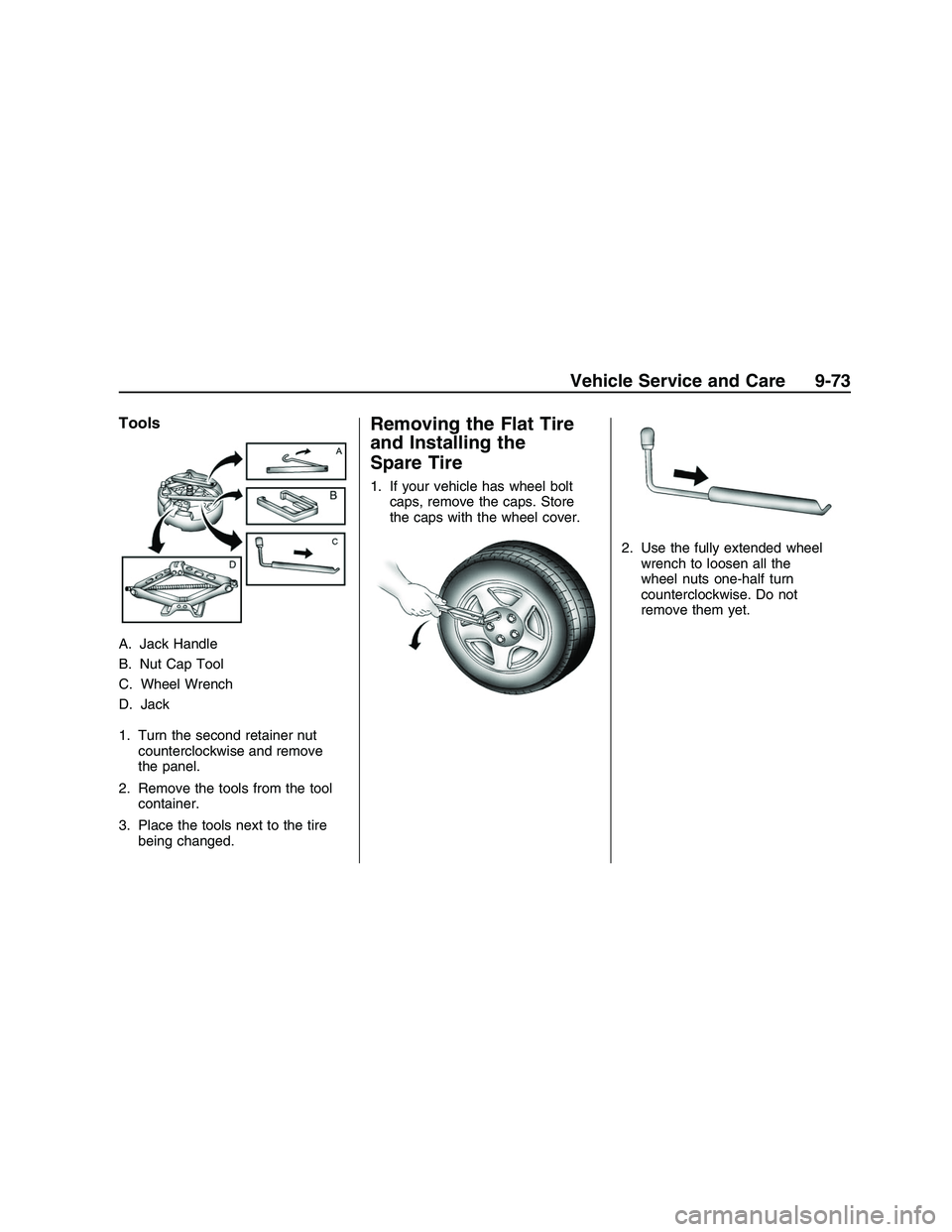

Tools
A. Jack Handle
B. Nut Cap Tool
C. Wheel Wrench
D. Jack
1. Turn the second retainer nut
counterclockwise and remove
the panel.
2. Remove the tools from the tool
container.
3. Place the tools next to the tire
being changed.
Removing the Flat Tire
and Installing the
Spare Tire
1. If your vehicle has wheel bolt
caps, remove the caps. Store
the caps with the wheel cover.
2. Use the fully extended wheel
wrench to loosen all the
wheel nuts one-half turn
counterclockwise. Do not
remove them yet.
Vehicle Service and Care 9-73
2008 - Pontiac G8 Owner Manual

Notice:Make sure that the jack
lift head is in the correct
position or you may damage your
vehicle. The repairs would not
be covered by your warranty.
3. Position the jack lift head at the
jack location nearest the at
tire. The location is indicated by
a mark on the bottom edge
of the vehicle. The jack must not
be used in any other positions.
Raise the jack until it engages
with the jacking point.4. Put the compact spare tire
near you.
{CAUTION
Getting under a vehicle when it
is jacked up is dangerous. If
the vehicle slips off the jack,
you could be badly injured or
killed. Never get under a
vehicle when it is supported
only by a jack.
{CAUTION
Raising your vehicle with the
jack improperly positioned can
damage the vehicle and even
make the vehicle fall. To help
avoid personal injury and
vehicle damage, be sure to t
the jack lift head into the
proper location before raising
the vehicle.5. Fit the jack handle onto the jack
by sliding the hook through the
end of the jack.
9-74 Vehicle Service and Care
2008 - Pontiac G8 Owner Manual

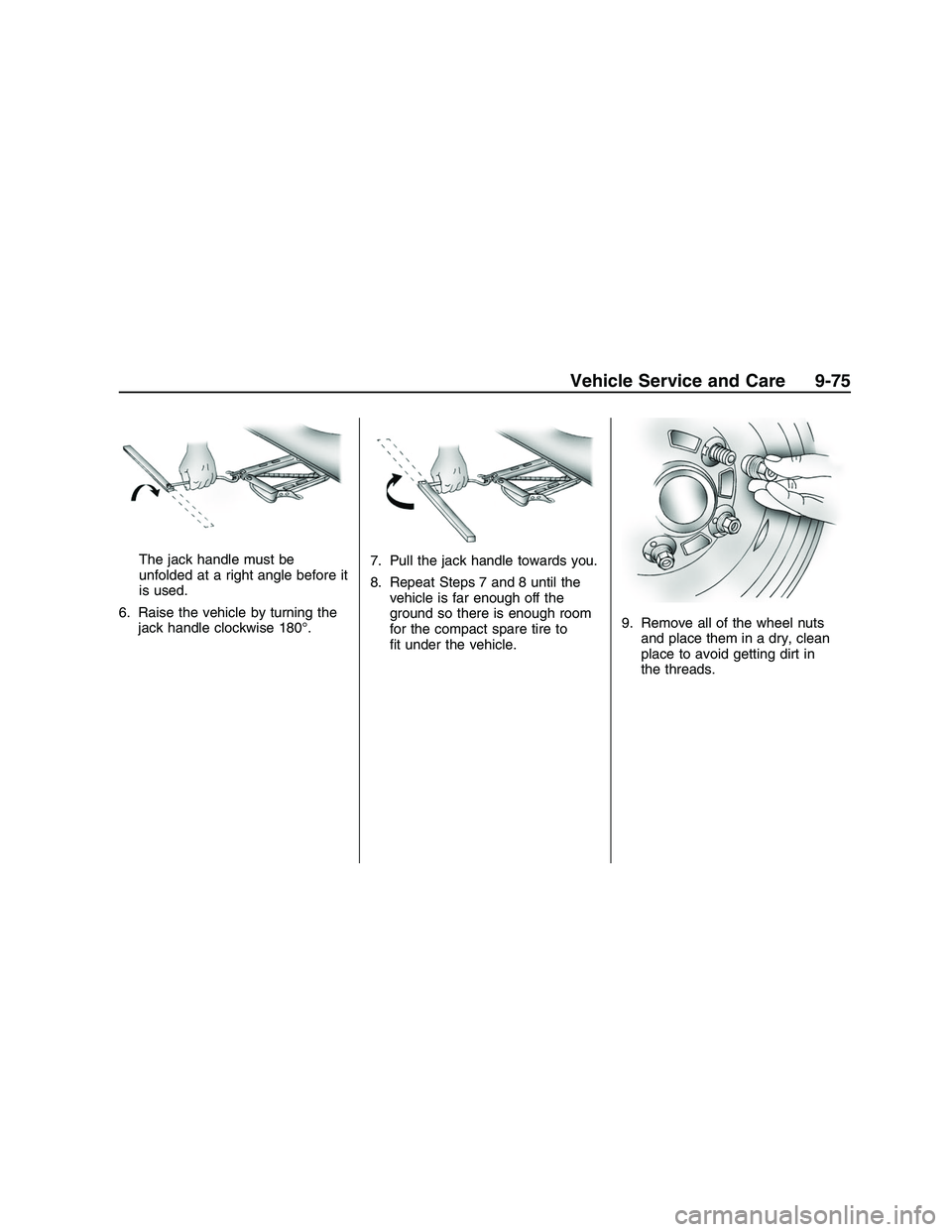

The jack handle must be
unfolded at a right angle before it
is used.
6. Raise the vehicle by turning the
jack handle clockwise 180°.7. Pull the jack handle towards you.
8. Repeat Steps 7 and 8 until the
vehicle is far enough off the
ground so there is enough room
for the compact spare tire to
t under the vehicle.9. Remove all of the wheel nuts
and place them in a dry, clean
place to avoid getting dirt in
the threads.
Vehicle Service and Care 9-75
2008 - Pontiac G8 Owner Manual

{CAUTION
Rust or dirt on a wheel, or on
the parts to which it is
fastened, can make wheel nuts
become loose after time. The
wheel could come off and
cause an accident. When you
change a wheel, remove any
rust or dirt from places where
the wheel attaches to the
vehicle. In an emergency, you
can use a cloth or a paper
towel to do this; but be sure to
use a scraper or wire brush
later, if needed, to get all the
rust or dirt off. SeeChanging a
Flat Tire (V6 Engine) on
page 9-71.10. Remove any rust or dirt from
the wheel bolts, mounting
surfaces and spare wheel.
11. Place the compact spare tire on
the wheel-mounting surface.
{CAUTION
Never use oil or grease on
bolts or nuts. Because the nuts
might come loose. The
vehicle’s wheel could fall off,
causing a crash.
12. Reinstall the wheel nuts with
the rounded end of the nuts
toward the wheel. Tighten each
nut as much as possible
using the wheel wrench until
the wheel is held rmly against
the hub.
Use your free hand to prevent
the wheel from turning while
you are tightening.
13. Lower the vehicle by turning the
jack handle counterclockwise.
Lower the jack completely.
9-76 Vehicle Service and Care
2008 - Pontiac G8 Owner Manual

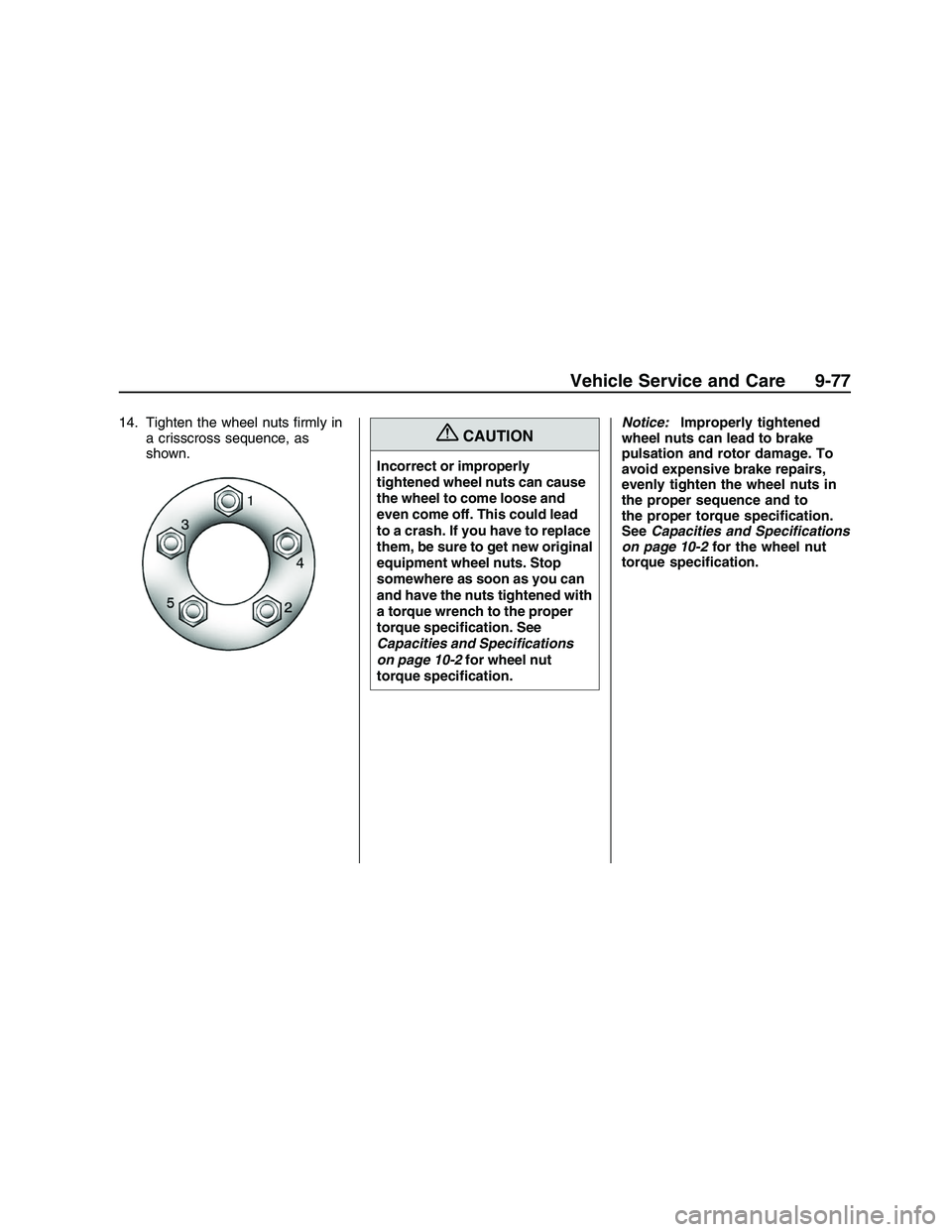

14. Tighten the wheel nuts rmly in
a crisscross sequence, as
shown.{CAUTION
Incorrect or improperly
tightened wheel nuts can cause
the wheel to come loose and
even come off. This could lead
to a crash. If you have to replace
them, be sure to get new original
equipment wheel nuts. Stop
somewhere as soon as you can
and have the nuts tightened with
a torque wrench to the proper
torque specication. See
Capacities and Specifications
on page 10-2for wheel nut
torque specication.Notice:Improperly tightened
wheel nuts can lead to brake
pulsation and rotor damage. To
avoid expensive brake repairs,
evenly tighten the wheel nuts in
the proper sequence and to
the proper torque specication.
SeeCapacities and Specifications
on page 10-2for the wheel nut
torque specication.
Vehicle Service and Care 9-77
2008 - Pontiac G8 Owner Manual

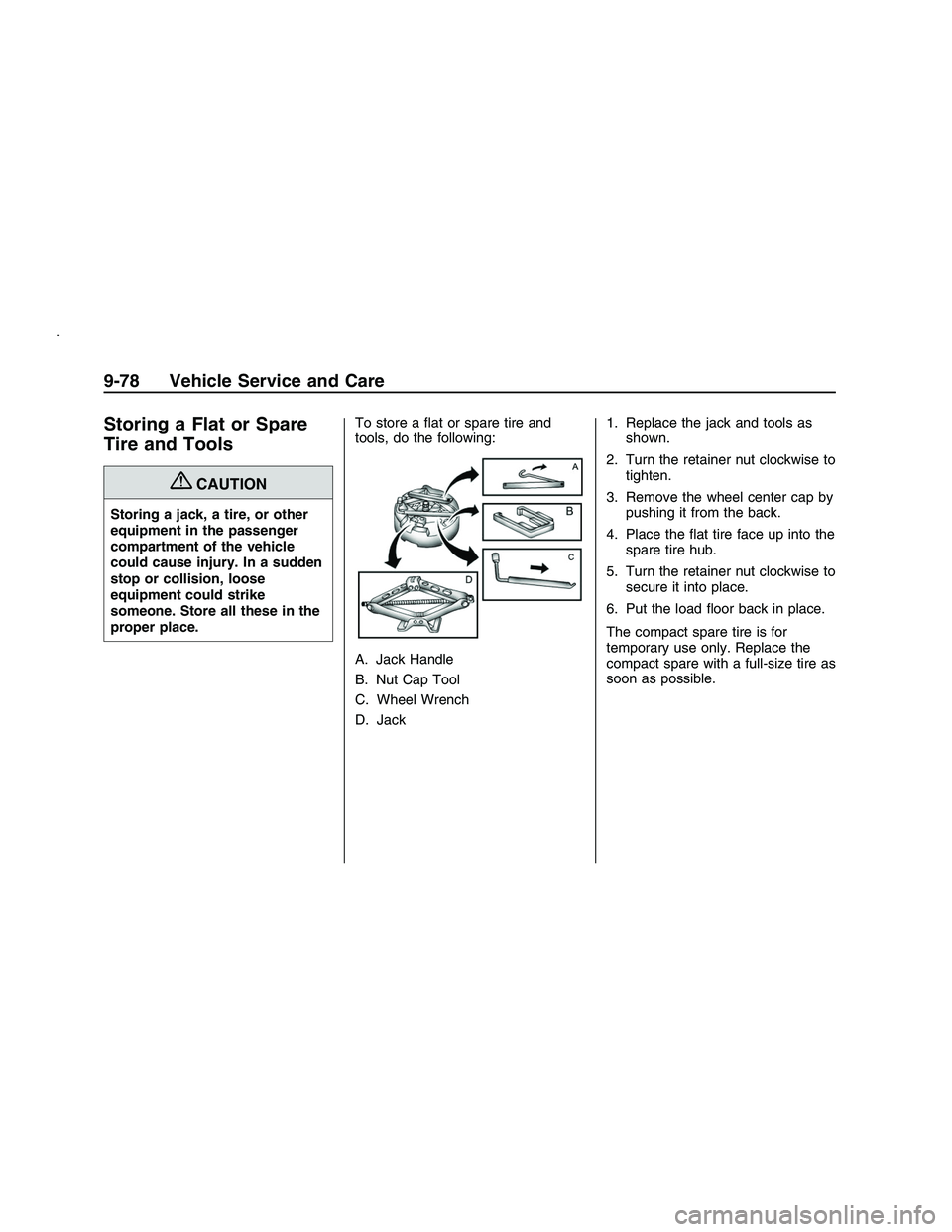

Storing a Flat or Spare
Tire and Tools
{CAUTION
Storing a jack, a tire, or other
equipment in the passenger
compartment of the vehicle
could cause injury. In a sudden
stop or collision, loose
equipment could strike
someone. Store all these in the
proper place.To store a at or spare tire and
tools, do the following:
A. Jack Handle
B. Nut Cap Tool
C. Wheel Wrench
D. Jack1. Replace the jack and tools as
shown.
2. Turn the retainer nut clockwise to
tighten.
3. Remove the wheel center cap by
pushing it from the back.
4. Place the at tire face up into the
spare tire hub.
5. Turn the retainer nut clockwise to
secure it into place.
6. Put the load oor back in place.
The compact spare tire is for
temporary use only. Replace the
compact spare with a full-size tire as
soon as possible.
9-78 Vehicle Service and Care
2008 - Pontiac G8 Owner Manual

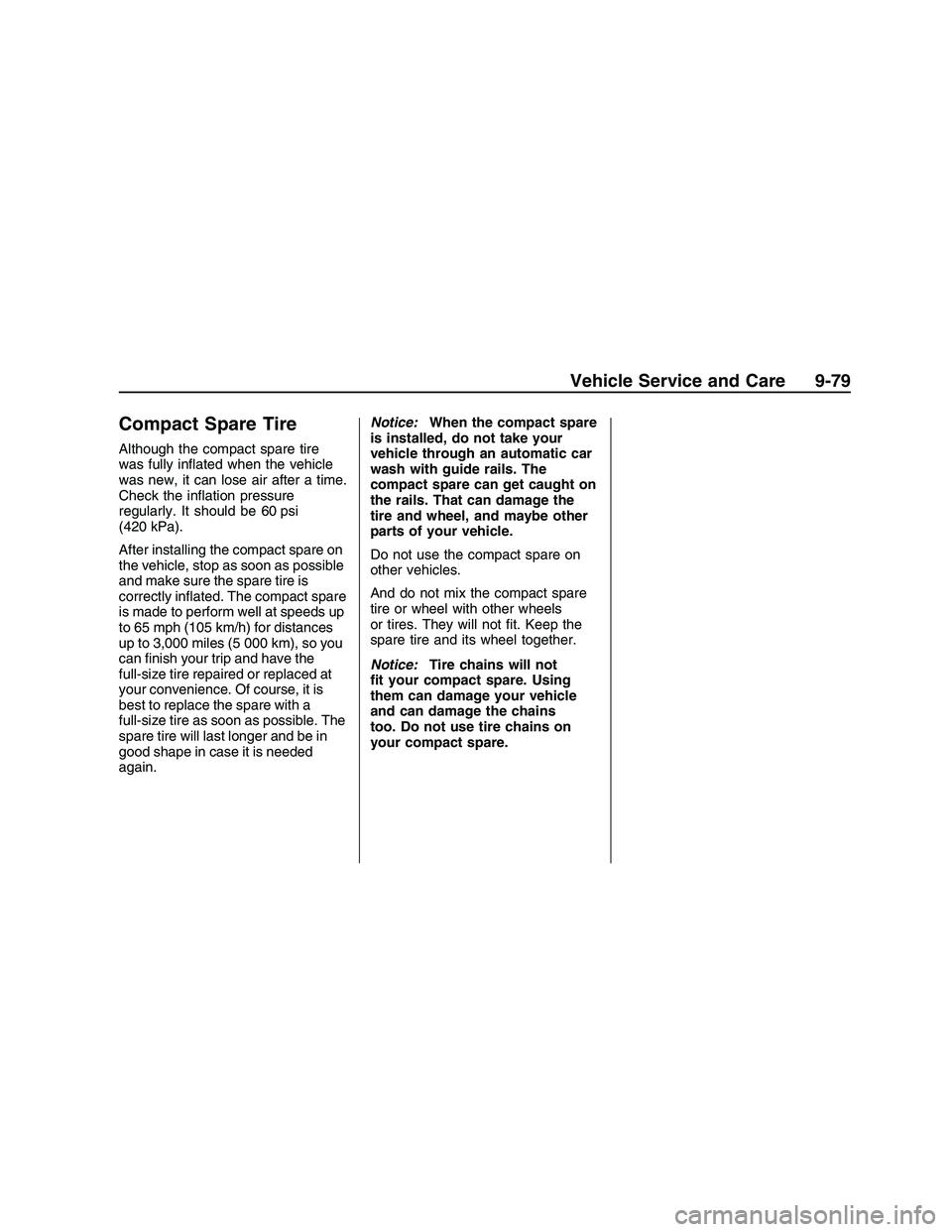

Compact Spare Tire
Although the compact spare tire
was fully inated when the vehicle
was new, it can lose air after a time.
Check the ination pressure
regularly. It should be 60 psi
(420 kPa).
After installing the compact spare on
the vehicle, stop as soon as possible
and make sure the spare tire is
correctly inated. The compact spare
is made to perform well at speeds up
to 65 mph (105 km/h) for distances
up to 3,000 miles (5 000 km), so you
can nish your trip and have the
full-size tire repaired or replaced at
your convenience. Of course, it is
best to replace the spare with a
full-size tire as soon as possible. The
spare tire will last longer and be in
good shape in case it is needed
again.Notice:When the compact spare
is installed, do not take your
vehicle through an automatic car
wash with guide rails. The
compact spare can get caught on
the rails. That can damage the
tire and wheel, and maybe other
parts of your vehicle.
Do not use the compact spare on
other vehicles.
And do not mix the compact spare
tire or wheel with other wheels
or tires. They will not t. Keep the
spare tire and its wheel together.
Notice:Tire chains will not
t your compact spare. Using
them can damage your vehicle
and can damage the chains
too. Do not use tire chains on
your compact spare.
Vehicle Service and Care 9-79
2008 - Pontiac G8 Owner Manual

Jump Starting
If your battery has run down, try to
use another vehicle and some
jumper cables to start your vehicle.
Be sure to use the following
steps to do it safely.
{CAUTION
Batteries can hurt you. They
can be dangerous because:
They contain acid that can
burn you.
They contain gas that can
explode or ignite.
They contain enough
electricity to burn you.
If you do not follow these steps
exactly, some or all of these
things can hurt you.Notice:Ignoring these steps
could result in costly damage to
your vehicle that would not
be covered by your warranty.
Trying to start your vehicle
by pushing or pulling it will not
work, and it could damage
your vehicle.
