2008 PONTIAC G8 Owners Manual

Storage
Storage
Glove Box..........................3-1
Center Console Storage.....3-1
Convenience Net................3-1

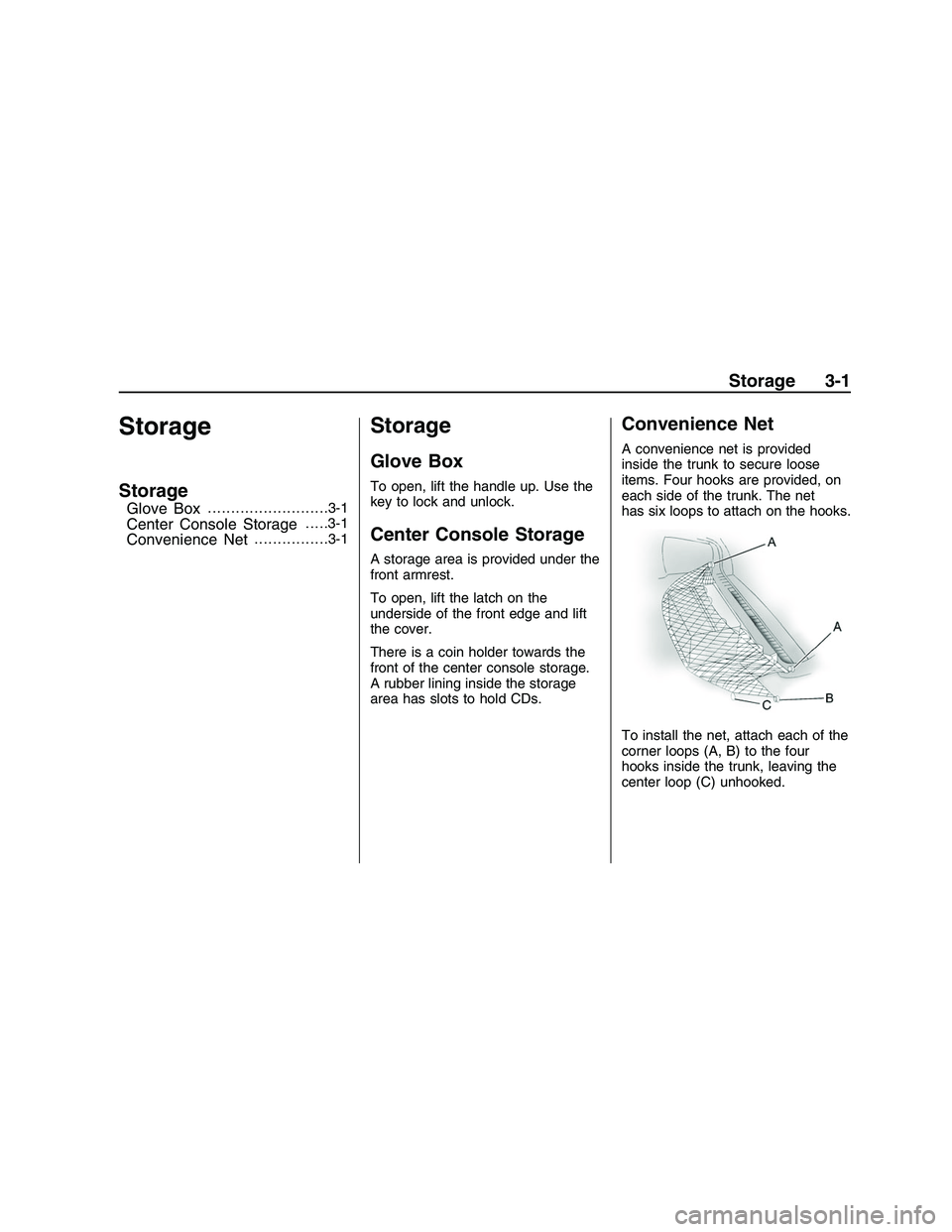

Storage
Glove Box
To open, lift the handle up. Use the
key to lock and unlock.
Center Console Storage
A storage area is provided under the
front armrest.
To open, lift the latch on the
underside of the front edge and lift
the cover.
There is a coin holder towards the
front of the center console storage.
A rubber lining inside the storage
area has slots to hold CDs.
Convenience Net
A convenience net is provided
inside the trunk to secure loose
items. Four hooks are provided, on
each side of the trunk. The net
has six loops to attach on the hooks.
To install the net, attach each of the
corner loops (A, B) to the four
hooks inside the trunk, leaving the
center loop (C) unhooked.
Storage 3-1
2008 - Pontiac G8 Owner Manual

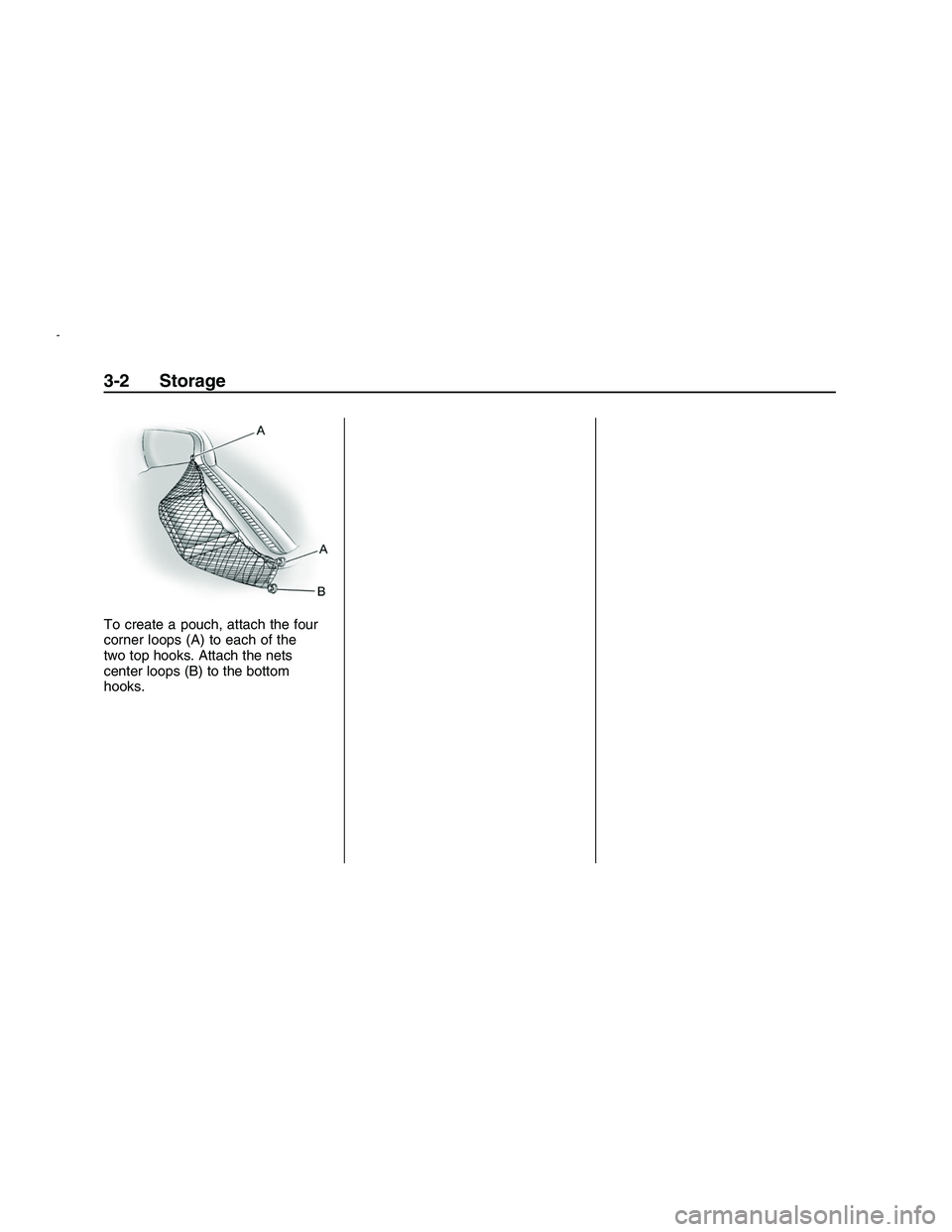

To create a pouch, attach the four
corner loops (A) to each of the
two top hooks. Attach the nets
center loops (B) to the bottom
hooks.
3-2 Storage
2008 - Pontiac G8 Owner Manual

Instruments and
Controls
Instrument Panel
Overview
Instrument Panel
Overview...........................4-2
Hazard Warning
Flashers............................4-4
Horn...................................4-4
Tilt Wheel...........................4-4
Turn Signal/Multifunction
Lever................................4-4
Cruise Control....................4-5
Turn and Lane-Change
Signals.............................4-7
Headlamp High/
Low-Beam Changer..........4-7
Windshield Wipers..............4-8
Windshield Washer.............4-8
Accessory Power
Outlet(s)............................4-9
Warning Lights, Gages,
and Indicators
Warning Lights, Gages,
and Indicators.................4-10
Instrument Panel Cluster. . .4-11
Speedometer....................4-12
Tachometer.......................4-12
Safety Belt Reminders......4-12
Airbag Readiness Light.....4-13
Passenger Airbag Status
Indicator..........................4-14
Voltmeter Gage.................4-15
Charging System Light......4-15
Brake System Warning
Light................................4-16
Antilock Brake System
(ABS) Warning Light.......4-17
Engine Coolant
Temperature Gage..........4-17
Tire Pressure Light...........4-18
Malfunction
Indicator Lamp................4-18
Security Light....................4-21
Fog Lamp Light................4-21
Highbeam On Light...........4-21
Daytime Running Lamps
(DRL) Indicator Light. . . . . . .4-21
Door Ajar Light.................4-21
Oil Pressure Gage............4-22
Fuel Gage........................4-22
Driver Information
Center (DIC)
Driver Information
Center (DIC)...................4-23
DIC Operation and
Displays..........................4-23
DIC Warnings and
Messages........................4-27
DIC Vehicle
Customization..................4-32
OnStar®System
OnStar®System................4-36
Instruments and Controls 4-1
2008 - Pontiac G8 Owner Manual

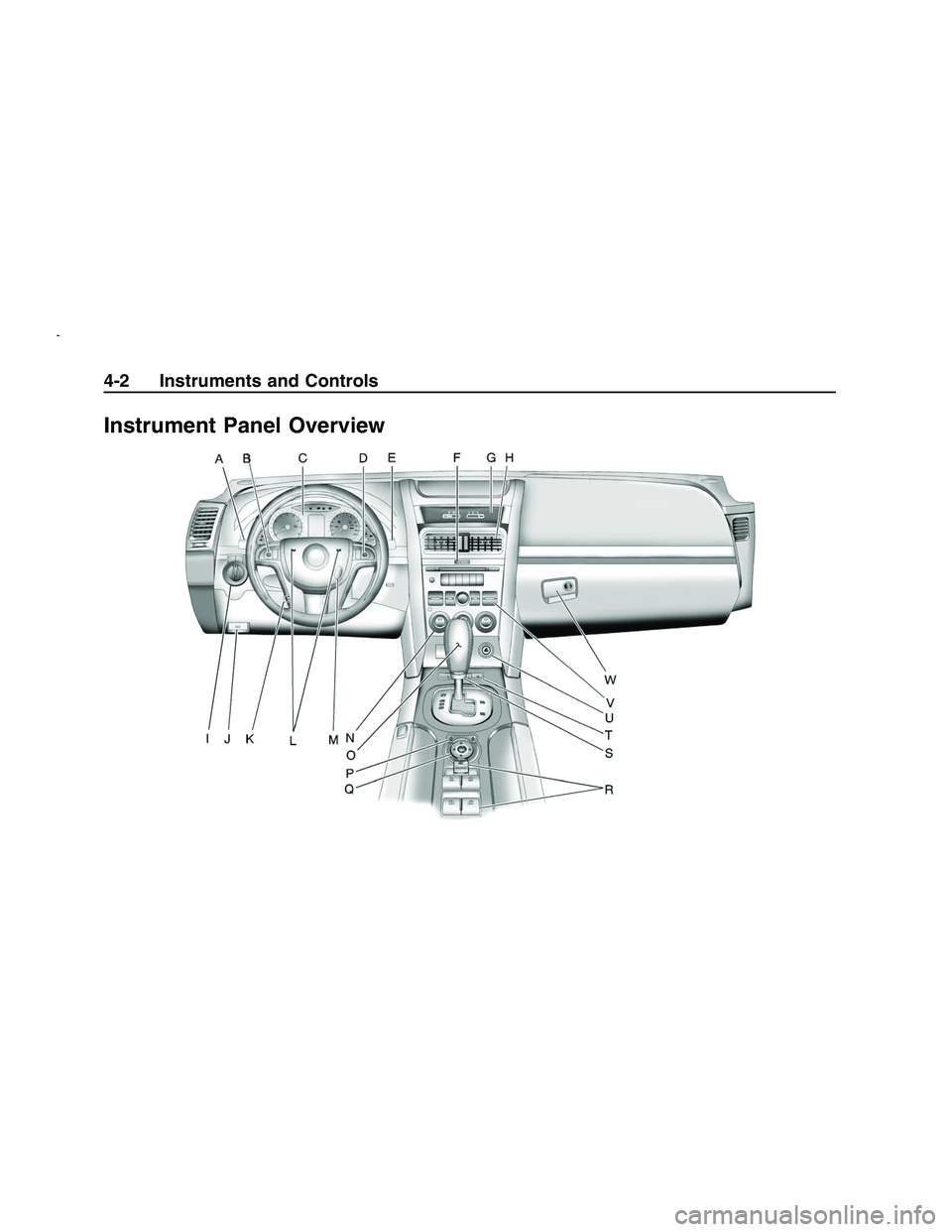

Instrument Panel Overview
4-2 Instruments and Controls
2008 - Pontiac G8 Owner Manual

The main components of the
instrument panel are the following:
A.Turn Signal/Multifunction
Lever on page 4-4 .
B. Audio Steering Wheel Controls
on page 6-23 andDIC Operation
and Displays on page 4-23 .
C. Instrument Panel Cluster on
page 4-11 .
D. Audio Steering Wheel Controls
on page 6-23 .
E. Windshield Wipers on page 4-8 .
F. Hazard Warning Flashers on
page 4-4 .
G. Voltmeter, Oil Gage. Voltmeter
Gage on page 4-15 .
H. Outlet Adjustment on page 7-8 .I.
Exterior Lamps Controls on
page 5-1 .Instrument Panel
Brightness on page 5-3 .Fog
Lamps on page 5-3 (If Equipped).
J. Hood Release on page 9-5.
K. Tilt Wheel on page 4-4 .
L. Horn on page 4-4.
M. Ignition Positions on page 8-2 .
N. Climate Control System on
page 7-1 .Automatic Climate
Control System on page 7-4
(If Equipped).
O. Shift Lever. Automatic
Transmission Operation on
page 8-6 . P.
Power Door Locks on page 2-9 .
Q. Outside Power Mirror(s) on
page 2-17 .
R. Power Windows on page 2-15 .
S. Traction Control System (TCS) Disable Button. Electronic
Stability Program on page 8-16 .
T. Heated Seats on page 1-5
(If Equipped).
U. Accessory Power Outlet(s) on
page 4-9 .
V. Audio System(s) on page 6-1 .
W. Glove Box on page 3-1 .
Instruments and Controls 4-3
2008 - Pontiac G8 Owner Manual

Hazard Warning Flashers
|
(Hazard Warning Flasher):
Press this button located on
the instrument panel, to make the
front and rear turn signal lamps ash
on and off. This warns others that
you are having trouble.
Press
|again to turn the
ashers off.
Horn
Press near or on the horn symbols
on the steering wheel pad to
sound the horn.
Tilt Wheel
A tilt and telescope wheel lets the
steering wheel position be adjusted.
The adjustment lever is located on
the left side of the steering
column.
Pull the lever down to move the
steering wheel up or down and in or
out. Pull the lever up to lock the
steering wheel in place.
Do not adjust the tilt and telescope
lever while driving.
Turn Signal/Multifunction
Lever
The lever on the left side of the
steering column includes the
following:
E:Cruise Control (If Equipped).
Turn and Lane-Change Signals.
Headlamp High/Low-Beam Changer.
Information for these features is
on the pages following.
4-4 Instruments and Controls
2008 - Pontiac G8 Owner Manual

Cruise Control
For vehicles with cruise control, the
lever is located on the left side
of the steering wheel.
The cruise control maintains the
vehicle’s speed without having your
foot on the accelerator pedal.
The cruise control only works at
speeds above 21 mph (33 km/h)
(V6 engines) or above 24 mph
(38 km/h) (V8 engines).
{CAUTION
Cruise control can be
dangerous where you cannot
drive safely at a steady speed.
So, do not use your cruise
control on winding roads or in
heavy traffic.
Cruise control can be
dangerous on slippery roads.
On such roads, fast changes in
tire traction can cause
excessive wheel slip, and you
could lose control. Do not use
cruise control on slippery
roads.Setting Cruise Control{CAUTION
If you leave your cruise control
on when you are not using
cruise, you might hit a button
and go into cruise when you do
not want to. You could be
startled and even lose control.
Keep the cruise control switch
off until you want to use cruise
control.
1. Press the
OQbutton at the
end of the cruise control lever.
The CRUISE ON light comes on
in the instrument panel cluster.
SeeInstrument Panel Cluster on
page 4-11.
2. Get up to the desired speed.
Instruments and Controls 4-5
2008 - Pontiac G8 Owner Manual

3. Turn the band down to SET−
and then release it. The
CRUISE ACTIVE light comes on
in the instrument panel cluster.
4. Take your foot off the accelerator
pedal.
If the vehicle is in cruise control and
the Electronic Stability Program
(ESP) becomes active, the cruise
control automatically disengages.
SeeElectronic Stability Program on
page 8-16. When road conditions
allow the cruise control can be
used again.
Resuming a Set Speed
If the cruise control is set at a
desired speed and then the brakes
are applied or the
OQbutton
is pressed once, the cruise control
shuts off.Once the vehicle speed is 21 mph
(33 km/h) (V6 engines) or 24 mph
(38 km/h) (V8 engines) or greater,
turn the band briey to RES+
position. The vehicle returns to the
previously set speed and stays there.
Increasing Speed While Using
Cruise Control
There are two ways to go to a
higher speed:
Turn theIband up to the
RES+ position. Hold it there until
the desired speed is reached,
then release it.
To increase the vehicle speed in
very small amounts, turn the
band to RES+ briey and then
release it. Each time this is done,
the vehicle goes about 1 mph
(1.6 km/h) faster.Reducing Speed While Using
Cruise Control
There are two ways to reduce the
vehicle speed while using cruise
control:
Turn theIband down to the
SET−position. Hold it there
until the lower speed desired is
reached, then release it.
To slow down in very small
amounts, turn the band to
SET−briey and then release it.
Each time this is done, the
vehicle will go about 1 mph
(1.6 km/h) slower.
Passing Another Vehicle While
Using Cruise Control
Use the accelerator pedal to
increase the vehicle speed. When
you take your foot off the pedal, the
vehicle slows down to the cruise
control speed set earlier.
4-6 Instruments and Controls
2008 - Pontiac G8 Owner Manual
