2008 PONTIAC G8 Owners Manual

The jump start positive (A) and
negative posts (B) are located in the
engine compartment on the driver
side of the vehicle.These posts are used instead of a
direct connection to the battery.The positive jump start connection
is covered by a red cap. Remove to
expose the terminal.
1. Check the other vehicle. It must
have a 12-volt battery with a
negative ground system.
Notice: If the other vehicle’s
system is not a 12-volt system
with a negative ground, both
vehicles can be damaged. Only
use vehicles with 12-volt systems
with negative grounds to jump
start your vehicle.
2. Position the two vehicles so that they are not touching.
3. Set the parking brake rmly and put the shift lever in PARK (P).
See Shifting Into Park (Automatic
Transmission) on page 8-10 .
Vehicle Service and Care 9-81
2008 - Pontiac G8 Owner Manual

Notice:If you leave your radio or
other accessories on during the
jump starting procedure, they
could be damaged. The repairs
would not be covered by your
warranty. Always turn off
your radio and other accessories
when jump starting your
vehicle.
4. Turn the ignition to LOCK/OFF
and switch off all lights and
accessories in both vehicles,
except the hazard warning
ashers if needed.
{CAUTION
An electric fan can start up
even when the engine is not
running and can injure you.
Keep hands, clothing and tools
away from any underhood
electric fan.
{CAUTION
Using a match near a battery
can cause battery gas to
explode. People have been hurt
doing this, and some have been
blinded. Use a ashlight if you
need more light.
Be sure the battery has enough
water. You do not need to add
water to the battery installed in
your new vehicle. But if a
battery has ller caps, be sure
the right amount of uid is
there. If it is low, add water to
take care of that rst. If you
don’t, explosive gas could be
present.
Battery uid contains acid that
can burn you. Do not get it on
you. If you accidentally get it in
your eyes or on your skin, ush
the place with water and get
medical help immediately.
{CAUTION
Fans or other moving engine
parts can injure you badly.
Keep your hands away from
moving parts once the engine
is running.
5. Connect one end of the red
positive (+) cable to the jump
start positive (+) post (A).
9-82 Vehicle Service and Care
2008 - Pontiac G8 Owner Manual

6. Connect the other end of the red
positive (+) cable to the
positive (+) terminal of the good
battery (B).
7. Connect one end of the black
negative (–) cable to the
negative (–) terminal of the good
battery (C).
8. Connect the other end of the
black negative (–) cable to
the negative (–) post (D).
9. Start the engine in the vehicle
with the good battery and run
the engine at idle speed for
at least four minutes.
10. Try to start the vehicle that had
the dead battery. If it will not
start after a few tries, it probably
needs service.
Notice:If the jumper cables are
connected or removed in the
wrong order, electrical shorting
may occur and damage the
vehicle. The repairs would not be
covered by your warranty.
Always connect and remove thejumper cables in the correct
order, making sure that the cables
do not touch each other or
other metal.
A. Heavy, Unpainted Metal Engine
Part or Remote Negative (–)
Terminal
B. Good Battery or Remote
Positive (+) and Remote
Negative (–) Terminals
C. Dead Battery or Remote
Positive (+) TerminalTo disconnect the jumper cables
from both vehicles, do the following:
1. Disconnect the black negative (−)
cable from the vehicle that had
the dead battery.
2. Disconnect the black negative (−)
cable from the vehicle with the
good battery.
3. Disconnect the red positive (+)
cable from the vehicle with the
good battery.
4. Disconnect the red positive (+)
cable from the other vehicle.
5. Return the caps over the
positive (+) and negative (–)
terminals to their original
positions. Jumper Cable Removal
Vehicle Service and Care 9-83
2008 - Pontiac G8 Owner Manual

Towing
Towing Your Vehicle
Consult your dealer/retailer or a
professional towing service if
you need to have your disabled
vehicle towed. SeeRoadside
Assistance Program on page 12-6.
Shift Lock Manual
Release
The transmission has an electric
park lock called a shift lock manual
release. The key must be in the
ON/RUN position, and the brake
pedal pressed so the transmission
gear selector can be moved from the
P (Park) position. If the battery
has lost power, the selector cannot
be moved to neutral for towing
unless the shift lock manual release
is disengaged manually.To access the shift lock manual
release:
1. Apply the park brake.
2. Remove the console trim
panel (A) from the console.
2.1. Gently lift the back corners
of the trim panel directly in
front of the cupholders (C)
until the two clips are
released from the console.
2.2. Gently lift the console trim
panel from the rear until the
four clips around the shift
lever are released.
3. Raise the panel (A) no more
than 2–3 inches (50–75 mm)
to avoid disconnecting the wiring
from the switches (B).
4. With the console trim panel
raised, remove the retainer (E)
and the shift lock manual release
cover plate (D).
5. Push and hold the manual
release lever (F) toward the
passenger side of the vehicle.
9-84 Vehicle Service and Care
2008 - Pontiac G8 Owner Manual

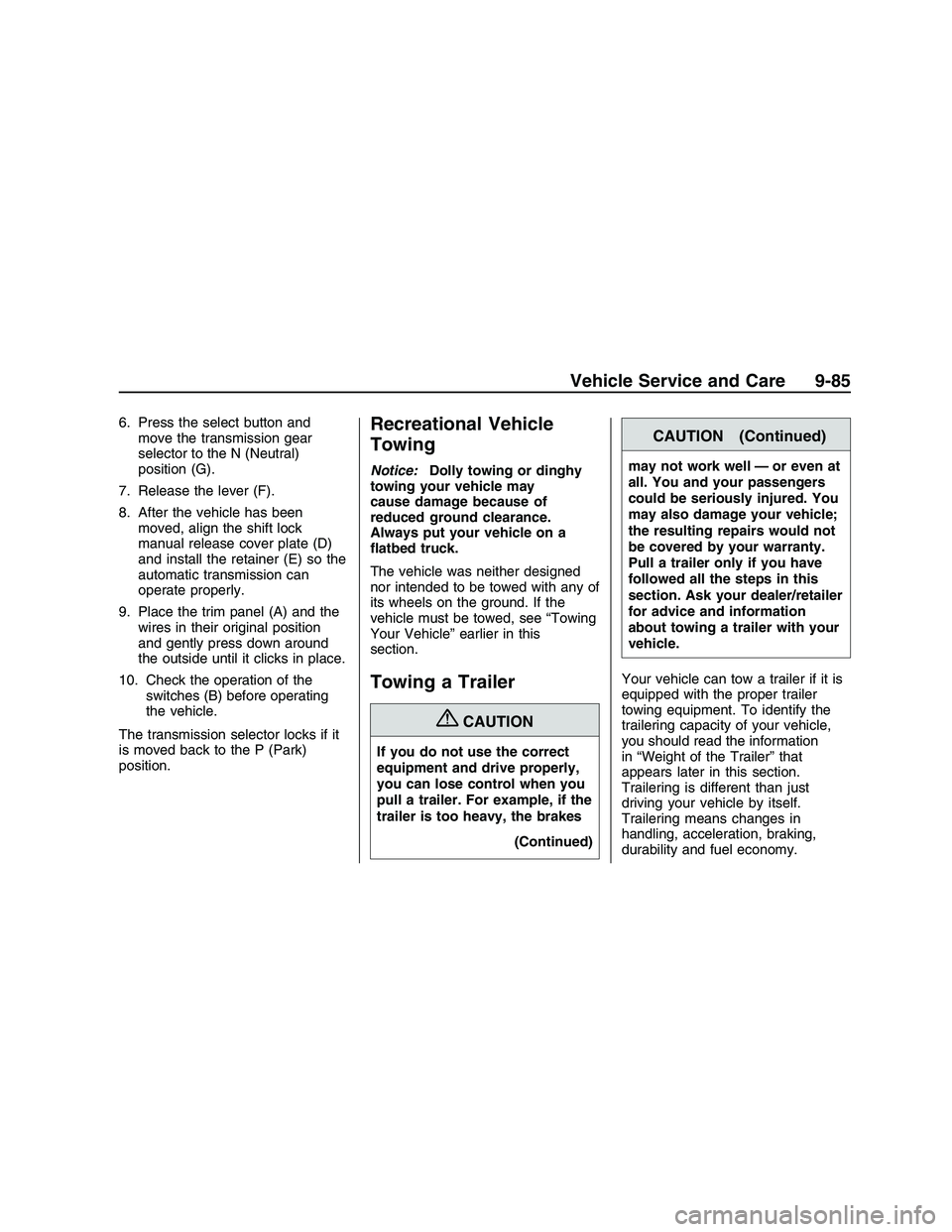

6. Press the select button and
move the transmission gear
selector to the N (Neutral)
position (G).
7. Release the lever (F).
8. After the vehicle has been
moved, align the shift lock
manual release cover plate (D)
and install the retainer (E) so the
automatic transmission can
operate properly.
9. Place the trim panel (A) and the
wires in their original position
and gently press down around
the outside until it clicks in place.
10. Check the operation of the
switches (B) before operating
the vehicle.
The transmission selector locks if it
is moved back to the P (Park)
position.Recreational Vehicle
Towing
Notice:Dolly towing or dinghy
towing your vehicle may
cause damage because of
reduced ground clearance.
Always put your vehicle on a
atbed truck.
The vehicle was neither designed
nor intended to be towed with any of
its wheels on the ground. If the
vehicle must be towed, see “Towing
Your Vehicle” earlier in this
section.
Towing a Trailer
{CAUTION
If you do not use the correct
equipment and drive properly,
you can lose control when you
pull a trailer. For example, if the
trailer is too heavy, the brakes
(Continued)
CAUTION (Continued)
may not work well — or even at
all. You and your passengers
could be seriously injured. You
may also damage your vehicle;
the resulting repairs would not
be covered by your warranty.
Pull a trailer only if you have
followed all the steps in this
section. Ask your dealer/retailer
for advice and information
about towing a trailer with your
vehicle.
Your vehicle can tow a trailer if it is
equipped with the proper trailer
towing equipment. To identify the
trailering capacity of your vehicle,
you should read the information
in “Weight of the Trailer” that
appears later in this section.
Trailering is different than just
driving your vehicle by itself.
Trailering means changes in
handling, acceleration, braking,
durability and fuel economy.
Vehicle Service and Care 9-85
2008 - Pontiac G8 Owner Manual

Successful, safe trailering takes
correct equipment, and it has to be
used properly.
That is the reason for this part. In it
are many time-tested, important
trailering tips and safety rules. Many
of these are important for your
safety and that of your passengers.
So please read this section
carefully before you pull a trailer.
Load-pulling components such
as the engine, transmission, wheel
assemblies and tires are forced
to work harder against the drag of
the added weight. The engine
is required to operate at relatively
higher speeds and under greater
loads, generating extra heat.
Also, the trailer adds considerably to
wind resistance, increasing the
pulling requirements.If You Do Decide To Pull A
Trailer
If you do, here are some important
points:
There are many different laws,
including speed limit restrictions,
having to do with trailering.
Make sure your rig will be legal,
not only where you live but
also where you will be driving. A
good source for this information
can be state or provincial police.
Consider using a sway control.
You can ask a hitch dealer
about sway controls.
Do not tow a trailer at all during
the rst 1,000 miles (1 600 km)
your new vehicle is driven.
Your engine, axle or other parts
could be damaged.
Then, during the rst 500 miles
(800 km) that you tow a trailer, do
not drive over 50 mph (80 km/h)
and do not make starts at fullthrottle. This helps your engine
and other parts of your vehicle
wear in at the heavier loads.
Use the Sport Shift mode and the
cruise control when towing. The
Active Select (A/S) may also be
used under light load conditions.
Obey speed limit restrictions
when towing a trailer. Do not drive
faster than the maximum posted
speed for trailers, or no more than
55 mph (90 km/h), to save wear
on your vehicle’s parts.
Three important considerations have
to do with weight:
The weight of the trailer.
The weight of the trailer tongue.
The total weight on your
vehicle’s tires.
9-86 Vehicle Service and Care
2008 - Pontiac G8 Owner Manual

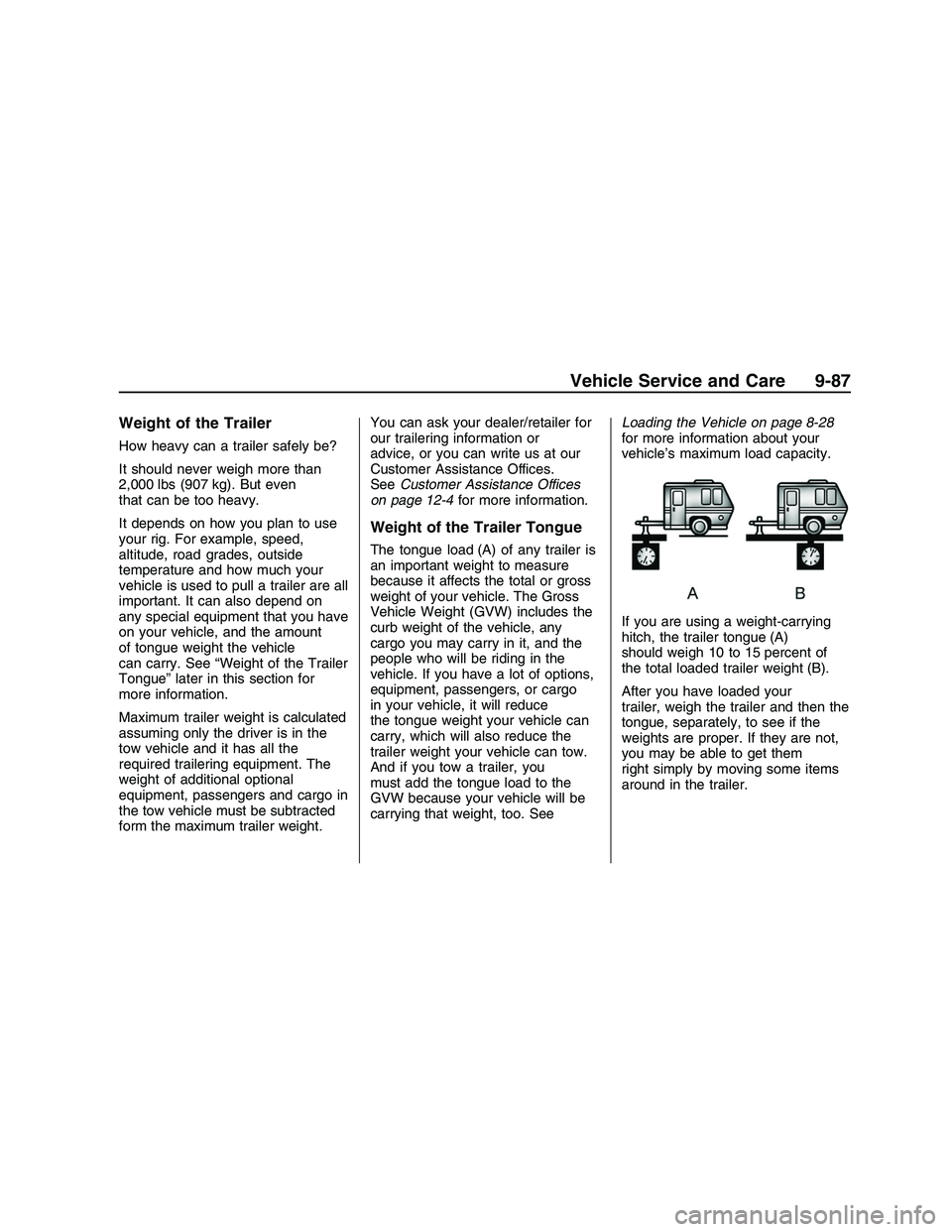

Weight of the Trailer
How heavy can a trailer safely be?
It should never weigh more than
2,000 lbs (907 kg). But even
that can be too heavy.
It depends on how you plan to use
your rig. For example, speed,
altitude, road grades, outside
temperature and how much your
vehicle is used to pull a trailer are all
important. It can also depend on
any special equipment that you have
on your vehicle, and the amount
of tongue weight the vehicle
can carry. See “Weight of the Trailer
Tongue” later in this section for
more information.
Maximum trailer weight is calculated
assuming only the driver is in the
tow vehicle and it has all the
required trailering equipment. The
weight of additional optional
equipment, passengers and cargo in
the tow vehicle must be subtracted
form the maximum trailer weight.You can ask your dealer/retailer for
our trailering information or
advice, or you can write us at our
Customer Assistance Offices.
SeeCustomer Assistance Offices
on page 12-4for more information.
Weight of the Trailer Tongue
The tongue load (A) of any trailer is
an important weight to measure
because it affects the total or gross
weight of your vehicle. The Gross
Vehicle Weight (GVW) includes the
curb weight of the vehicle, any
cargo you may carry in it, and the
people who will be riding in the
vehicle. If you have a lot of options,
equipment, passengers, or cargo
in your vehicle, it will reduce
the tongue weight your vehicle can
carry, which will also reduce the
trailer weight your vehicle can tow.
And if you tow a trailer, you
must add the tongue load to the
GVW because your vehicle will be
carrying that weight, too. SeeLoading the Vehicle on page 8-28
for more information about your
vehicle’s maximum load capacity.
If you are using a weight-carrying
hitch, the trailer tongue (A)
should weigh 10 to 15 percent of
the total loaded trailer weight (B).
After you have loaded your
trailer, weigh the trailer and then the
tongue, separately, to see if the
weights are proper. If they are not,
you may be able to get them
right simply by moving some items
around in the trailer.
Vehicle Service and Care 9-87
2008 - Pontiac G8 Owner Manual

Total Weight on Your Vehicle’s
Tires
Be sure your vehicle’s tires are
inated to the upper limit for cold
tires. You will nd these numbers on
the Tire-Loading Information label.
SeeLoading the Vehicle on
page 8-28. Then be sure you do not
go over the GVW limit for your
vehicle, including the weight of the
trailer tongue.
Hitches
It is important to have the correct
hitch equipment. Crosswinds,
large trucks going by and rough
roads are a few reasons why
you will need the right hitch. Here
are some rules to follow:
The rear bumper on your vehicle
is not intended for hitches. Do
not attach rental hitches or other
bumper-type hitches to it. Use
only a frame-mounted hitch
that does not attach to the
bumper.
Will you have to make any holes
in the body of your vehicle when
you install a trailer hitch? If you
do, then be sure to seal the holes
later when you remove the hitch.
If you do not seal them, deadly
carbon monoxide (CO) from your
exhaust can get into your vehicle.
SeeEngine Exhaust on
page 8-12. Dirt and water can
also enter the vehicle.
Safety Chains
You should always attach chains
between your vehicle and your
trailer. Cross the safety chains under
the tongue of the trailer so that the
tongue will not drop to the road if it
becomes separated from the hitch.
Instructions about safety chains
may be provided by the hitch
manufacturer or by the trailer
manufacturer. Follow the
manufacturer’s recommendation for
attaching safety chains and do not
attach them to the bumper. Alwaysleave just enough slack so you can
turn with your rig. And, never allow
safety chains to drag on the ground.
Trailer Brakes
Does your trailer have its own
brakes? Be sure to read and follow
the instructions for the trailer
brakes so you will be able to install,
adjust and maintain them properly.
Because you have anti-lock brakes,
do not tap into your vehicle’s brake
system. If you do, both brake
systems will not work well, or at all.
Trailer Wiring Harness
All of the electrical circuits required
for your trailer lighting system
can be accessed at the driver’s side
rear lamp connector. This connector
is located under the carpet on
the rear corner of the trunk
compartment.
9-88 Vehicle Service and Care
2008 - Pontiac G8 Owner Manual
