2008 PONTIAC G8 Owners Manual

Owner Checks and
Services
These owner checks and services
should be performed at the intervals
specied to help ensure vehicle
safety, dependability, and emission
control performance. Your
dealer/retailer can assist with these
checks and services.
Be sure any necessary repairs are
completed at once. Whenever
any uids or lubricants are added to
the vehicle, make sure they are
the proper ones, as shown in
Recommended Fluids and
Lubricants on page 11-12.
At Each Fuel Fill
It is important to perform these
underhood checks at each fuel fill.
Engine Oil Level Check
Notice:It is important to check
the engine oil regularly and
keep it at the proper level. Failure
to keep the engine oil at the
proper level can cause damage to
the engine not covered by the
vehicle warranty.
Check the engine oil level and add
the proper oil if necessary. See
Engine Oil on page 9-8.
Engine Coolant Level Check
Check the engine coolant level
and add DEX-COOL®coolant
mixture if necessary. SeeEngine
Coolant on page 9-13.
Windshield Washer Fluid
Level Check
Check the windshield washer uid
level in the windshield washer
uid reservoir and add the proper
uid if necessary.
At Least Once a Month
Tire Ination Check
Inspect the vehicle’s tires and make
sure they are inated to the correct
pressures. Do not forget to check the
spare tire. SeeInflation - Tire
Pressure on page 9-46. Check to
make sure the spare tire is stored
securely. SeeChanging a Flat Tire
(V6 Engine) on page 9-71.
Tire Wear Inspection
Tire rotation may be required for
high mileage highway drivers prior to
the Engine Oil Life System service
notication. Check the tires for
wear and, if necessary, rotate the
tires. SeeTire Inspection and
Rotation on page 9-54.
Service and Maintenance 11-9
2008 - Pontiac G8 Owner Manual

At Least Once a Year
Starter Switch Check
{CAUTION
When you are doing this
inspection, the vehicle could
move suddenly. If the vehicle
moves, you or others could be
injured.
1. Before you start, be sure you
have enough room around
the vehicle.
2. Firmly apply both the parking
brake and the regular brake.
SeeParking Brake on page 8-9.
Do not use the accelerator
pedal, and be ready to turn off
the engine immediately if it starts.3. Try to start the engine in each
gear. The vehicle should start
only in PARK (P) or
NEUTRAL (N). If the vehicle
starts in any other position,
contact your dealer/retailer for
service.
Automatic Transmission Shift
Lock Control System Check
{CAUTION
When you are doing this
inspection, the vehicle could
move suddenly. If the vehicle
moves, you or others could be
injured.
1. Before you start, be sure you
have enough room around
the vehicle. It should be parked
on a level surface.
2. Firmly apply the parking brake.
SeeParking Brake on page 8-9.Be ready to apply the regular
brake immediately if the vehicle
begins to move.
3. With the engine off, turn the
ignition to ON/RUN, but do
not start the engine. Without
applying the regular brake, try to
move the shift lever out of
PARK (P) with normal effort. If
the shift lever moves out of
PARK (P), contact your
dealer/retailer for service.Ignition Transmission Lock
Check
While parked, and with the parking
brake set, try to turn the ignition
to LOCK/OFF in each shift
lever position.
The ignition should turn to
LOCK/OFF only when the
shift lever is in PARK (P).
The ignition key should come out
only in LOCK/OFF.
Contact your dealer/retailer if
service is required.
11-10 Service and Maintenance
2008 - Pontiac G8 Owner Manual

Parking Brake and Automatic
Transmission Park (P)
Mechanism Check
{CAUTION
When you are doing this check,
your vehicle could begin to
move. You or others could be
injured and property could be
damaged. Make sure there is
room in front of your vehicle in
case it begins to roll. Be ready
to apply the regular brake at
once should the vehicle begin
to move.Park on a fairly steep hill, with the
vehicle facing downhill. Keeping
your foot on the regular brake, set
the parking brake.
To check the parking brake’s
holding ability: With the engine
running and the transmission
in NEUTRAL (N), slowly remove
foot pressure from the regular
brake pedal. Do this until
the vehicle is held by the parking
brake only.
To check the PARK (P)
mechanism’s holding ability: With
the engine running, shift to
PARK (P). Then release the
parking brake followed by
the regular brake.
Contact your dealer/retailer if
service is required.
Underbody Flushing Service
At least every spring, use plain
water to ush any corrosive
materials from the underbody. Take
care to clean thoroughly any
areas where mud and other debris
can collect.
Service and Maintenance 11-11
2008 - Pontiac G8 Owner Manual

Recommended Fluids and Lubricants
Fluids and lubricants identied below by name, part number, or specication can be obtained from your
dealer/retailer.
Usage Fluid/Lubricant
Engine Oil Engine oil which meets GM Standard GM6094M and displays the
American Petroleum Institute Certied for Gasoline Engines starburst
symbol. To determine the proper viscosity for your vehicle’s engine,
see
Engine Oil on page 9-8 .
Engine Coolant 50/50 mixture of clean, drinkable water and use only DEX-COOL
®
Coolant. See
Engine Coolant on page 9-13 .
Hydraulic Brake System Hydraulic Brake Fluid. Use only GM Part No. U.S. 88958860,
in Canada 88901244, Super DOT-4 brake uid.
Windshield Washer Optikleen
®Washer Solvent.
Hydraulic Power Steering System DEXRON®-VI Automatic Transmission Fluid.
Automatic Transmission DEXRON®-VI Automatic Transmission Fluid.
Key Lock Cylinders Multi-Purpose Lubricant, Superlube (GM Part No. U.S. 12346241, in
Canada 10953474).
Hood Latch Assembly, Secondary Latch, Pivots, Spring Anchor, and Release Pawl Lubriplate Lubricant Aerosol (GM Part No. U.S. 12346293, in
Canada 992723) or lubricant meeting requirements of NLGI #2,
Category LB or GC-LB.
Hood and Door Hinges Multi-Purpose Lubricant, Superlube (GM Part No. U.S. 12346241, in
Canada 109435474).
Weatherstrip Conditioning Weatherstrip Lubricant (GM Part No. U.S. 3634770, in Canada 10953518)
or Dielectric Silicone Grease (GM Part No. U.S. 12345579, in
Canada 992887).
11-12 Service and Maintenance
2008 - Pontiac G8 Owner Manual

Maintenance Replacement Parts
Replacement parts identied below by name, part number or specication can be obtained from your dealer/retailer.
Part GM Part Numbers ACDelco Part Numbers
Engine Air Cleaner/Filter 92066873 —
Engine Oil Filter 3.6L V6 25177917 PF2129
6.0L V8 89017524 PF48
Passenger Compartment Air Filter Element 92184248 —
Spark Plugs 3.6L V6 12597464 41–990
6.0L V8 12609877 41–985
Wiper Blades Driver Side 92177917 —
Passenger Side 92177918 —
Service and Maintenance 11-13
2008 - Pontiac G8 Owner Manual

Engine Drive Belt
Routing
(A) Air Conditioning Compressor
V6 Engine
V8 Engine
11-14 Service and Maintenance
2008 - Pontiac G8 Owner Manual

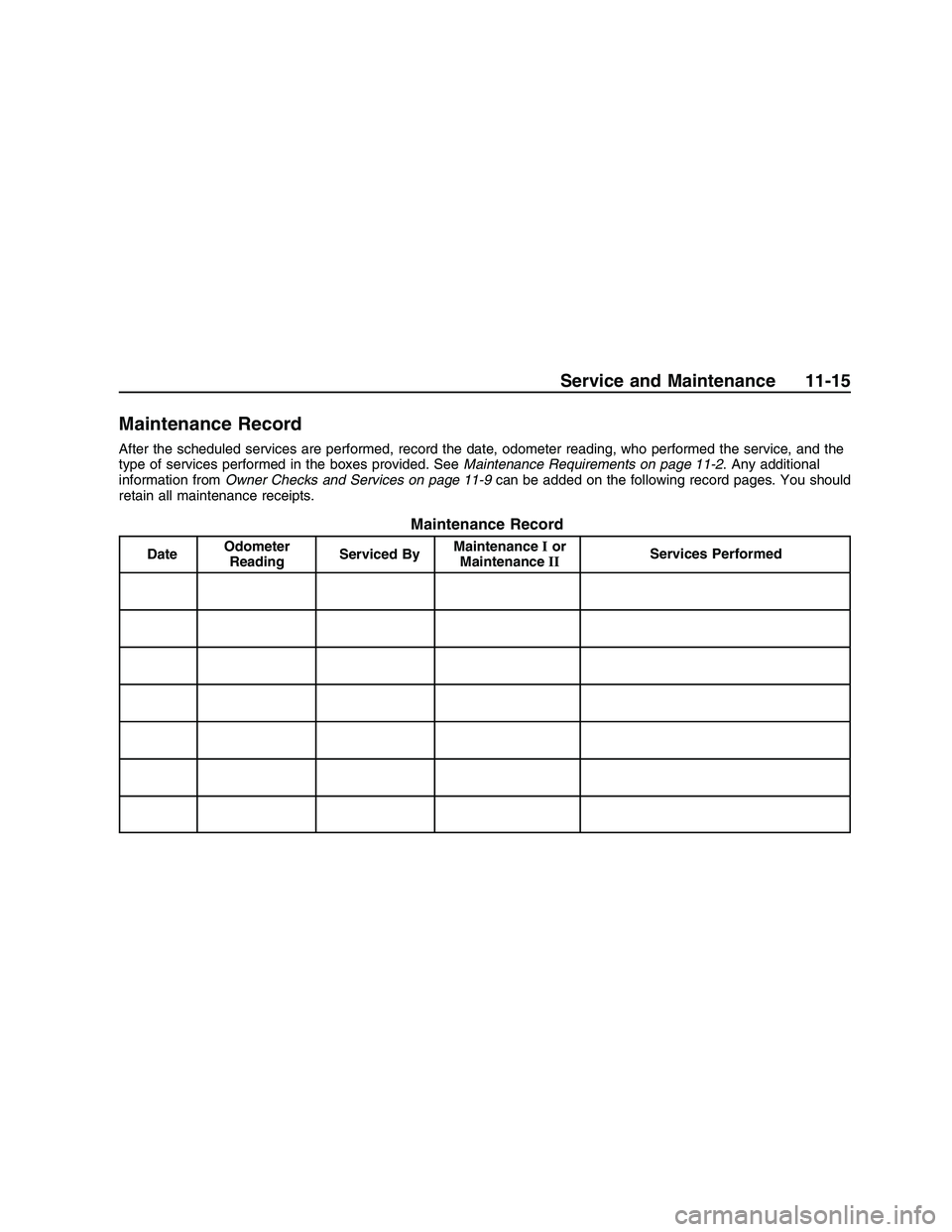

Maintenance Record
After the scheduled services are performed, record the date, odometer reading, who performed the service, and the
type of services performed in the boxes provided. SeeMaintenance Requirements on page 11-2. Any additional
information from Owner Checks and Services on page 11-9 can be added on the following record pages. You should
retain all maintenance receipts.
Maintenance Record
Date Odometer
Reading Serviced By Maintenance
Ior
Maintenance II Services Performed
Service and Maintenance 11-15
2008 - Pontiac G8 Owner Manual

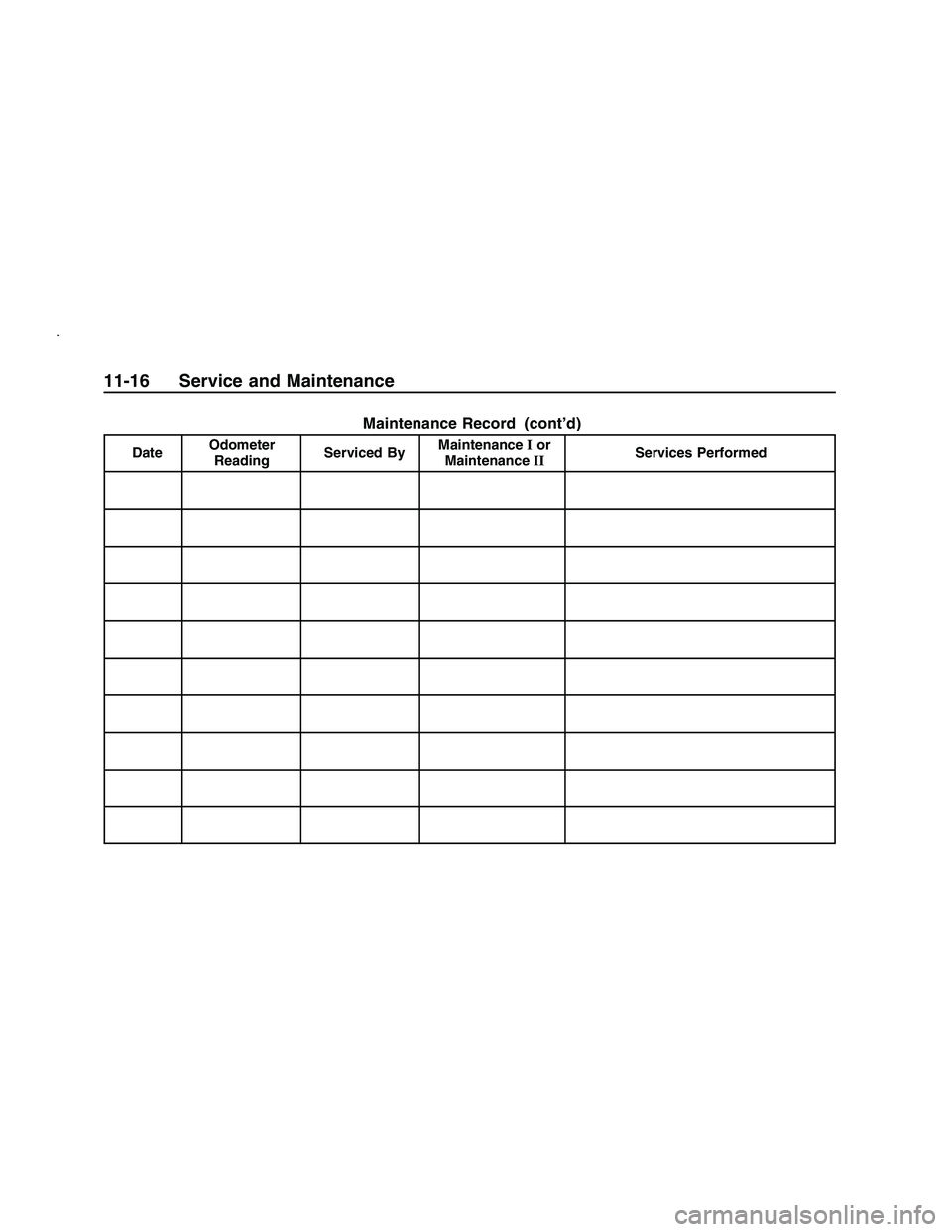

Maintenance Record (cont’d)
DateOdometer
Reading Serviced By Maintenance
Ior
Maintenance II Services Performed
11-16 Service and Maintenance
2008 - Pontiac G8 Owner Manual
