2008 PONTIAC G8 display

L(Vehicle Locator/Panic
Alarm):Press and release one time
to locate your vehicle. The exterior
lamps will ash and the horn
will chirp.
Press and hold
Lfor at least
two seconds to sound the panic
alarm. The horn will sound and the
turn signals will ash until
Lis
pressed again or the key is placed
in the ignition and turned to
ON/RUN.
/(Remote Vehicle Start):If the
vehicle has this feature, press
/to start the engine from outside
the vehicle using the RKE
transmitter. SeeRemote Vehicle
Start on page 2-6for additional
information.
Personal Identity Keys
This system stores electronic
settings for two different keys. The
settings are stored when a
personal identity key is removed
from the ignition and recalled when
Qon the RKE transmitter is
pressed. For information on storing
climate control settings, radio
settings and trip computer settings,
see “Personal Identity Memories”
underRadio(s) on page 6-3,
“Ignition Keys” underClimate
Control System on page 7-1and
“Trip Computer” underDIC Vehicle
Customization on page 4-32.
Matching Transmitter(s) to
Your Vehicle
Each RKE transmitter is coded to
prevent another transmitter from
unlocking your vehicle. If a
transmitter is lost or stolen, a
replacement can be purchased
through your dealer/retailer. Bringany additional transmitters so they
can also be re-coded to match
the new transmitter. Once your
dealer/retailer has coded the new
transmitter, the lost transmitter
will not unlock your vehicle.
Battery Replacement
The RKE transmitter has a lithium
battery which should last about
three years.
Have the battery replaced if the
Replace Battery in Remote
Key message displays in the DIC or
if the transmitter will not work at
the normal range in any location.
See “Replace Battery in Remote
Key” underDIC Warnings and
Messages on page 4-27.
The battery is not rechargeable.
See your dealer/retailer to replace
the battery.
Keys, Doors and Windows 2-5
2008 - Pontiac G8 Owner Manual

Mirrors
Manual Rearview Mirror
The vehicle has a manual rearview
mirror with a compass display
and OnStar
®control buttons located
at the bottom of the mirror. See
your dealer/retailer for more
information on the system and how
to subscribe to OnStar. See
OnStar
®System on page 4-36for
more information about the services
OnStar provides.
Adjust the mirror to see clearly
behind your vehicle. Hold it in the
center to move it up or down
and side to side.
Headlamp Glare
1. To reduce headlamp glare from
vehicles following from behind,
pull the lever toward you.
The rear view clarity is reduced
when the mirror is set to
reduce headlamp glare.2. Return the lever back to its
original position as soon as
the glare has disappeared to
restore the rear view.
Cleaning the Mirror
Do not spray glass cleaner directly
on the mirror. Use a paper towel
or similar material dampened
with glass cleaner.
Compass
Compass Display
Y(On/Off):Press to turn the
compass on or off. The compass
display can show a maximum of two
characters. For example, NE is
displayed for north-east.
When the ignition and the compass
feature are on, a character box
displays for about two seconds.
After two seconds, the mirror
displays the direction the vehicle is
facing.
Compass Calibration
When on, the compass automatically
calibrates as the vehicle is driven. If,
after two seconds, the display does
not show a compass direction, (N for
North, for example), there may be a
strong magnetic eld interfering with
the compass. Interference can be
caused by a magnetic antenna
mount, magnetic note pad holder, or
a similar magnetic item. If CAL
should ever display in the compass
window, the compass might need
calibration.
Press and hold
Yfor several
seconds to activate the compass
calibration mode. CAL displays
in the compass window on
the mirror.
The mirror can be calibrated by
driving the vehicle in circles
at 5 mph (8 km/h) or less until the
display shows a direction.
2-16 Keys, Doors and Windows
2008 - Pontiac G8 Owner Manual

Compass Variance
The mirror is set to zone eight.
Adjust the compass to compensate
for compass variance if you live
outside zone eight. Under certain
conditions, such as during a
long-distance, cross-country trip, it
is necessary to adjust for compass
variance. If the variance is not
adjusted, the compass could give
false readings.
To adjust for compass variance:
1. Find the current location
and variance zone number on
the following zone map.2. Press and hold
Yuntil zone
displays.
3. Once zone displays, press
Y
repeatedly until the correct
zone number displays. If CAL
displays in the compass window,
the compass might need
calibration. See “Compass
Calibration” explained previously.
Outside Power Mirror(s)
With the ignition on, move the
selector switch located on the center
console to the left or right to choose
either the driver or passenger
side mirror.
To adjust a mirror, use the arrows
located on the four-way control
pad to move the mirror in the
desired direction. The mirror moves
right or left, up or down. Adjust
each mirror to see the side of your
vehicle and the area beside and
behind your vehicle. Keep the
selector switch in the center position
when not adjusting either outside
mirror.
Keys, Doors and Windows 2-17
2008 - Pontiac G8 Owner Manual

Instruments and
Controls
Instrument Panel
Overview
Instrument Panel
Overview...........................4-2
Hazard Warning
Flashers............................4-4
Horn...................................4-4
Tilt Wheel...........................4-4
Turn Signal/Multifunction
Lever................................4-4
Cruise Control....................4-5
Turn and Lane-Change
Signals.............................4-7
Headlamp High/
Low-Beam Changer..........4-7
Windshield Wipers..............4-8
Windshield Washer.............4-8
Accessory Power
Outlet(s)............................4-9
Warning Lights, Gages,
and Indicators
Warning Lights, Gages,
and Indicators.................4-10
Instrument Panel Cluster. . .4-11
Speedometer....................4-12
Tachometer.......................4-12
Safety Belt Reminders......4-12
Airbag Readiness Light.....4-13
Passenger Airbag Status
Indicator..........................4-14
Voltmeter Gage.................4-15
Charging System Light......4-15
Brake System Warning
Light................................4-16
Antilock Brake System
(ABS) Warning Light.......4-17
Engine Coolant
Temperature Gage..........4-17
Tire Pressure Light...........4-18
Malfunction
Indicator Lamp................4-18
Security Light....................4-21
Fog Lamp Light................4-21
Highbeam On Light...........4-21
Daytime Running Lamps
(DRL) Indicator Light. . . . . . .4-21
Door Ajar Light.................4-21
Oil Pressure Gage............4-22
Fuel Gage........................4-22
Driver Information
Center (DIC)
Driver Information
Center (DIC)...................4-23
DIC Operation and
Displays..........................4-23
DIC Warnings and
Messages........................4-27
DIC Vehicle
Customization..................4-32
OnStar®System
OnStar®System................4-36
Instruments and Controls 4-1
2008 - Pontiac G8 Owner Manual

The main components of the
instrument panel are the following:
A.Turn Signal/Multifunction
Lever on page 4-4 .
B. Audio Steering Wheel Controls
on page 6-23 andDIC Operation
and Displays on page 4-23 .
C. Instrument Panel Cluster on
page 4-11 .
D. Audio Steering Wheel Controls
on page 6-23 .
E. Windshield Wipers on page 4-8 .
F. Hazard Warning Flashers on
page 4-4 .
G. Voltmeter, Oil Gage. Voltmeter
Gage on page 4-15 .
H. Outlet Adjustment on page 7-8 .I.
Exterior Lamps Controls on
page 5-1 .Instrument Panel
Brightness on page 5-3 .Fog
Lamps on page 5-3 (If Equipped).
J. Hood Release on page 9-5.
K. Tilt Wheel on page 4-4 .
L. Horn on page 4-4.
M. Ignition Positions on page 8-2 .
N. Climate Control System on
page 7-1 .Automatic Climate
Control System on page 7-4
(If Equipped).
O. Shift Lever. Automatic
Transmission Operation on
page 8-6 . P.
Power Door Locks on page 2-9 .
Q. Outside Power Mirror(s) on
page 2-17 .
R. Power Windows on page 2-15 .
S. Traction Control System (TCS) Disable Button. Electronic
Stability Program on page 8-16 .
T. Heated Seats on page 1-5
(If Equipped).
U. Accessory Power Outlet(s) on
page 4-9 .
V. Audio System(s) on page 6-1 .
W. Glove Box on page 3-1 .
Instruments and Controls 4-3
2008 - Pontiac G8 Owner Manual

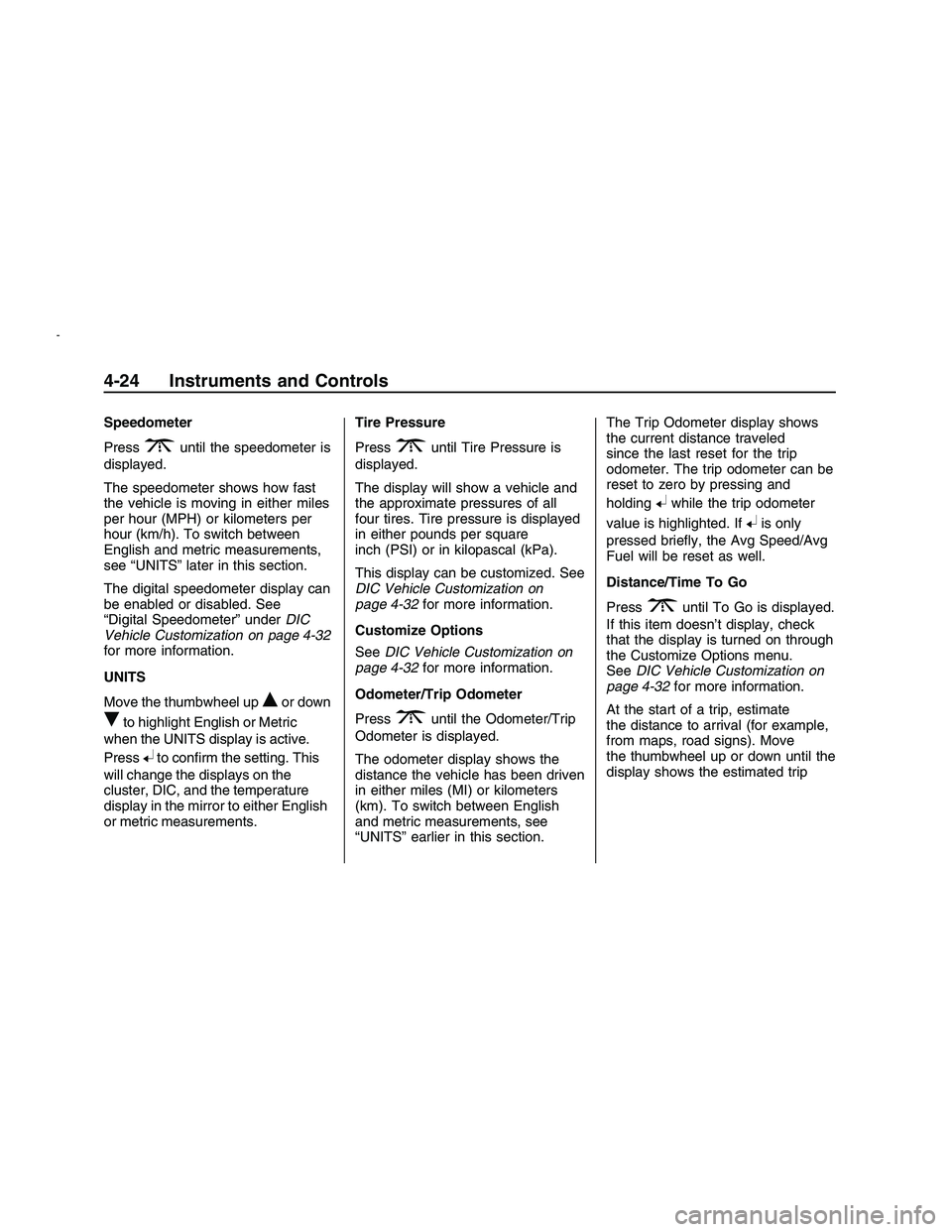

Speedometer
The speedometer can display your
speed in both miles per hour
(MPH) and kilometers per hour
(km/h). You can select between
MPH and km/h using the UNITS
display in the DIC. SeeDIC
Operation and Displays on
page 4-23for more information.
Tachometer
The tachometer displays the engine
speed in revolutions per minute.
Safety Belt Reminders
Safety Belt Reminder Light
When the engine is started, a chime
will come on for several seconds
to remind people to fasten their
safety belts, unless the driver’s
safety belt is already buckled.
The safety belt light will also come on
and stay on for several seconds,
then it will ash for several more.
This chime and light is repeated if
the driver remains unbuckled
and the vehicle is in motion. If the
driver’s belt is already buckled,
neither the chime nor the light will
come on.
Passenger Safety Belt
Reminder Light
If your vehicle has this light, several
seconds after the engine is
started, a chime will sound for
several seconds to remind the front
passenger to buckle their safety
belt. The passenger safety belt light
will also come on and stay on for
several seconds, then it will ash for
several more.
This chime and light are repeated if
the passenger remains unbuckled
and the vehicle is in motion.
If the passenger’s safety belt is
buckled, neither the chime nor the
light will come on.
4-12 Instruments and Controls
2008 - Pontiac G8 Owner Manual

Driver Information
Center (DIC)
The DIC displays information about
your vehicle. It also displays warning
messages if a system problem is
detected. The DIC also allows some
features to be customized. SeeDIC
Vehicle Customization on page 4-32
for more information. All messages
will appear in the DIC display located
in the center of the instrument panel
cluster.
When the ignition is turned on, a
vehicle system check is performed
and the status is shown on the
DIC display. If there are no warnings
or service reminders, the display
shows a series of welcome screens.
When the ignition is turned off,
the odometer appears on the display
for a short period of time unless a
service reminder is active. Active
service reminders are displayed for
10 seconds before the odometer
appears. The odometer will
reappear on the display when the
driver door is opened. For moreinformation on the warnings and
messages seeDIC Warnings
and Messages on page 4-27.DIC Operation and
Displays
The DIC has different displays
which can be accessed by pressing
the DIC buttons located on the
left side of the steering wheel. The
DIC displays trip, fuel, vehicle
system information, and warning
messages if a system problem
is detected.
DIC Buttons
3(Trip/Fuel):Press this button
to go through the displays and
the select the information.
QR(Thumbwheel):Use the
thumbwheel to scroll through
the available options.
8(ENTER to Reset/Select):Press
the thumbwheel to set or reset
certain functions and to turn off or
acknowledge messages on the DIC.
Trip/Fuel Menu Items
Press3to scroll through the
following menu items:
Speedometer
UNITS
Tire Pressure
Customize Options
Odometer/Trip Odometer
Distance/Time To Go
Range
Avg (Average)Speed/Avg
(Average) Fuel
OverSpeed
Instruments and Controls 4-23
2008 - Pontiac G8 Owner Manual

Speedometer
Press
3until the speedometer is
displayed.
The speedometer shows how fast
the vehicle is moving in either miles
per hour (MPH) or kilometers per
hour (km/h). To switch between
English and metric measurements,
see “UNITS” later in this section.
The digital speedometer display can
be enabled or disabled. See
“Digital Speedometer” underDIC
Vehicle Customization on page 4-32
for more information.
UNITS
Move the thumbwheel up
Qor down
Rto highlight English or Metric
when the UNITS display is active.
Press
8to conrm the setting. This
will change the displays on the
cluster, DIC, and the temperature
display in the mirror to either English
or metric measurements.Tire Pressure
Press
3until Tire Pressure is
displayed.
The display will show a vehicle and
the approximate pressures of all
four tires. Tire pressure is displayed
in either pounds per square
inch (PSI) or in kilopascal (kPa).
This display can be customized. See
DIC Vehicle Customization on
page 4-32for more information.
Customize Options
SeeDIC Vehicle Customization on
page 4-32for more information.
Odometer/Trip Odometer
Press
3until the Odometer/Trip
Odometer is displayed.
The odometer display shows the
distance the vehicle has been driven
in either miles (MI) or kilometers
(km). To switch between English
and metric measurements, see
“UNITS” earlier in this section.The Trip Odometer display shows
the current distance traveled
since the last reset for the trip
odometer. The trip odometer can be
reset to zero by pressing and
holding
8while the trip odometer
value is highlighted. If
8is only
pressed briey, the Avg Speed/Avg
Fuel will be reset as well.
Distance/Time To Go
Press
3until To Go is displayed.
If this item doesn’t display, check
that the display is turned on through
the Customize Options menu.
SeeDIC Vehicle Customization on
page 4-32for more information.
At the start of a trip, estimate
the distance to arrival (for example,
from maps, road signs). Move
the thumbwheel up or down until the
display shows the estimated trip
4-24 Instruments and Controls
2008 - Pontiac G8 Owner Manual
