2008 PONTIAC G8 Owners Manual

Notice:
Using the wrong uid can
badly damage brake hydraulic
system parts. For example,
just a few drops of
mineral-based oil, such as
engine oil, in the brake
hydraulic system can damage
brake hydraulic system
parts so badly that they will
have to be replaced. Do not let
someone put in the wrong
kind of uid.
If you spill brake uid on your
vehicle’s painted surfaces, the
paint nish can be damaged.
Be careful not to spill brake
uid on your vehicle. If you do,
wash it off immediately. See
Exterior Cleaning on page 9-94.
Brake Wear
Your vehicle has disc brakes. Disc
brake pads have built-in wear
indicators that make a high-pitched
warning sound when the brake pads
are worn and new pads are needed.
The sound can come and go or be
heard all the time your vehicle is
moving, except when you are
pushing on the brake pedal rmly.
{CAUTION
The brake wear warning sound
means that soon the brakes will
not work well. That could lead
to an accident. When you hear
the brake wear warning sound,
have your vehicle serviced.
Notice:Continuing to drive with
worn-out brake pads could
result in costly brake repair.Some driving conditions or climates
can cause a brake squeal when
the brakes are rst applied or lightly
applied. This does not mean
something is wrong with the brakes.
Properly torqued wheel nuts are
necessary to help prevent
brake pulsation. When tires are
rotated, inspect brake pads for wear
and evenly tighten wheel nuts in
the proper sequence to torque
specications inCapacities and
Specifications on page 10-2.
Brake linings should always be
replaced as complete axle sets.
Brake Pedal Travel
See your dealer/retailer if the brake
pedal does not return to normal
height, or if there is a rapid increase
in pedal travel. This could be a sign
that brake service might be required.
Brake Adjustment
Every time you apply the brakes,
with or without the vehicle moving,
the brakes adjust for wear.
Vehicle Service and Care 9-25
2008 - Pontiac G8 Owner Manual

Replacing Brake System Parts
The braking system on a vehicle
is complex. Its many parts have to
be of top quality and work well
together if the vehicle is to have
really good braking. Your vehicle
was designed and tested with
top-quality brake parts. When you
replace parts of the braking
system — for example, when the
brake linings wear down and
you need new ones put in — be
sure you get new approved
replacement parts. If you do not, the
brakes might not work properly.
For example, if someone puts
in brake linings that are wrong for
your vehicle, the balance between
the front and rear brakes can
change — for the worse. The
braking performance you have come
to expect can change in many
other ways if someone puts in the
wrong replacement brake parts.
Battery
Your vehicle has a maintenance
free battery. When it is time
for a new battery, see your
dealer/retailer for one that has the
replacement number shown on
the original battery’s label.
The battery is located in the trunk
behind a trim panel on the
driver’s side.
Warning:Battery posts, terminals,
and related accessories contain
lead and lead compounds,
chemicals known to the State of
California to cause cancer and
reproductive harm. Wash hands
after handling.
Vehicle Storage
{CAUTION
Batteries have acid that can
burn you and gas that can
explode. You can be badly hurt
if you are not careful. SeeJump
Starting on page 9-80for tips
on working around a battery
without getting hurt.
Infrequent Usage: If you drive your
vehicle infrequently, remove the
black, negative (−) cable from
the battery. This will help keep the
battery from running down.
Extended Storage: For extended
storage of your vehicle, remove the
black, negative (−) cable from
the battery or use a battery trickle
charger. This will help maintain
the charge of the battery over an
extended period of time.
9-26 Vehicle Service and Care
2008 - Pontiac G8 Owner Manual

Headlamp Aiming
The optical headlamp aiming system
has been preset at the factory
and should need no further
adjustment.
However, if the vehicle is damaged
adjustment may be necessary.
If oncoming vehicles ash their high
beams at you, this may also mean
the vertical aim needs to be adjusted.
It is recommended that the vehicle
is taken to your dealer/retailer
for service if the headlamps need to
be re-aimed. It is possible however,
to re-aim the headlamps as
described.
The vehicle should:
Be placed so the headlamps
are 25 ft. (7.6 m) from a light
colored wall.
Have all four tires on a perfectly
level surface which is level all
the way to the wall.
Be placed so it is at a right angle
to the wall.
Not have any snow, ice, or
mud on it.
Be fully assembled and all other
work stopped while headlamp
aiming is being done.
Have a full tank of fuel and one
person or 160 lbs (75 kg) on
the driver seat.
Have all tires properly inated.
Headlamp aiming is done with
the vehicle’s low-beam headlamps.
The high-beam headlamps will
be correctly aimed if the low-beam
headlamps are aimed properly.To adjust the vertical aim on the
headlamps:
1. Open the hood.Hood Release
on page 9-5.
2. Locate the aim dot on the lens of
the low-beam headlamp.
3. Record the distance from the
ground to the aim dot on the
low-beam headlamp.
Vehicle Service and Care 9-27
2008 - Pontiac G8 Owner Manual

4. At the wall, measure from the
ground upward (A) to the
recorded distance from Step 3
and mark it.
5. Draw or tape a horizontal line (B)
on the wall the width of the
vehicle at the height of the mark
in Step 4.
Notice:Do not cover a headlamp
to improve beam cut-off when
aiming. Covering a headlamp may
cause excessive heat build-up
which may cause damage to the
headlamp.6. Turn on the low-beam headlamps
and place a piece of cardboard
or equivalent in front of the
headlamp not being adjusted.
Do not place it directly on
the headlamp. This allows only
the beam of light from the
headlamp being adjusted to be
seen on the at surface.
7. Locate the vertical headlamp
aiming screws, which are
under the hood near each
headlamp assembly.The adjustment screw can be
turned with a 6 mm socket
wrench.
8. Turn the vertical aiming screw
clockwise or counterclockwise
until the headlamp beam is
aimed to the horizontal tape line.
9. Make sure that the light from the
headlamp is positioned at the
bottom edge of the horizontal
tape line. The lamp on the left (A)
shows the correct headlamp aim.
The lamp on the right (B) shows
the incorrect headlamp aim.
10. Repeat Steps 7 through 9 for
the opposite headlamp.
Driver Side (Passenger
Side Similar)
9-28 Vehicle Service and Care
2008 - Pontiac G8 Owner Manual

Bulb Replacement
For the proper type of replacement
bulbs, seeReplacement Bulbs
on page 9-32.
For any bulb changing procedure
not listed in this section, contact
your dealer/retailer.
Halogen Bulbs
{CAUTION
Halogen bulbs have
pressurized gas inside and can
burst if you drop or scratch the
bulb. You or others could be
injured. Be sure to read and
follow the instructions on the
bulb package.
Headlamps and Parking
Lamps
To replace one of these bulbs:
If the front turn signal lamp
or parking lamp needs to be
changed, see your dealer/retailer.
A. Front Turn Signal Lamp/
Parking Lamp
B. Low Beam Headlamp
C. High Beam Headlamp1. Open the hood. SeeHood
Release on page 9-5.
2. Remove the radiator support by
turning the head screws
counterclockwise and then
pulling them straight out.
3. For the passenger side pull up
on the coolant bottle ller neck
to remove it and place it to
one side.
Let the ller neck drain before
pulling it all the way out. Place a
clean towel over the opening
of the coolant bottle after
removing it.
Vehicle Service and Care 9-29
2008 - Pontiac G8 Owner Manual

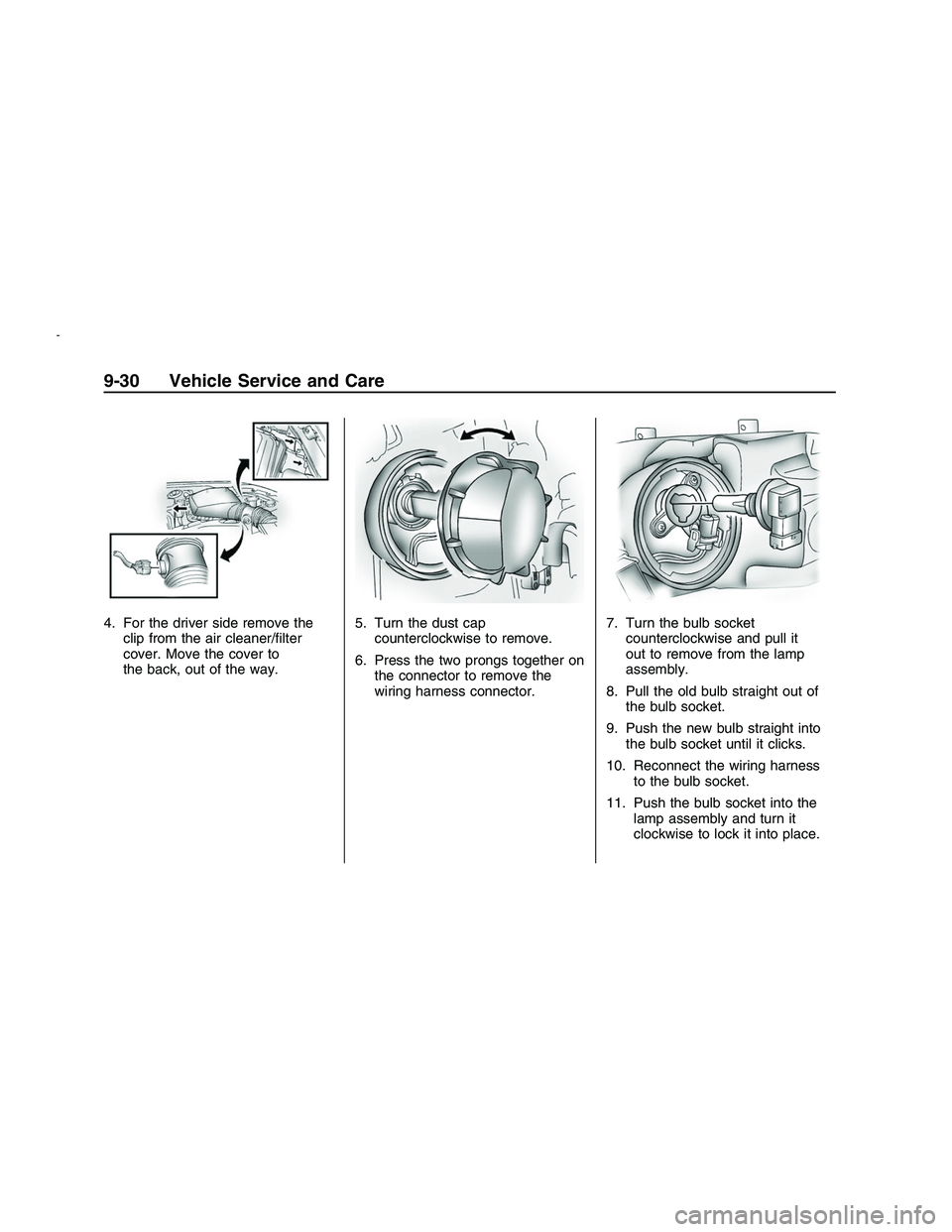

4. For the driver side remove the
clip from the air cleaner/lter
cover. Move the cover to
the back, out of the way.5. Turn the dust cap
counterclockwise to remove.
6. Press the two prongs together on
the connector to remove the
wiring harness connector.7. Turn the bulb socket
counterclockwise and pull it
out to remove from the lamp
assembly.
8. Pull the old bulb straight out of
the bulb socket.
9. Push the new bulb straight into
the bulb socket until it clicks.
10. Reconnect the wiring harness
to the bulb socket.
11. Push the bulb socket into the
lamp assembly and turn it
clockwise to lock it into place.
9-30 Vehicle Service and Care
2008 - Pontiac G8 Owner Manual

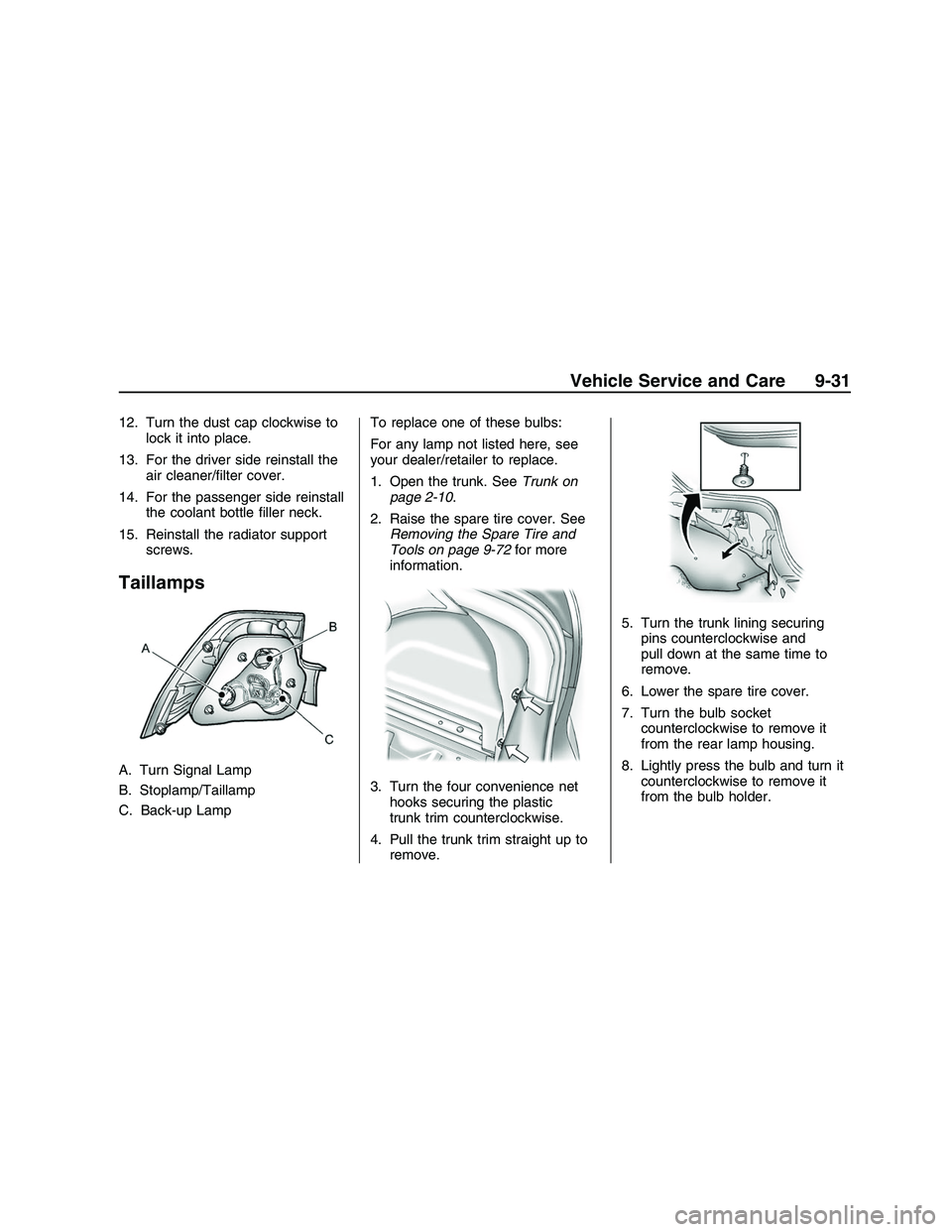

12. Turn the dust cap clockwise to
lock it into place.
13. For the driver side reinstall the
air cleaner/lter cover.
14. For the passenger side reinstall
the coolant bottle ller neck.
15. Reinstall the radiator support
screws.
Taillamps
A. Turn Signal Lamp
B. Stoplamp/Taillamp
C. Back-up LampTo replace one of these bulbs:
For any lamp not listed here, see
your dealer/retailer to replace.
1. Open the trunk. SeeTrunk on
page 2-10.
2. Raise the spare tire cover. See
Removing the Spare Tire and
Tools on page 9-72for more
information.
3. Turn the four convenience net
hooks securing the plastic
trunk trim counterclockwise.
4. Pull the trunk trim straight up to
remove.5. Turn the trunk lining securing
pins counterclockwise and
pull down at the same time to
remove.
6. Lower the spare tire cover.
7. Turn the bulb socket
counterclockwise to remove it
from the rear lamp housing.
8. Lightly press the bulb and turn it
counterclockwise to remove it
from the bulb holder.
Vehicle Service and Care 9-31
2008 - Pontiac G8 Owner Manual

9. Push the new bulb into the
socket and turn it clockwise
to lock it into place.
10. Push the bulb socket straight in
and turn it clockwise to lock it
into place.
11. Make sure the seals are applied
to the taillamp assembly and
screws.12. Raise the spare tire cover.
13. Turn the trunk lining securing
pins clockwise to lock into
place.
14. Return the plastic trunk trim to
its original location.
15. Reinstall the plastic
retaining pins.
Replacement Bulbs
Exterior LampBulb
Number
High-Beam
HeadlampH9
Low-Beam
HeadlampH11
Stoplamp/Taillamp P21/5W
Rear Turn
Signal LampPY21W
Back-up Lamp P21W
For replacement bulbs not listed
here, contact your dealer/retailer.
Electrical System
Add-On Electrical
Equipment
Notice:Do not add anything
electrical to your vehicle unless
you check with your
dealer/retailer rst. Some
electrical equipment can damage
your vehicle and the damage
would not be covered by your
warranty. Some add-on electrical
equipment can keep other
components from working as
they should.
Add-on equipment can drain your
vehicle’s battery, even if your vehicle
is not operating.
Your vehicle has an airbag system.
Before attempting to add anything
electrical to your vehicle, see
Servicing Your Airbag-Equipped
Vehicle on page 1-30.
9-32 Vehicle Service and Care
2008 - Pontiac G8 Owner Manual
