2008 MERCEDES-BENZ ML63AMG Owner's Manual

48 Getting started
Adjusting
Make sure that

you can reach the steering wheel with
your arms slightly bent at the elbows

you can move your legs freely

all displays (including malfunction and
indicator lamps) on the instrument
cluster are clearly visible
The steering wheel adjustment release
handle is located on the lower left of the
steering column.1Release handle
To unlock the steering column, pull
release handle1 out to its stop limit.
Move steering wheel to the desired
position.
Push release handle1 back to its
original position to relock the steering
column.
The steering column is locked into po-
sition again.
Make sure the steering column is
securely locked by trying to move the
steering wheel up and down as well as
in and out before driving off.Steering wheel adjustment, electrical*
Driving without the steering wheel adjust-
ment locked may cause an unexpected
steering wheel movement which could
cause the driver to lose control of the vehi-
cle. Make sure the steering wheel is secure-
ly locked by trying to move it up and down,
and in and out before driving off.
Warning!G
Do not adjust the steering wheel while driv-
ing. Adjusting the steering wheel while driv-
ing could cause the driver to lose control of
the vehicle.
When leaving the vehicle, always remove the
SmartKey or SmartKey with KEYLESS-GO*
from the starter switch, take it with you, and
lock the vehicle.
Even with the SmartKey or SmartKey with
KEYLESS-GO* removed from the starter
switch or the SmartKey with KEYLESS-GO*
removed from the vehicle, the steering
wheel adjustment feature can be operated.
Therefore, do not leave children unattended
in the vehicle, or with access to an unlocked
vehicle. A child’s unsupervised access to a
vehicle could result in an accident and/or
serious personal injury.


49 Getting started
Adjusting
Make sure that

you can reach the steering wheel with
your arms slightly bent at the elbows

you can move your legs freely

all displays (including malfunction and
indicator lamps) on the instrument
cluster are clearly visible
The steering wheel adjustment stalk is
located on the lower left of the steering
column.1Adjusting steering wheel, in or out
2Adjusting steering wheel, up or down
Adjusting steering column in or out
Move stalk forward or back in direction
of arrow1.
Adjusting steering column up or down
Move stalk up or down in direction of
arrow2.
Mirrors
Adjust the interior and exterior rear view
mirrors before driving so that you have a
good view of the road and traffic condi-
tions.
Interior rear view mirror
Manually adjust the interior rear view
mirror.
For more information, see “Rear view mir-
rors” (
page 199).
Exterior rear view mirrors
iThe memory function* (page 133) lets
you store the settings for the steering wheel
together with the settings for seat positions and
the exterior rear view mirrors.
Warning!G
Exercise care when using the
passenger-side exterior rear view mirror.
The mirror surface is convex (outwardly
curved surface for a wider field of view). Ob-
jects in mirror are closer than they appear.
Check your interior rear view mirror or
glance over your shoulder before changing
lanes.

50 Getting started
Adjusting
The buttons are located on the driver’s
door.
1Driver’s side exterior rear view mirror
button
2Adjustment button
3Passenger-side exterior rear view mir-
ror button
Switch on the ignition (page 40).
Press button1 for the driver’s side ex-
terior rear view mirror or button3 for
the passenger-side exterior rear view
mirror.
The indicator lamp on the respective
button comes on for
approximately 15 seconds.
Push adjustment button2 up, down,
left, or right according to the desired
setting.
For more information, see “Rear view mir-
rors” (
page 199).
iIf you do not make adjustments to the
selected exterior rear view mirror within
15 seconds, the indicator lamp goes out. You will
then have to select the desired exterior rear view
mirror again before any adjustments can be
made. Adjustments can only be made with the
indicator lamp for the respective exterior rear
view mirror button illuminated.
!If an exterior rear view mirror was forcibly
pushed forward (hit from the rear) or forcibly
pushed rearward (hit from the front), reposition
it by applying firm pressure until it snaps into
place. The mirror housing is then properly posi-
tioned and you can adjust the mirror in the usual
manner.
!Vehicle with power folding exterior rear view
mirrors*:
If an exterior rear view mirror housing is forcibly
pushed forward (hit from the rear) or forcibly
pushed rearward (hit from the front), press fold
button1 (
page 201) to fold mirrors in, then
press fold button1 (
page 201) again to fold
mirrors out. Do not force mirrors by hand as this
may damage the adjustment mechanism.
The mirror housing is then properly positioned
and you can adjust the mirror in the usual man-
ner.
iThe memory function* (page 133) lets
you store the settings for the exterior rear view
mirrors together with the setting for the steering
wheel and the seat positions.
iAt low ambient temperatures, the exterior
rear view mirrors will be heated automatically.

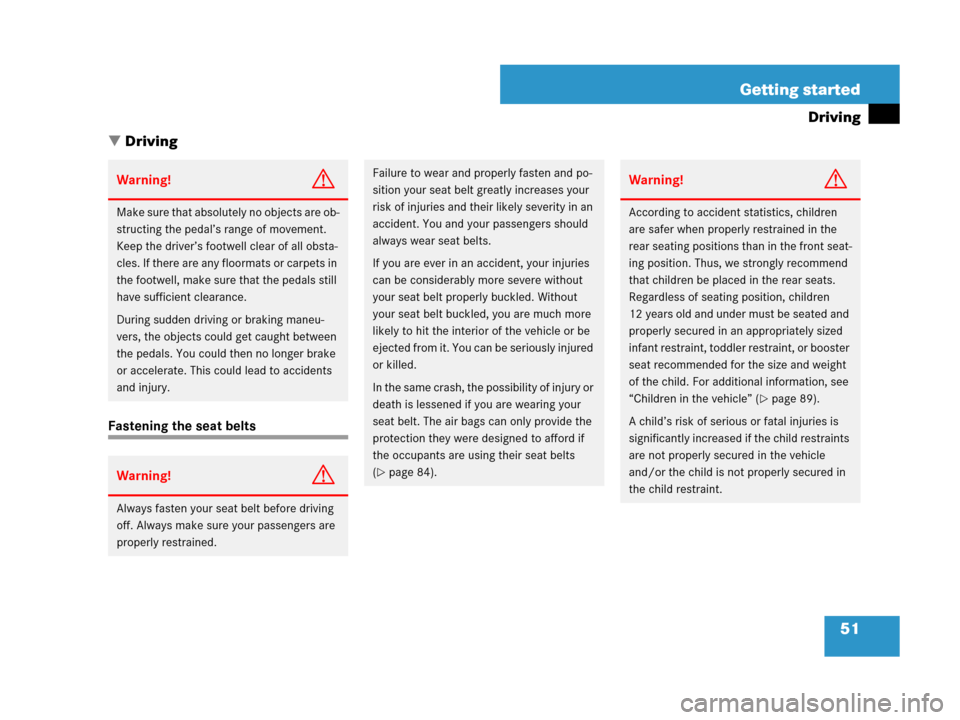

51 Getting started
Driving
Driving
Fastening the seat belts
Warning!G
Make sure that absolutely no objects are ob-
structing the pedal’s range of movement.
Keep the driver’s footwell clear of all obsta-
cles. If there are any floormats or carpets in
the footwell, make sure that the pedals still
have sufficient clearance.
During sudden driving or braking maneu-
vers, the objects could get caught between
the pedals. You could then no longer brake
or accelerate. This could lead to accidents
and injury.
Warning!G
Always fasten your seat belt before driving
off. Always make sure your passengers are
properly restrained.
Failure to wear and properly fasten and po-
sition your seat belt greatly increases your
risk of injuries and their likely severity in an
accident. You and your passengers should
always wear seat belts.
If you are ever in an accident, your injuries
can be considerably more severe without
your seat belt properly buckled. Without
your seat belt buckled, you are much more
likely to hit the interior of the vehicle or be
ejected from it. You can be seriously injured
or killed.
In the same crash, the possibility of injury or
death is lessened if you are wearing your
seat belt. The air bags can only provide the
protection they were designed to afford if
the occupants are using their seat belts
(
page 84).
Warning!G
According to accident statistics, children
are safer when properly restrained in the
rear seating positions than in the front seat-
ing position. Thus, we strongly recommend
that children be placed in the rear seats.
Regardless of seating position, children
12 years old and under must be seated and
properly secured in an appropriately sized
infant restraint, toddler restraint, or booster
seat recommended for the size and weight
of the child. For additional information, see
“Children in the vehicle” (
page 89).
A child’s risk of serious or fatal injuries is
significantly increased if the child restraints
are not properly secured in the vehicle
and/or the child is not properly secured in
the child restraint.

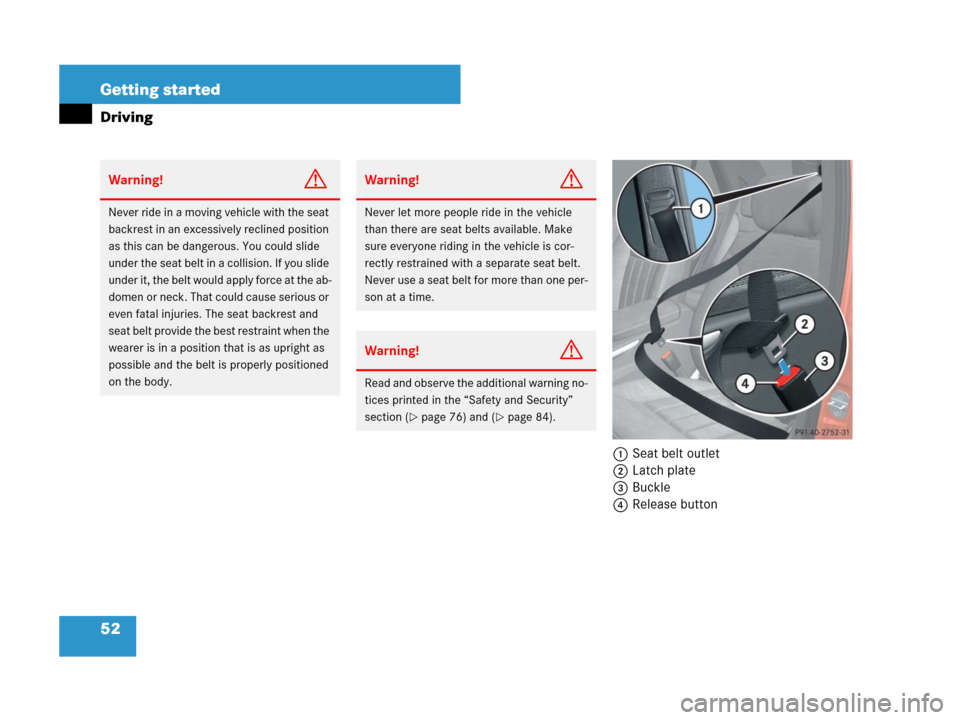

52 Getting started
Driving
1Seat belt outlet
2Latch plate
3Buckle
4Release button
Warning!G
Never ride in a moving vehicle with the seat
backrest in an excessively reclined position
as this can be dangerous. You could slide
under the seat belt in a collision. If you slide
under it, the belt would apply force at the ab-
domen or neck. That could cause serious or
even fatal injuries. The seat backrest and
seat belt provide the best restraint when the
wearer is in a position that is as upright as
possible and the belt is properly positioned
on the body.
Warning!G
Never let more people ride in the vehicle
than there are seat belts available. Make
sure everyone riding in the vehicle is cor-
rectly restrained with a separate seat belt.
Never use a seat belt for more than one per-
son at a time.
Warning!G
Read and observe the additional warning no-
tices printed in the “Safety and Security”
section (
page 76) and (page 84).

53 Getting started
Driving
With a smooth motion, pull the belt out
of seat belt outlet1.
Place the shoulder portion of the belt
across the top of your shoulder and the
lap portion across your hips.
Push latch plate2 into buckle3
(
page 52) until it clicks.
If necessary, tighten the lap portion to
a snug fit by pulling shoulder portion
up.
Seat belt height adjustment
1Release button
Press release button1 and move the
seat belt height adjuster upward or
downward.
Proper use of seat belts

Do not twist the belt when fastening.

Adjust seat belt so that the shoulder
portion is located as close as possible
to the middle of the shoulder (it should
not touch the neck). Never pass the
shoulder portion of the belt under your
arm. For this purpose, you can adjust
the height of the belt outlet
(
page 53).

Position the lap belt as low as possible
on your hips (over hip joint) and not
across the abdomen.

Place the seat backrest in a position
that is as upright as possible.

Never use a seat belt for more than one
person at a time.

Do not fasten a seat belt around a
person and another object at the same
time. When using a seat belt to secure
infant or toddler restraints or children
in booster seats, always follow the
child seat manufacturer’s instructions.

Check your seat belt periodically
during travel to make sure that it is
properly positioned.

Make sure the seat belt is always fitted
snugly. Take special care of this when
wearing loose clothing.

54 Getting started
Driving
Starting the engine Automatic transmission
Gearshift pattern for automatic
transmission
PPark position
RReverse gear
NNeutral
DDrive position
For more information on how to operate
the gear selector lever, see “Automatic
transmission” (
page 183).
Warning!G
Do not pass belts over sharp edges. They
could tear.
Do not allow the belt to get caught in the
door or in the seat adjustment mechanism.
This could damage the belt.
Never attempt to make modifications to
seat belts. This could impair the effective-
ness of the belts.
Do not bleach or dye seat belts as this may
severely weaken them. In a crash, they may
not be able to provide adequate protection.
Damaged seat belts or belts that were highly
stressed in an accident must be replaced.
Contact an authorized Mercedes-Benz Light
Truck Center.Warning!G
Inhalation of exhaust gas is hazardous to
your health. All exhaust gas contains carbon
monoxide (CO), and inhaling it can cause un-
consciousness and possible death.
Do not run the engine in confined areas
(such as a garage) which are not properly
ventilated. If you think that exhaust gas
fumes are entering the vehicle while driving,
have the cause determined and corrected
immediately. If you must drive under these
conditions, drive only with at least one win-
dow fully open.

55 Getting started
Driving
Starting with the SmartKey
For information on turning off the engine
with the SmartKey, see “Turning off the en-
gine” (
page 66).
Gasoline engine
Make sure the automatic transmission
is set toP.
The transmission position indicator in
the multifunction display should be
on
P (page 147).
Do not depress the accelerator.
Turn the SmartKey in the starter switch
to position3 (
page 39) and hold until
the engine starts.Diesel engine
Make sure the automatic transmission
is set toP.
The transmission position indicator in
the multifunction display should be
on
P (page 147).
Do not depress the accelerator.
Turn the SmartKey in the starter switch
to position2 (
page 40).
Preglow indicator lampqin the
instrument cluster comes on.
As soon as preglow indicator
lampq goes out, turn the SmartKey
in the starter switch to position3
(
page 40) and release it.
The engine starts automatically.Starting with KEYLESS-GO*
You can start your vehicle without the
SmartKey in the starter switch using the
KEYLESS-GO start/stop button in the
starter switch.
The SmartKey with KEYLESS-GO must be
located in the vehicle.
iYou can also use the “touch-start” function.
Turn the SmartKey to position3 and release it
again immediately. The engine then starts auto-
matically.
iIf the engine is at operating temperature,
preglow indicator lampqmay not stay on
and you can start the engine without preglowing.
Warning!G
As long as the SmartKey with KEYLESS-GO
is in your vehicle, the vehicle can be started.
Therefore, never leave children unattended
in the vehicle, as they could otherwise acci-
dentally start the engine.
When leaving the vehicle, always take the
SmartKey with KEYLESS-GO with you and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle.
