2008 MERCEDES-BENZ ML63AMG Owner's Manual

440 Practical hints
What to do if …
Display symbolDisplay messagePossible cause/consequencePossible solution
. License Plate Lamp
LeftThe left license plate lamp is
malfunctioning.Replace the bulb as soon as possible
(
page 473).
License Plate Lamp
RightThe right license plate lamp is
malfunctioning.Replace the bulb as soon as possible
(
page 473).
Low Beam
LeftThe left low beam lamp is
malfunctioning.Halogen headlamp:
Replace the bulb as soon as possible
(
page 466).
Bi-Xenon* headlamp:
Contact an authorized Mercedes-Benz
Light Truck Center as soon as possible.
Low Beam
RightThe right low beam lamp is
malfunctioning.Halogen headlamp:
Replace the bulb as soon as possible
(
page 466).
Bi-Xenon* headlamp:
Contact an authorized Mercedes-Benz
Light Truck Center as soon as possible.

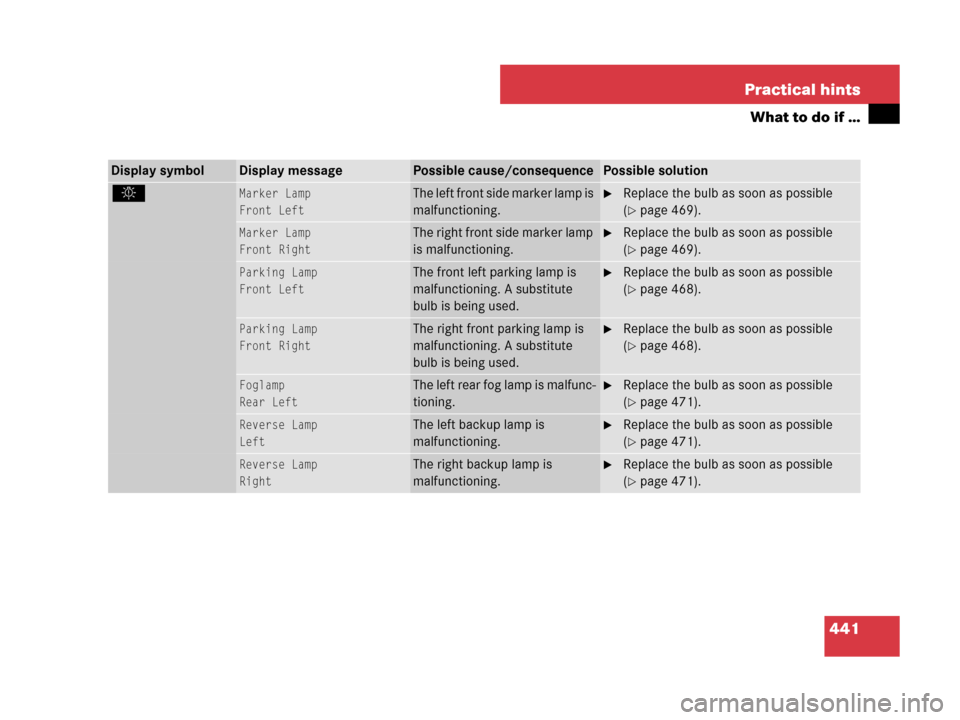

441 Practical hints
What to do if …
Display symbolDisplay messagePossible cause/consequencePossible solution
. Marker Lamp
Front LeftThe left front side marker lamp is
malfunctioning.Replace the bulb as soon as possible
(
page 469).
Marker Lamp
Front RightThe right front side marker lamp
is malfunctioning.Replace the bulb as soon as possible
(
page 469).
Parking Lamp
Front LeftThe front left parking lamp is
malfunctioning. A substitute
bulb is being used.Replace the bulb as soon as possible
(
page 468).
Parking Lamp
Front RightThe right front parking lamp is
malfunctioning. A substitute
bulb is being used.Replace the bulb as soon as possible
(
page 468).
Foglamp
Rear LeftThe left rear fog lamp is malfunc-
tioning.Replace the bulb as soon as possible
(
page 471).
Reverse Lamp
LeftThe left backup lamp is
malfunctioning.Replace the bulb as soon as possible
(
page 471).
Reverse Lamp
RightThe right backup lamp is
malfunctioning.Replace the bulb as soon as possible
(
page 471).

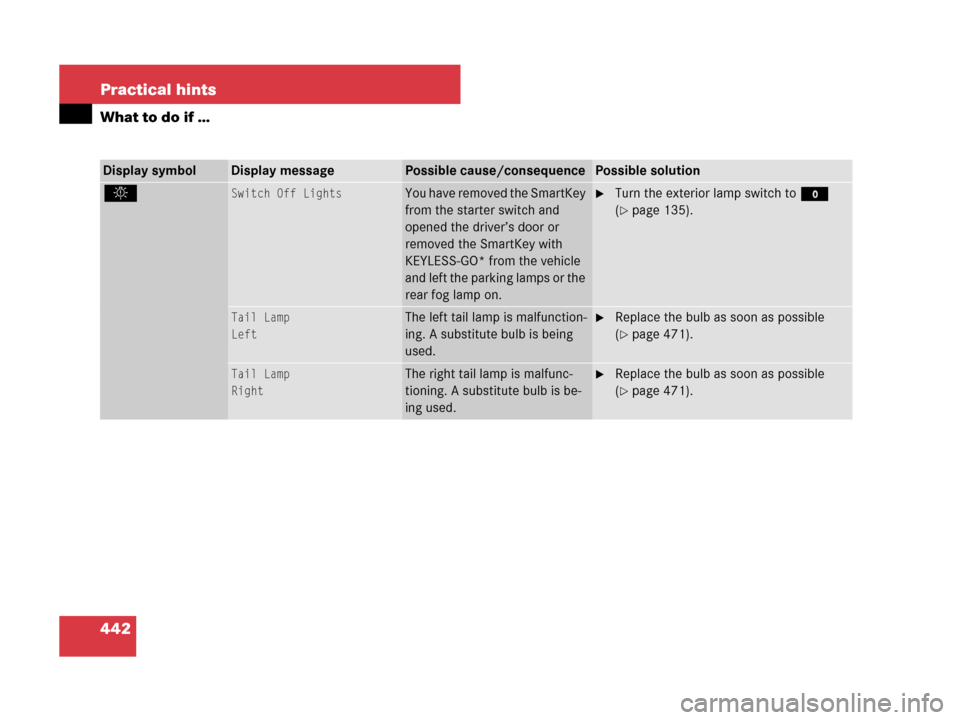

442 Practical hints
What to do if …
Display symbolDisplay messagePossible cause/consequencePossible solution
. Switch Off LightsYou have removed the SmartKey
from the starter switch and
opened the driver’s door or
removed the SmartKey with
KEYLESS-GO* from the vehicle
and left the parking lamps or the
rear fog lamp on.Turn the exterior lamp switch toM
(
page 135).
Tail Lamp
LeftThe left tail lamp is malfunction-
ing. A substitute bulb is being
used.Replace the bulb as soon as possible
(
page 471).
Tail Lamp
RightThe right tail lamp is malfunc-
tioning. A substitute bulb is be-
ing used.Replace the bulb as soon as possible
(
page 471).

443 Practical hints
What to do if …
Display symbolDisplay messagePossible cause/consequencePossible solution
. Turn Signal
Rear LeftThe left rear turn signal lamp is
malfunctioning. A substitute
bulb is being used.Replace the bulb as soon as possible
(
page 471).
Turn Signal
Rear RightThe right rear turn signal lamp is
malfunctioning. A substitute
bulb is being used.Replace the bulb as soon as possible
(
page 471).
Turn Signal
Front LeftThe left front turn signal lamp is
malfunctioning. A substitute
bulb is being used.Replace the bulb as soon as possible
(
page 468).
Turn Signal
Front RightThe right front turn signal lamp is
malfunctioning. A substitute
bulb is being used.Replace the bulb as soon as possible
(
page 468).
Turn Signal
Left MirrorThe turn signal in the left exteri-
or rear view mirror is malfunc-
tioning. This message will only
appear if a critical number of
LEDs have stopped working.Contact an authorized Mercedes-Benz
Light Truck Center as soon as possible.
Turn Signal
Right MirrorThe turn signal in the right exte-
rior rear view mirror is malfunc-
tioning. This message will only
appear if a critical number of
LEDs have stopped working.Contact an authorized Mercedes-Benz
Light Truck Center as soon as possible.

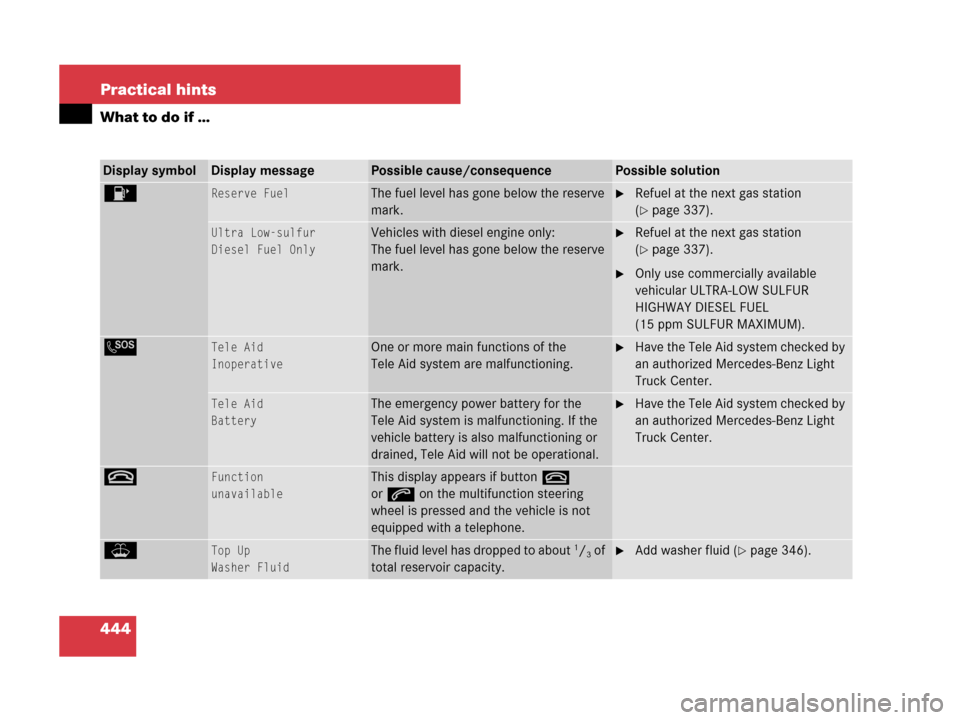

444 Practical hints
What to do if …
Display symbolDisplay messagePossible cause/consequencePossible solution
4Reserve FuelThe fuel level has gone below the reserve
mark.Refuel at the next gas station
(
page 337).
Ultra Low-sulfur
Diesel Fuel OnlyVehicles with diesel engine only:
The fuel level has gone below the reserve
mark.Refuel at the next gas station
(
page 337).
Only use commercially available
vehicular ULTRA-LOW SULFUR
HIGHWAY DIESEL FUEL
(15 ppm SULFUR MAXIMUM).
L Tele Aid
InoperativeOne or more main functions of the
Tele Aid system are malfunctioning.Have the Tele Aid system checked by
an authorized Mercedes-Benz Light
Truck Center.
Tele Aid
BatteryThe emergency power battery for the
Tele Aid system is malfunctioning. If the
vehicle battery is also malfunctioning or
drained, Tele Aid will not be operational.Have the Tele Aid system checked by
an authorized Mercedes-Benz Light
Truck Center.
tFunction
unavailableThis display appears if buttont
ors on the multifunction steering
wheel is pressed and the vehicle is not
equipped with a telephone.
W Top Up
Washer FluidThe fluid level has dropped to about 1/3 of
total reservoir capacity.Add washer fluid (page 346).

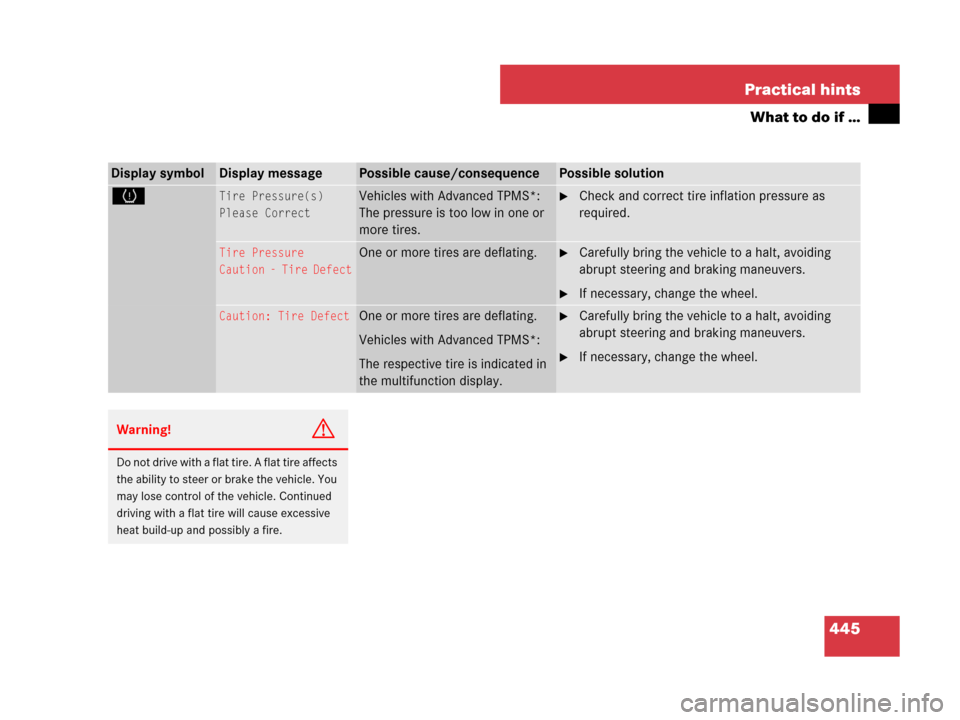

445 Practical hints
What to do if …
Display symbolDisplay messagePossible cause/consequencePossible solution
HTire Pressure(s)
Please CorrectVehicles with Advanced TPMS*:
The pressure is too low in one or
more tires.Check and correct tire inflation pressure as
required.
Tire Pressure
Caution - Tire DefectOne or more tires are deflating.Carefully bring the vehicle to a halt, avoiding
abrupt steering and braking maneuvers.
If necessary, change the wheel.
Caution: Tire DefectOne or more tires are deflating.
Vehicles with Advanced TPMS*:
The respective tire is indicated in
the multifunction display.Carefully bring the vehicle to a halt, avoiding
abrupt steering and braking maneuvers.
If necessary, change the wheel.
Warning!G
Do not drive with a flat tire. A flat tire affects
the ability to steer or brake the vehicle. You
may lose control of the vehicle. Continued
driving with a flat tire will cause excessive
heat build-up and possibly a fire.

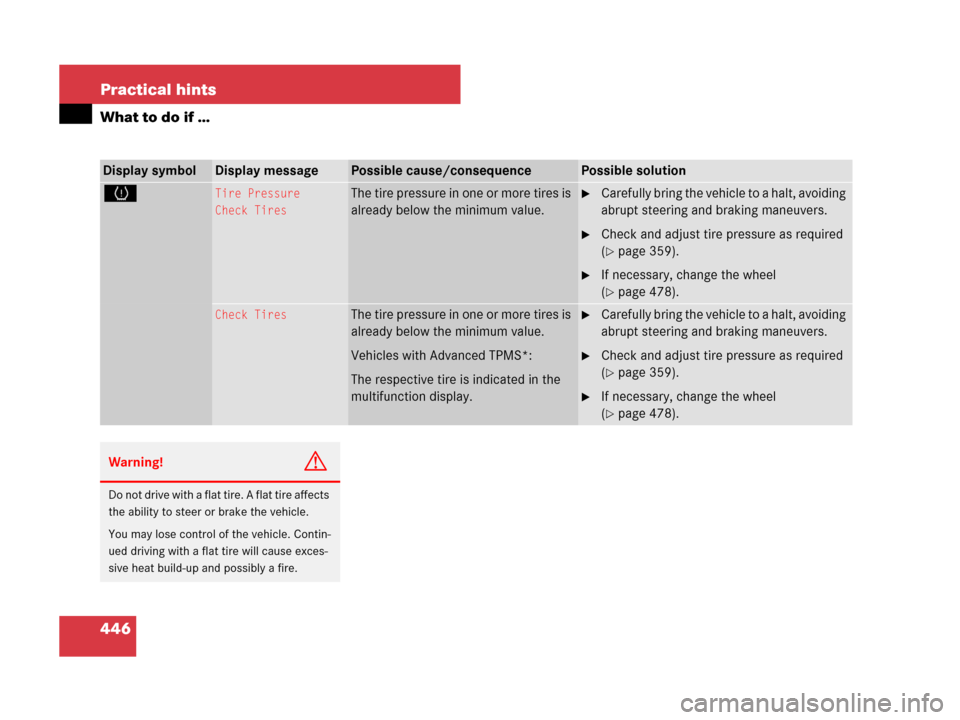

446 Practical hints
What to do if …
Display symbolDisplay messagePossible cause/consequencePossible solution
HTire Pressure
Check TiresThe tire pressure in one or more tires is
already below the minimum value.Carefully bring the vehicle to a halt, avoiding
abrupt steering and braking maneuvers.
Check and adjust tire pressure as required
(
page 359).
If necessary, change the wheel
(
page 478).
Check TiresThe tire pressure in one or more tires is
already below the minimum value.
Vehicles with Advanced TPMS*:
The respective tire is indicated in the
multifunction display.Carefully bring the vehicle to a halt, avoiding
abrupt steering and braking maneuvers.
Check and adjust tire pressure as required
(
page 359).
If necessary, change the wheel
(
page 478).
Warning!G
Do not drive with a flat tire. A flat tire affects
the ability to steer or brake the vehicle.
You may lose control of the vehicle. Contin-
ued driving with a flat tire will cause exces-
sive heat build-up and possibly a fire.

447 Practical hints
What to do if …
Display symbolDisplay messagePossible cause/consequencePossible solution
nLevel Selection
Not PermittedThe selected vehicle level cannot ad-
justed, because

you are driving too fast for the de-
sired vehicle level

you are towing a trailer

you are using accessories that are
connected to the trailer power
socket, e.g. a bicycle rack
Reduce vehicle speed.
Set the desired vehicle level again
(
page 257).
MalfunctionThe air suspension* is malfunctioning.Do not drive faster than 50 mph
(80 km/h) depending on the set
vehicle level.
Have the vehicle checked at an au-
thorized Mercedes-Benz Light
Truck Center.
Compressor
Cooling DownYou have selected a higher vehicle
level*. Due to frequent level changes
within a short period, the compressor
must first cool down.Let the compressor cool until the
message disappears.
The selected level will be set once
the compressor has cooled down.
!When the message Compressor Cooling
Down
appears in the multifunction display,
driving is still possible. Keep in mind that theride height of the vehicle is not yet reached, so
you can damage the underbody of the vehicle.The selected level will be set once the compres-
sor has cooled.
