2008 MERCEDES-BENZ ML63AMG Owner's Manual

216 Controls in detail
Climate control
Rear climate control*
The control panel is located on the rear of
the front center console.
Activating rear climate control
Press buttonU.
The indicator lamp on the button
comes on. The air volume and air distri-
bution are adjusted automatically.Deactivating rear climate control
Press button´.
The indicator lamp on the button
comes on.
The cooling function switches off after
a short delay.iThe rear climate control panel is only
available if your vehicle is equipped with seat
heating* for the rear seats or Rear Audio fea-
ture* (see separate COMAND System operating
instructions).
1Left rear center air vent, adjustable
2Right rear center air vent, adjustable
3Rear climate control on
(automatic mode)
4Air distribution (directs air through
the center air vents)
5Air distribution (directs air through
the footwells and side air vents)
6Rear air conditioning off
iThe climate control must be switched on
(
page 217).
iThe temperature is adjusted according to
the settings for the front passenger side made
on the front climate control panel (
page 209).
iSwitch off the rear climate control for im-
proved cooling or heating output in the front pas-
senger compartment.
You can also switch off the rear climate control
from the front passenger compartment
(
page 217).

217 Controls in detail
Climate control
Operating from the front
Deactivating
Press button: on the front climate
control panel (
page 206).
The indicator lamp on the button
comes on.
Reactivating
Press button: on the front climate
control panel (
page 206).
The indicator lamp on the button goes
out. The rear climate control is adjust-
ed automatically.Adjusting air distribution
Use the air distribution controls4 or5
to adjust the air distribution for the rear
passenger compartment.
The following symbols are found on the
controls:
Adjusting manually
Press the desired air distribution
control4 or5.
The indicator lamp in the Ubutton
goes out.Adjusting automatically
Press buttonU (page 216).
The indicator lamp on the button
comes on. The air distribution is adjust-
ed automatically.
Adjusting air volume
The air volume for the rear zone corre-
sponds to the air volume settings for the
front passenger side. You can switch off
the air supply for the rear zone.
You can switch off the supplied amount of
air volume.
Press button´ (page 216).
The indicator lamp on the button
comes on.
SymbolFunction
ZDirects air to the center air
vents
YDirects air to the footwells and
the side air vents

218 Controls in detail

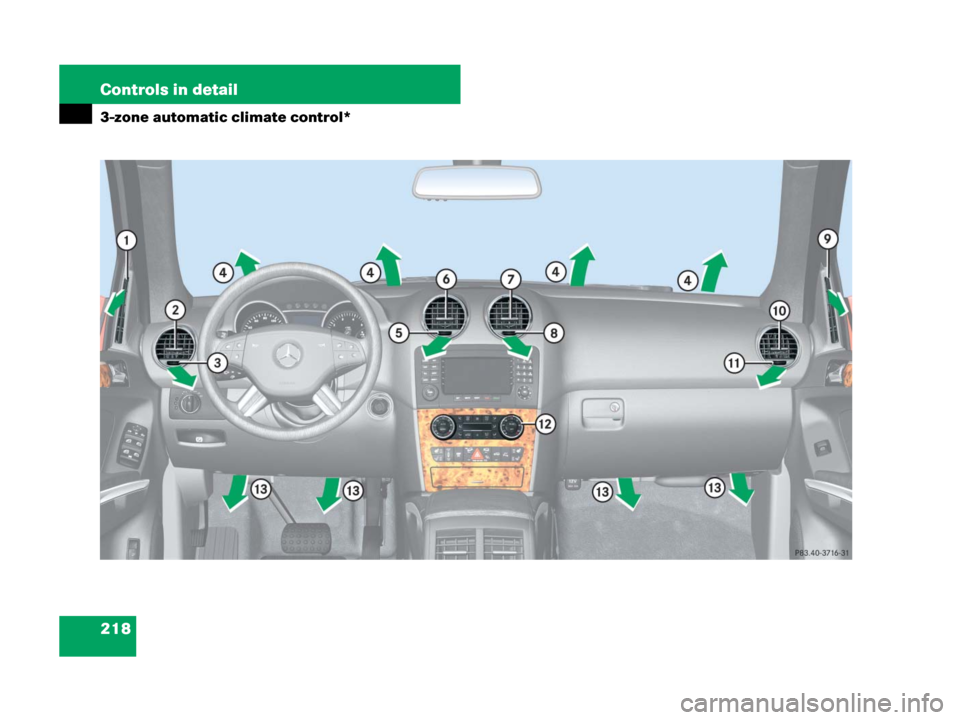

3-zone automatic climate control*

219 Controls in detail
3-zone automatic climate control*
1Driver’s door air vent, fixed
2Left side air vent, adjustable
3Thumbwheel for air volume control
for left side and door air vent
4Windshield air vents
5Thumbwheel for air volume control
for left center air vent
6Left center air vent, adjustable
7Right center air vent, adjustable
8Thumbwheel for air volume control
for right center air vent
9Thumbwheel for air volume control
for right side and door air vent
aRight side air vent, adjustable
bFront passenger door air vent, fixed
cAutomatic climate control panel
dFootwell air vents
iFor draft-free ventilation, move the sliders
for center air vents and side air vents to the
middle position.

220 Controls in detail
3-zone automatic climate control*

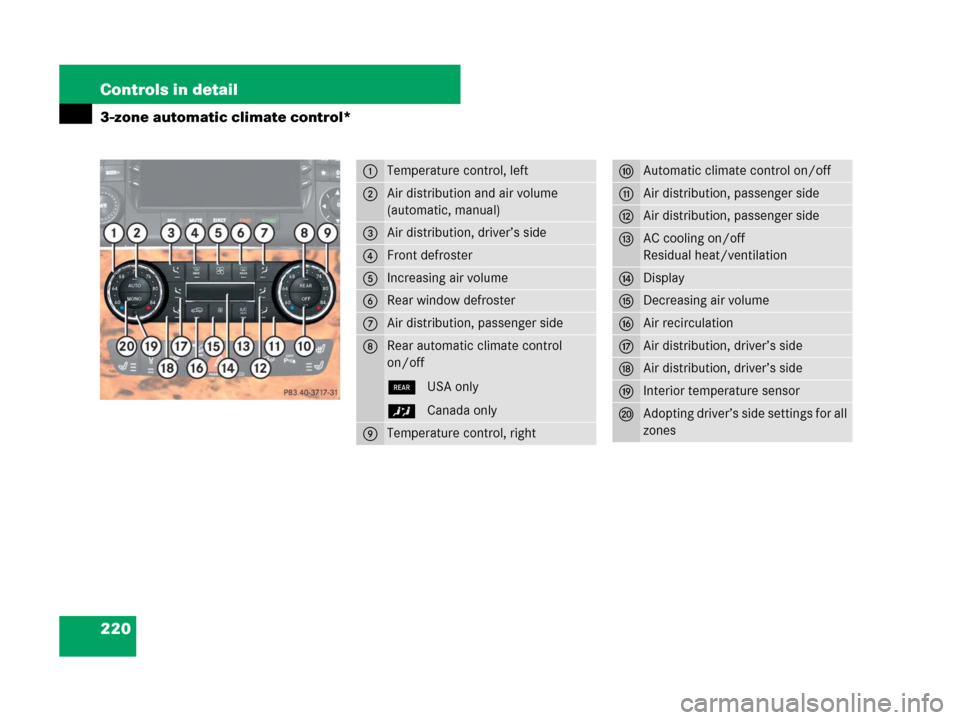

1Temperature control, left
2Air distribution and air volume
(automatic, manual)
3Air distribution, driver’s side
4Front defroster
5Increasing air volume
6Rear window defroster
7Air distribution, passenger side
8Rear automatic climate control
on/off
>USA only
™Canada only
9Temperature control, right
aAutomatic climate control on/off
bAir distribution, passenger side
cAir distribution, passenger side
dAC cooling on/off
Residual heat/ventilation
eDisplay
fDecreasing air volume
gAir recirculation
hAir distribution, driver’s side
jAir distribution, driver’s side
kInterior temperature sensor
lAdopting driver’s side settings for all
zones

221 Controls in detail
3-zone automatic climate control*
The automatic climate control is a 3-zone
intelligent automatic climate control sys-
tem. Your vehicle interior is divided into
3 zones.With the help of a sun sensor, the automat-
ic climate control determines the relation
of the sun to the vehicle and automatically
adjusts the inside temperature for every
individual zone.
The automatic climate control is operation-
al whenever the engine is running. It cools
the vehicle’s interior according to the an-
gle and intensity of the sun’s rays, the out-
side temperature and the selected
temperature. You can operate the auto-
matic climate control in either the auto-
matic or manual mode.
Warning!G
When operating the automatic climate con-
trol, the air that enters the passenger com-
partment through the air vents can be very
hot or very cold (depending on the set tem-
perature). This may cause burns or frostbite
to unprotected skin in the immediate area of
the air vents.
Always keep sufficient distance between un-
protected parts of the body and the air
vents. If necessary, use the air distribution
controls (
page 220) to direct the air to air
vents in the vehicle interior that are not in
the immediate area of unprotected skin.

222 Controls in detail
3-zone automatic climate control*
Nearly all dust particles, pollutants and
odors are filtered out before outside air en-
ters the passenger compartment through
the air distribution system.
The air conditioning will not engage (no
cooling) if the A/C mode is deactivated
(
page 220).Deactivating the automatic climate
control system
Deactivating
Press button´ (page 220) until
the displaye (
page 220) is cleared.
The indicator lamp on the button
comes on.
Warning!G
Severe conditions (e.g. strong air pollution)
may require replacement of the filter before
its scheduled interval. A clogged filter will
reduce the air volume to the interior and the
windows could fog up, impairing visibility
and endangering you and others. Have a
clogged filter replaced as soon as possible
at an authorized Mercedes-Benz Light Truck
Center.
Warning!G
Follow the recommended settings for heat-
ing and cooling given on the following
pages. Otherwise the windows could fog up,
impairing visibility and endangering you and
others.
iIf the vehicle interior is hot, ventilate the in-
terior before driving off, see “Summer opening
feature” (
page 237). The automatic climate
control will then adjust the interior temperature
to the set value much faster.
Keep the air intake grille in front of the wind-
shield free of snow and debris.
Warning!G
When the automatic climate control system
is switched off, the outside air supply and
circulation are also switched off. Only
choose this settings for a short time. Other-
wise the windows could fog up, impairing
visibility and endangering you and others.

223 Controls in detail
3-zone automatic climate control*
Reactivating
Press buttonU(page 220).
Operating the automatic climate
control system in automatic mode
You can switch the automatic climate con-
trol system on and off separately for each
zone as needed.Activating
Press buttonU (page 220) while
the engine is running.
The indicator lamp on the button
comes on. Air volume and air distribu-
tion are controlled separately for each
zone.
Use temperature controls1 and9
(
page 220) to separately adjust the
air temperature on each side of the
passenger compartment.
The temperature of the interior is ad-
justed automatically.
Deactivating
Press one button of the air distribution
(
page 220) or press button

orQ (
page 220).
The indicator lamp on buttonU
goes out.Depending on which button you press –
the air distribution button or the air vol-
ume button
orQ – automatic
control of either the air distribution or
air volume is switched off.
Setting the temperature
Use temperature control1 and9
(
page 220) to separately adjust the air
temperature on each side of the passenger
compartment. You should raise or lower
the temperature setting in small incre-
ments, preferably starting at 72°F (22°C).
The automatic climate control will adjust to
the set temperature as fast as possible.
Increasing
Turn temperature control1
and/or9 slightly clockwise.
The automatic climate control system
will correspondingly adjust the interior
air temperature.
iYou can also press button´
(
page 220) on the automatic climate control
panel.
If you press button| (
page 220) to
reactivate the automatic climate control system,
the defrosting mode is activated.
iWhen operating the automatic climate
control system in automatic mode, you will only
rarely need to adjust the temperature, air volume
and air distribution.
In automatic mode, cooling with dehumidify is
switched on. This function can be switched off if
necessary.
