2008 MERCEDES-BENZ ML63AMG Owner's Manual

424 Practical hints
What to do if …
Display messagePossible
cause/conse-
quencePossible solution
Monitor the 59indicator lamp on the center console (page 83) and
the multifunction display in the instrument cluster (
page 26) for the following:
With the seat unoccupied and the ignition turned on,

the 59indicator lamp on the center console should illuminate and
remain illuminated, indicating that the OCS (
page 79) has deactivated the air
bag.

the message Front Passenger Airbag Enabled See Operator’s Manual or the
message
Front Passenger Airbag Disabled See Operator’s Manual should not
appear in the multifunction display at any time the seat is unoccupied. Wait at
least 60 seconds for the system to complete the necessary check cycles and to
make sure neither message appears in the multifunction display.
If above conditions are met, you can occupy the front passenger seat again.
Depending on the front passenger classification sensed by the OCS (
page 79),
the59indicator lamp will remain illuminated or go out.
If above conditions are not met, the system is not working properly. Have the system
checked as soon as possible by an authorized Mercedes-Benz Light Truck Center.
Warning!G
If the 59indicator lamp
remains illuminated with an adult occupant
on the front passenger seat even after per-
forming the above corrective steps, do nothave any passenger use the front passenger
seat until the system has been repaired.

425 Practical hints
What to do if …
Display messagePossible cause/consequencePossible solution
Check tires,
then restart
Run Flat Indicator.There was a warning message about a
loss in the tire inflation pressure and
the Run Flat Indicator has not been
restarted yet.Make sure that the correct tire inflation pressure is set
for each tire.
Then restart the Run Flat Indicator (page 361).
Run Flat Indicator
InoperativeThe Run Flat Indicator is malfunction-
ing.Have the Run Flat Indicator checked by an authorized
Mercedes-Benz Light Truck Center.
Tire Pressure
Check TiresThe Run Flat Indicator indicates that
the pressure is too low in one or more
tires.Carefully bring the vehicle to a halt, avoiding abrupt
steering and braking maneuvers. Observe the traffic
situation around you.
Check and adjust tire inflation pressure as required
(
page 359).
If necessary, replace the wheel (page 478).
Reactivate the Run Flat Indicator after adjusting the tire
inflation pressure values (
page 361).
Tire pressure
displayed after
driving for
a few minutes.Vehicles with Advanced TPMS*:
The tire inflation pressure is being
checked.Drive the vehicle for a few minutes.

426 Practical hints
What to do if …
Display messagePossible cause/consequencePossible solution
Tire Pressure Monitor
InoperativeThe TPMS or Advanced TPMS* is
malfunctioning.Have the TPMS or Advanced TPMS* checked by an
authorized Mercedes-Benz Light Truck Center.
Tire Pressure Monitor
Inoperative
No Wheel SensorsThere are wheels without appropriate wheel
sensors mounted (e.g. winter tires).Have the TPMS or Advanced TPMS* checked by an
authorized Mercedes-Benz Light Truck Center.
Have the wheel sensors installed by an authorized
Mercedes-Benz Light Truck Center.
Tire Pressure Monitor
Wheel Sensor MissingVehicles with Advanced TPMS*:
One or more sensors are defect (e.g.
battery is empty).
The respective tire is indicated by
- - -
instead of the tire inflation pressure in the
multifunction display.
Have the Advanced TPMS* checked by an autho-
rized Mercedes-Benz Light Truck Center.
Have the wheel sensors installed by an authorized
Mercedes-Benz Light Truck Center.
Vehicles with Advanced TPMS*:
One or more wheels without appropriate
wheel sensors mounted (e.g. spare tire).
The respective tire is indicated by
- - -
instead of the tire inflation pressure in the
multifunction display.
Have the Advanced TPMS* checked by an autho-
rized Mercedes-Benz Light Truck Center.
Have the wheel sensors installed by an authorized
Mercedes-Benz Light Truck Center.
Tire Pressure Monitor
Currently UnavailableThe TPMS or Advanced TPMS* is unable to
monitor the tire pressure due to a nearby
radio interference source.As soon as the causes of the malfunction have been
removed, the TPMS or Advanced TPMS* automati-
cally becomes active again after a few minutes
driving.

427 Practical hints
What to do if …
Symbol messages
Display symbolDisplay messagePossible cause/consequencePossible solution
ò Replace air filter.The air filter is clogged.Have the air filter checked by an authorized
Mercedes-Benz Light Truck Center.
#The battery is no longer charging.
Possible causes:

alternator malfunctioning

broken poly-V-belt
Do not forget that the brake system
requires electrical energy and may be
operating with restricted capability.
Considerably greater brake pedal
force is required and the stopping dis-
tance is increased.
Stop the vehicle in a safe location or as soon as
it is safe to do so.
Apply the parking brake (page 65).
 Check the poly-V-belt.
If it is broken:
Do not continue to drive. Otherwise the engine
will overheat due to an inoperative water pump
which may result in damage to the engine.
Contact an authorized Mercedes-Benz Light
Truck Center.
If it is intact:
Drive immediately to the nearest authorized
Mercedes-Benz Light Truck Center. Adjust
driving to be consistent with reduced braking
responsiveness.

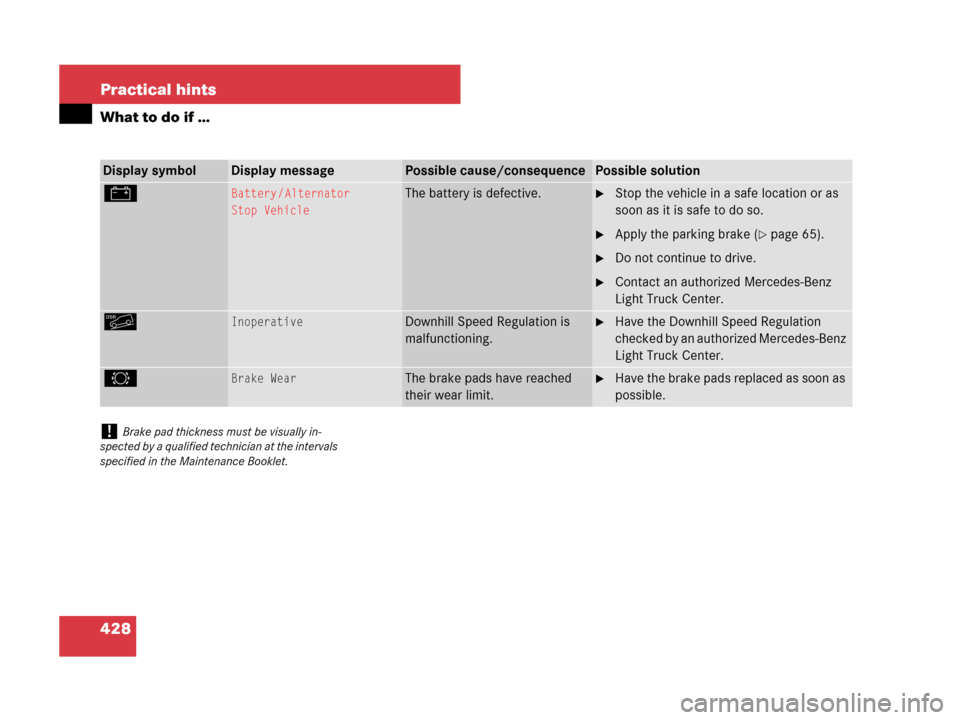

428 Practical hints
What to do if …
Display symbolDisplay messagePossible cause/consequencePossible solution
#Battery / Alternator
Stop VehicleThe battery is defective.Stop the vehicle in a safe location or as
soon as it is safe to do so.
Apply the parking brake (page 65).
Do not continue to drive.
Contact an authorized Mercedes-Benz
Light Truck Center.
{InoperativeDownhill Speed Regulation is
malfunctioning.Have the Downhill Speed Regulation
checked by an authorized Mercedes-Benz
Light Truck Center.
2Brake WearThe brake pads have reached
their wear limit.Have the brake pads replaced as soon as
possible.
!Brake pad thickness must be visually in-
spected by a qualified technician at the intervals
specified in the Maintenance Booklet.

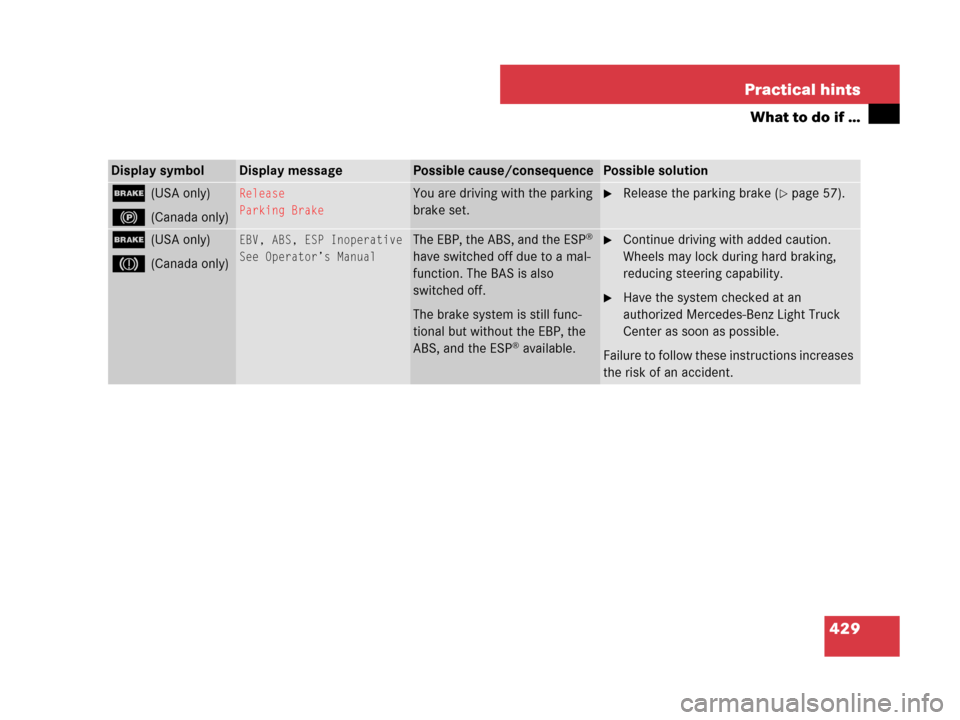

429 Practical hints
What to do if …
Display symbolDisplay messagePossible cause/consequencePossible solution
;(USA only)
!(Canada only)
Release
Parking BrakeYou are driving with the parking
brake set.Release the parking brake (page 57).
;(USA only)
3(Canada only)
EBV, ABS, ESP Inoperative
See Operator’s ManualThe EBP, the ABS, and the ESP®
have switched off due to a mal-
function. The BAS is also
switched off.
The brake system is still func-
tional but without the EBP, the
ABS, and the ESP
® available.
Continue driving with added caution.
Wheels may lock during hard braking,
reducing steering capability.
Have the system checked at an
authorized Mercedes-Benz Light Truck
Center as soon as possible.
Failure to follow these instructions increases
the risk of an accident.

430 Practical hints
What to do if …
Display symbolDisplay messagePossible cause/consequencePossible solution
;(USA only)
3(Canada only)
Check
Brake Fluid LevelThere is insufficient brake fluid
in the reservoir.Risk of accident! Stop the vehicle in a
safe location or as soon at is safe to do
so.
Apply the parking brake (page 65).
Contact an authorized Mercedes-Benz
Light Truck Center. Do not add brake
fluid! This will not solve the problem.
Warning!G
Driving with the message Check Brake
Fluid Level
displayed can result in an
accident. Have your brake system checked
immediately. Do not add brake fluid before
checking the brake system. Overfilling the
brake fluid reservoir can result in spilling
brake fluid on hot engine parts and the
brake fluid catching fire. You could be
seriously burned.
!If you find that the brake fluid in the brake
fluid reservoir has fallen to the minimum mark or
below, have the brake system checked for brake
pad thickness and leaks.

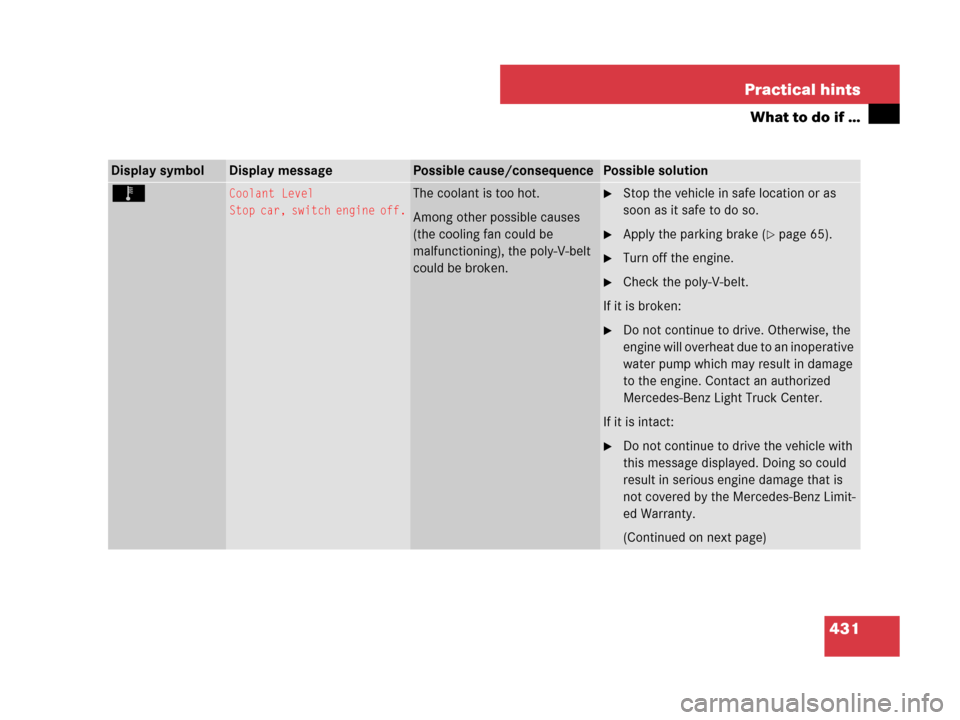

431 Practical hints
What to do if …
Display symbolDisplay messagePossible cause/consequencePossible solution
Ï Coolant Level
Stop car, switch engine off.The coolant is too hot.
Among other possible causes
(the cooling fan could be
malfunctioning), the poly-V-belt
could be broken.Stop the vehicle in safe location or as
soon as it safe to do so.
Apply the parking brake (page 65).
Turn off the engine.
Check the poly-V-belt.
If it is broken:
Do not continue to drive. Otherwise, the
engine will overheat due to an inoperative
water pump which may result in damage
to the engine. Contact an authorized
Mercedes-Benz Light Truck Center.
If it is intact:
Do not continue to drive the vehicle with
this message displayed. Doing so could
result in serious engine damage that is
not covered by the Mercedes-Benz Limit-
ed Warranty.
(Continued on next page)
