2008 MERCEDES-BENZ ML63AMG Owner's Manual

80 Safety and Security
Occupant safety
Warning!G
If the 59indicator lamp illumi-
nates when an adult or someone larger than
a small individual is in the front passenger
seat, have the front passenger re-position
himself or herself in the seat until the
59indicator lamp goes out, or
check whether objects are caught under or
around the seat.
More information about air bag display mes-
sages (
page 421).
In the event of a collision, the air bag control
unit will not allow front passenger front air
bag deployment when the OCS classified
the front passenger seat occupant as being
up to or less than the weight of a typical
12-month-old child in a standard child re-
straint or if the front passenger seat is
sensed as being empty.
When the OCS senses that the front passen-
ger seat occupant is classified as being up
to or less than the weight of a typical
12-month-old child in a standard child
restraint, the 59indicator
lamp will illuminate when the engine is start-
ed and remain illuminated, indicating that
the front passenger front air bag is deacti-
vated.
When the OCS senses that the front passen-
ger seat is classified as being empty, the
59indicator lamp will illumi-
nate when the engine is started and remain
illuminated, indicating that the front
passenger front air bag is deactivated.When the OCS senses that the front passen-
ger seat occupant is classified as being
heavier than the weight of a typical
12-month-old child seated in a standard
child restraint or as being a small individual
(such as a young teenager or a small adult),
the 59indicator lamp will illu-
minate for approximately 6 seconds when
the engine is started and then, depending on
occupant weight sensor readings from the
seat, remain illuminated or go out. With the
59indicator lamp illuminated,
the front passenger front air bag is deacti-
vated. With the 59indicator
lamp out, the front passenger front air bag is
activated.
When the OCS senses that the front passen-
ger seat occupant is classified as an adult or
someone larger than a small individual, the
59indicator lamp will illumi-
nate for approximately 6 seconds when the
engine is started and then go out, indicating
that the front passenger front air bag is
activated.

81 Safety and Security
Occupant safety
If the 59indicator lamp is illu-
minated, the front passenger front air bag is
deactivated and will not be deployed.
If the 59indicator lamp is not
illuminated, the front passenger front air
bag is activated and will be deployed:

in the event of certain frontal impacts

if impact exceeds a preset deployment
threshold

independently of the side impact air
bags.
If the front passenger front air bag is de-
ployed, the rate of inflation will be influ-
enced by:

the rate of vehicle deceleration as
assessed by the air bag control unit

the front passenger’s weight category
as identified by the Occupant Classifica-
tion System (OCS)
Warning!G
According to accident statistics, children
are safer when properly restrained in the
rear seating positions than in the front seat-
ing position. Thus, we strongly recommend
that children be placed in the rear seats
whenever possible. Regardless of seating
position, children 12 years old and under
must be seated and properly secured in an
appropriate infant or child restraint
recommended for the size and weight of the
child.
The infant or child restraint must be properly
secured with the vehicle’s seat belt, the seat
belt and top tether strap, or lower anchors
and top tether strap, fully in accordance
with the child seat manufacturer’s
instructions.
Children can be killed or seriously injured by
an inflating air bag. Note the following
important information when circumstances
require you to place a child in the front pas-
senger seat:

Your vehicle is equipped with air bag
technology designed to turn off the front
passenger front air bag in your vehicle
when the system senses the weight of a
typical 12-month-old child or less along
with the weight of a standard appropri-
ate child restraint on the front passen-
ger seat.

A child in a rear-facing child restraint on
the front passenger seat will be serious-
ly injured or even killed if the front
passenger front air bag inflates in a
collision which could occur under some
circumstances, even with the air bag
technology installed in your vehicle. The
only means to completely eliminate this
risk is to never place a child in a rear-fac-
ing child restraint in the front seat. We
therefore strongly recommend that you
always place a child in a rear-facing child
restraint in the back seat.


82 Safety and Security
Occupant safety

If you must install a rear-facing child
restraint on the front passenger seat
because circumstances require you to
do so, make sure that the
59indicator lamp is illumi-
nated, indicating that the front passen-
ger front air bag is deactivated. Should
the 59indicator lamp not
illuminate or go out while the restraint is
installed, please check installation.
Periodically check the
59indicator lamp while
driving to make sure the
59indicator lamp is illumi-
nated. If the 59indicator
lamp goes out or remains out, do not
transport a child on the front passenger
seat until the system has been repaired.
A child in a rear-facing child restraint on
the front passenger seat will be serious-
ly injured or even killed if the front pas-
senger front air bag inflates.
If you have to place a child in a
forward-facing child restraint on the
front passenger seat, move the seat as
far back as possible, use the proper
child restraint recommended for the
age, size and weight of the child, and
secure child restraint with the vehicle’s
seat belt according to the child seat
manufacturer’s instructions. For
children larger than the typical
12-month-old child, the front passenger
front air bag may or may not be
activated (
page 80).
iDeployment of the driver front air bag does
not mean that the front passenger front air bag
also should have deployed.
The Occupant Classification System (
page 79)
may have determined:

that the seat was empty or occupied by the
weight up to or less than that of a typical
12-month-old child seated in a standard
child restraint – both instances where the
system suppresses deployment of the front
passenger front air bag even though the im-
pact met the criteria and was of sufficient
severity to deploy the driver front air bag.

that the seat was occupied by a small individ-
ual (such as a young teenager or a small
adult) or a child weighing more than the
weight of a typical 12-month-old child in a
standard child restraint – instances where
the system may suppress deployment of the
front passenger front air bag even though
the impact met the criteria and was of suffi-
cient severity to deploy the driver front air
bag.

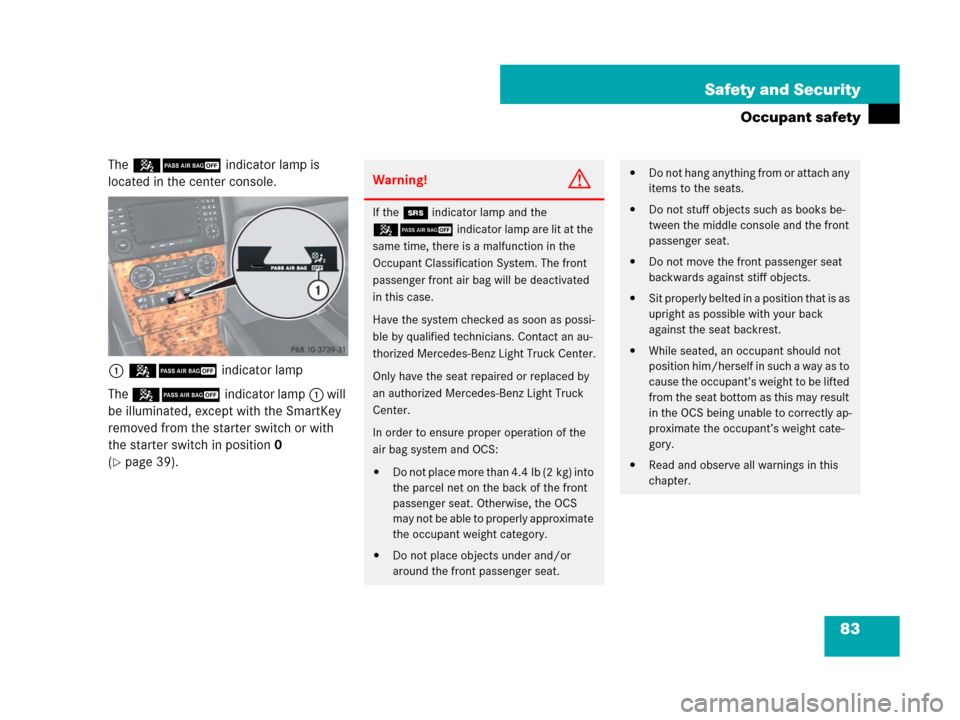

83 Safety and Security
Occupant safety
The 59indicator lamp is
located in the center console.
159indicator lamp
The 59indicator lamp1 will
be illuminated, except with the SmartKey
removed from the starter switch or with
the starter switch in position0
(
page 39).
Warning!G
If the 1indicator lamp and the
59indicator lamp are lit at the
same time, there is a malfunction in the
Occupant Classification System. The front
passenger front air bag will be deactivated
in this case.
Have the system checked as soon as possi-
ble by qualified technicians. Contact an au-
thorized Mercedes-Benz Light Truck Center.
Only have the seat repaired or replaced by
an authorized Mercedes-Benz Light Truck
Center.
In order to ensure proper operation of the
air bag system and OCS:

Do not place more than 4.4 lb (2 kg) into
the parcel net on the back of the front
passenger seat. Otherwise, the OCS
may not be able to properly approximate
the occupant weight category.

Do not place objects under and/or
around the front passenger seat.

Do not hang anything from or attach any
items to the seats.

Do not stuff objects such as books be-
tween the middle console and the front
passenger seat.

Do not move the front passenger seat
backwards against stiff objects.

Sit properly belted in a position that is as
upright as possible with your back
against the seat backrest.

While seated, an occupant should not
position him/herself in such a way as to
cause the occupant’s weight to be lifted
from the seat bottom as this may result
in the OCS being unable to correctly ap-
proximate the occupant’s weight cate-
gory.

Read and observe all warnings in this
chapter.

84 Safety and Security
Occupant safety
Self-test Occupant Classification
System
After turning the SmartKey in the starter
switch to position1 or2 or pressing the
KEYLESS-GO* start/stop button once or
twice, the 59indicator lamp
(
page 83) located in the center console
illuminates. If an adult occupant is properly
sitting on the front passenger seat and the
system senses the occupant as being an
adult, the 59indicator lamp
will illuminate and go out after approxi-
mately 6 seconds.
If the seat is not occupied and the system
senses the front passenger seat as being
empty, the 59indicator lamp
will illuminate and not go out.For more information, see the “Practical
hints” section (
page 411).
Seat belts
The use of seat belts and infant and child
restraint system is required by law in all
50 states, the District of Columbia, the
U.S. territories and all Canadian provinces.
Even where this is not the case, all vehicle
occupants should have their seat belts
fastened whenever the vehicle is in
motion.
For more information, see “Fastening the
seat belts” (
page 51).
Warning!G
If the 59indicator lamp should
not illuminate, the system is not functioning.
You must see an authorized Mercedes-Benz
Light Truck Center before seating any child
on the front passenger seat.
Warning!G
Never place anything between seat cushion
and child seat (e.g. pillow), since it reduces
the effectiveness of the Occupant Classifi-
cation System. The bottom of the child seat
must make full contact with the passenger
seat cushion. An incorrectly mounted child
seat could cause injuries to the child in case
of an accident, instead of increasing protec-
tion for the child.
Follow the manufacturer’s instructions for
installation of child seats.
iFor information on infants and children
traveling with you in the vehicle and restraint
systems for infants and children, see “Children
in the vehicle” (
page 89).

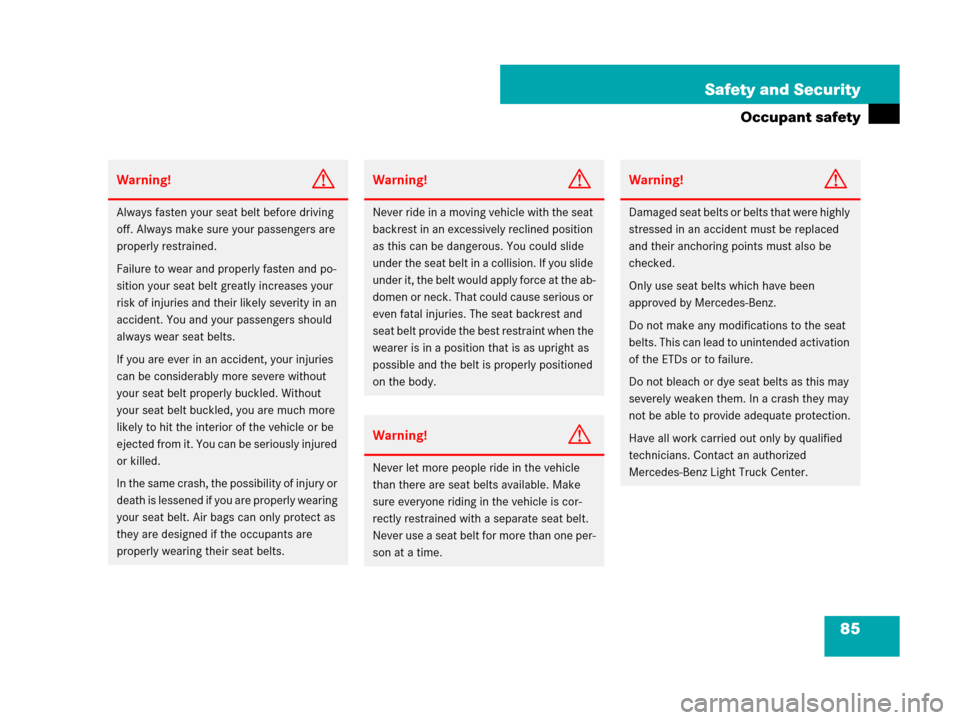

85 Safety and Security
Occupant safety
Warning!G
Always fasten your seat belt before driving
off. Always make sure your passengers are
properly restrained.
Failure to wear and properly fasten and po-
sition your seat belt greatly increases your
risk of injuries and their likely severity in an
accident. You and your passengers should
always wear seat belts.
If you are ever in an accident, your injuries
can be considerably more severe without
your seat belt properly buckled. Without
your seat belt buckled, you are much more
likely to hit the interior of the vehicle or be
ejected from it. You can be seriously injured
or killed.
In the same crash, the possibility of injury or
death is lessened if you are properly wearing
your seat belt. Air bags can only protect as
they are designed if the occupants are
properly wearing their seat belts.
Warning!G
Never ride in a moving vehicle with the seat
backrest in an excessively reclined position
as this can be dangerous. You could slide
under the seat belt in a collision. If you slide
under it, the belt would apply force at the ab-
domen or neck. That could cause serious or
even fatal injuries. The seat backrest and
seat belt provide the best restraint when the
wearer is in a position that is as upright as
possible and the belt is properly positioned
on the body.
Warning!G
Never let more people ride in the vehicle
than there are seat belts available. Make
sure everyone riding in the vehicle is cor-
rectly restrained with a separate seat belt.
Never use a seat belt for more than one per-
son at a time.
Warning!G
Damaged seat belts or belts that were highly
stressed in an accident must be replaced
and their anchoring points must also be
checked.
Only use seat belts which have been
approved by Mercedes-Benz.
Do not make any modifications to the seat
belts. This can lead to unintended activation
of the ETDs or to failure.
Do not bleach or dye seat belts as this may
severely weaken them. In a crash they may
not be able to provide adequate protection.
Have all work carried out only by qualified
technicians. Contact an authorized
Mercedes-Benz Light Truck Center.

86 Safety and Security
Occupant safety
Warning!G
USE SEAT BELTS PROPERLY

Seat belts can only work when used
properly. Never wear seat belts in any
other way than as described in this sec-
tion, as that could result in serious inju-
ries in case of an accident.

Each occupant should wear their seat
belt at all times, because seat belts help
reduce the likelihood of and potential
severity of injuries in accidents, includ-
ing rollovers. The integrated restraint
system includes SRS (driver air bag, pas-
senger front air bag, side impact air
bags, window curtain air bags for side
windows), ETD (seat belt emergency
tensioning device), and front seat knee
bolsters. The system is designed to en-
hance the protection offered to properly
belted occupants in certain frontal (front
air bags and ETD) and side (side impact,
window curtain air bags and ETD) im-
pacts which exceed preset deployment
thresholds and in certain rollovers (win-
dow curtain air bags and ETD).

Never wear the shoulder belt under your
arm, against your neck or off your shoul-
der. In a frontal crash, your body would
move too far forward. That would in-
crease the chance of head and neck in-
juries. The belt would also apply too
much force to the ribs or abdomen,
which could severely injure internal or-
gans such as your liver or spleen.

Never wear belts over rigid or breakable
objects in or on your clothing, such as
eyeglasses, pens, SmartKeys, etc., as
these might cause injuries.

Position the lap belt as low as possible
on your hips and not across the abdo-
men. If the belt is positioned across your
abdomen, it could cause serious injuries
in a crash.

Never use a seat belt for more than one
p e r s o n a t t i m e . D o n o t f a s t e n a s e a t b e l t
around a person and another person or
other objects.

Belts should not be worn twisted. In a
crash, you would not have the full width
of the belt to distribute impact forces.
The twisted belt against your body could
cause injuries.

Pregnant women should also always use
a lap-shoulder belt. The lap belt portion
should be positioned as low as possible
on the hips to avoid any possible pres-
sure on the abdomen.

Never place your feet on the instrument
panel, dashboard or on the seat. Always
keep both feet on the floor in front of the
seat.

When using a seat belt to secure infant
or toddler restraints or children in
booster seats, always follow the child
seat manufacturer’s instructions.

87 Safety and Security
Occupant safety
Enhanced seat belt reminder system
When the engine is started, the seat belt
telltale< will always illuminate
for 6 seconds to remind you and your
passengers to fasten your seat belts.
If the driver’s seat belt is not fastened
when the engine is started, an additional
warning chime will also sound for a maxi-
mum of 6 seconds or until the driver’s
seat belt is fastened.
If after these 6 seconds the driver’s or the
front passenger’s seat belt (with the front
passenger seat occupied) is not fastened
with front doors closed,

the seat belt telltale< remains illu-
minated for as long as either the driv-
er’s or front passenger’s seat belt is not
fastened

and if the vehicle speed once exceeds
15 mph (25 km/h), the seat belt
telltale< starts flashing and a
warning chime sounds with increasing
intensity for a maximum of 60 seconds
or until the driver’s and the front
passenger’s seat belt are fastened
If the driver’s or the front passenger’s
seat belt remains unfastened after
60 seconds, the warning chime stops
sounding, the seat belt telltale<
stops flashing but continues to be illu-
minated.
The seat belt telltale< will only go out
if both the driver’s and the front passen-
ger’s seat belt (with the front passenger
seat occupied) are fastened, or the vehicle
is standing still and a front door is opened.
For more information, see “Practical hints”
(
page 406).Emergency Tensioning Device (ETD),
seat belt force limiter
The seat belts for the front seats and rear
outer seats are equipped with emergency
tensioning devices and seat belt force
limiters.
The ETD is designed to activate in the
following cases:

in frontal or rear-end impacts
exceeding the system deployment
threshold

in certain vehicle rollovers

if the restraint systems are operational
and functioning correctly, see
1indicator lamp (
page 410)
iThe ETDs for the front seats will only acti-
vate if the respective front seat belt is fastened
(latch plate properly inserted into buckle).
The ETDs for the rear outer seats will activate
with or without the respective seat belt fastened.
