2008 MERCEDES-BENZ ML63AMG Owner's Manual

32 At a glance

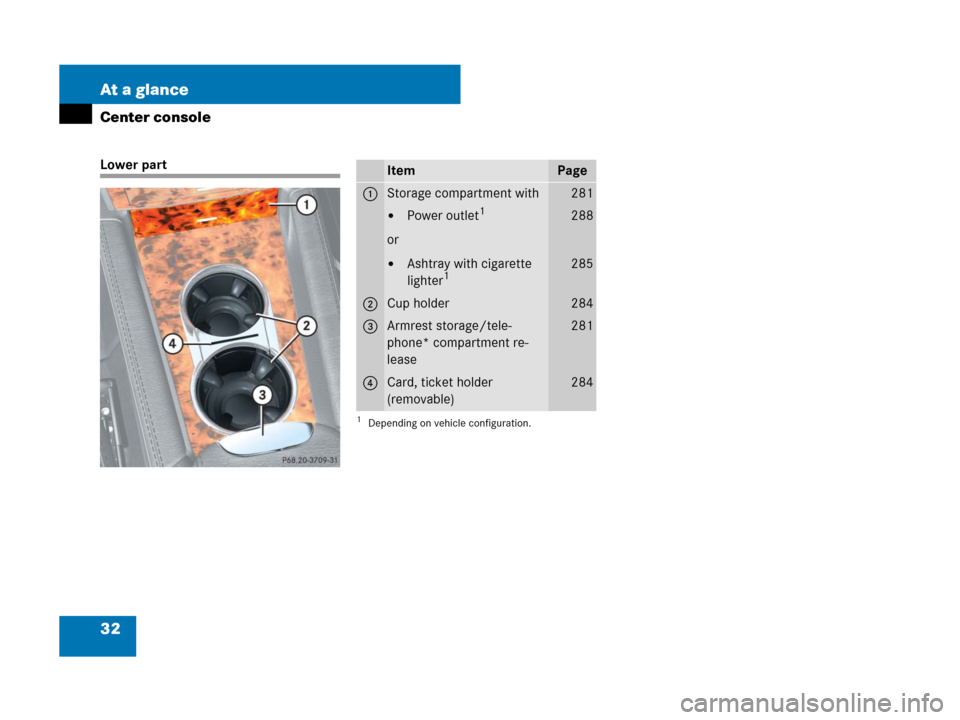

Center console
Lower partItemPage
1Storage compartment with281

Power outlet1
or

Ashtray with cigarette
lighter1
1Depending on vehicle configuration.
288
285
2Cup holder284
3Armrest storage/tele-
phone* compartment re-
lease281
4Card, ticket holder
(removable)284

33 At a glance
Overhead control panel
Overhead control panel
ItemPage
1Left reading lamp switch142
2Rear interior lighting switch142
3Automatic interior lighting
switch142
4Front interior lighting switch142
5Right reading lamp switch142
6Front right interior lamp142
7Power tilt/sliding sunroof
switch240
8Tele Aid (emergency call
system) button297
9Interior rear view mirror199
aFront right reading lamp142
ItemPage
bFront left reading lamp142
cGarage door opener302
dVehicles without
telephone* installed:
Hands-free microphone for
Tele Aid (emergency call
system)294
eVehicles with telephone*
installed:
Hands-free microphone for
Tele Aid (emergency call
system) and telephone*294
fFront left interior lamp142

34 At a glance

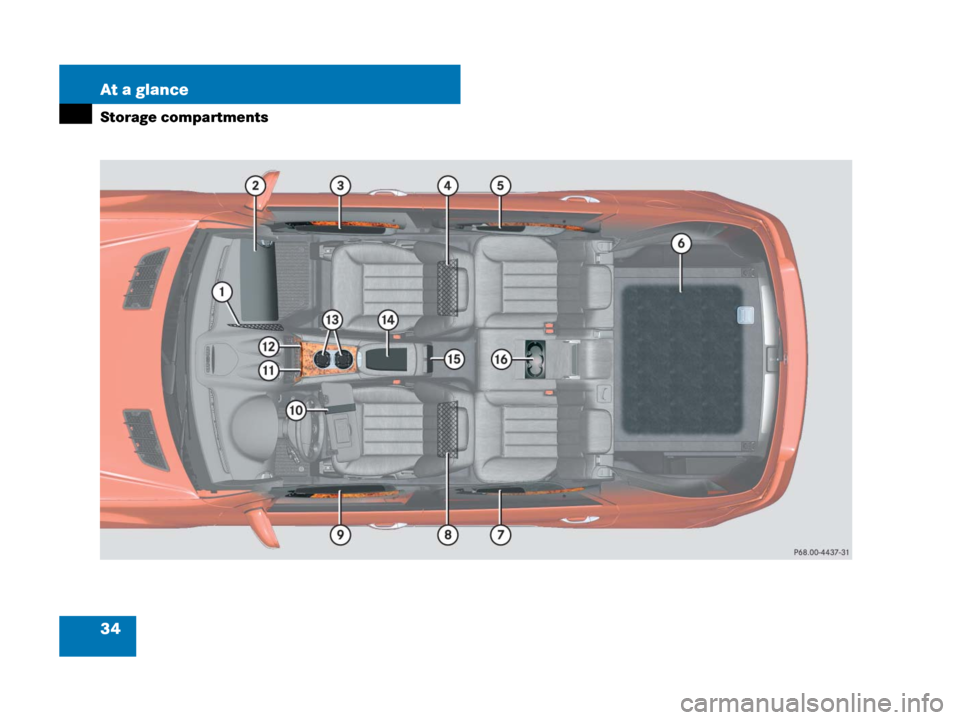

Storage compartments

35 At a glance
Storage compartments
ItemPage
1Parcel net in front passen-
ger footwell283
2Glove box/CD changer*279
3Door pocket
4Parcel net on front passen-
ger seat backrest283
5Door pocket
6Vehicle tool kit, spare wheel448
7Door pocket
8Parcel net on driver’s seat
backrest283
9Door pocket
aHolder for gas cards202
ItemPage
bStorage compartment (de-
pending on equipment con-
figuration for your model)281
cDepending on vehicle con-
figuration:
Storage compartment
Ashtray
281
285
dCup holders284
eStorage/telephone* com-
partment with coin holder281
fRear storage compartments282
gCup holder in rear armrest284

36 At a glance
Door control panel
ItemPage
1Inside door handle118
2Central unlocking switch
Central locking switch126
126
3Exterior rear view mirror
adjustment49
4Selection buttons for exteri-
or rear view mirror adjust-
ment
Power-folding exterior rear
view mirrors*49
200
5Switches for opening/clos-
ing front and rear door
windows235
6Rear door window override
switch96
7Remote tailgate release
switch, power tailgate*121,
119

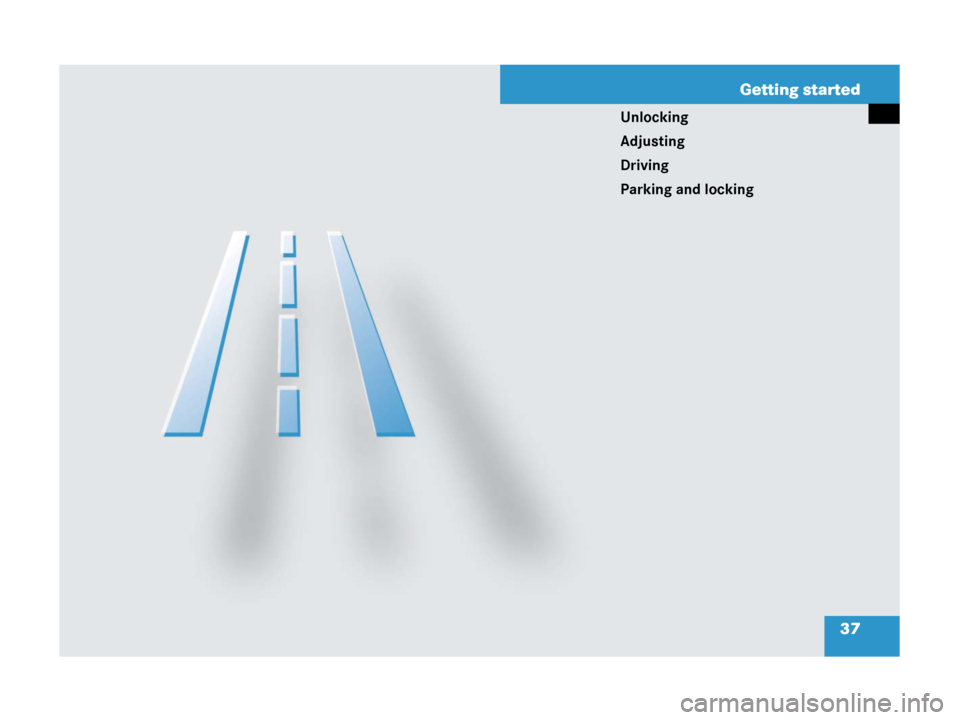

37 Getting started
Unlocking
Adjusting
Driving
Parking and locking

38 Getting started
The “Getting started” section provides an
overview of the vehicle’s most basic func-
tions. First-time Mercedes-Benz owners
should pay special attention to the infor-
mation given here.
If you are already familiar with the basic
functions described here, the “Controls in
detail” section will provide you with further
information. The corresponding page
references are located at the end of each
segment.
Unlocking
Unlocking with the SmartKey
SmartKey
1‹Lock button
2ŠUnlock button* for tailgate
3ŒUnlock button
4ÂPanic button (
page 97)
Press unlock buttonΠon the
SmartKey.
All turn signal lamps flash once. The
vehicle unlocks. The locking knobs in
the doors move up. The anti-theft alarm
system is disarmed. The locator light-
ing comes on if the feature is enabled
in the control system (
page 171).
Enter the vehicle and insert the
SmartKey in the starter switch.
For more information, see “Locking and
unlocking” (
page 110).
Warning!G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. A child’s
unsupervised access to a vehicle could
result in an accident and/or serious
personal injury.

39 Getting started
Unlocking
Unlocking with KEYLESS-GO*
With the KEYLESS-GO function, you can
lock or unlock the vehicle without using
the remote control buttons on the
SmartKey and start the engine without in-
serting the SmartKey into the starter
switch.Grasp an outside door handle.
All turn signal lamps flash once. The ve-
hicle unlocks. The locking knobs in the
doors move up. The anti-theft alarm
system is disarmed. The locator light-
ing comes on if the feature is enabled
in the control system (
page 171).
Enter the vehicle.
For more information, see “SmartKey with
KEYLESS-GO*” (
page 113).
Starter switch positions
iTo unlock the vehicle, the SmartKey with
KEYLESS-GO must be outside the vehicle, no
further than approximately 3 feet (1 meter) away
from the respective door.
Warning!G
When leaving the vehicle, always take the
SmartKey with KEYLESS-GO* with you, and
lock the vehicle. Do not leave children
unattended in the vehicle, or with access to
an unlocked vehicle. A child’s unsupervised
access to a vehicle could result in an
accident and/or serious personal injury.
i If the vehicle has been parked for more than
72 hours, you must pull an outside door handle
in order to activate the KEYLESS-GO function.
Warning!G
When leaving the vehicle, always remove the
SmartKey or SmartKey with KEYLESS-GO*
from the starter switch, take it with you and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. A child’s unsupervised
access to a vehicle could result in an
accident and/or serious personal injury.
