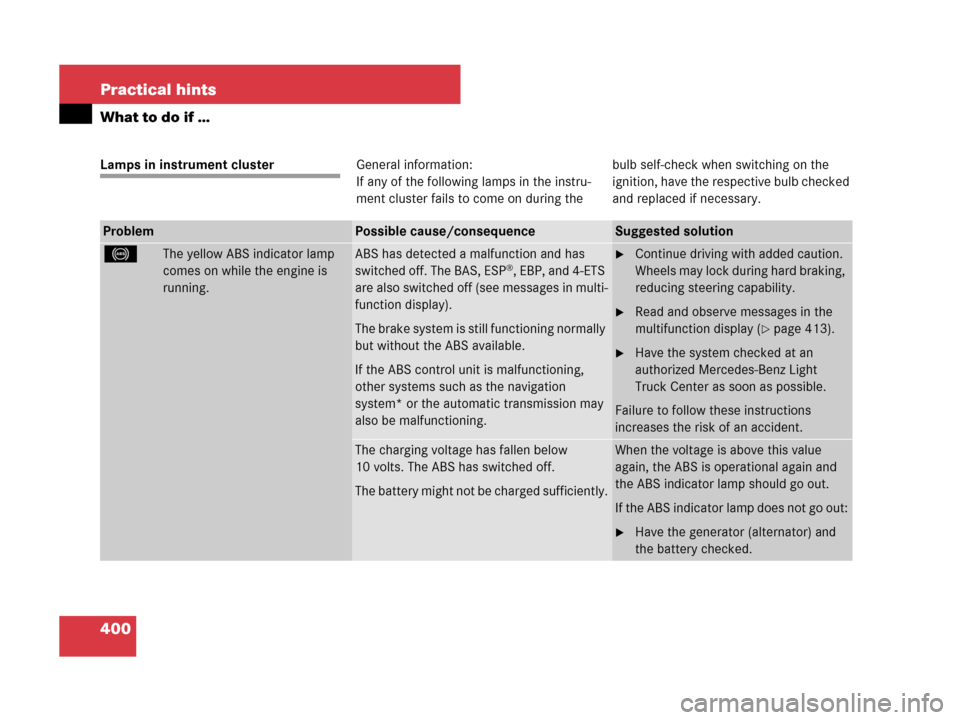

400 Practical hints
What to do if …
Lamps in instrument clusterGeneral information:
If any of the following lamps in the instru-
ment cluster fails to come on during thebulb self-check when switching on the
ignition, have the respective bulb checked
and replaced if necessary.
ProblemPossible cause/consequenceSuggested solution
-The yellow ABS indicator lamp
comes on while the engine is
running.ABS has detected a malfunction and has
switched off. The BAS, ESP®, EBP, and 4-ETS
are also switched off (see messages in multi-
function display).
The brake system is still functioning normally
but without the ABS available.
If the ABS control unit is malfunctioning,
other systems such as the navigation
system* or the automatic transmission may
also be malfunctioning.
Continue driving with added caution.
Wheels may lock during hard braking,
reducing steering capability.
Read and observe messages in the
multifunction display (
page 413).
Have the system checked at an
authorized Mercedes-Benz Light
Truck Center as soon as possible.
Failure to follow these instructions
increases the risk of an accident.
The charging voltage has fallen below
10 volts. The ABS has switched off.
The battery might not be charged sufficiently.When the voltage is above this value
again, the ABS is operational again and
the ABS indicator lamp should go out.
If the ABS indicator lamp does not go out:
Have the generator (alternator) and
the battery checked.

401 Practical hints
What to do if …
ProblemPossible cause/conse-
quenceSuggested solution
-The yellow ABS indicator lamp comes on while
the engine is running.The self-diagnosis has not yet
been completed yet.The display will clear after driving a short
distance at a vehicle speed of above
12 mph (20 km/h).
;(USA only)
3(Canada only)
The red brake warning lamp
comes on while driving and an
acoustic warning sounds.You are driving with the
parking brake set.Release the parking brake
(
page 57).
There is insufficient brake fluid
in the reservoir.Risk of accident! Carefully stop the
vehicle in a safe location or as soon as
it is safe to do so.
Apply the parking brake (page 65).
Contact an authorized
Mercedes-Benz Light Truck Center.
Do not add brake fluid! This will not
solve the problem.
Warning!G
Driving with the brake warning lamp illumi-
nated can result in an accident. Have your
brake system checked immediately if the
brake warning lamp stays on.
Do not add brake fluid before checking the
brake system. Overfilling the brake fluid res-
ervoir can result in spilling brake fluid on hot
engine parts and the brake fluid catching
fire. You can be seriously burned.!If you find that the brake fluid in the brake
fluid reservoir has fallen to the minimum mark or
below, have the brake system checked for brake
pad thickness and leaks.

402 Practical hints
What to do if …
ProblemPossible cause/conse-
quenceSuggested solution
;(USA only)
3(Canada only)
-
v
The red brake warning lamp
comes on while driving. In
addition, the yellow ABS mal-
function indicator lamp, and
the yellow ESP
® warning lamp
come on and an acoustic warn-
ing sounds.
The Electronic Brake Propor-
tioning (EBP) has switched off
due to a malfunction.
The ABS, the BAS, and the
ESP
® are also switched off.
Have the system checked at an autho-
rized Mercedes-Benz Light Truck
Center as soon as possible.
Failure to follow these instructions
increases the risk of an accident.

403 Practical hints
What to do if …
ProblemPossible cause/consequenceSuggested solution
?(USA only)
±(Canada only)
The yellow engine malfunc-
tion indicator lamp comes on
while driving.There is a malfunction in:

The fuel management system

The ignition system

The emission control system

Systems which affect
emissions
Such malfunctions may result in
excessive emissions values and
may switch the engine to its
limp-home (emergency opera-
tion) mode.
Have the vehicle checked as soon as
possible by an authorized
Mercedes-Benz Light Truck Center.
An on-board diagnostic connector is
used by the service station to link the
vehicle to the shop diagnostics
system. It allows the accurate identi-
fication of system malfunctions
through the readout of diagnostic
trouble codes. It is located in the
front left area of the footwell next to
the parking brake pedal.
iSome states may by law require you to visit
a workshop as soon as the engine malfunction
indicator lamp comes on. Check local require-
ments.

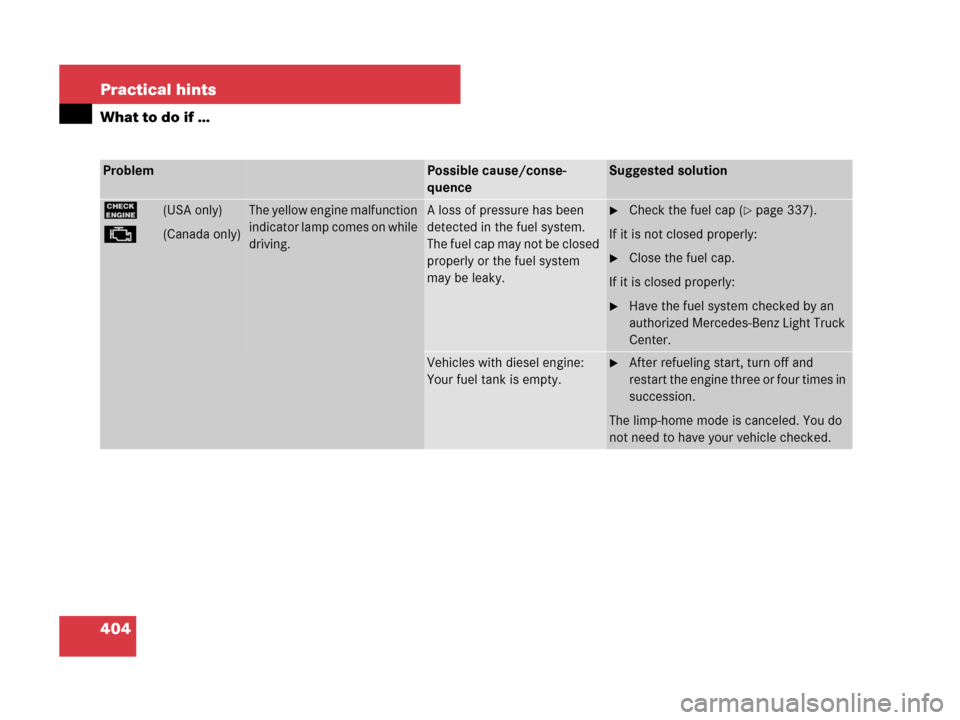

404 Practical hints
What to do if …
ProblemPossible cause/conse-
quenceSuggested solution
?(USA only)
±(Canada only)
The yellow engine malfunction
indicator lamp comes on while
driving.A loss of pressure has been
detected in the fuel system.
The fuel cap may not be closed
properly or the fuel system
may be leaky.Check the fuel cap (page 337).
If it is not closed properly:
Close the fuel cap.
If it is closed properly:
Have the fuel system checked by an
authorized Mercedes-Benz Light Truck
Center.
Vehicles with diesel engine:
Your fuel tank is empty.After refueling start, turn off and
restart the engine three or four times in
succession.
The limp-home mode is canceled. You do
not need to have your vehicle checked.

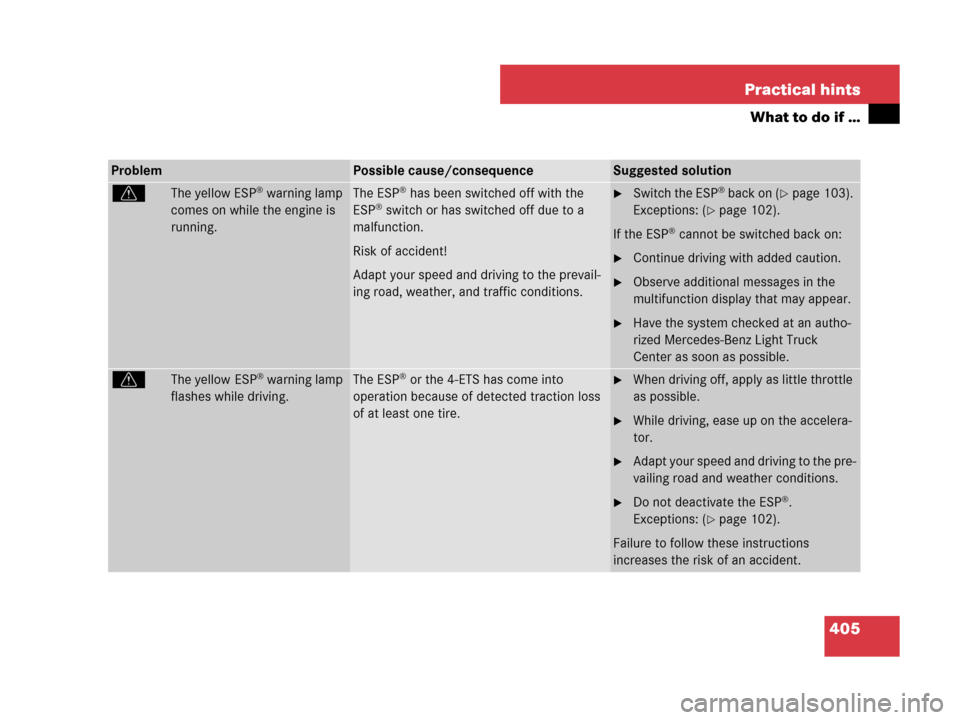

405 Practical hints
What to do if …
ProblemPossible cause/consequenceSuggested solution
vThe yellow ESP® warning lamp
comes on while the engine is
running.The ESP® has been switched off with the
ESP® switch or has switched off due to a
malfunction.
Risk of accident!
Adapt your speed and driving to the prevail-
ing road, weather, and traffic conditions.
Switch the ESP® back on (page 103).
Exceptions: (
page 102).
If the ESP
® cannot be switched back on:
Continue driving with added caution.
Observe additional messages in the
multifunction display that may appear.
Have the system checked at an autho-
rized Mercedes-Benz Light Truck
Center as soon as possible.
vThe yellow ESP® warning lamp
flashes while driving.The ESP® or the 4-ETS has come into
operation because of detected traction loss
of at least one tire.When driving off, apply as little throttle
as possible.
While driving, ease up on the accelera-
tor.
Adapt your speed and driving to the pre-
vailing road and weather conditions.
Do not deactivate the ESP®.
Exceptions: (
page 102).
Failure to follow these instructions
increases the risk of an accident.

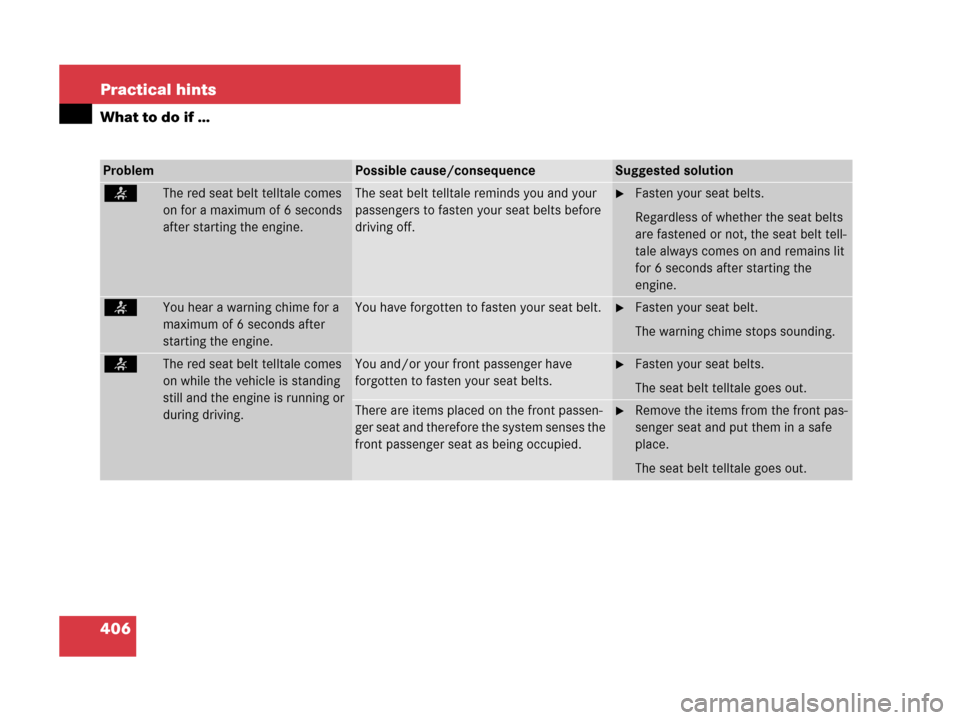

406 Practical hints
What to do if …
ProblemPossible cause/consequenceSuggested solution
on for a maximum of 6 seconds
after starting the engine.The seat belt telltale reminds you and your
passengers to fasten your seat belts before
driving off.Fasten your seat belts.
Regardless of whether the seat belts
are fastened or not, the seat belt tell-
tale always comes on and remains lit
for 6 seconds after starting the
engine.
maximum of 6 seconds after
starting the engine.You have forgotten to fasten your seat belt.Fasten your seat belt.
The warning chime stops sounding.
on while the vehicle is standing
still and the engine is running or
during driving.You and/or your front passenger have
forgotten to fasten your seat belts.Fasten your seat belts.
The seat belt telltale goes out.
There are items placed on the front passen-
ger seat and therefore the system senses the
front passenger seat as being occupied.Remove the items from the front pas-
senger seat and put them in a safe
place.
The seat belt telltale goes out.

407 Practical hints
What to do if …
ProblemPossible cause/consequenceSuggested solution
telltale flashes and you addition-
ally hear an intermittent warning
chime with increasing intensity.The vehicle’s speed once exceeded 15 mph
(25 km/h) and you and/or your front pas-
senger have forgotten to fasten your seat
belts.Fasten your seat belts.
The seat belt telltale goes out and the
warning chime stops sounding.
There are items placed on the front passen-
ger seat and therefore the system senses the
front passenger seat as being occupied.Remove the items from the front pas-
senger seat and put them in a safe
place.
The seat belt telltale goes out and the
warning chime stops sounding.
iAfter 60 seconds with an unfastened seat
belt on one of the front seats, the warning chime
stops sounding and the seat belt telltale
illuminates continuously. The seat belt telltale
will only go out if both, the driver and front
passenger’s seat belt are fastened, or the vehi-
cle is standing still and a front door is opened.
